What Comes in an AutoPot 1Pot Module

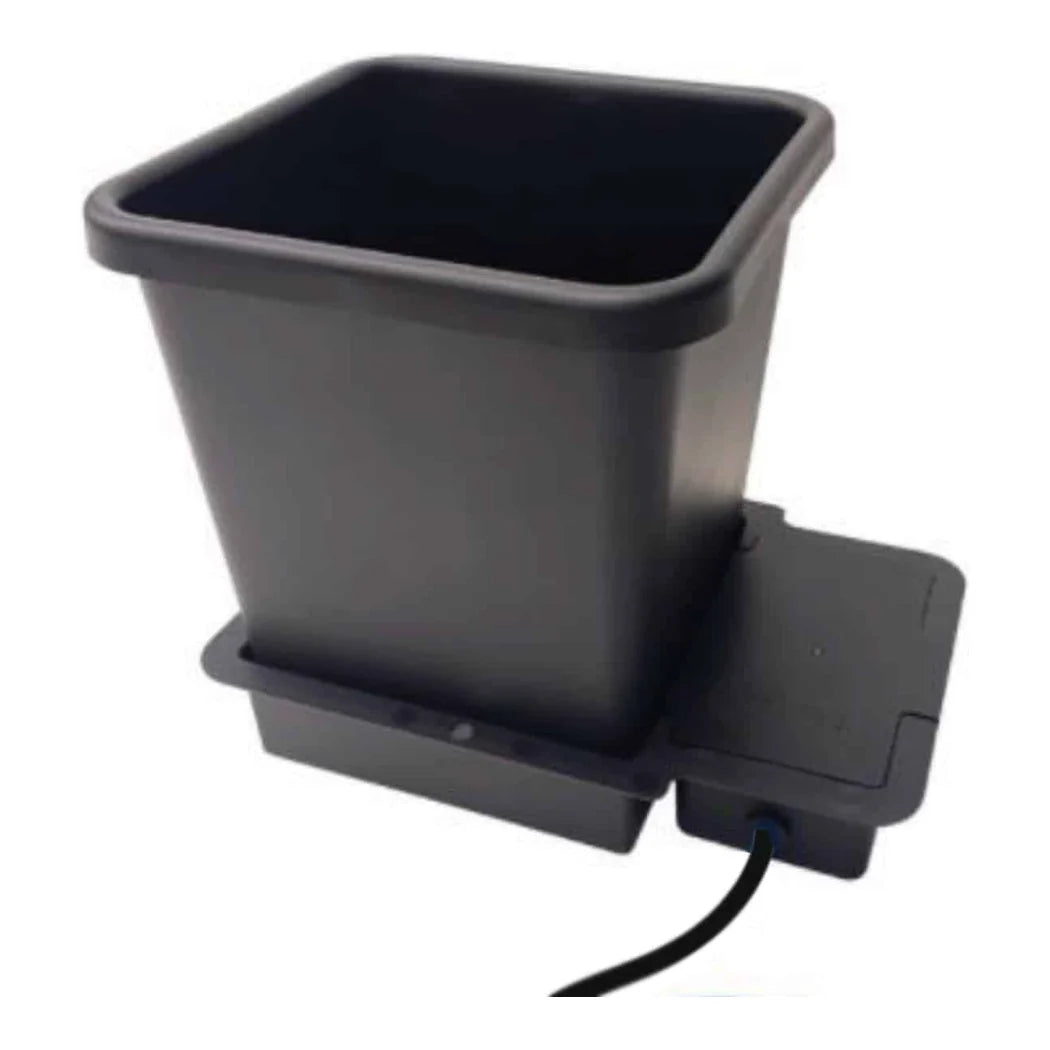

A tray and lid, a 3.9 gallon pot, one AQUAvalve and a root control disc. Also a length of pipe and two tees, for cutting into a line that already runs. There is no tank in the box. This is the part you add when the system works and you want another plant on it. The trays move freely, so pots can be spaced further apart as the plants fill out.
Running a Self Watering System That Has No Pump
Everything moves on gravity, so the reservoir has to sit at least 150 mm above the highest AQUAvalve, roughly six inches. The valve fills the tray, lets the plant draw it down, then refills, which is the wet and dry cycle the roots actually want. Pot up and leave the plant to establish for 7 to 12 days at this pot size before you open the tap. Refill the reservoir at about one third remaining and never let it run dry. After topping up, close the tap for 30 to 60 minutes so sediment settles rather than travelling into the pipework. One thing to check before adding a module. An AQUAvalve4 line runs 1/4 in pipe and an AQUAvalve5 line runs 3/8 in, and the fittings do not cross.
Key Features
- 3.9 gallon pot, tray and lid: The standard 1Pot footprint, so it sits alongside the modules you already run.
- AQUAvalve included: The valve is what creates the wet and dry cycle without a pump or a timer.
- Two tees in the box: Cuts into a line that is already running rather than needing its own feed.
- Root control disc: Keeps roots inside the pot and away from the valve.
- No tank: This is an expansion. The reservoir you already have does the work.
- Trays move freely: Space the pots further apart as the plants fill out mid-run.
- Match the valve generation: AQUAvalve4 runs 1/4 in pipe, AQUAvalve5 runs 3/8 in. Check yours first.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AutoPot USA |
| Part Number | APWS100 |
| Type | Expansion module for an existing AutoPot system |
| Pot Volume | 3.9 gallon |
| Includes | Tray and lid, pot, AQUAvalve, root control disc, pipe, two tees, instructions |
| Not Included | Reservoir, tank fittings and filter |
| Power Required | None. Gravity fed |
| Minimum Reservoir Height | 150 mm, about 6 in above the highest AQUAvalve |
| Establishment Period | 7 to 12 days at 3.9 gallon before switching on |
| Refill Point | About one third of the solution remaining |
| After Refilling | Close the tap for 30 to 60 minutes so sediment settles |
| Pipe Sizing | AQUAvalve4 uses 1/4 in, AQUAvalve5 uses 3/8 in |
| Substrate | About 50% perlite or clay pebbles with soil or coco |
| Base Layer | Up to 1 in of pH stable clay pebbles, pea gravel or coarse perlite |
| Nutrients | Mineral feeds go straight in the reservoir |
| Larger Pot Option | 1Pot XL module at 6.6 gallon |
