What an AutoPot 1Pot XL Module Adds

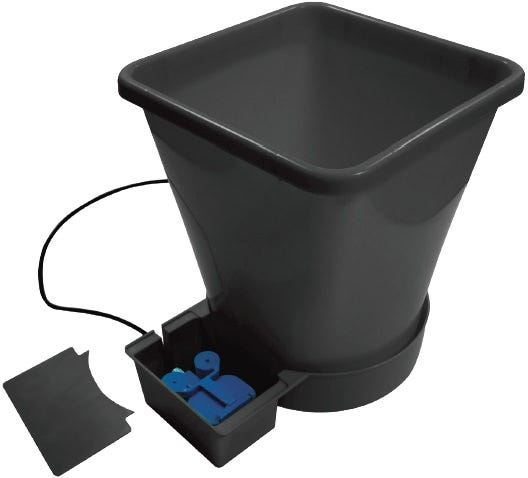

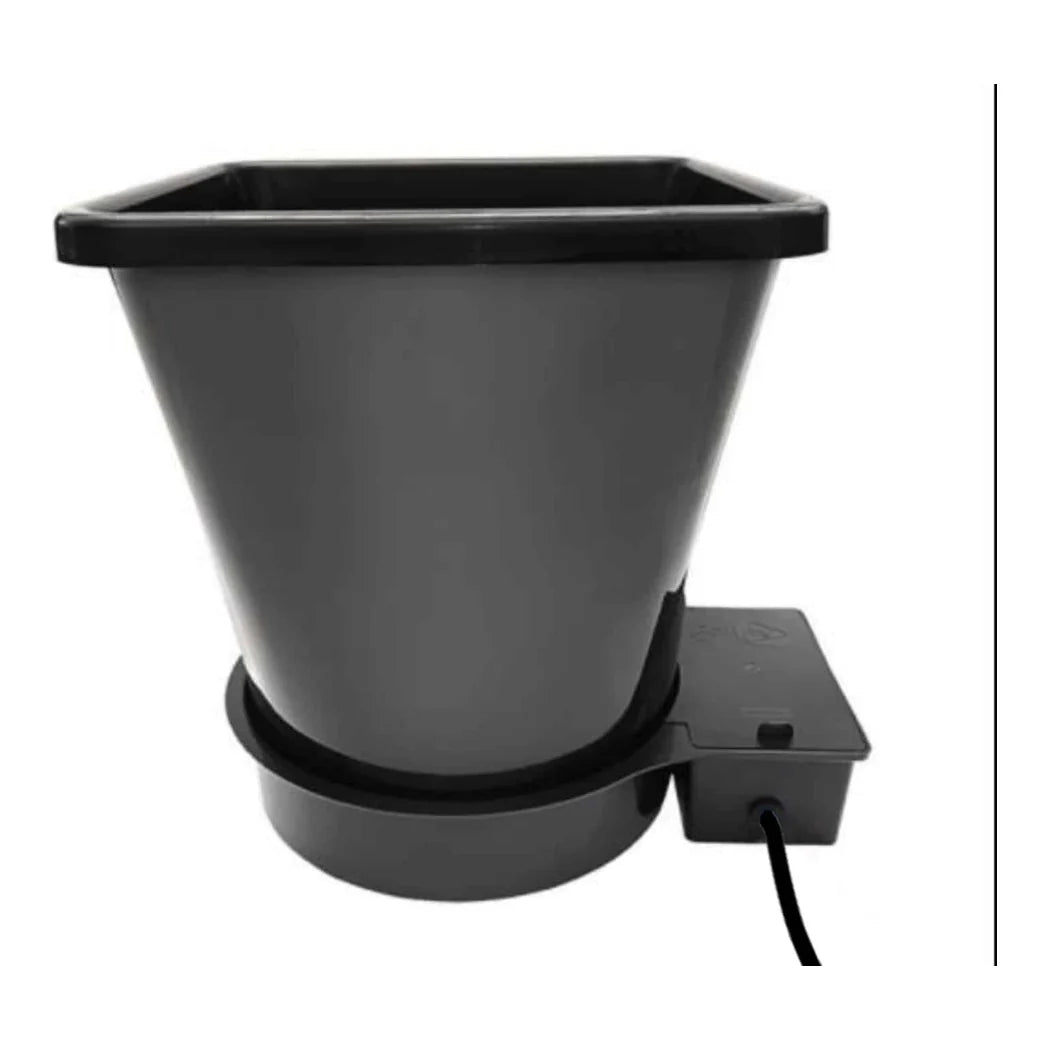

A 6.6 gallon pot with the XL tray and lid under it, one AQUAvalve and a round root control disc. There is also a length of pipe and two tees, for cutting into a line that already runs. There is no tank in the box. The extra volume over the standard 3.9 gallon pot is the whole point of the XL. It lets a plant carry a larger root mass through flower without the medium drying between fills.
Adding a Pot to an AutoPot XL System
Gravity does the work, so the reservoir sits at least 150 mm above the highest AQUAvalve, roughly six inches. The valve floods the tray, waits for the plant to draw it down, and refills, giving roots the wet and dry swing they want. This pot size wants longer to settle in. Leave the plant 10 to 14 days before opening the tap, where the smaller pot only needs a week or so. Refill the tank at about one third remaining and never let it empty. Keep the tap shut for 30 to 60 minutes afterwards, so sediment drops out. Check your pipe before adding a module. An AQUAvalve4 line runs 1/4 in and an AQUAvalve5 line runs 3/8 in, and the two do not connect.
Key Features
- 6.6 gallon pot: Roughly seventy percent more medium than the standard 3.9 gallon module.
- XL tray and lid: Sized to the bigger pot, and free to move as the plant spreads.
- AQUAvalve included: Creates the wet and dry cycle with no pump, timer or power involved.
- Round root control disc: The XL disc shape, keeping roots in the pot and away from the valve.
- Two tees in the box: For cutting into a line that is already running rather than a new feed.
- Tank not included: This is the expansion. Your existing reservoir carries it.
- Longer to establish: 10 to 14 days at this pot size, against 7 to 12 for the 3.9 gallon.
- Match the valve generation: AQUAvalve4 runs 1/4 in pipe and AQUAvalve5 runs 3/8 in. Check yours.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AutoPot USA |
| Part Number | APWS150 |
| Type | XL expansion module for an existing AutoPot system |
| Pot Volume | 6.6 gallon |
| Includes | XL tray and lid, pot, AQUAvalve, round root control disc, pipe, two tees, instructions |
| Not Included | Reservoir, tank fittings and filter |
| Power Required | None. Gravity fed |
| Minimum Reservoir Height | 150 mm, about 6 in above the highest AQUAvalve |
| Establishment Period | 10 to 14 days at 6.6 gallon before switching on |
| Refill Point | About one third of the solution remaining |
| After Refilling | Close the tap for 30 to 60 minutes so sediment settles |
| Pipe Sizing | AQUAvalve4 uses 1/4 in, AQUAvalve5 uses 3/8 in |
| Substrate | About 50% perlite or clay pebbles with soil or coco |
| Nutrients | Mineral feeds go straight in the reservoir |
| Smaller Pot Option | 1Pot module at 3.9 gallon |
