How a Breathable Wall Panel Blocks Light and Not Air

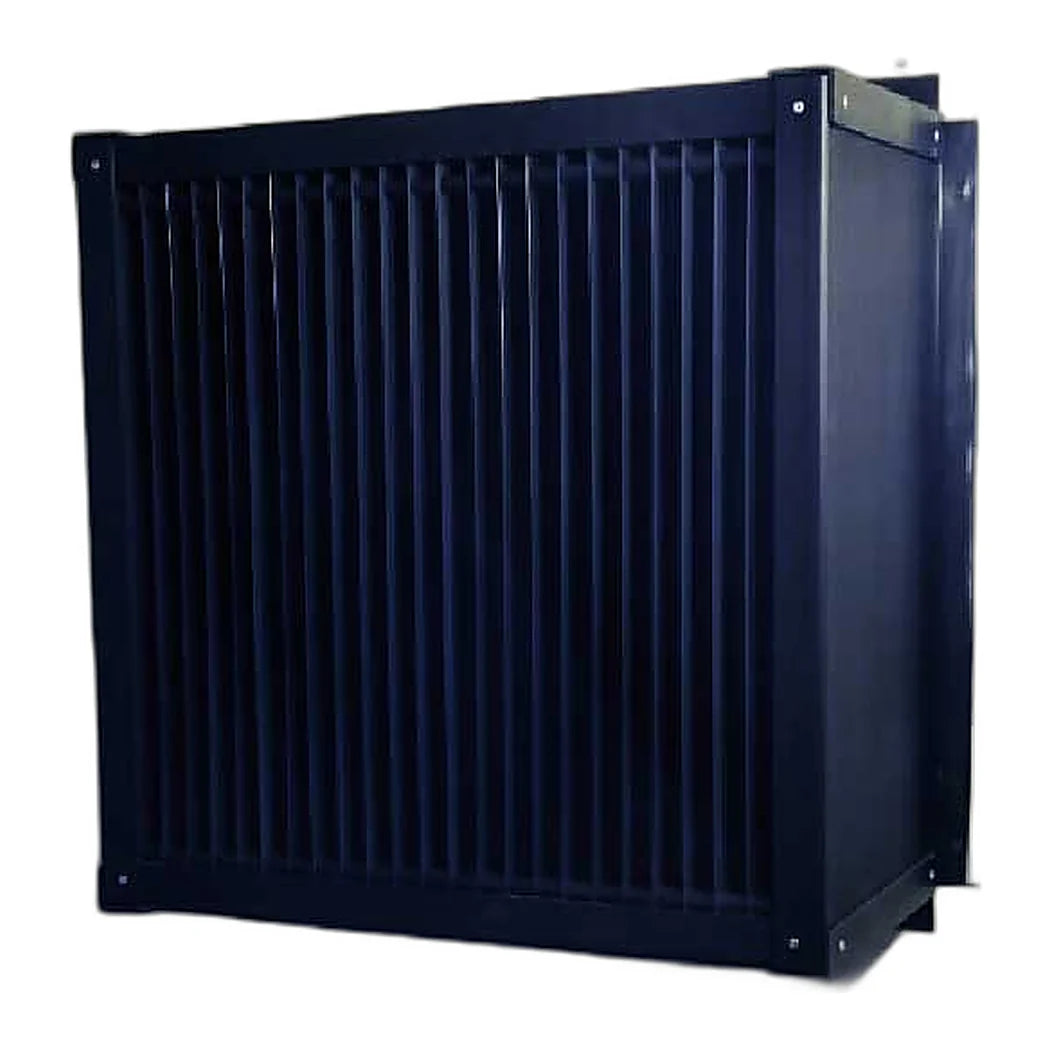

Fins are what make this work. Air takes a straight path between them while light, which travels only in straight lines, hits a baffle and stops. The panel covers a 14 by 14 in opening and arrives with its flush mount frame. That is the second size up in a seven-size range. Free area through the fins is what determines how hard a fan has to pull. A bigger opening means less resistance for the same airflow, which is the real argument for sizing up. The material is rigid, so it carries itself across the span without sagging. It mounts into a wall cut-out, across a shared wall, or straight over a fan housing. An adaptor plate connects duct, filters or a fan behind it. Custom kits reach 96 in wide with fins to 16 in deep.
Sizing One Into a Grow Room Ventilation Run
Grow room ventilation gets harder as the room gets tighter. Every sealed space needs exchange, and every opening cut for it is a light leak unless something covers it. Match the panel to the fan rather than to the wall. A panel much smaller than the duct feeding it becomes the restriction. The fan then fights it for the life of the room. Cross-ventilation is the usual layout, with intake low on one side and exhaust high on the other. Interior walls are the recommended placement. Outside, keep it clear of direct sun, because intense light eventually finds a path through any baffle. The honest limit is that this is a passive part with no moving components to blame. If the numbers do not add up, the fan or the duct run is the problem.
Key Features
- Opening size: Covers a 14 by 14 in ventilation opening
- Blackout: Rigid fin material passes air while blocking all light
- Mounting: Flush mount frame fits a wall cut-out or an existing fan
- Ducting: An adaptor plate connects duct, fans or filters behind it
- Free area: A larger face means less resistance for the same airflow
- Placement: Built for interior walls, and kept out of direct sun outdoors
- Other sizes: Seven stock sizes, plus custom kits up to 96 in wide
Technical Specifications
| Specification | Value |
|---|---|
| Model | FFBW1414 |
| Opening size | 14 x 14 in |
| Frame | Flush mount, included |
| Material | Rigid finned blackout panel |
| Airflow | Full passage through the fins |
| Light transmission | None through the fins |
| Mounting options | Wall cut-out, shared wall, or directly over a fan |
| Ducting | Adaptor plate connects duct, fans and filters |
| Stock sizes | 12x12, 14x14, 16x16, 21x21, 30x30, 36x36, 42x42 in |
| Custom | Unassembled kits to 96 in wide, fins to 16 in deep |
| Recommended use | Interior walls; keep out of intense sunlight outdoors |
