California Lightworks MegaDrive Under Canopy LED System | Commercial

California Lightworks MegaDrive Under Canopy LED for Commercial Rooms

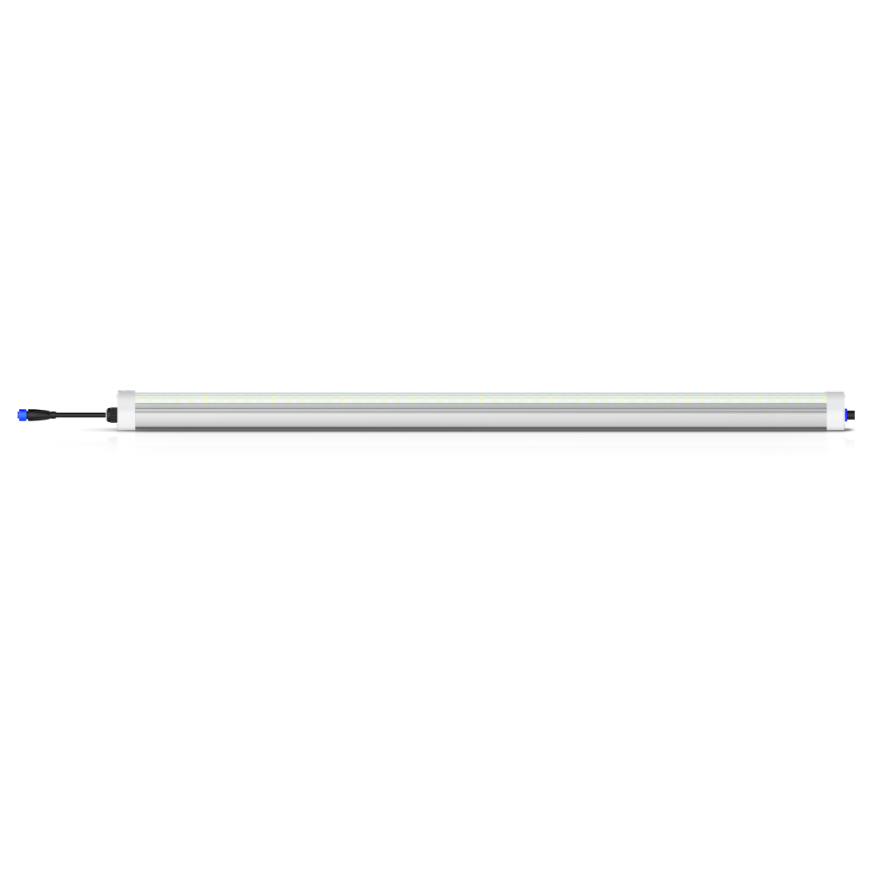

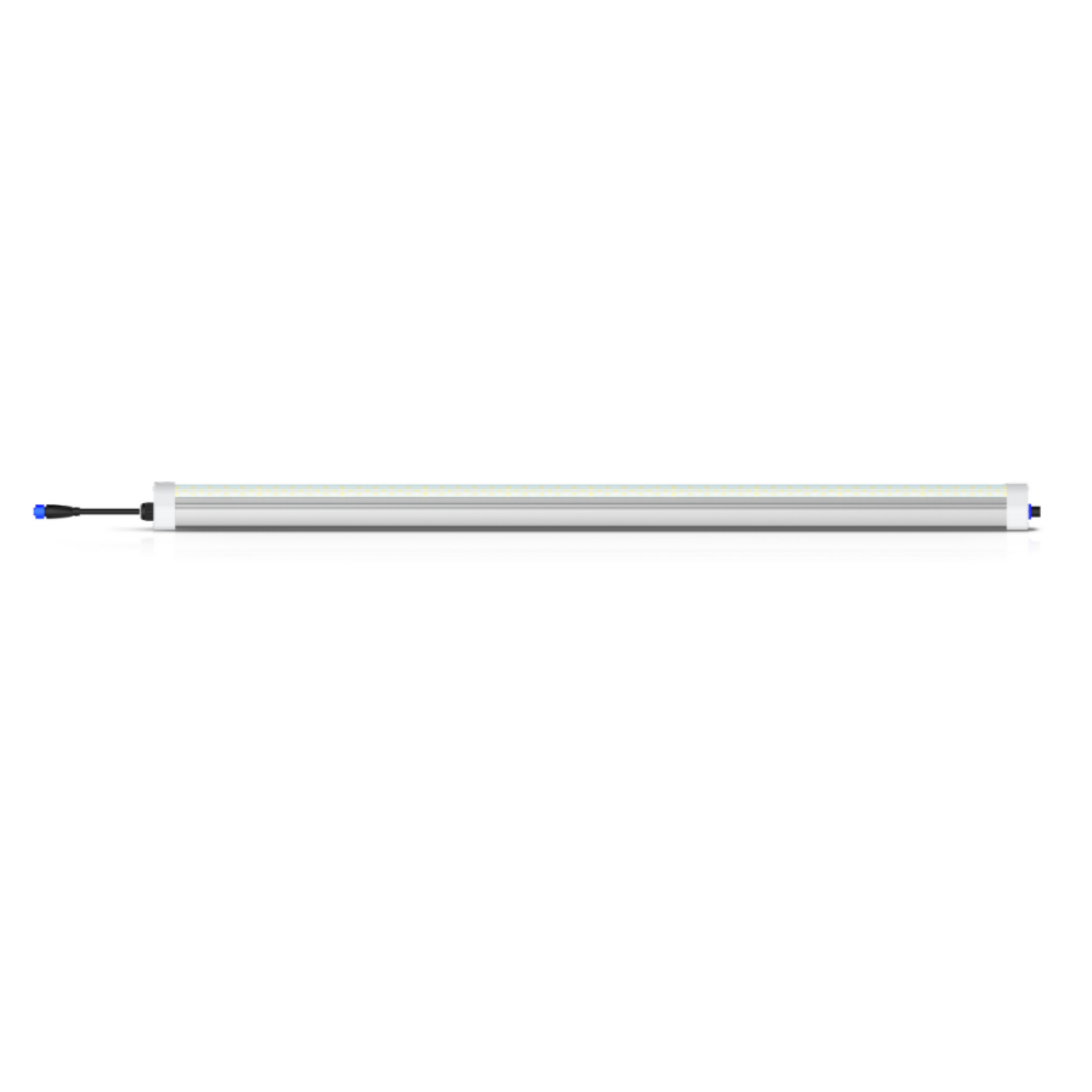

The MegaDrive Under Canopy bar draws 120W and pushes 350 µmol/s up into the lower bud sites overhead fixtures shadow out. V-shaped boards angle a deep-red-enriched spectrum toward the inner stalks of a bench row. At 2.6 µmol/J, each 52-inch bar adds photons where multi-tier and side-lit canopies need them. California Lightworks reports yield gains up to 30% paired with a tuned overhead spectrum.

Configurable under canopy LED grow light on centralized power

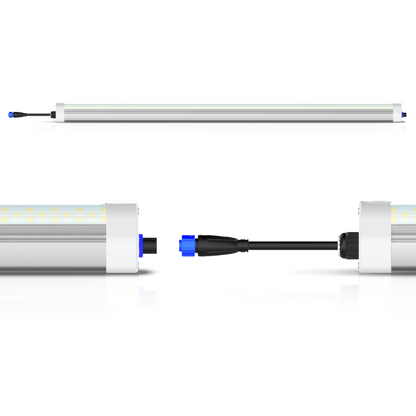

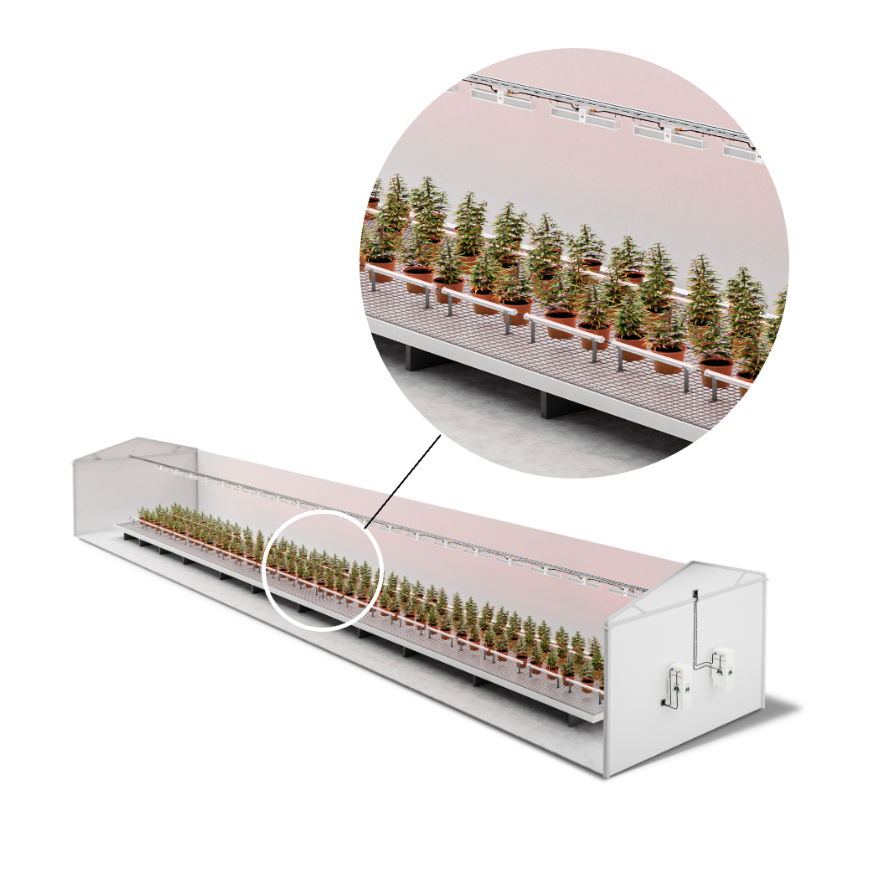

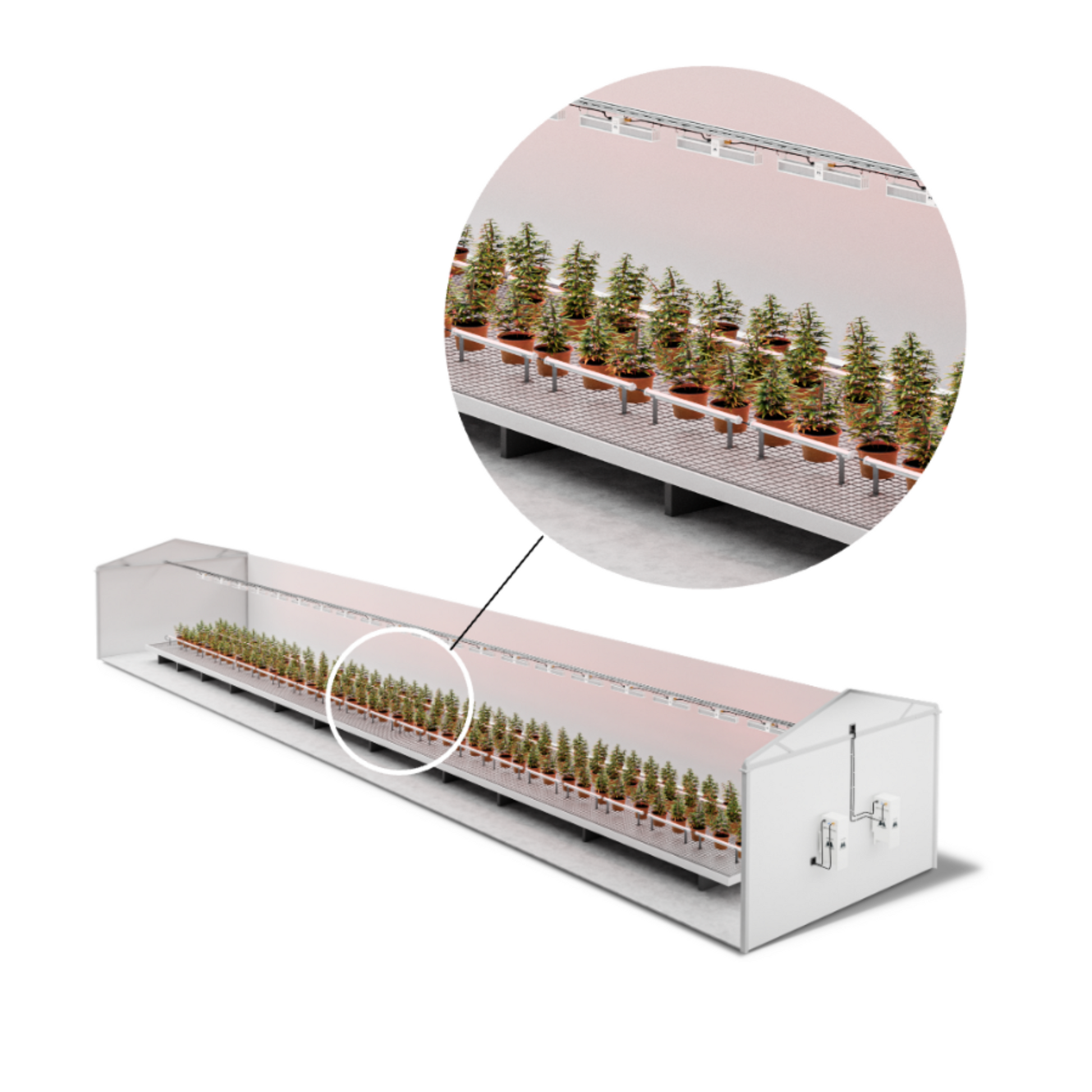

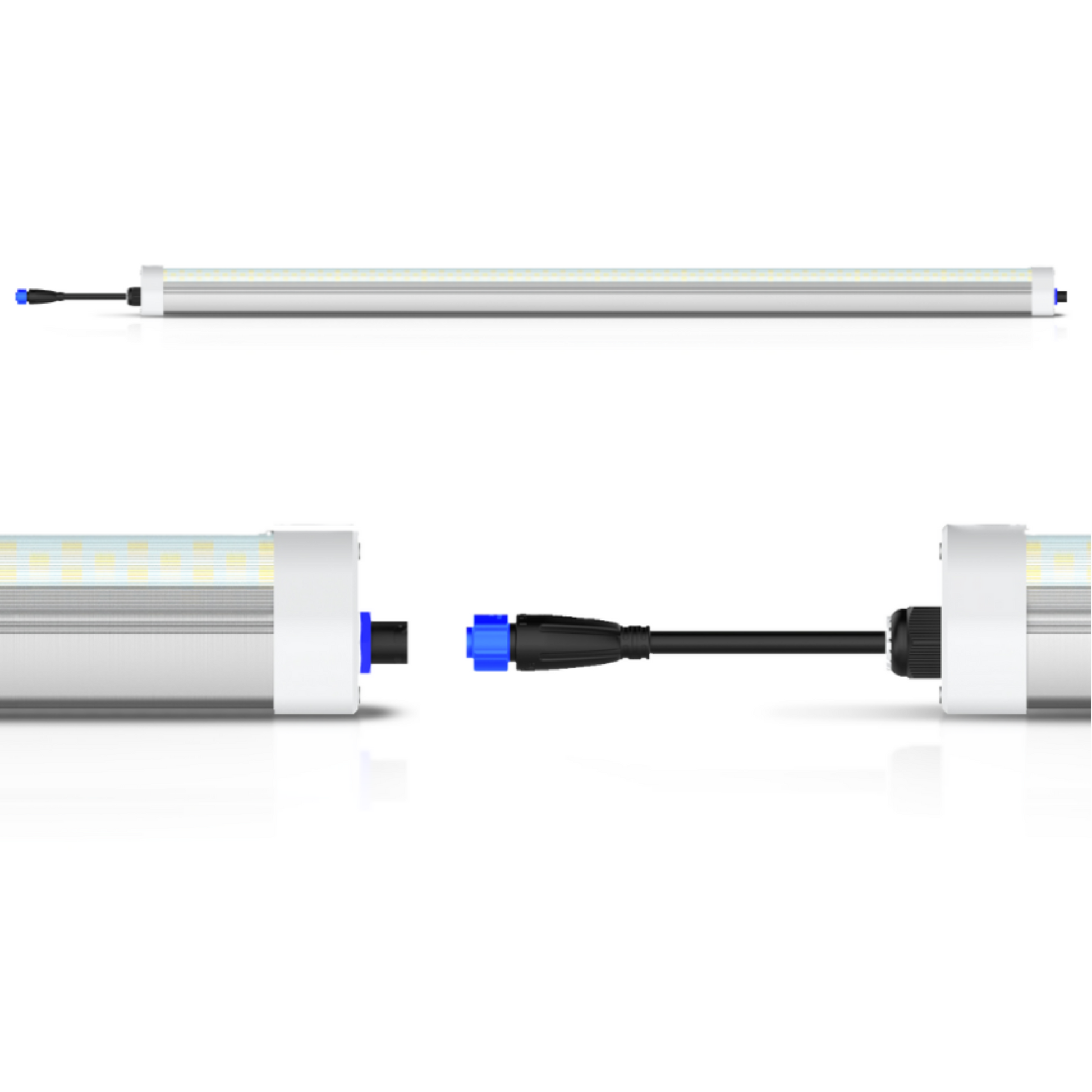

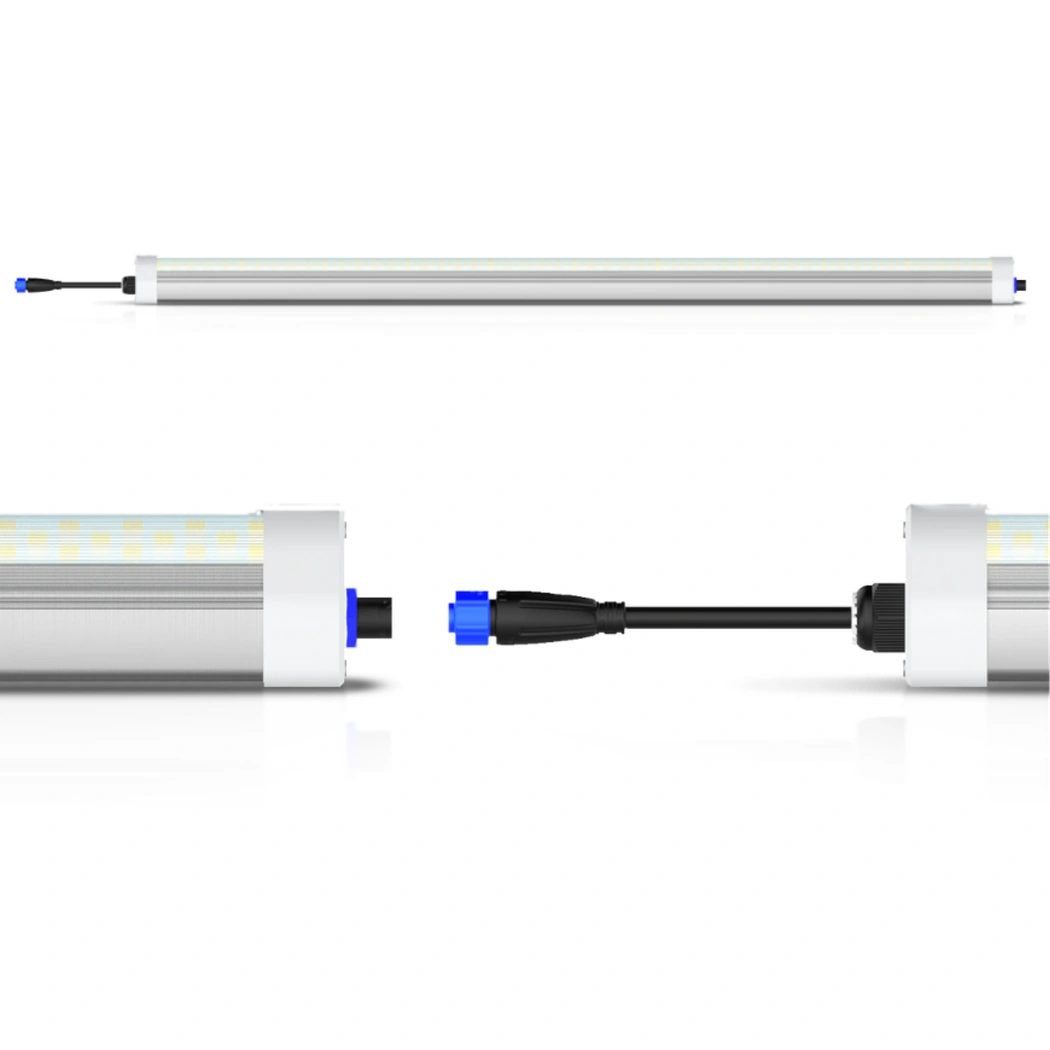

The MegaDrive platform runs a remote driver, so no electronics sit in the bars. Central power units come in 3kW and 10kW sizes and feed multiple fixtures in parallel. That keeps the IP66 bars low-profile, easy to wipe down, and simple to wire. Growers mount them 6 to 12 inches under the canopy and ramp output once flowering plants gap. Sizing runs through the manufacturer's commercial team, and minimum-quantity thresholds apply.

Key Features

• 120W / 350 µmol/s per Bar: Numeric output aimed at shadowed lower bud sites.
• 2.6 µmol/J Efficacy: Efficient supplemental output on the lower canopy.
• Deep-Red Spectrum: Fixed spectrum tuned for lower-canopy flower.

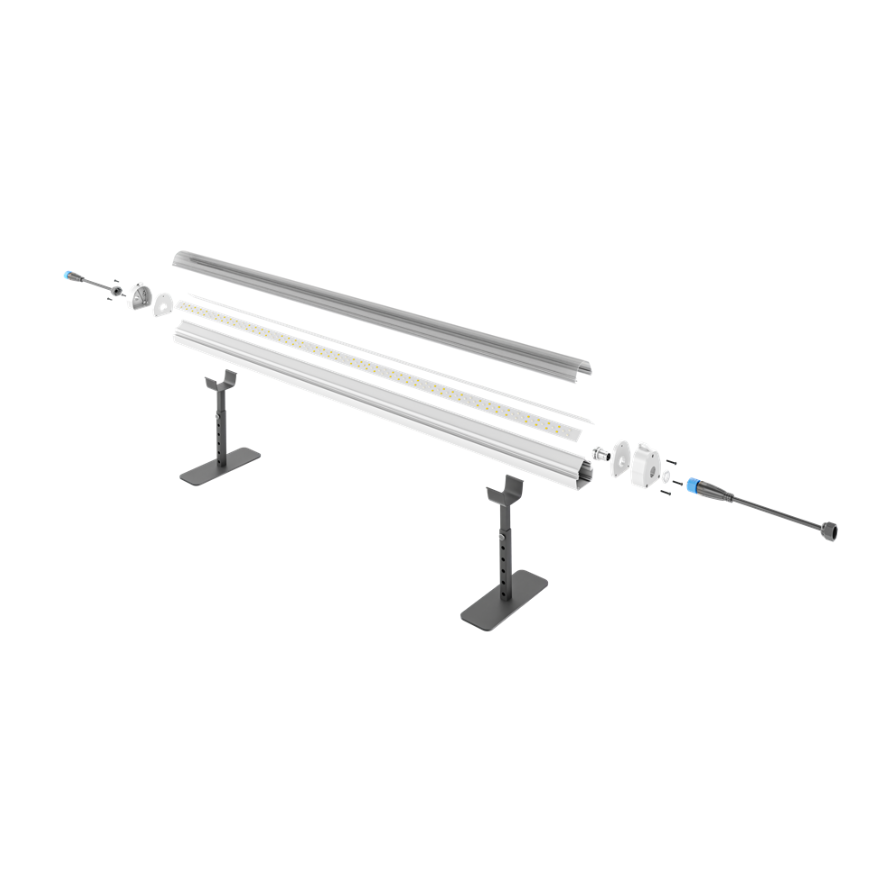

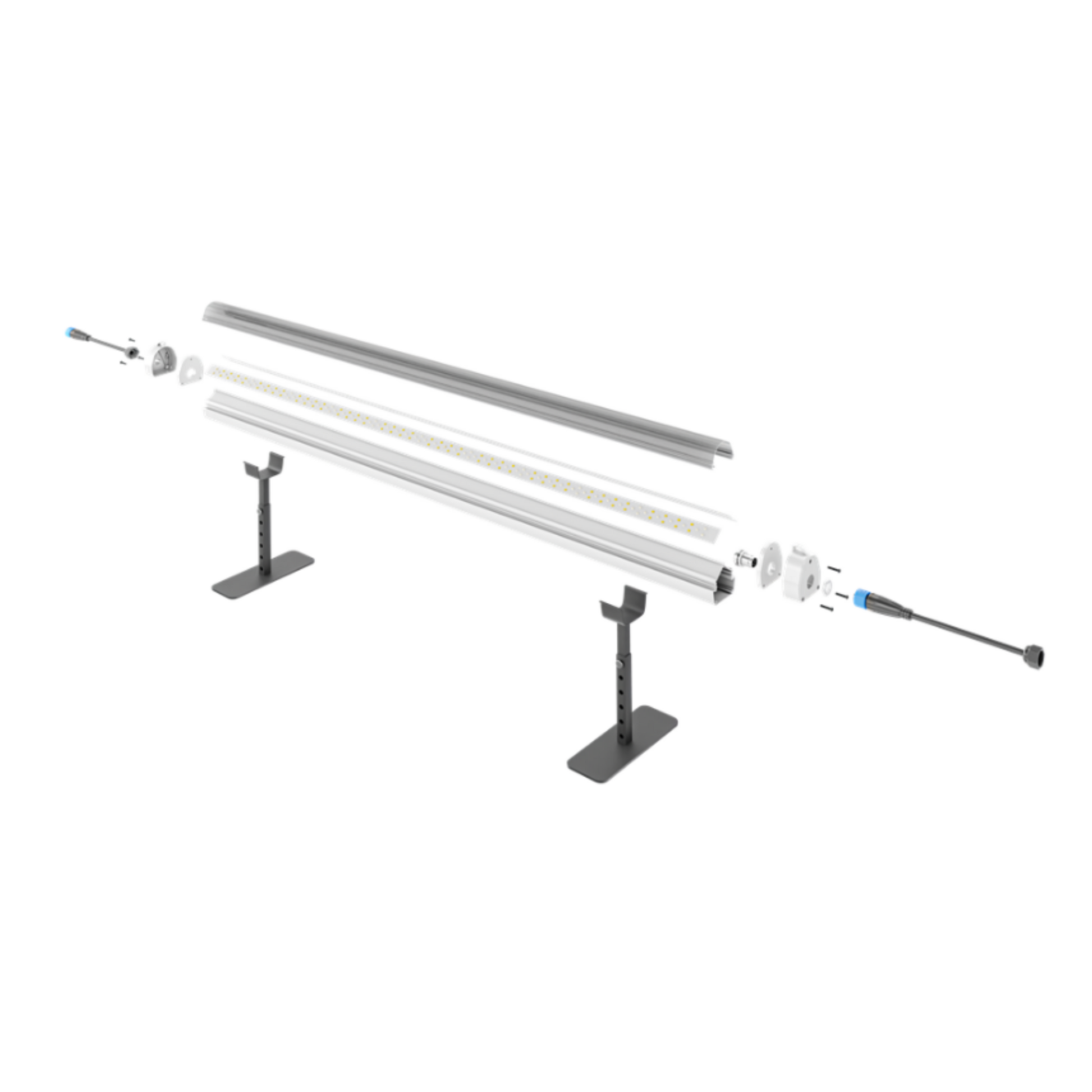

• 52-Inch V-Shaped Bars: Angled boards spread light across inner stalks.

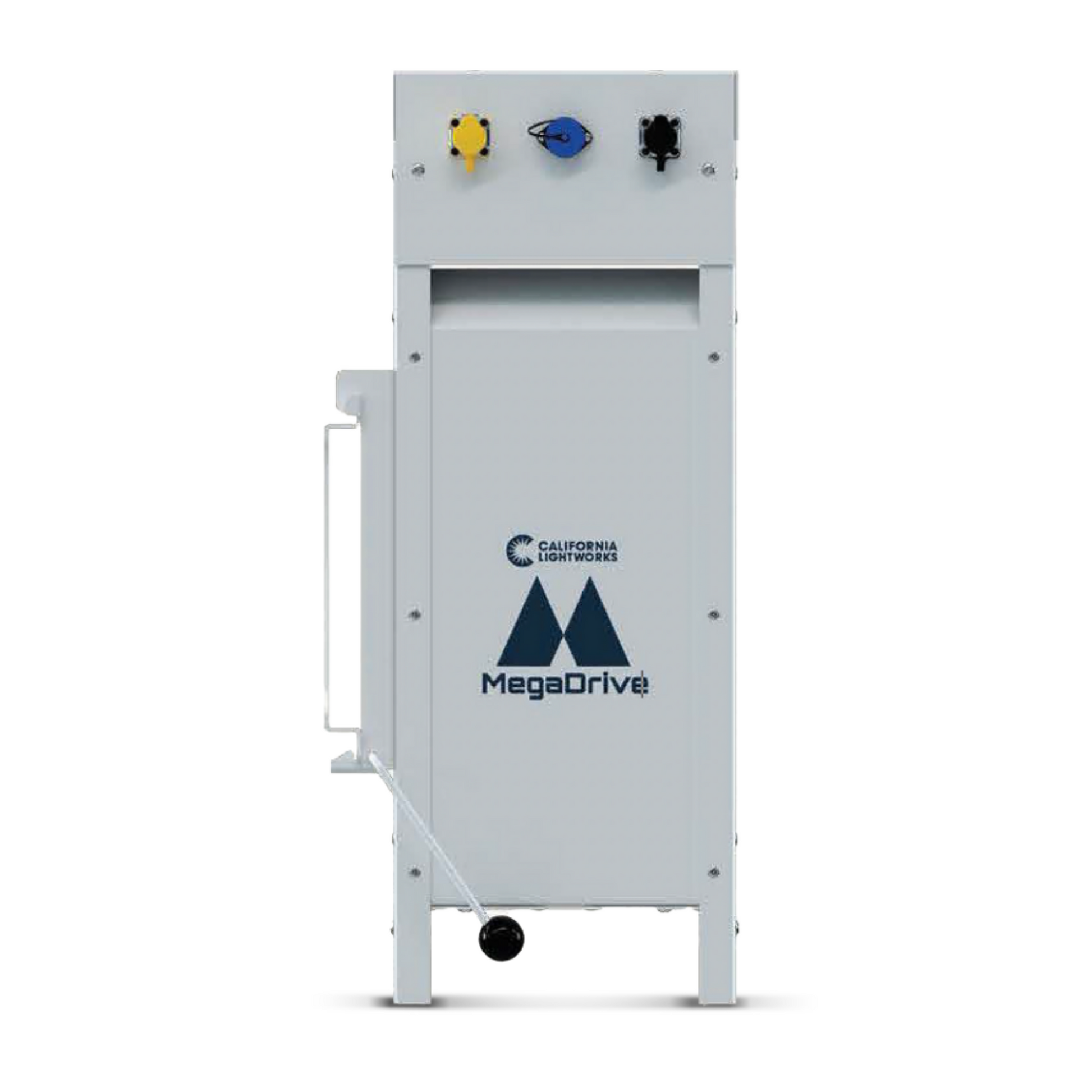

• MegaDrive Central Power: Remote 3kW/10kW driver feeds many bars in parallel.
• No In-Fixture Electronics: Low-profile bars run cooler and wipe down fast.
• IP66 Rated: Sealed for washdown and high-humidity flower rooms.
• Up to 30% Yield Boost: Reported gains paired with a tuned overhead spectrum.
