An Industrial Bud Trimmer for Continuous Harvest Days

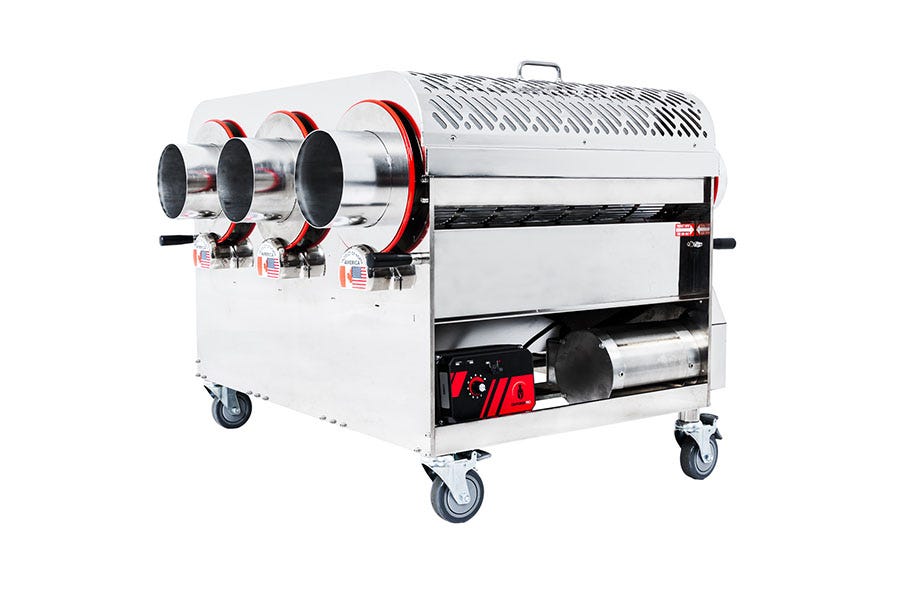

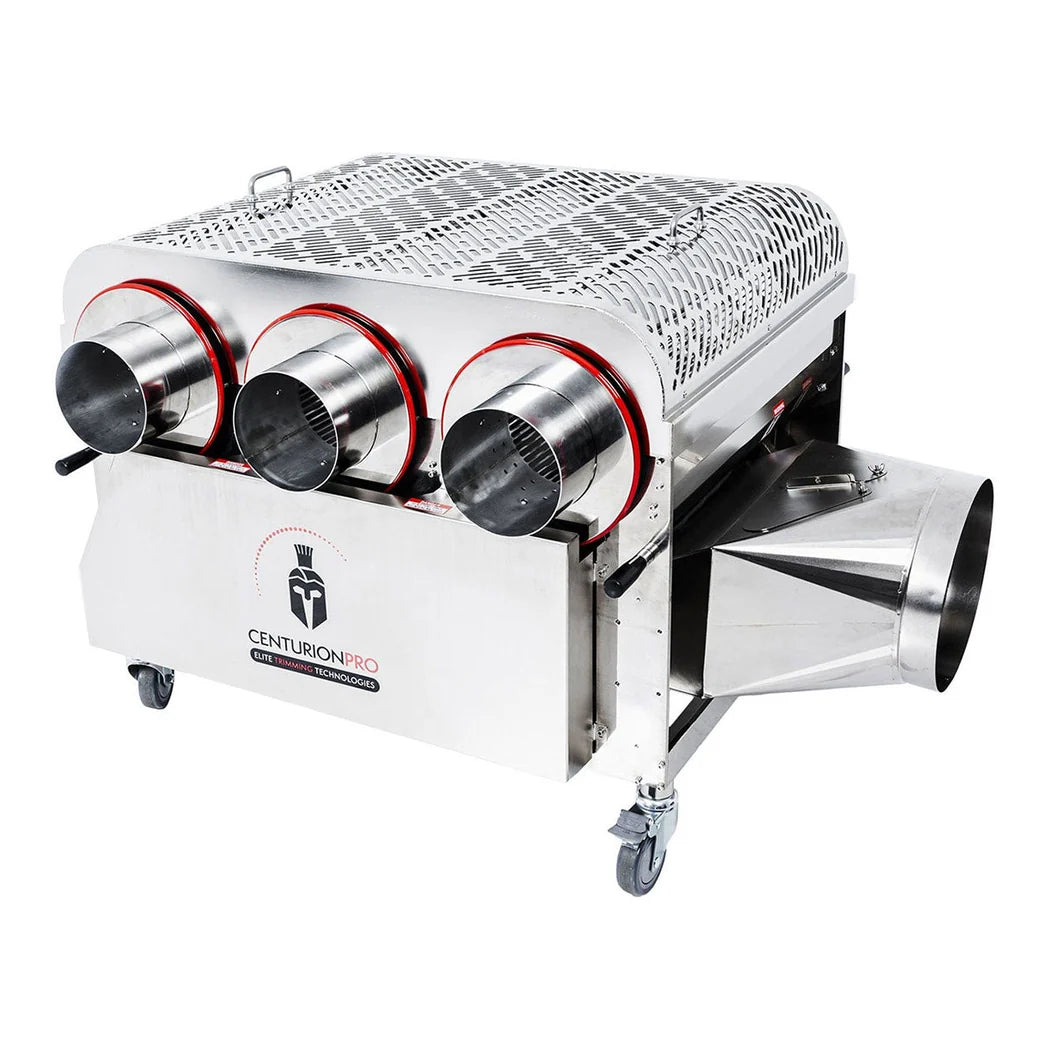

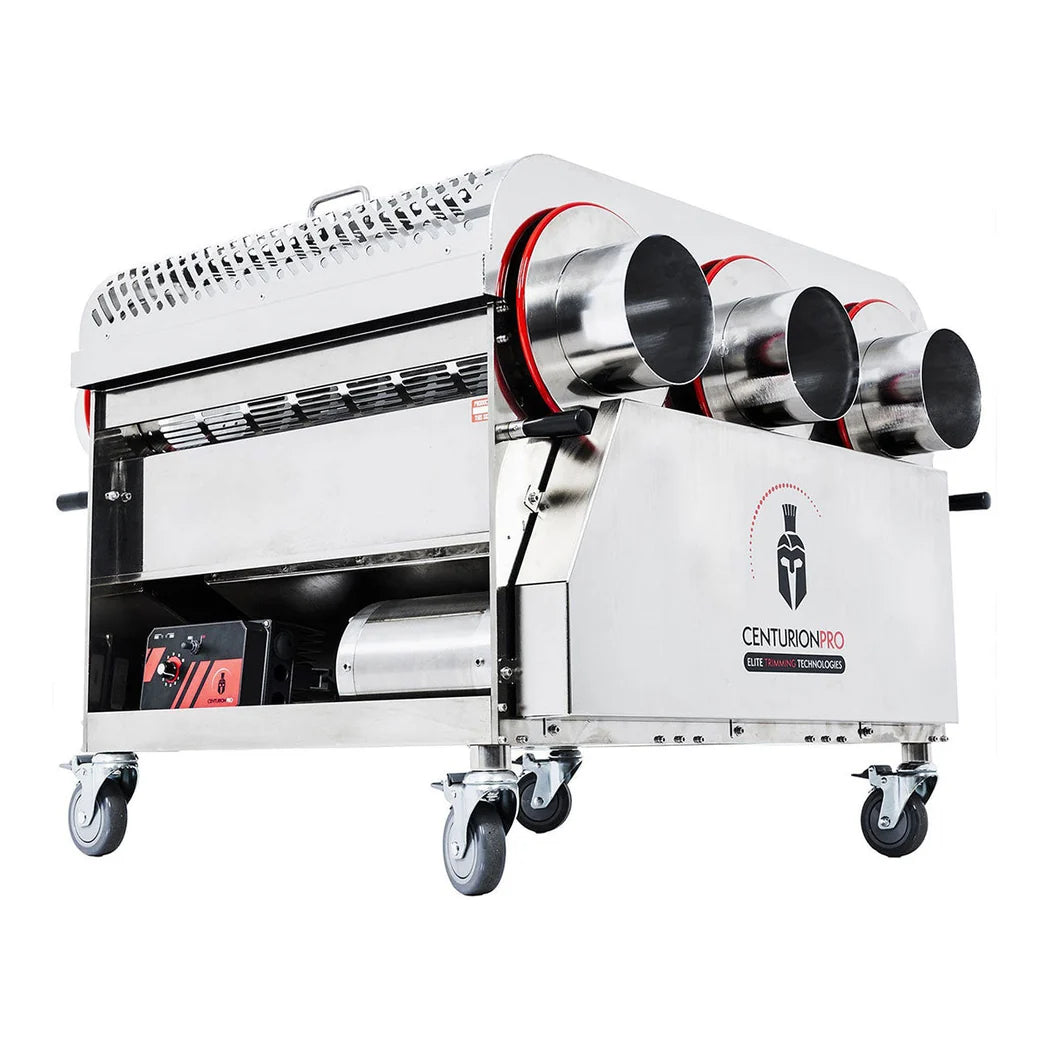

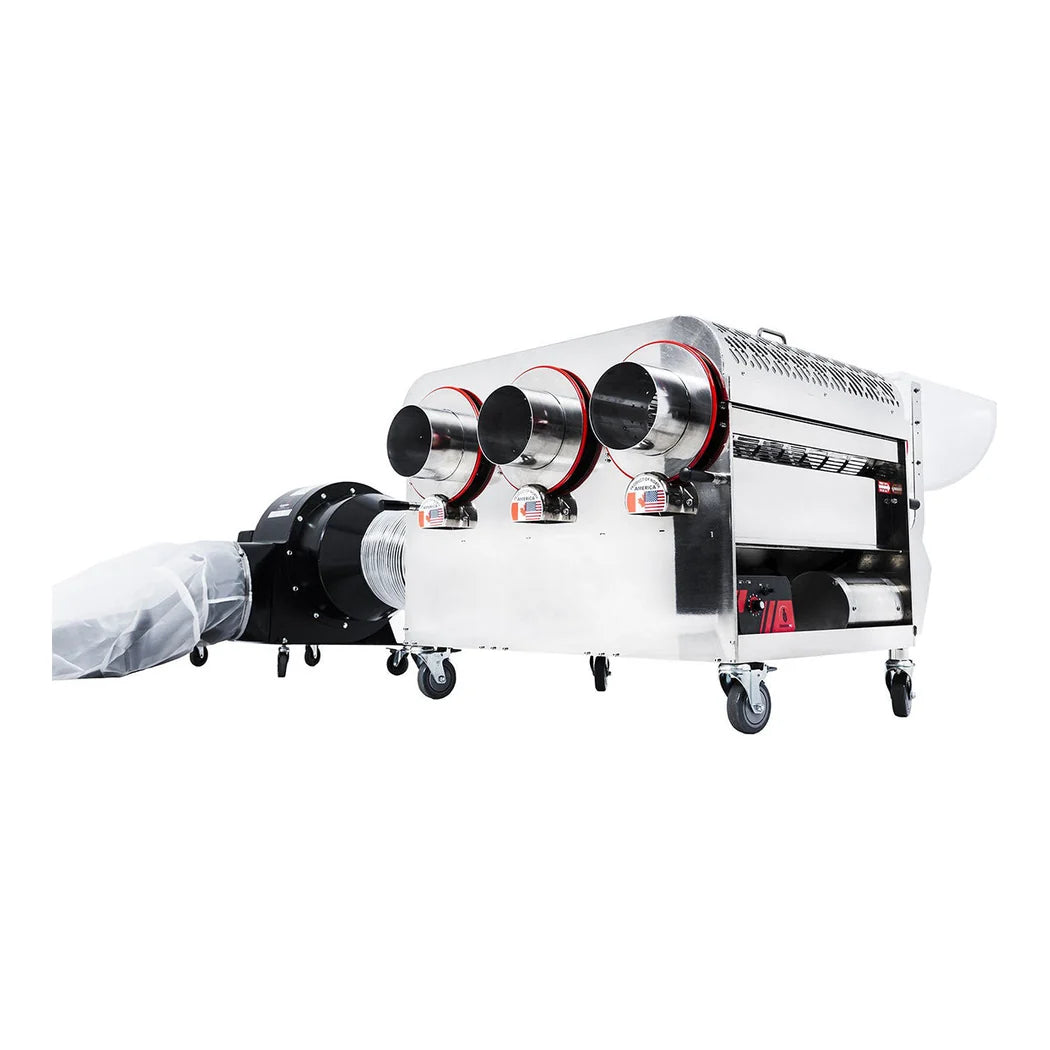

At the top of the SS range the arithmetic stops being about one room. Three tumblers run in parallel, each 6.5 in across and 38 in long. That moves up to 125 lbs of wet flower per hour, or 25 lbs of dried material. Each reel carries eleven blades. Cut rate runs from 20,000 to 200,000 per minute depending on the dial. Suction comes from an eight horsepower three-phase system pulling 7,108 CFM, with a six horsepower single-phase option on request. The machine draws 13 Amp on a 110V circuit in North America. Footprint is square at 36 in on a side, standing 28 in tall. Weight is 336 lbs, which means forklift access and a floor that can take it.
What a Triple Tumbler Trimming Machine Needs From Your Room

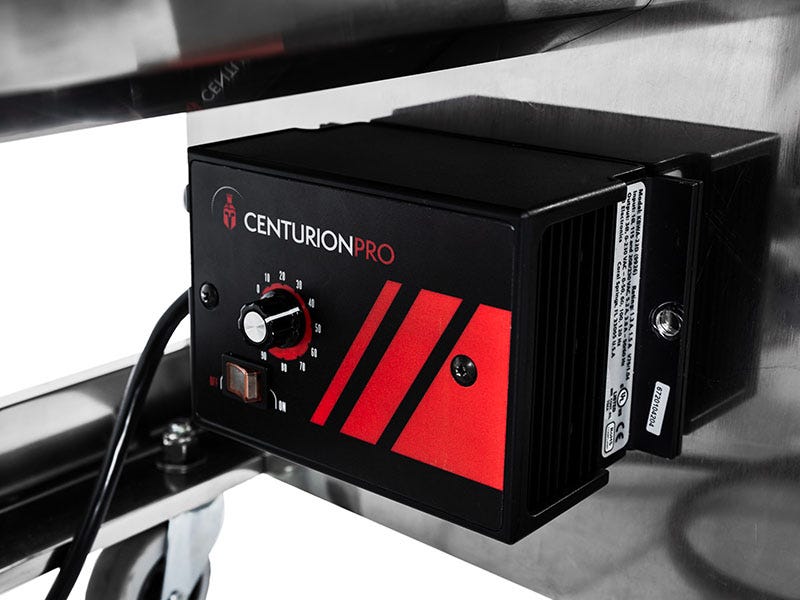

A unit this size is a production line, not an appliance. It needs staged totes, a bucker keeping ahead of it, and someone assigned to bag changes. Feed rate is what separates a good day from a jam. Run the dial low on dry material and let the reels do gentle work. Push it up when wet flower is heavy and the crew is stacking totes faster than the hopper empties. Every wetted surface is 304 stainless or electroless nickel plated aluminum, with food-grade sealed bearings that never need grease. Cleaning takes longer than on a single drum, so schedule it rather than squeezing it in. Rail kits connect three of these end to end for 450 lbs of wet throughput per hour. That is a commercial install with power, airflow and freight planning behind it.
Key Features

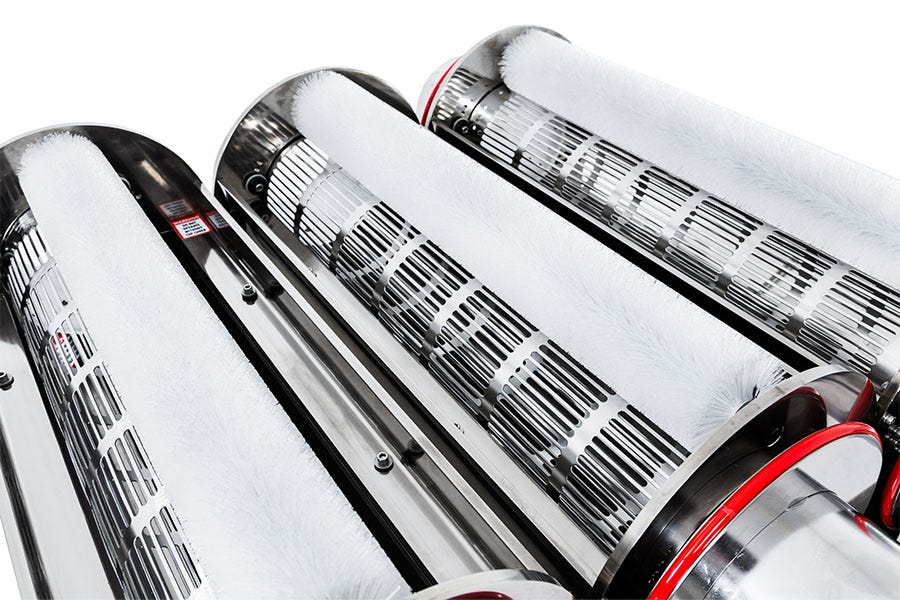

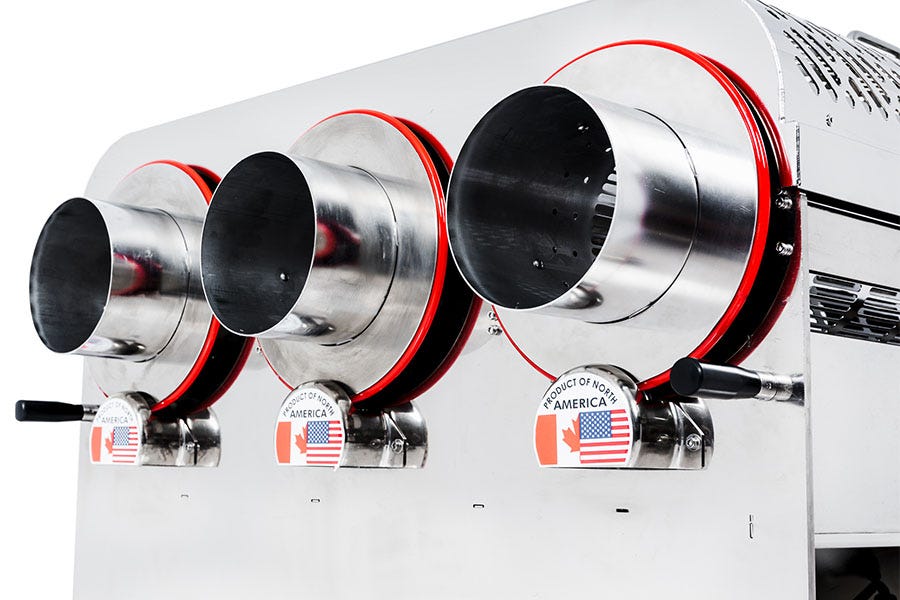

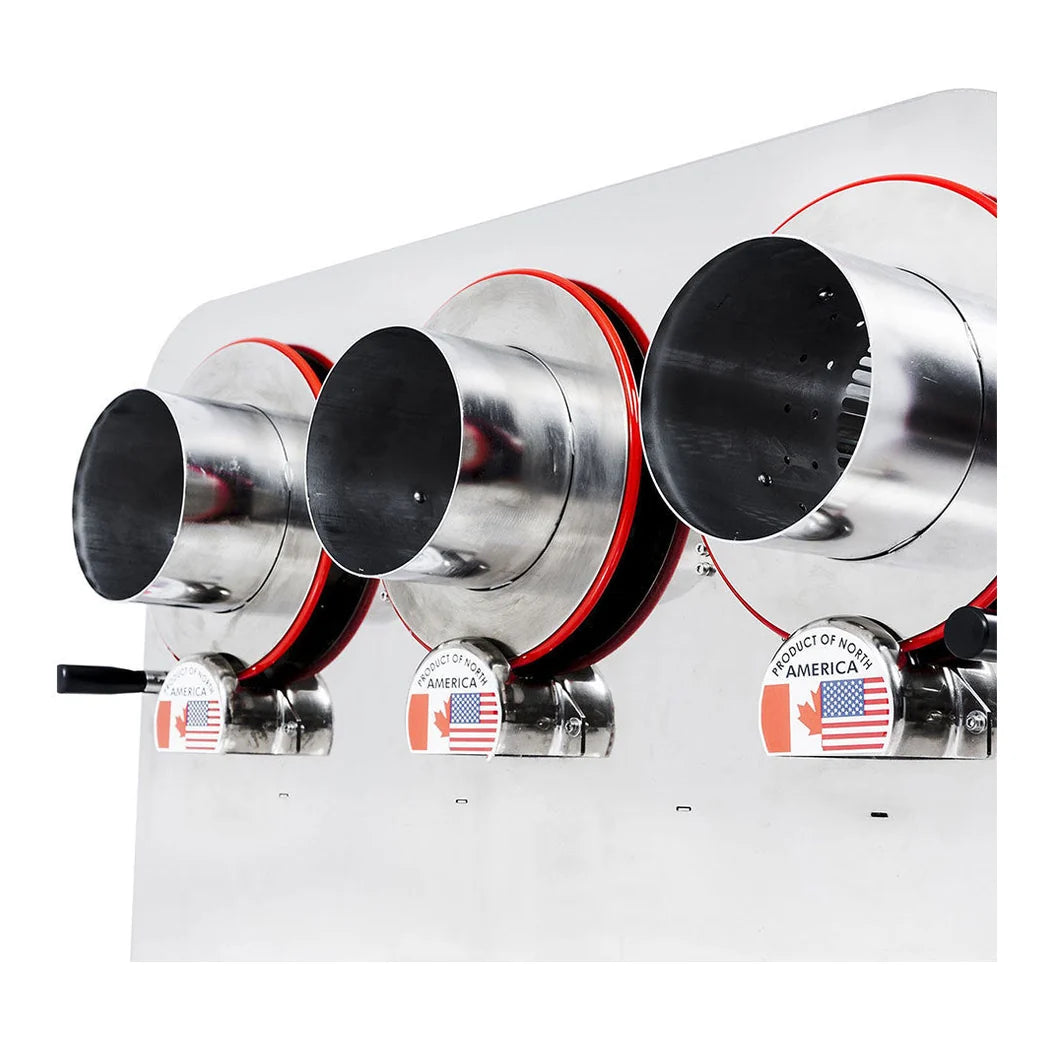

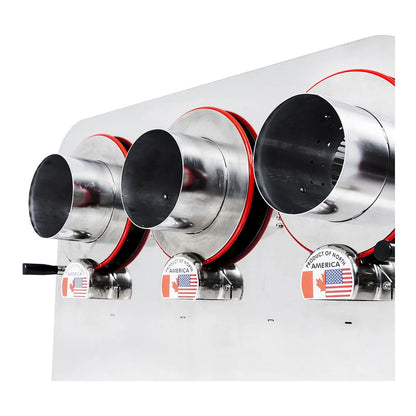

- Three Tumblers: 6.5 in diameter and 38 in long each, run in parallel

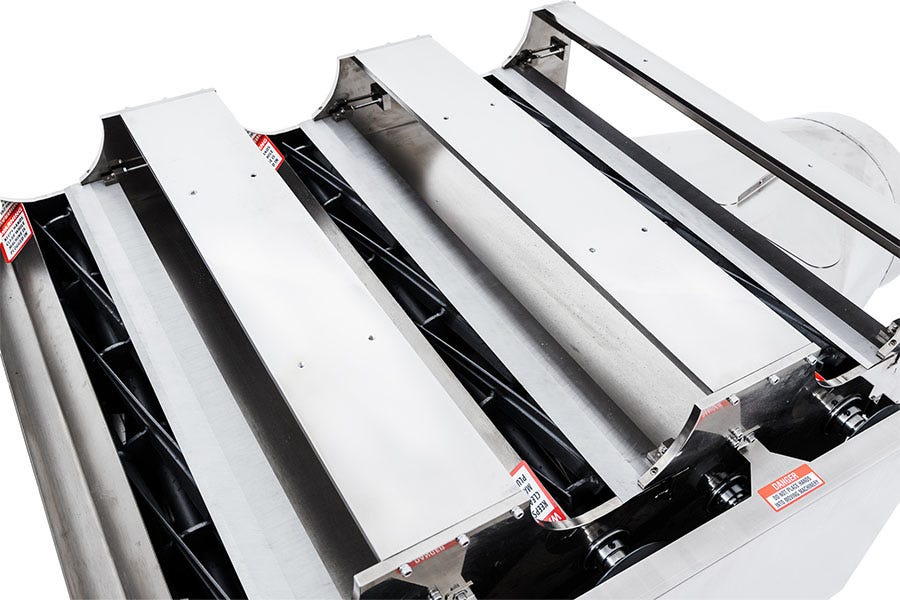

- Eleven Blades Per Reel: across three reels, for 20,000 to 200,000 cuts per minute
- Throughput: up to 125 lbs of wet flower or 25 lbs of dry material per hour

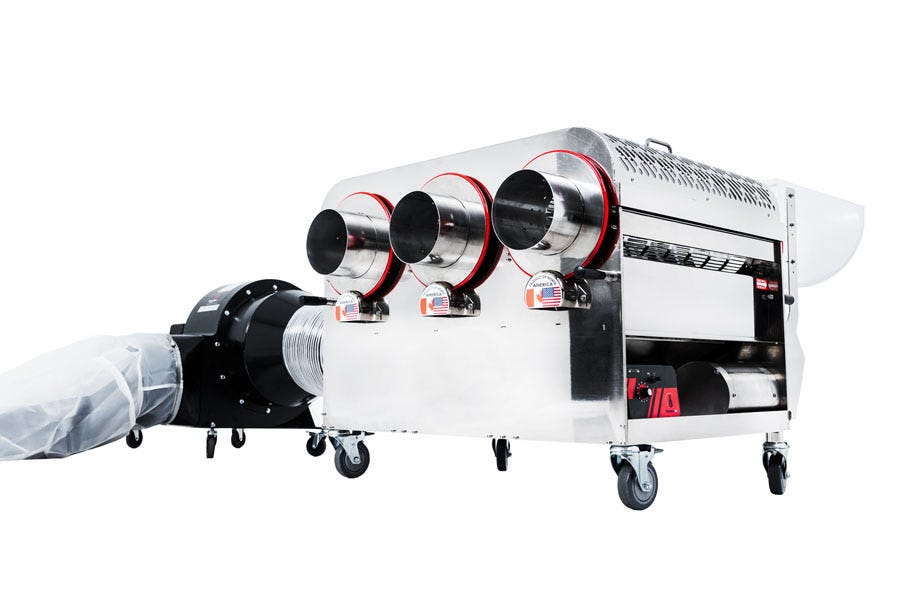

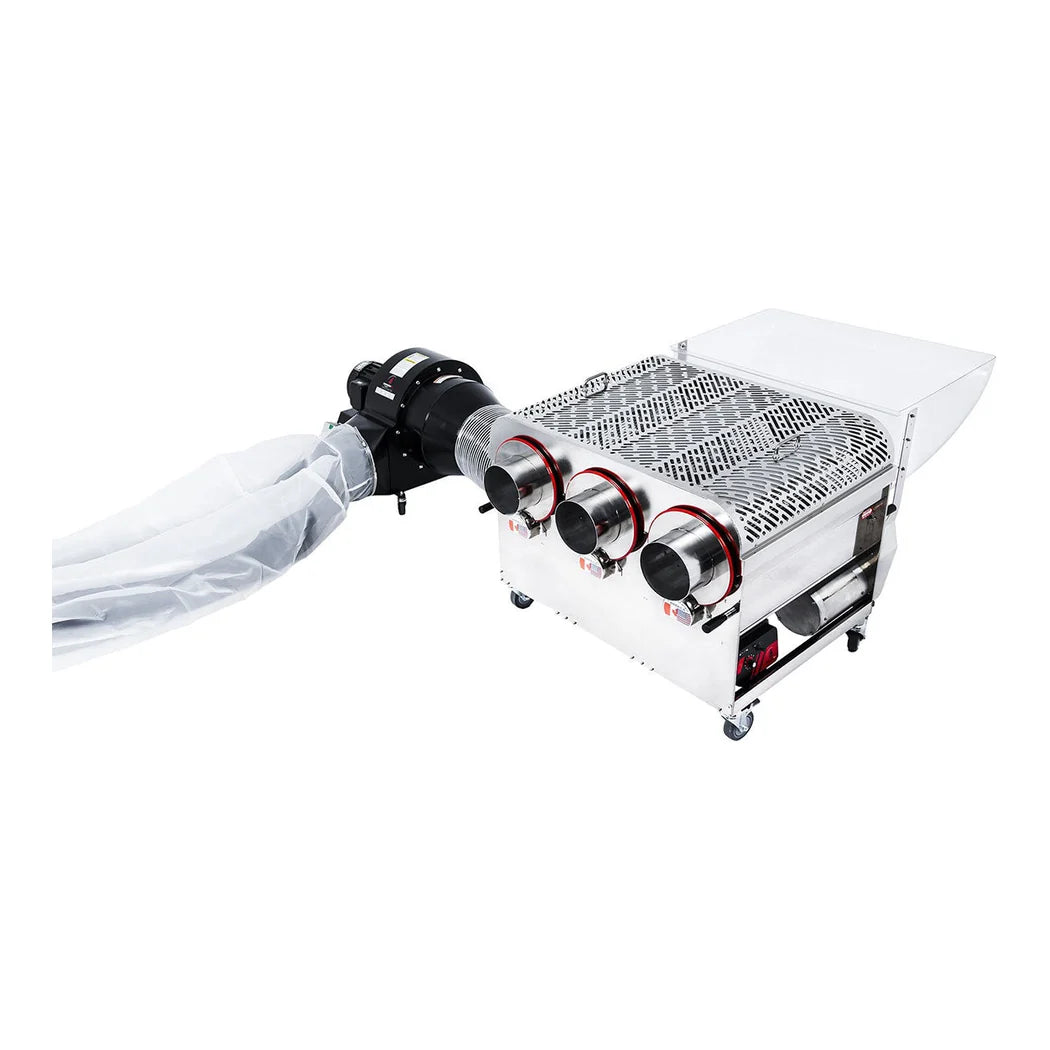

- Suction System: 8 HP three-phase moving 7,108 CFM, 6 HP single-phase on request
- Construction: 304 stainless steel with electroless nickel plated aluminum body and lid
- Sealed Bearings: maintenance-free food-grade stainless in a double sealed chamber

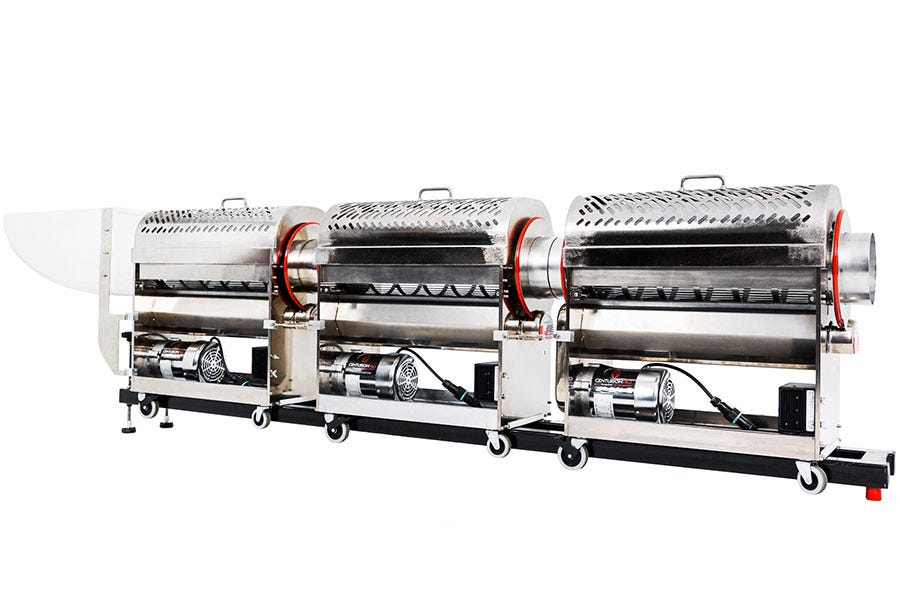

- Rail Ready: three units in tandem reach 450 lbs wet and 90 lbs dry per hour
- Footprint: 36 in x 36 in x 28 in and 336 lbs
Technical Specifications
| Specification | Value |
|---|---|
| Processing Capability (up to, per hour) | Wet: 125 lbs/hr · Dry: 25 lbs/hr |
| Cuts Per Minute | 20,000 to 200,000 |
| Blades Per Reel | 11 (x3) |
| Number of Tumblers | 3 |
| Tumbler Diameter | 3 x 6.5 in |
| Tumbler Length | 3 x 38 in |
| Dimensions (L x W x H) | 36 in x 36 in x 28 in |
| Weight | 336 lbs |
| Input Voltage | 13 Amp at 110V (NA) · 6.5 Amp at 220V (EU/AUS) |
| Suction System | 8 HP three-phase, 7,108 CFM (6 HP single-phase on request) |
| Triple Rail Throughput | 450 lbs/hr wet · 90 lbs/hr dry |

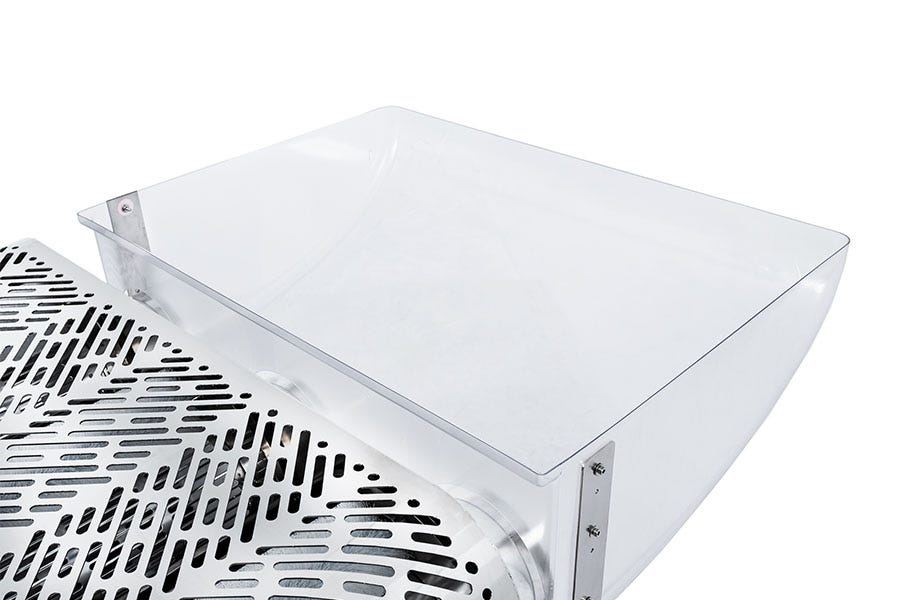

| Hopper | Food Grade Plastic |

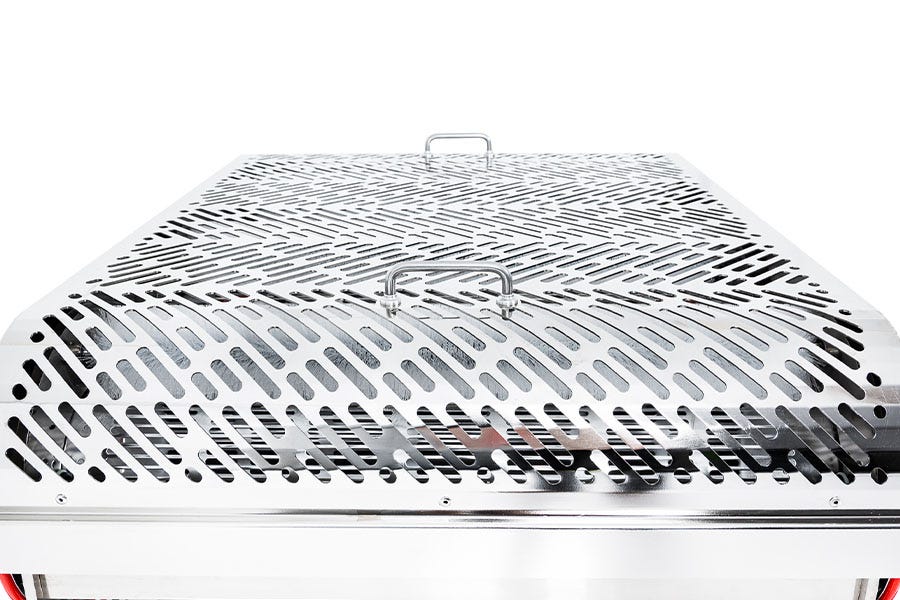

| Body and Lid | Electroless Nickel Plated Aluminum |

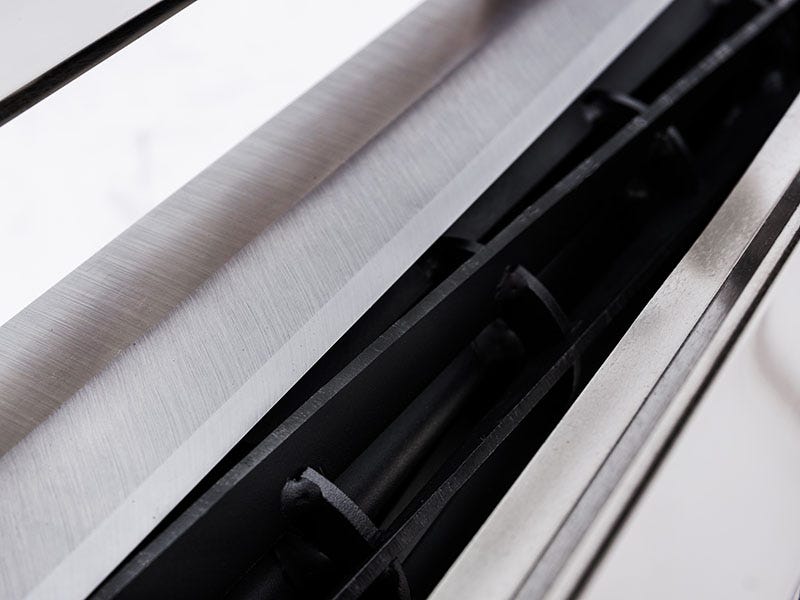

| Cutting Reel | Nitrided |
| Reel Bearings | Food Grade Stainless Steel |
| Warranty | 10 years machine · 2 years VSC |
