AC Infinity CLOUDLAB 632 for Wall-Hugging Grows
A rectangular footprint makes this tent easy to place against a wall, at the foot of a bed or along a hallway. The actual size is 35.43 x 23.62 x 70.86 in (90 x 60 x 180 cm). Its 2000D oxford canvas covers a 500G light-proof layer, with diamond-pattern mylar lining the inside. The frame is 22 mm steel, carrying two hanging bars and a spare. Cinching duct ports come in 4 in and 6 in sizes for exhaust, intake and cords. A rear intake window of 5.90 x 14.17 in and a side intake of 5.90 x 11.41 in let passive air in low. The viewing window, at 11.81 x 12.59 in, gives a quick look without unzipping the front. SBS zippers run behind light-blocking flaps. A steel controller plate mounts outside, with a lightproof pass-through for the cables. A waterproof spill tray lines the floor, and a tool bag hangs on the side. AC Infinity rates it for one plant in a 5-gallon pot, with a two-year warranty.
Laying Out a 3x2 Grow Tent
The long axis is the one to work with, so run a rectangular light lengthwise over the canopy. One large plant trained flat fills the floor, or two smaller pots sit end to end. Hang the carbon filter and fan from the rear bar, clear of the light. Pull exhaust out a high port and let the low intake windows feed fresh air from the opposite end. That end-to-end path moves air through the whole canopy rather than short-circuiting near the fan. Close unused ports with their cinch cords to keep light and insects out. Mount the controller on the outside plate before routing cables through. Keep the floor tray in, since runoff finds the lowest corner fast. Check the zipper flaps before lights-off so no seam lets light in. Between runs, wipe the mylar and the tray with a damp cloth.
Key Features
- Rectangular Footprint: Fits along walls and in narrow spaces.
- 2000D Oxford Canvas: 500G light-proof layer with diamond mylar inside.
- 22 mm Steel Frame: Two hanging bars plus a spare.
- Rear and Side Intakes: Low windows for passive fresh air.
- Controller Plate: Lightproof pass-through keeps controls outside.
- Waterproof Spill Tray: Catches runoff across the whole floor.

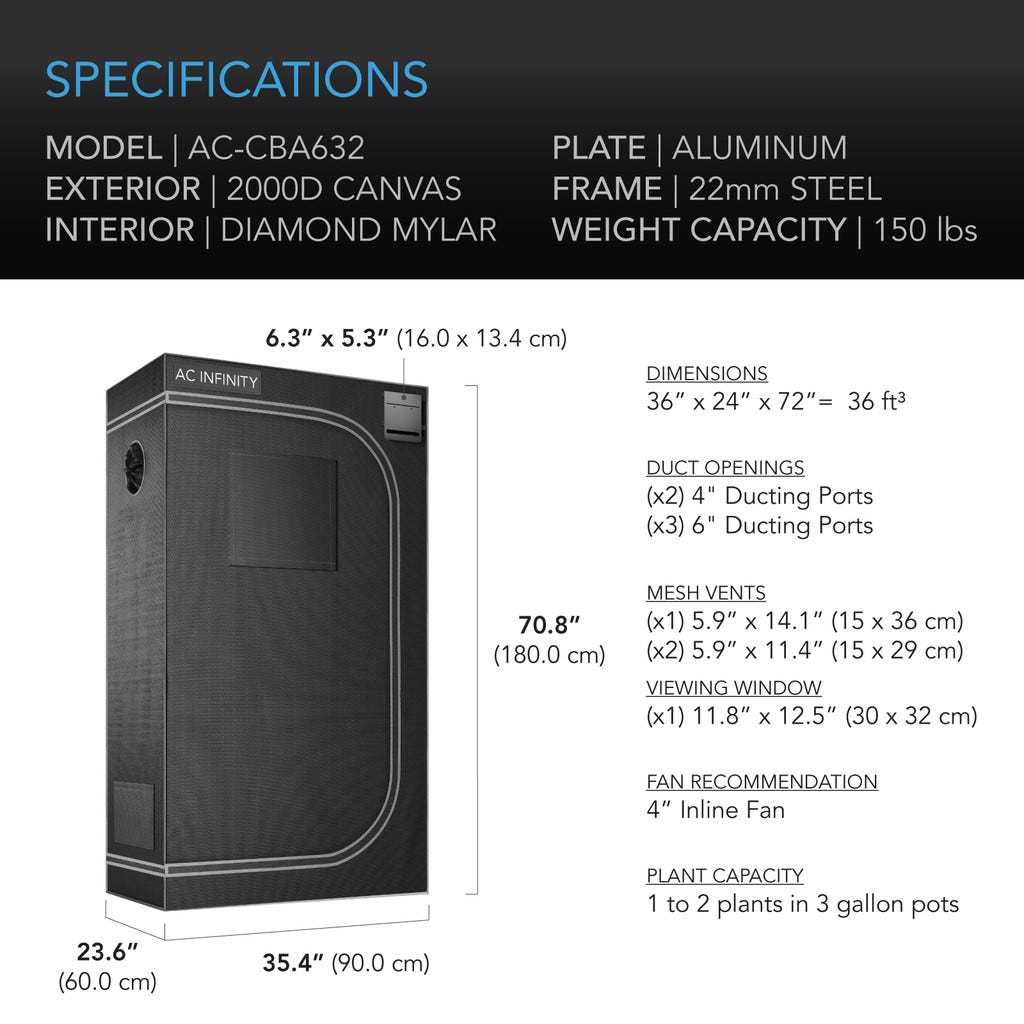

Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-CBA632 |
| Actual dimensions | 35.43 x 23.62 x 70.86 in (90 x 60 x 180 cm) |
| Outer canvas | 2000D oxford canvas, 500G light-proof layer |
| Interior | Diamond-pattern reflective mylar |
| Frame | 22 mm steel poles |
| Hanging bars | 2, plus 1 extra |
| Viewing window | 11.81 x 12.59 in |
| Rear intake window | 5.90 x 14.17 in |
| Side intake window | 5.90 x 11.41 in |
| Duct ports | 4 in and 6 in cinching ports |
| Plant capacity | 1 plant (5 gal) |
| In the box | Tent, controller plate, spill tray, 2 filter straps, 6 controller adhesives, 4 controller screws, 4 wall screws, 4 cable ties |
| Warranty | 2 years |
| UPC | 819137021556 |
