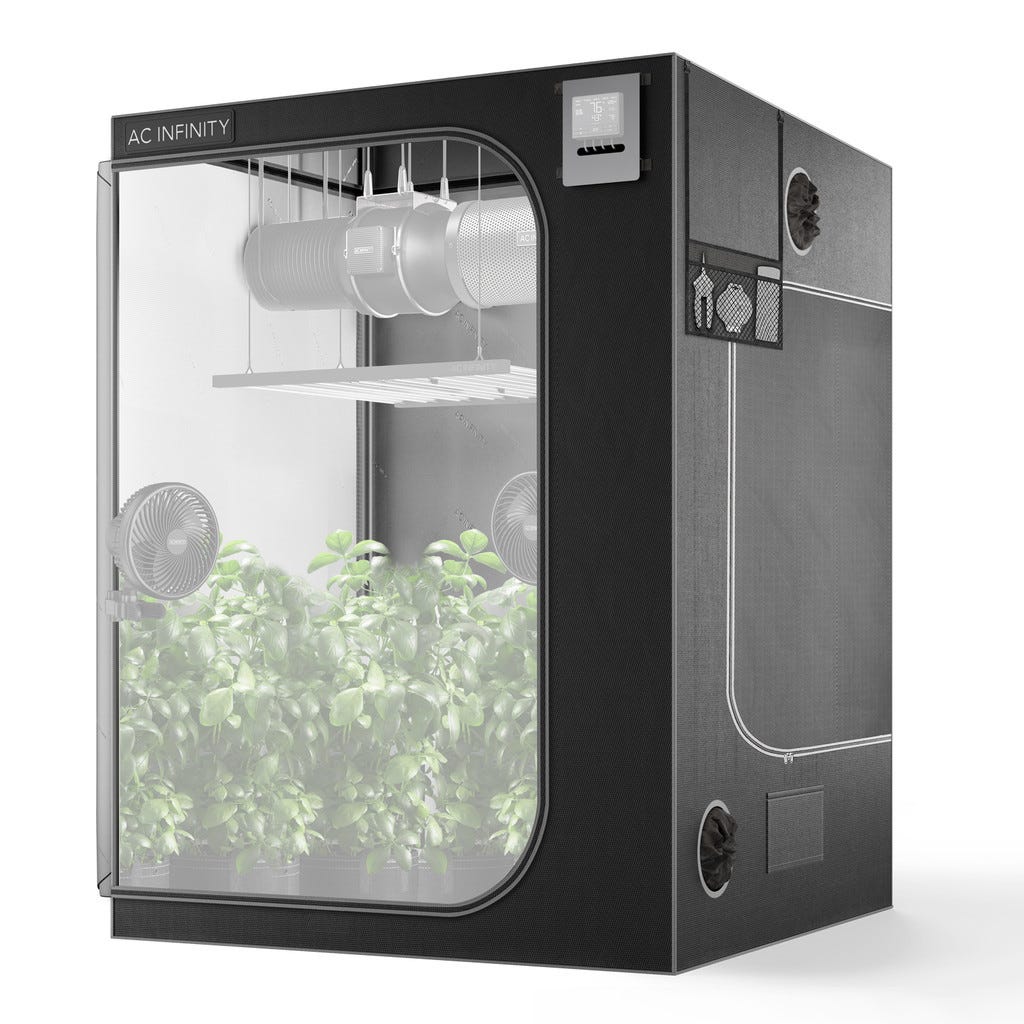

AC Infinity CLOUDLAB 866 Square Tent for Six Plants
A five-foot square floor and a roof just under seven feet set this tent up for a full canopy of six plants. Measured, it is 59.05 x 59.05 x 78.74 in (150 x 150 x 200 cm). Ventilation is built around large ducting, with five 8 in ports and two 4 in ports. That suits an 8 inch inline fan and carbon filter, with spare openings for intake and a dehumidifier line. The shell is 2000D oxford canvas over a 500G light-proof layer, lined inside with diamond-pattern mylar. Four hanging bars, three plus a spare, ride on 22 mm steel poles. A long viewing window of 13.78 x 47.24 in shows most of the canopy at a glance. SBS zippers close the doors behind light-blocking flaps. A controller plate mounts outside with a lightproof cable pass-through. A waterproof spill tray covers the floor, and a tool bag hangs on the side. AC Infinity sizes it for six plants in 5-gallon pots, with a two-year warranty.
Setting Up a 5x5 Grow Tent for an Even Canopy
A square footprint pairs naturally with a square or bar-style LED centered over the canopy. Six pots fit in two rows of three, with room to reach the back row from the door. Hang the filter and fan high on a rear bar, and exhaust through one of the large upper ports. Let fresh air enter low on the opposite side so it crosses the whole canopy on its way out. Add one or two clip fans at canopy height to break up still pockets in the corners. A trellis net across the frame keeps branches spread in a flat, even layer. Use the spare large ports for a dehumidifier or heater duct rather than leaving the door cracked. Cinch every unused port shut so the room stays dark and pest-free. Run fans and lights from controllers on the outside plate. A tent this size needs a clear floor area plus space to open the doors, so measure the room first.
Key Features
- Five 8 in Ports: Room for a large inline fan, filter and intake.
- Two 4 in Ports: Extra openings for cords and small hoses.
- Four Hanging Bars: 22 mm steel frame, three bars plus a spare.
- Long Viewing Window: 13.78 x 47.24 in look across the canopy.

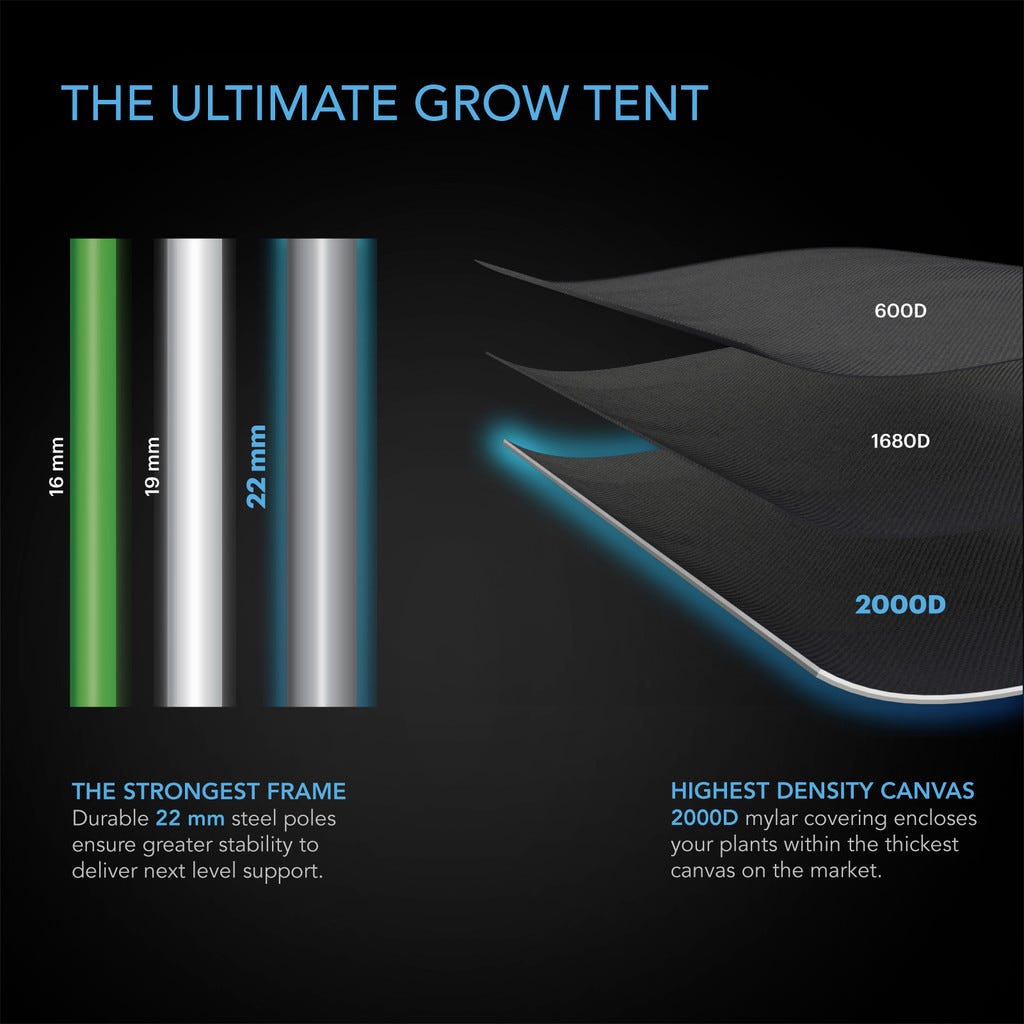

- 2000D Oxford Canvas: 500G light-proof layer with diamond mylar inside.
- Six-Plant Capacity: Sized for six 5-gallon pots.

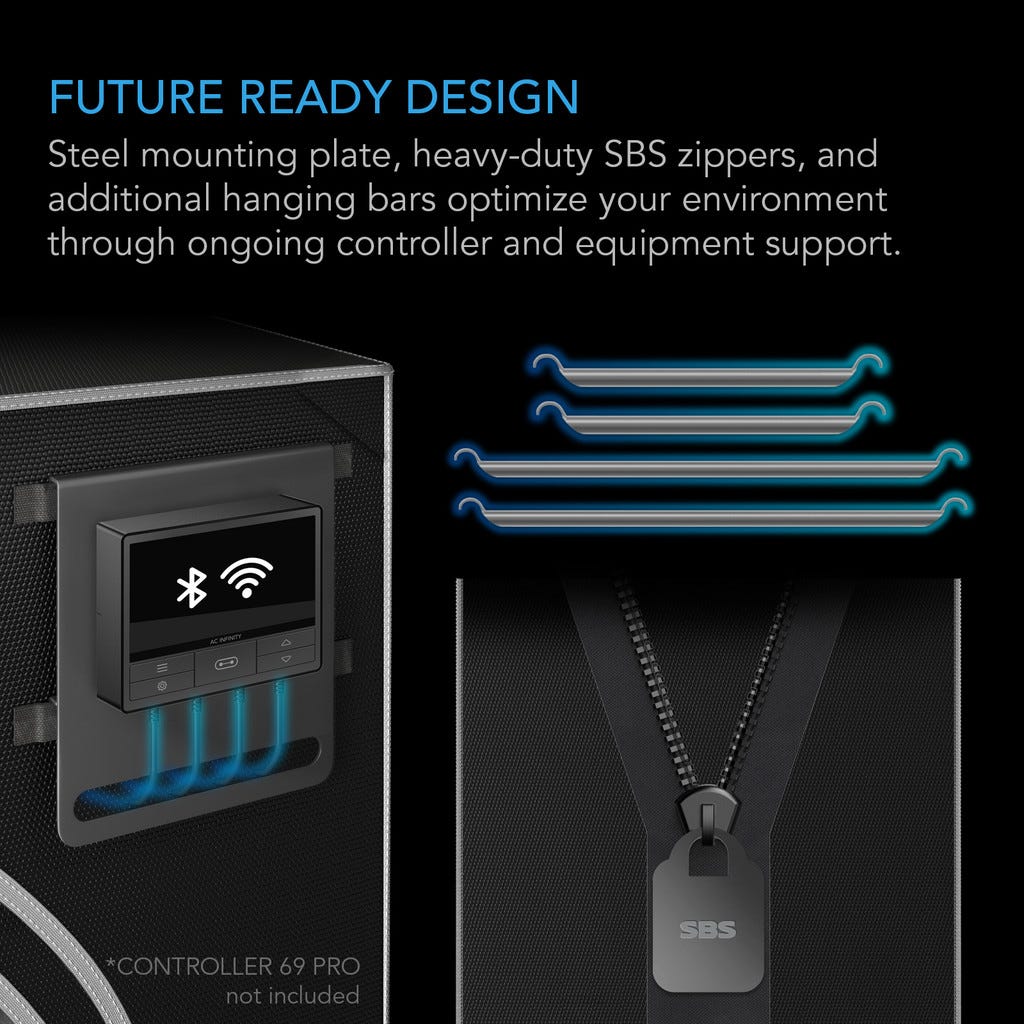

- Controller Plate: Lightproof pass-through for controller cables.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-CBA866 |
| Actual dimensions | 59.05 x 59.05 x 78.74 in (150 x 150 x 200 cm) |
| Outer canvas | 2000D oxford canvas, 500G light-proof layer |
| Interior | Diamond-pattern reflective mylar |
| Frame | 22 mm steel poles |
| Hanging bars | 3, plus 1 extra |
| Viewing window | 13.78 x 47.24 in |
| Duct ports | 7: two 4 in, five 8 in |
| Plant capacity | 6 plants (5 gal) |
| In the box | Tent, controller plate, spill tray, 2 filter straps, 6 controller adhesives, 4 controller screws, 4 wall screws, 4 cable ties |
| Warranty | 2 years |
| UPC | 819137021587 |
