Carbon Accelerator CO2 Regulator with Flow Meter

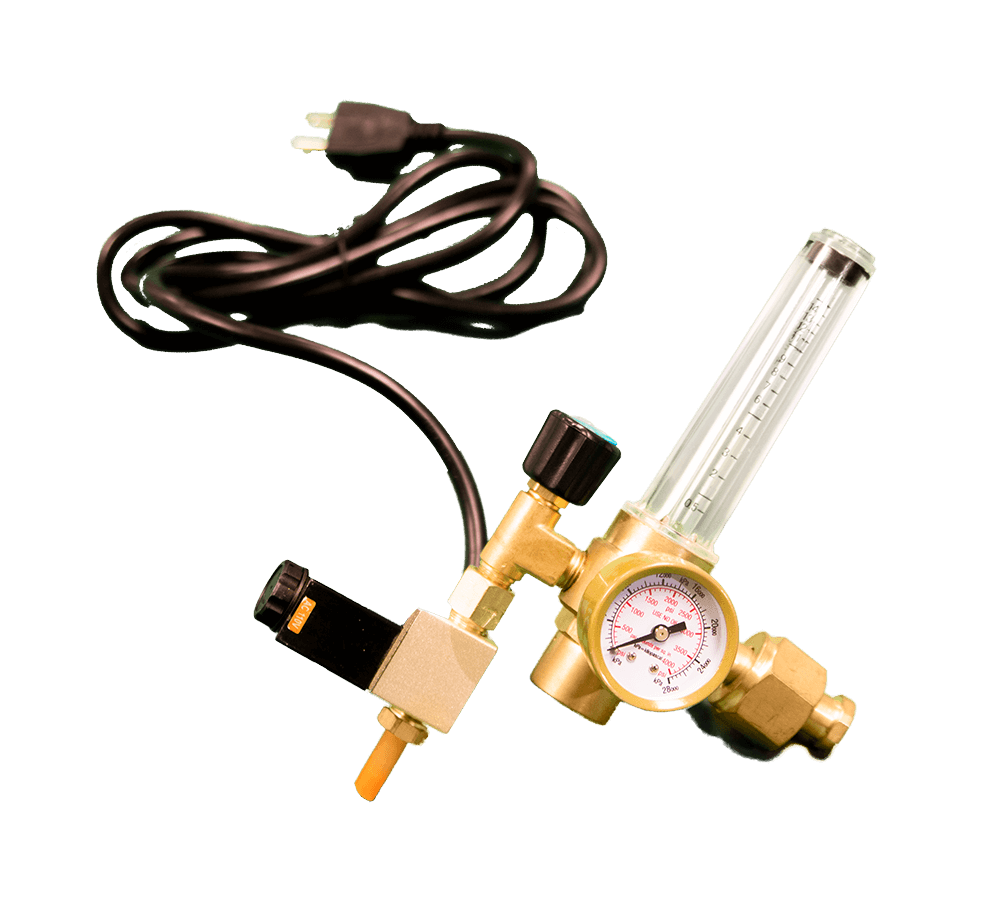

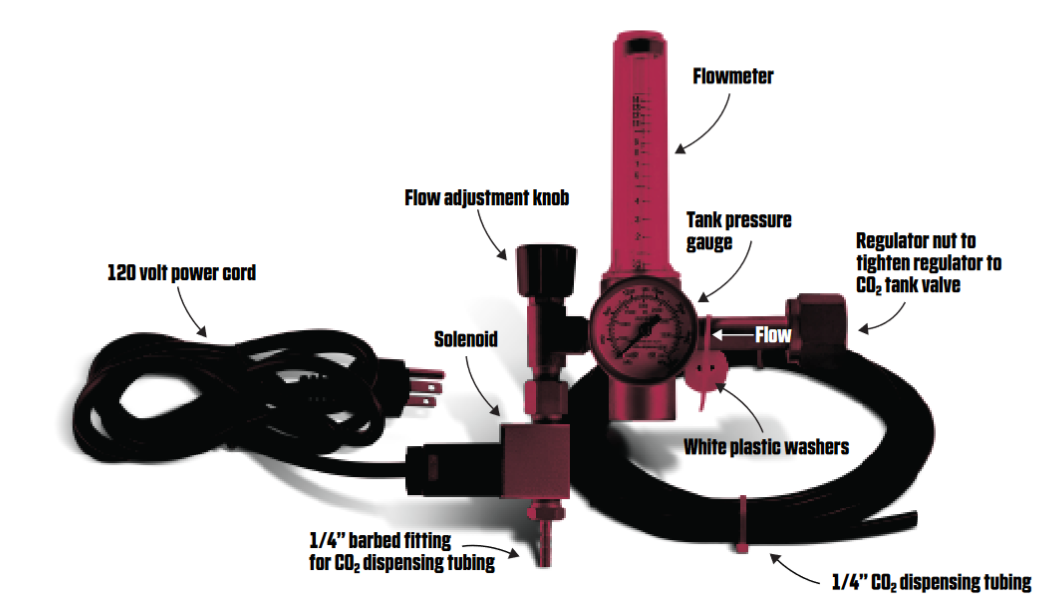

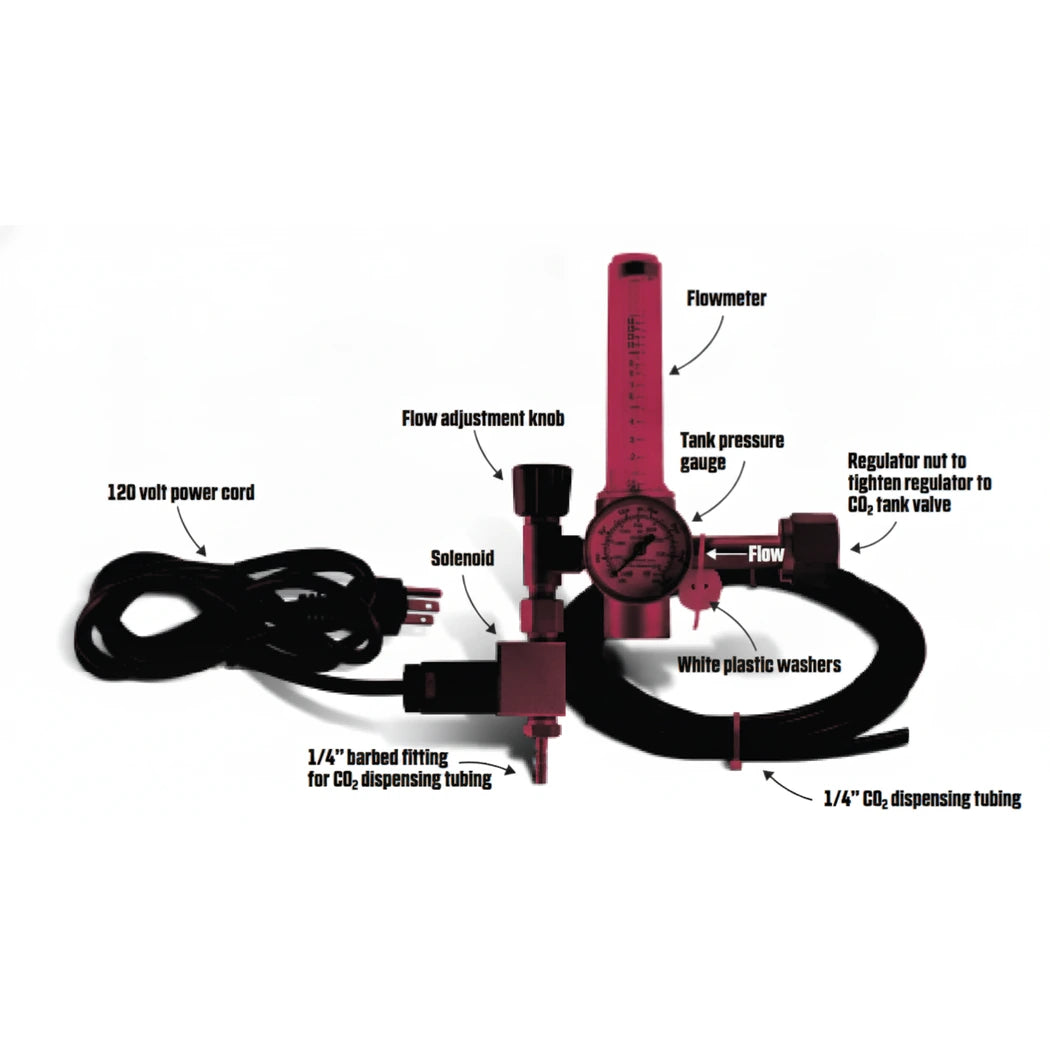

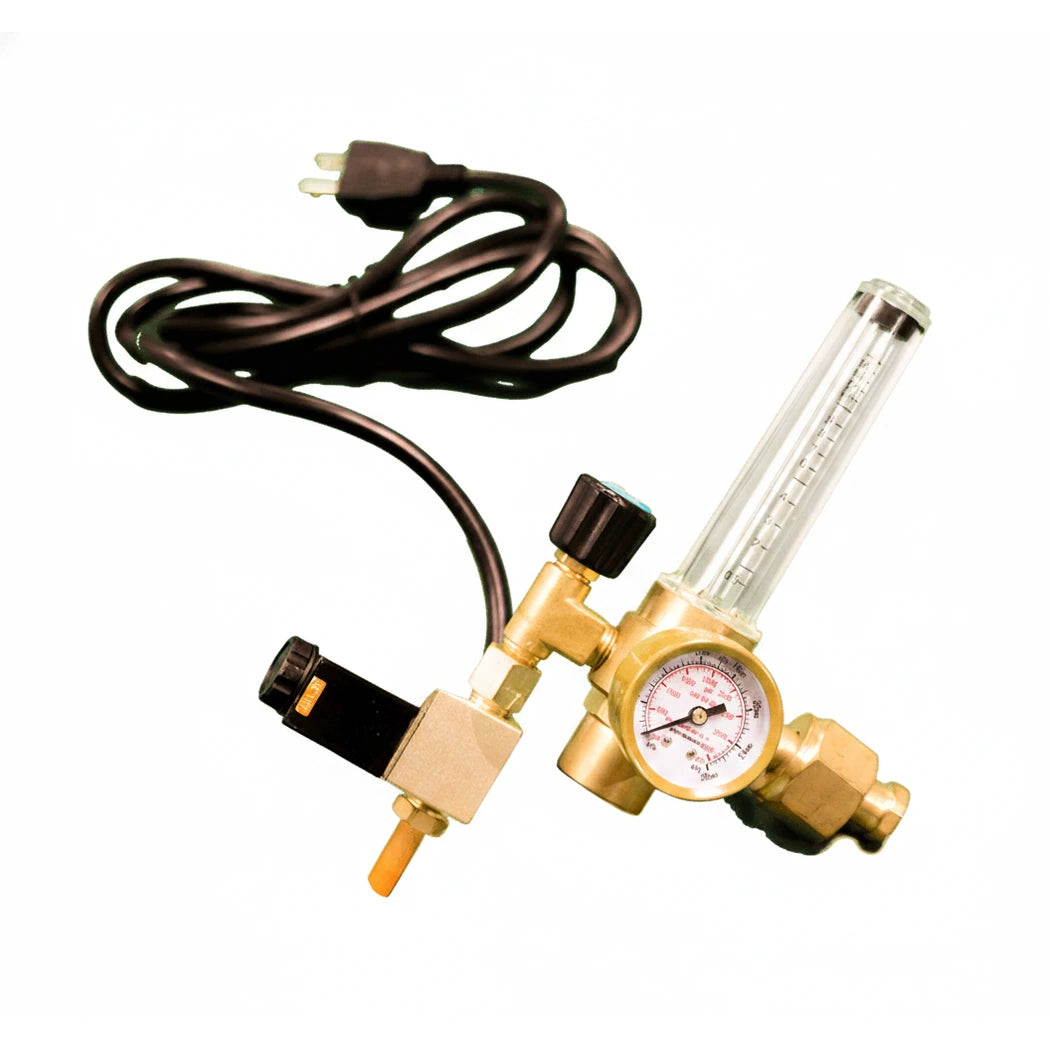

The REG-1 threads onto a CGA-320 CO2 tank and doses gas through a calibrated flow meter reading 0.5-15 cu ft/hr. A heavy-duty 120V solenoid opens and closes the line on command from any ppm controller or timer. An oil-less pressure gauge shows tank pressure at a glance. It carries CE and UL listings.
Dialing In CO2 Flow for a Grow Room

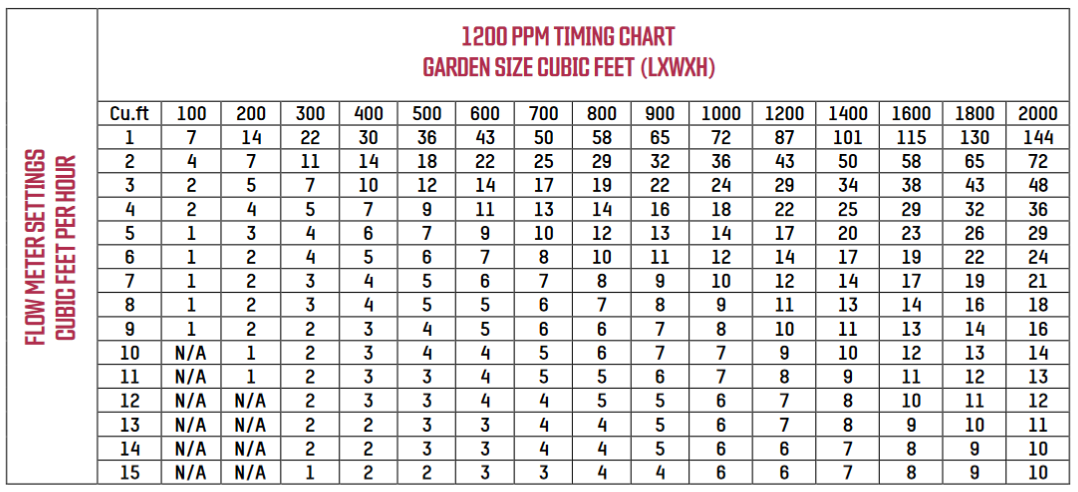

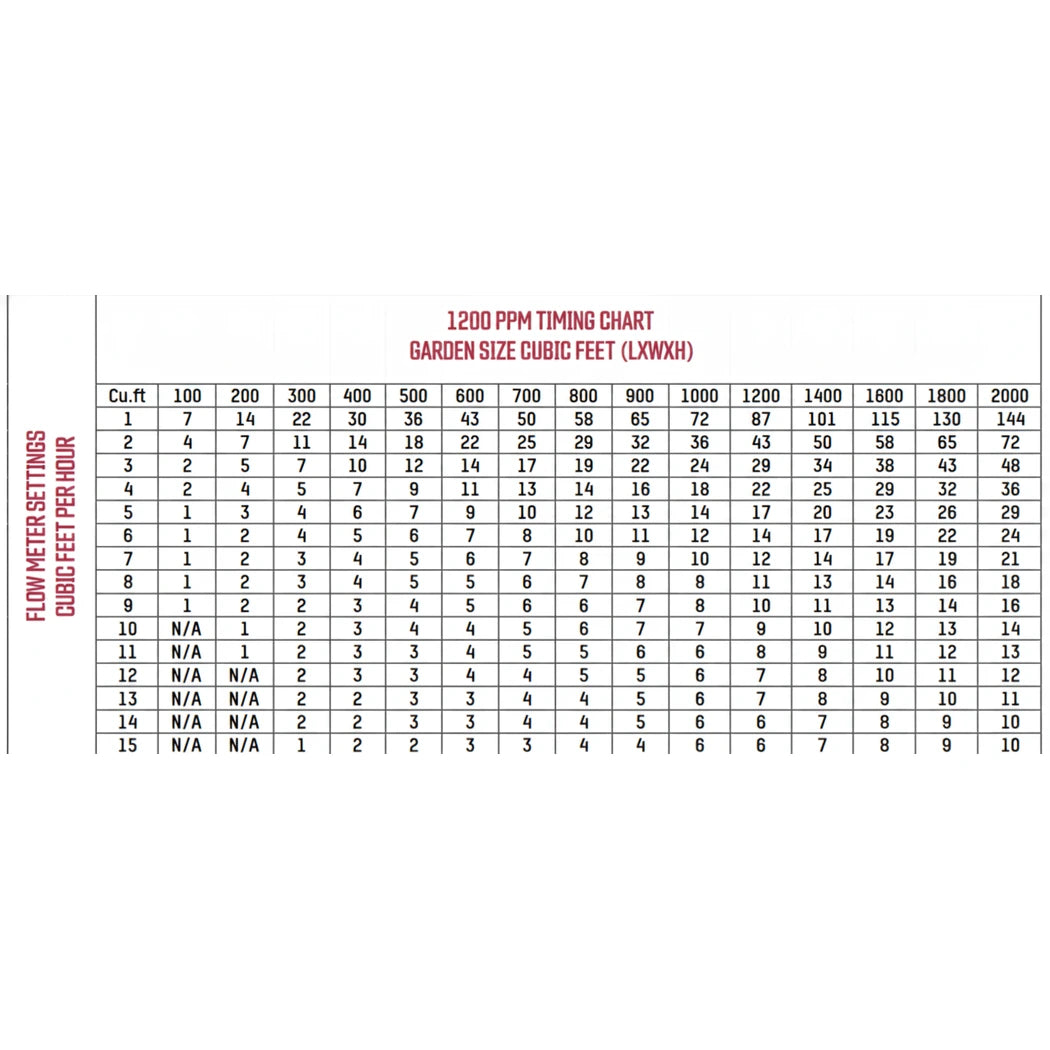

Size the flow off your room volume: figure the cubic feet, set the meter, and time the fill to reach roughly 1,500 ppm. Keep levels under 2,500 ppm, which is where CO2 starts to bother people in the room. Mount the tank to a wall or post first, since a full cylinder is under high pressure. The included white washer seats the fitting leak-free on each tank change. Plug the solenoid into a controller and it doses only during lights-on.
Key Features
- 0.5-15 cu ft/hr flow meter: Calibrated meter sets a repeatable CO2 fill rate for the room.
- 120V solenoid valve: Heavy-duty valve fires from any ppm controller or timer during lights-on.
- Oil-less pressure gauge: Shows remaining tank pressure without oil contamination.
- CGA-320 inlet: Threads onto standard 20 lb and 50 lb aluminum CO2 tanks.
- 15 ft distribution tubing: Included line carries CO2 from the regulator into the canopy.
- Leak-proof washer: White plastic washer seals the tank fitting on every change.
- CE and UL listed: Certified for indoor grow-room use.
Technical Specifications
| Specification | Value |
|---|---|
| Flow Meter Range | 0.5-15 cu ft/hr (SCFH) |
| Solenoid Valve | Heavy-duty, 120V |
| Power | 120V |
| Pressure Gauge | Oil-less tank pressure gauge |
| Tank Inlet | CGA-320 |
| Included | 15 ft CO2 tubing, plastic tank washers |
| Max Recommended CO2 | 2,500 ppm (target ~1,500 ppm) |
| Certifications | CE, UL listed |
| Warranty | 3 years |
