Controller Cabinet for Hydro-X Pro - 35” Large
The Controller Cabinet for Hydro-X Pro (SCC-2) by TrolMaster is the ultimate solution for organizing and protecting your TrolMaster control system components, including Hydro-X Pro and Aqua-X Pro. This 35” large cabinet is meticulously designed to provide a professional, clean, and secure installation for your control systems. With a guaranteed industrial rating and waterproof design, the SCC-2 ensures that your device stations remain clean, dry, and safe.
Features:
- Guaranteed Industrial Rated & Waterproof: IP56 rating equivalent to NEMA 4X ensures superior protection against dust and water.
- All-in-One Controller & Device Module Housing: Conveniently house your TrolMaster controllers and device modules in one secure location.
- Bi-Directional RJ12 Cables: Design your own cabinet layout using flexible, bi-directional RJ12 cables.
- Detachable Design: Easily assemble and disassemble the cabinet for quick installation and maintenance.
- Superior Safety System: Enhanced safety features for optimal protection and performance.
Specifications:
- Dimensions: 35" (L) x 18" (W) x 6.26" (H)
- Cabinet Capacity: Splitter Board #1: 10 ports (top)
- Splitter Board #2: 6 ports (top)
- Splitter Board #3: 17 ports (top)
- Splitter Board #4: 4 x 4 ports (middle splitter bars)
- Splitter Board #5: 6 ports (bottom)
- Power Outlets: 8 + 1 + 6
- Operating Conditions: Enclosure Rating: IP56
- Temperature Resistance: 32 °-104 °F
- Input Voltage: 120V
- Maximum Amperage: 15A

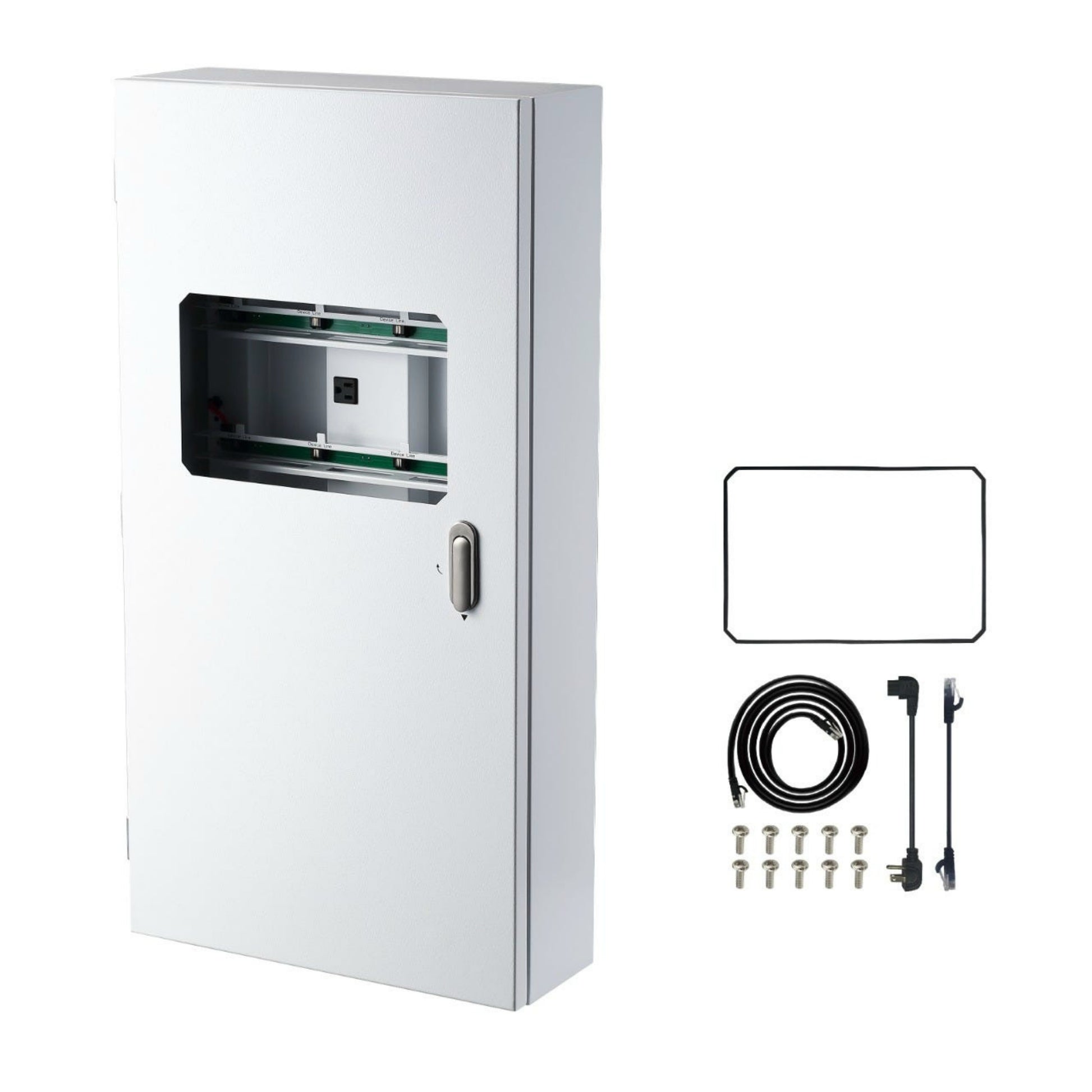

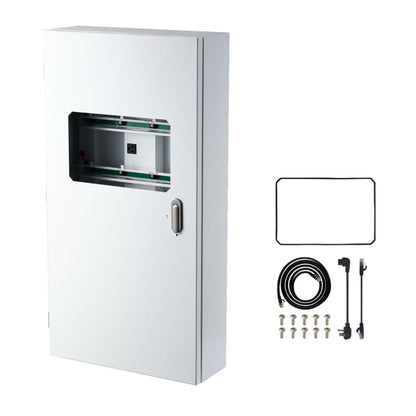

Package Contents:
- 1 x Controller Cabinet
- 1 x Installation Manual
- 4 x Long RJ-12 Cables
- 26 x Short RJ-12 Cables
- 8 x Power Cables (for OA6-24/OA6-110)
- 18 x OA6-24/OA6-110 Screw Set

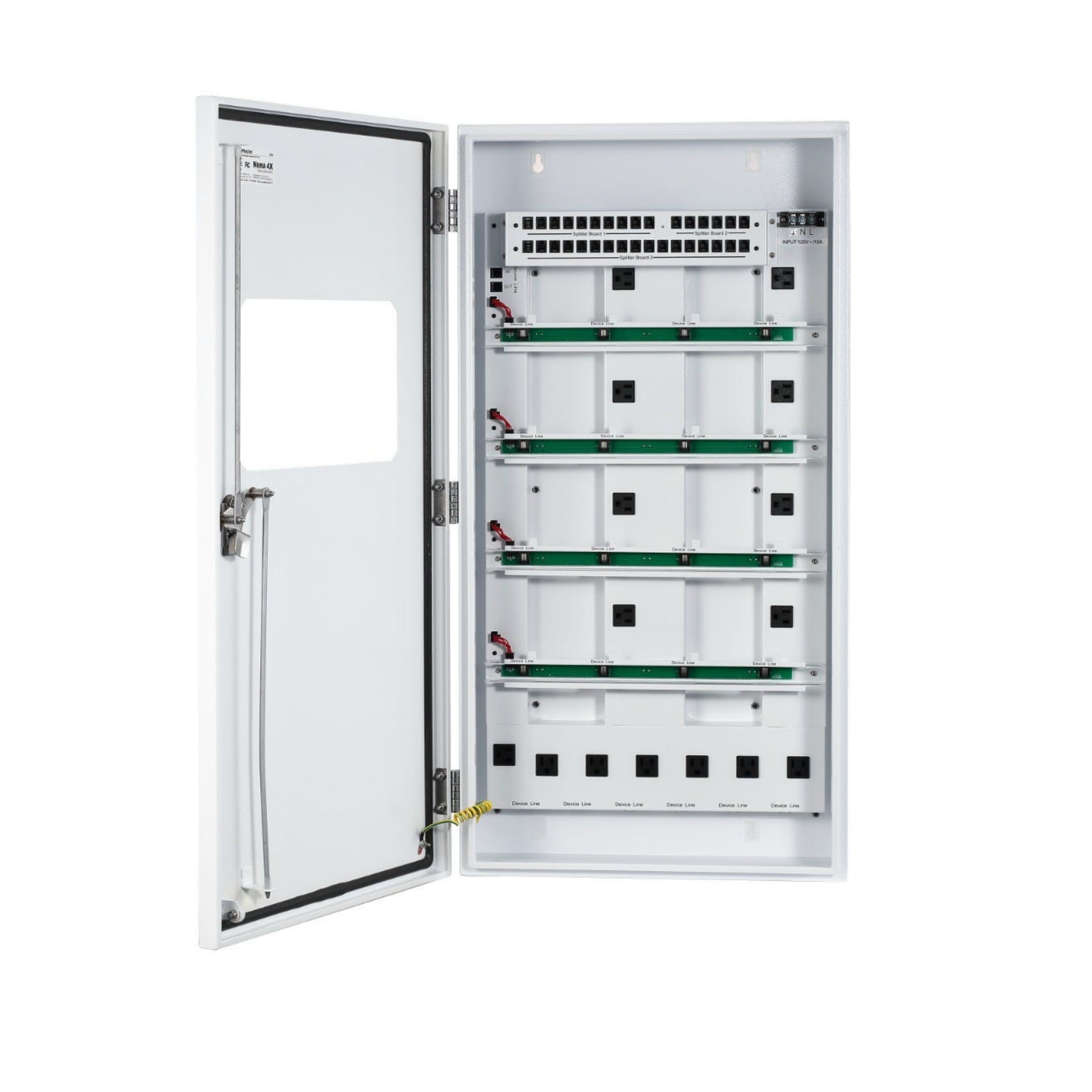

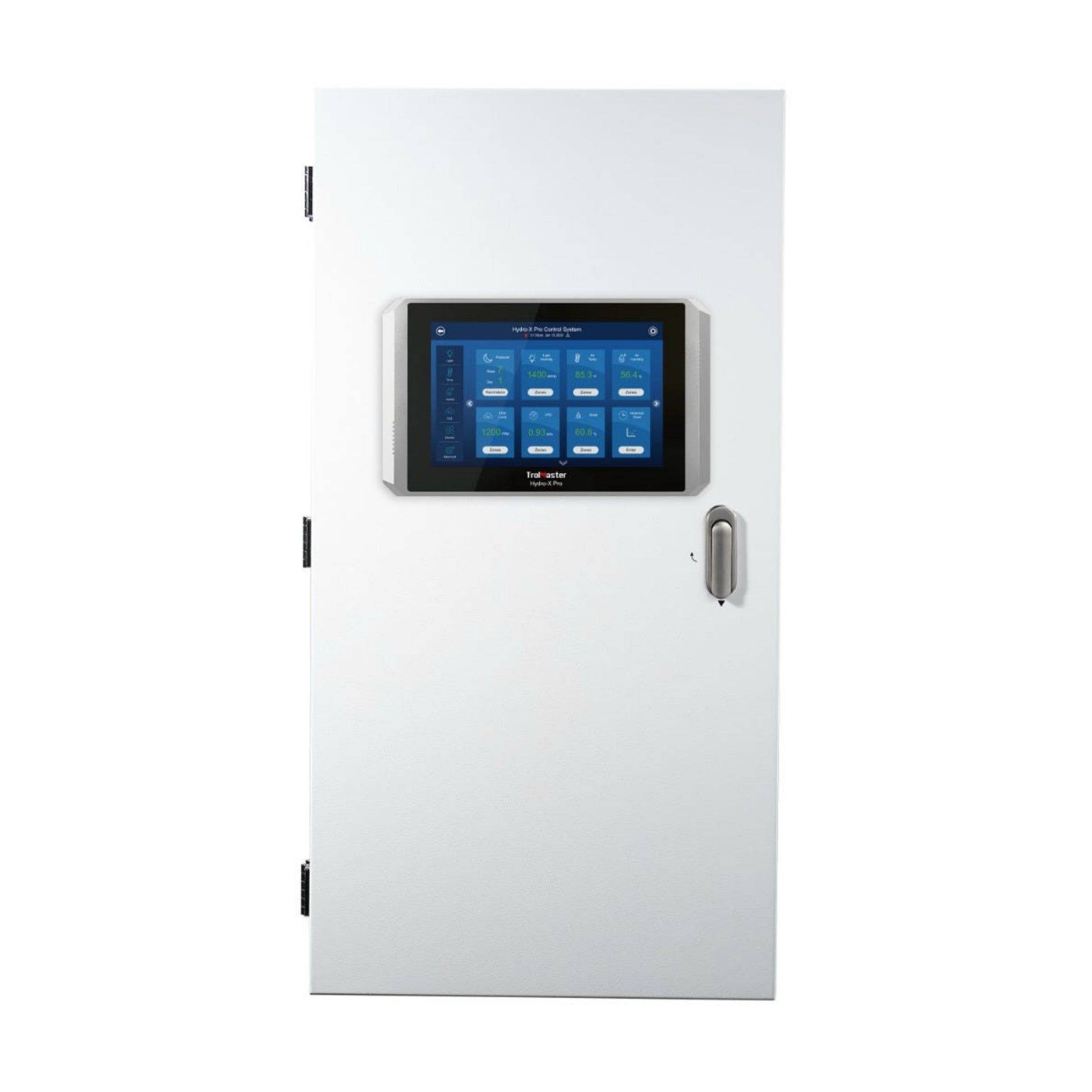

The SCC-2 cabinet is designed with a pre-cut opening for easy installation of TrolMaster's main controllers, Hydro-X Pro (HCS-2), or Aqua-X Pro (NFS-2). This ensures a clean and professional setup, allowing users to safely mount power supplies, and modules, and organize RJ12 cables effortlessly. For maximum protection, the provided controller rubber gasket must be used to achieve the IP56 standard, ensuring your control system is safeguarded against environmental elements.
