CraftFarmer 240V Dimmable Power Cord with 0-10V Control | Under Canopy V3 LED

CraftFarmer 240V Dimmable Cord with 0-10V Control for V3 LEDs

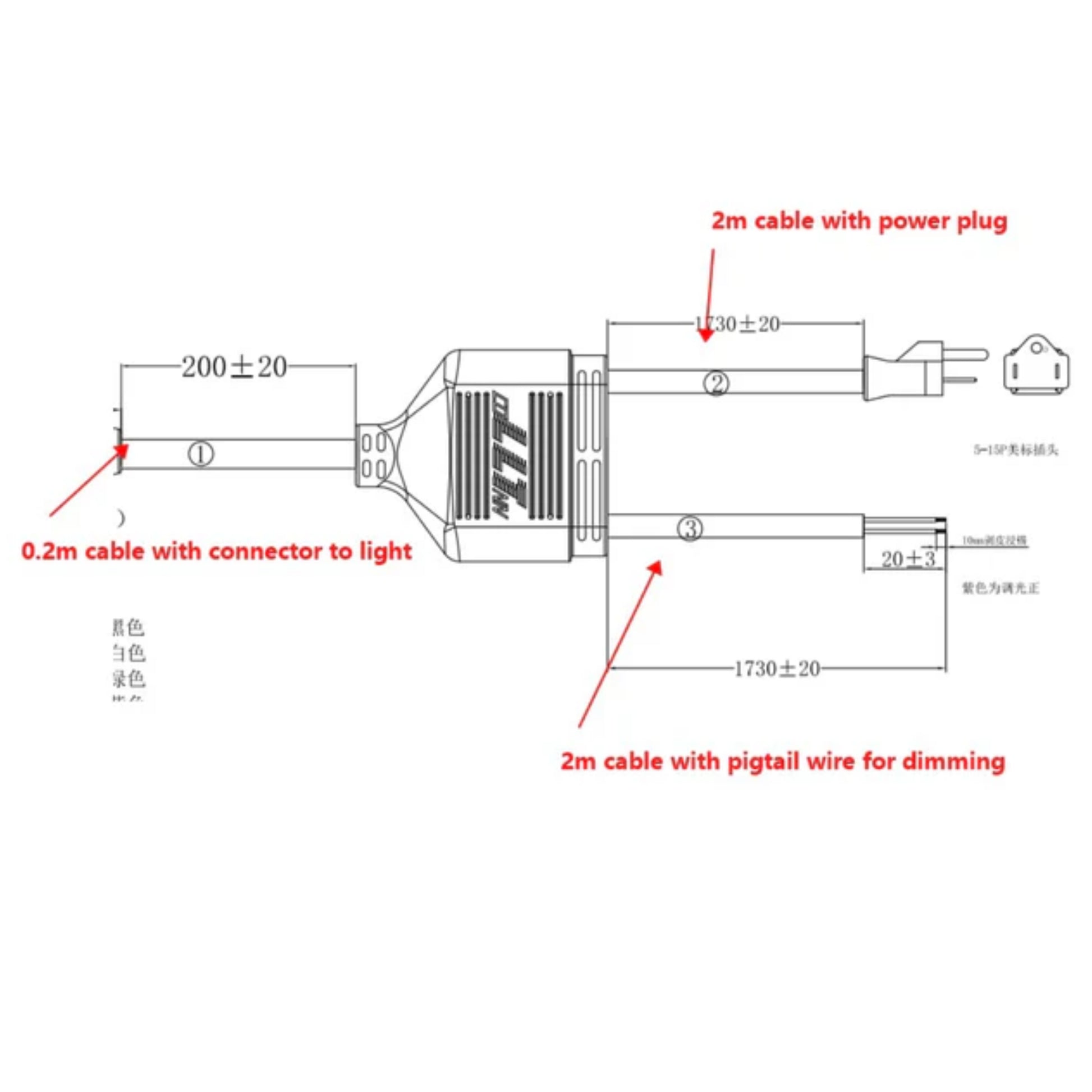

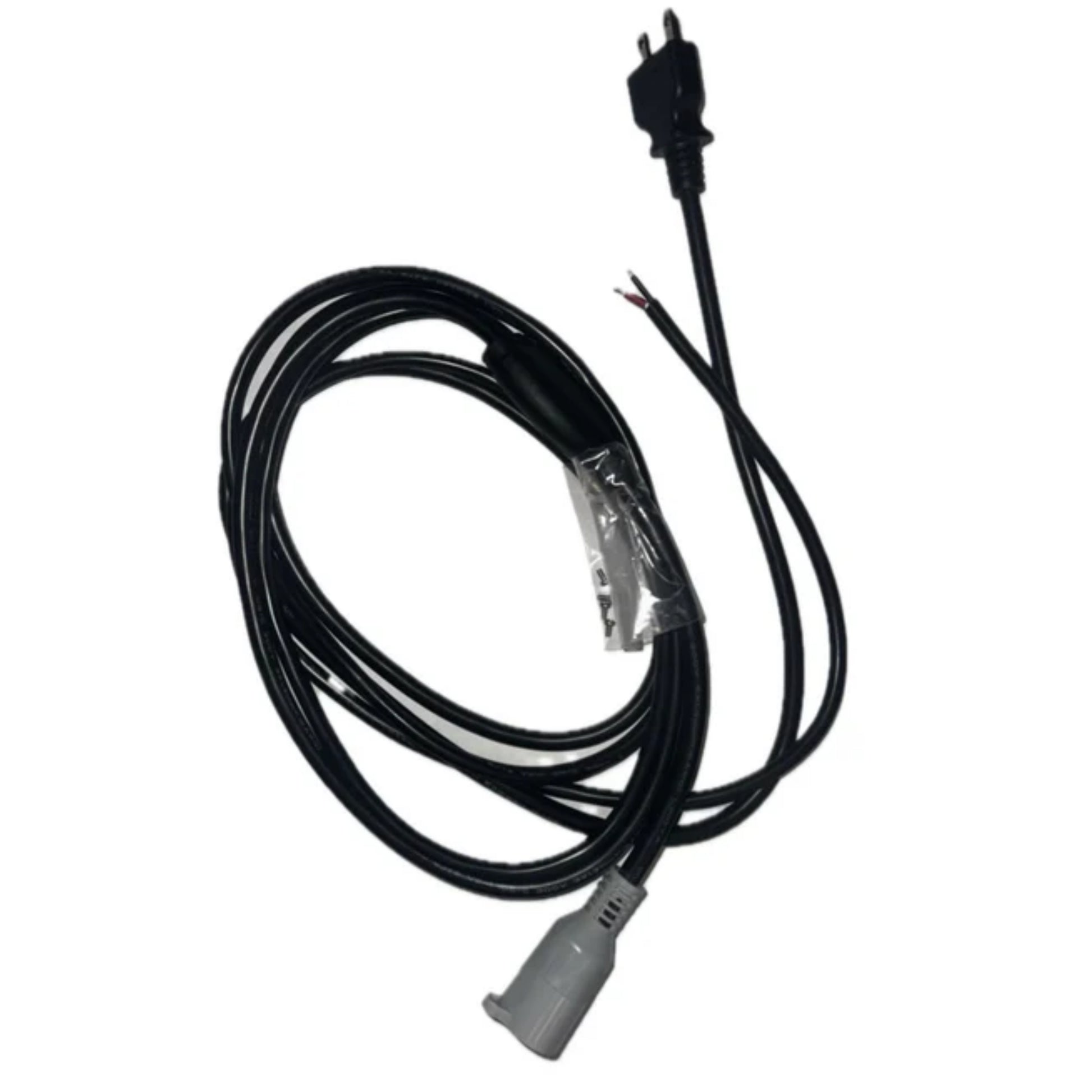

The CraftFarmer 240V dimmable cord delivers AC power and an analog 0-10V dim signal to the lead CraftFarmer V3 Under Canopy LED in a chain. It bundles the dim line into the same cord, so a single connection at the panel side handles both on/off and intensity. The 0-10V signal scales smoothly across the dim curve, which is the same protocol most commercial horticultural drivers use. This is the dedicated 240V input cord for the CraftFarmer V3 line and pairs with the CraftFarmer daisy chain cable for fixture-to-fixture extension. Dimming is set at the cord, not at each fixture.

CraftFarmer 0-10V Control Cord for Under Canopy LED Daisy Chains at 240V

Growers typically place this cord on a dedicated 240V circuit at the head of the chain. The 0-10V dim signal lets you ramp from low intensity during transition through full output in mid-flower without re-cabling. CraftFarmer phrases the dim protocol as 10V control. That maps to the standard 0-10V analog signal used across most LED drivers. Confirm the V3 fixture has the matching 0-10V driver before relying on the dim line. The cord is purpose-built for the CraftFarmer V3 family. It is not a universal accessory across other under-canopy brands. The dim wire pairs once and remembers the chain. Set the curve at the head.

Key Features

• 0-10V Analog Dim Signal: Standard horticultural dim protocol bundled into the same cord as AC
• 240V Input: Drives commercial circuits common in multi-row Under Canopy installs
• V3 Compatibility: Built for the CraftFarmer V3 Under Canopy LED fixture line
• Single-Cord Build: AC and dim signal share one cable for tidy under-canopy routing
• Mid-Chain Ramp: Lets a single control point ramp the entire daisy chain from low to full

Technical Specifications
