CraftFarmer Under-canopy 120W 6500K LED | 4 ft Bar | IP66 | 7-Year

Under Canopy LED Grow Light: 4 ft Bar with 6500K Daylight + Deep Red/Far Red

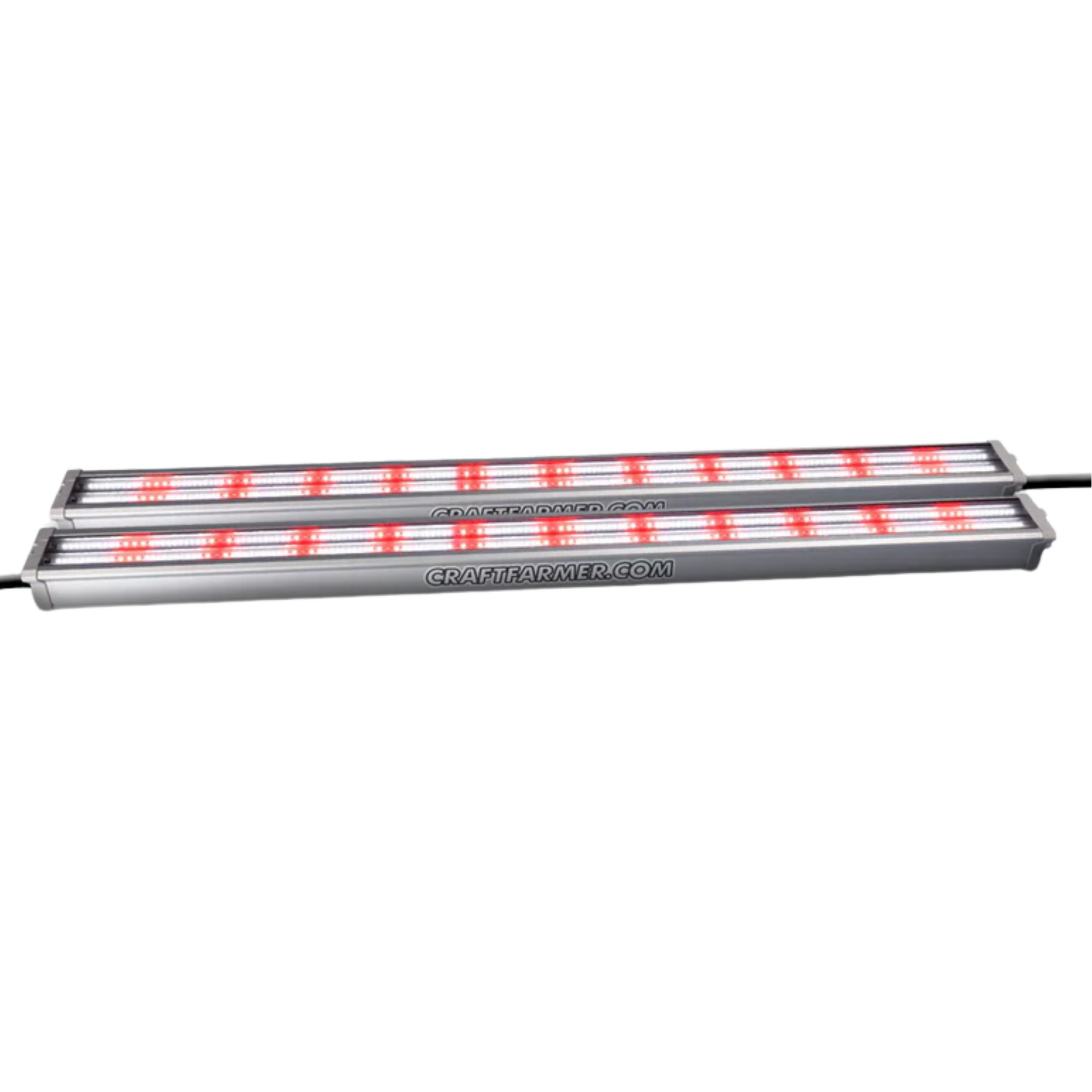

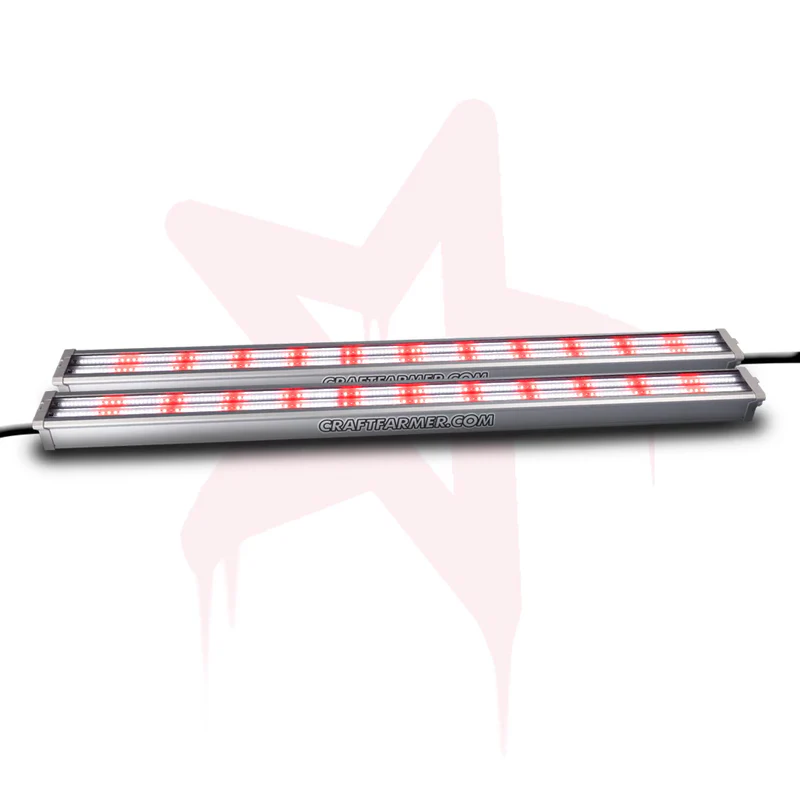

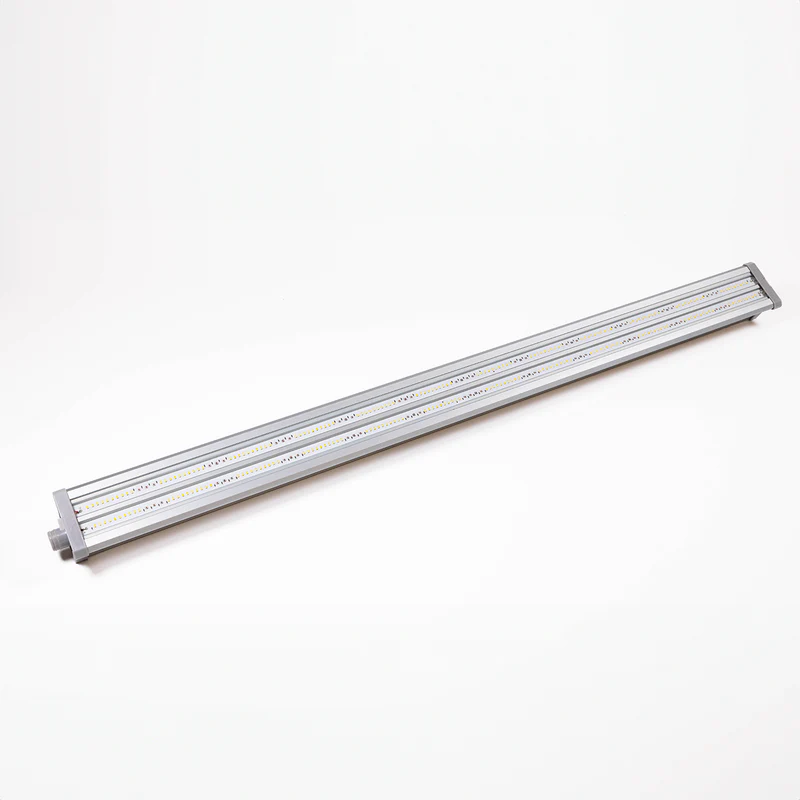

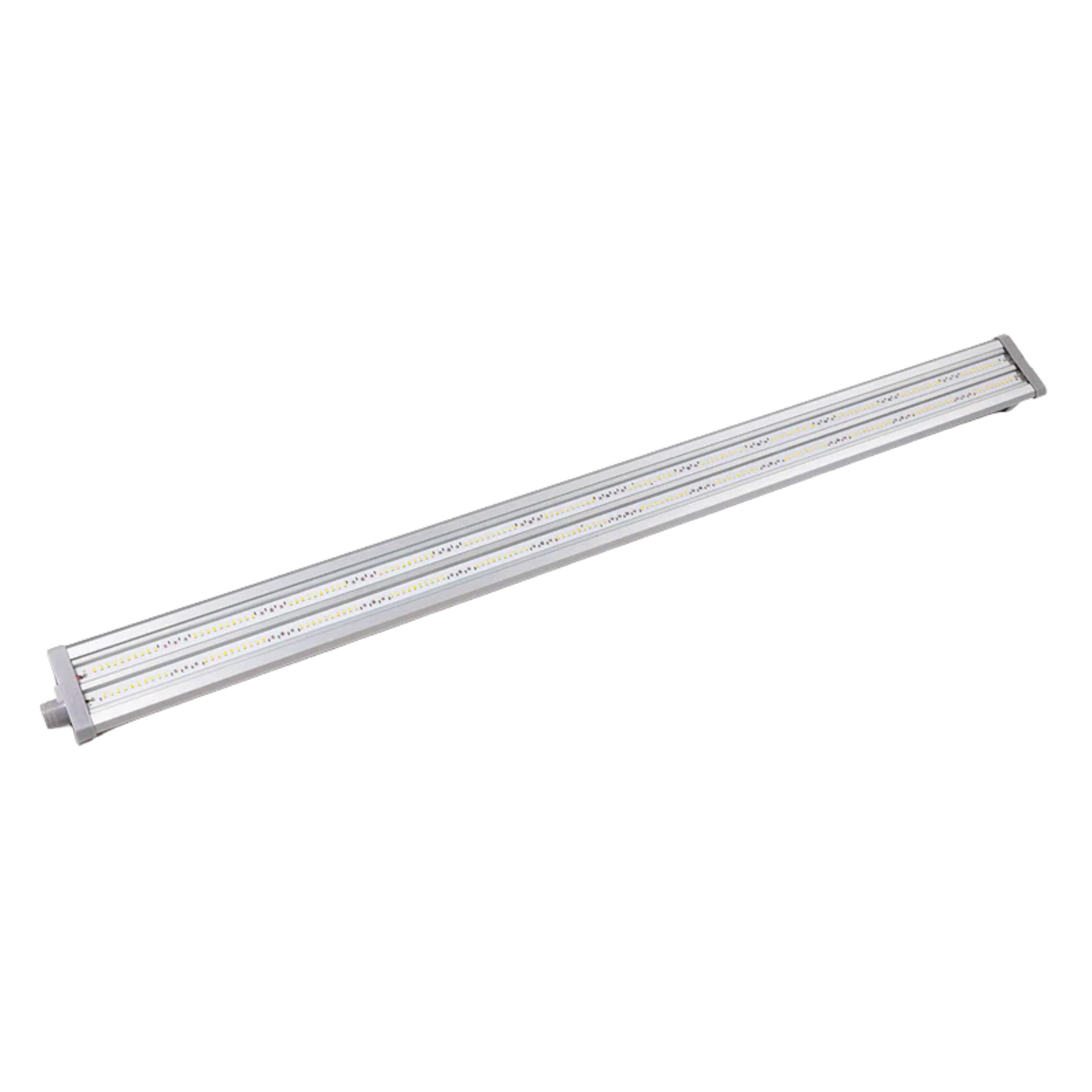

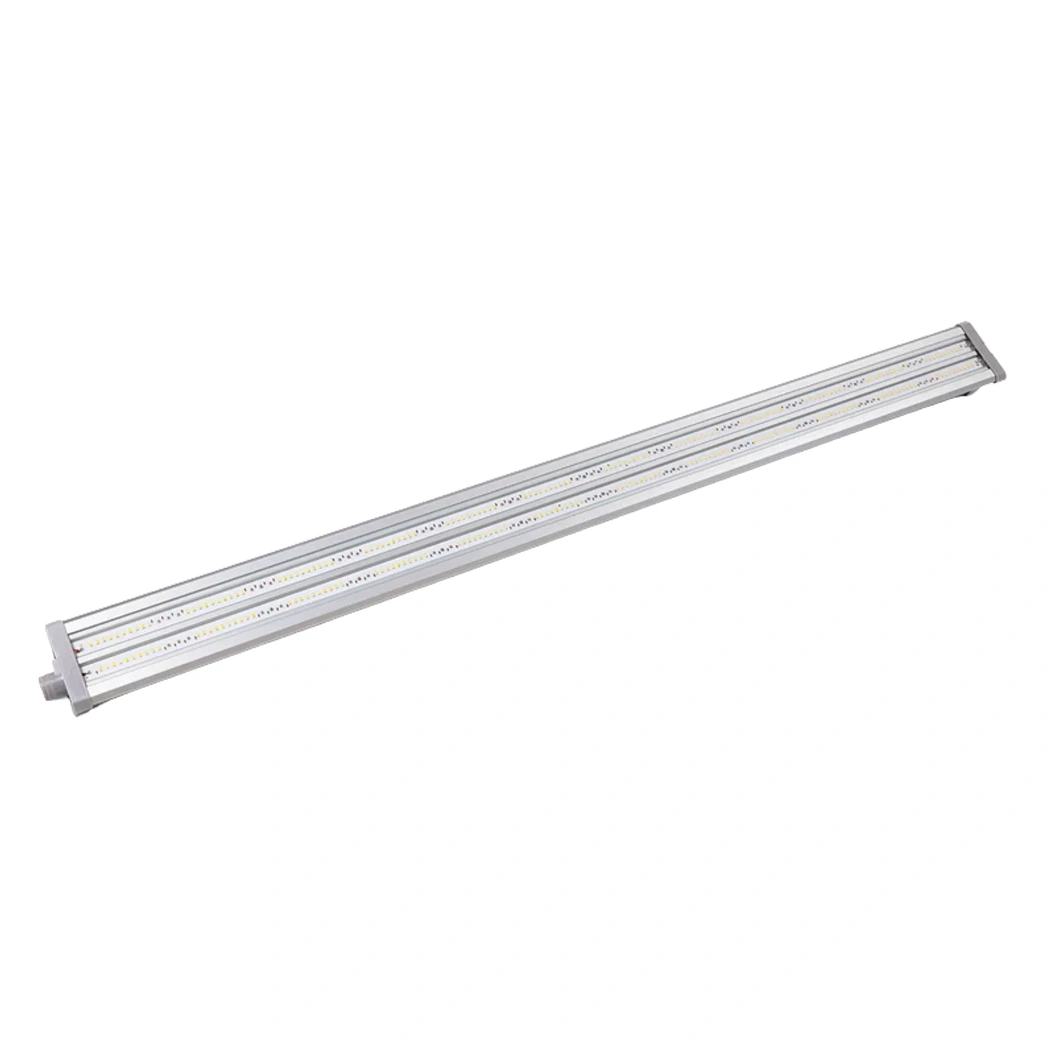

The CraftFarmer Under-canopy 120W 6500K LED is a 4 ft IP66 daisy-chain LED. Bar built for under canopy LED grow light placement beneath dense flower canopies. Wattage is 120W with 336 µmol/s PPF at 2.8 µmol/J efficacy on Osram and Samsung diodes. Spectrum is 6500K daylight white augmented with deep red and far-red for lower bud development lighting. Voltage is 120-277V auto-sensing on the 120v-277v voltage sensing LED bar driver. The aluminum housing carries a glass top for IP66 water and dust resistance. Bar dimensions are 44.09 x 1.15 x 1.46 in (4 ft / 112 cm).

6500K Daylight LED for Flowering with Voltage-Adaptive Daisy-Chain Capacity

Growers typically place the bars below the trellis around day 14 of. Flower for under-canopy bud development on the 6500K daylight LED for flowering profile. Then the deep red and far-red supplemental diodes target flowering response in lower-canopy nodes. Daisy-chain capacity scales with input voltage: up to 8 lights at 120V, 13 at 208V, 15 at 240V, or 18 at 277V. Aluminum housing with glass top tolerates wash-down cleaning between cycles. The 7-year warranty covers multi-cycle commercial flower-room schedules and the IP66 daisy-chain LED bar build handles wet bench environments. Build quality holds up across multi-cycle commercial deployments. Per-fixture amp draw matters when sizing a high-density bloom panel. Spectrum consistency across fixture batches keeps cultivar response repeatable. Stage-specific ramps reduce light stress during transition between veg and bloom. Field-replaceable drivers shorten downtime when service intervals come due.

Key Features

• Power and Output: 120W draw delivers 336 µmol/s PPF at 2.8 µmol/J efficacy.
• Spectrum: 6500K daylight white plus deep red and far-red for under-canopy bloom support.
• Diode Mix: Osram and Samsung diodes balance white-and-deep-red architecture.

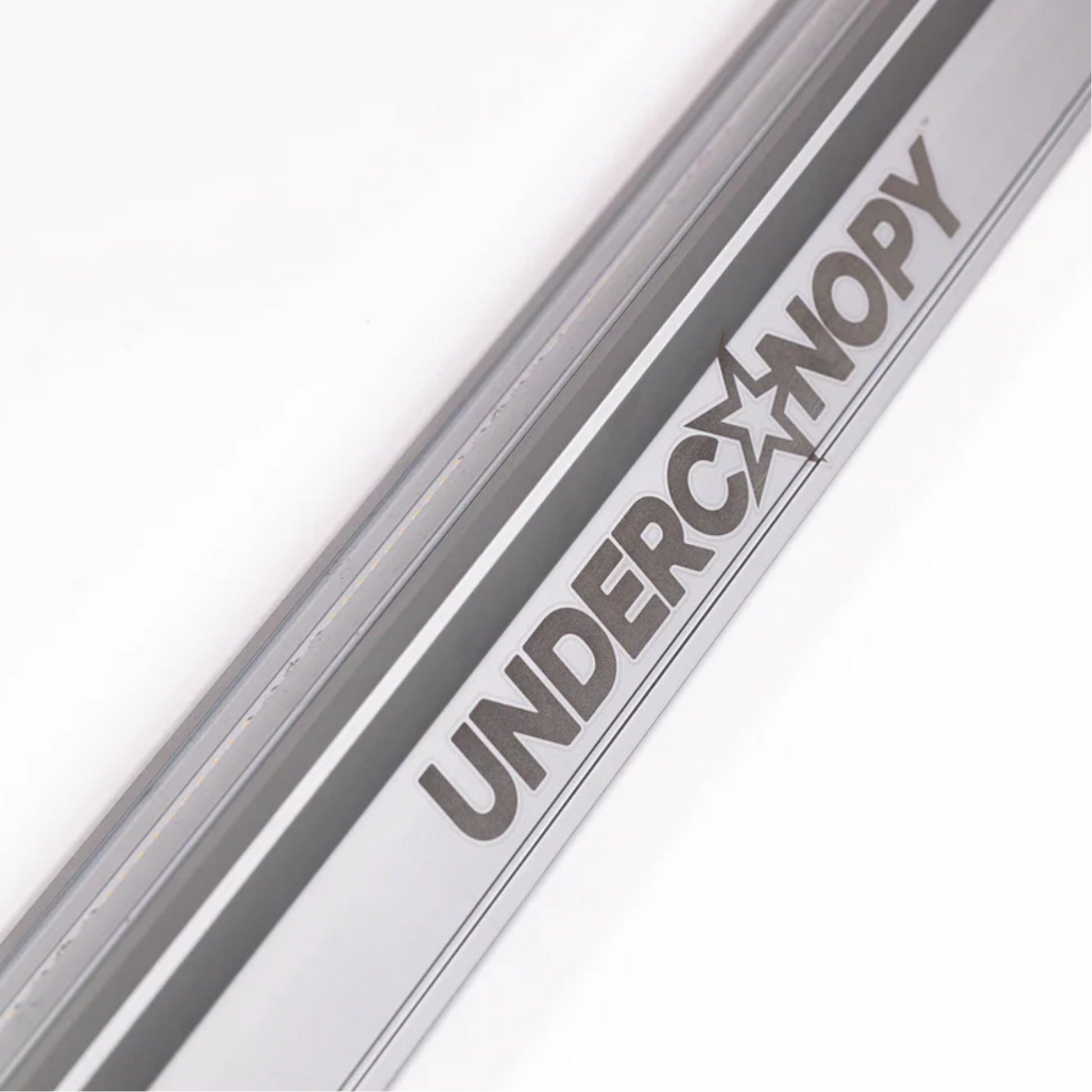

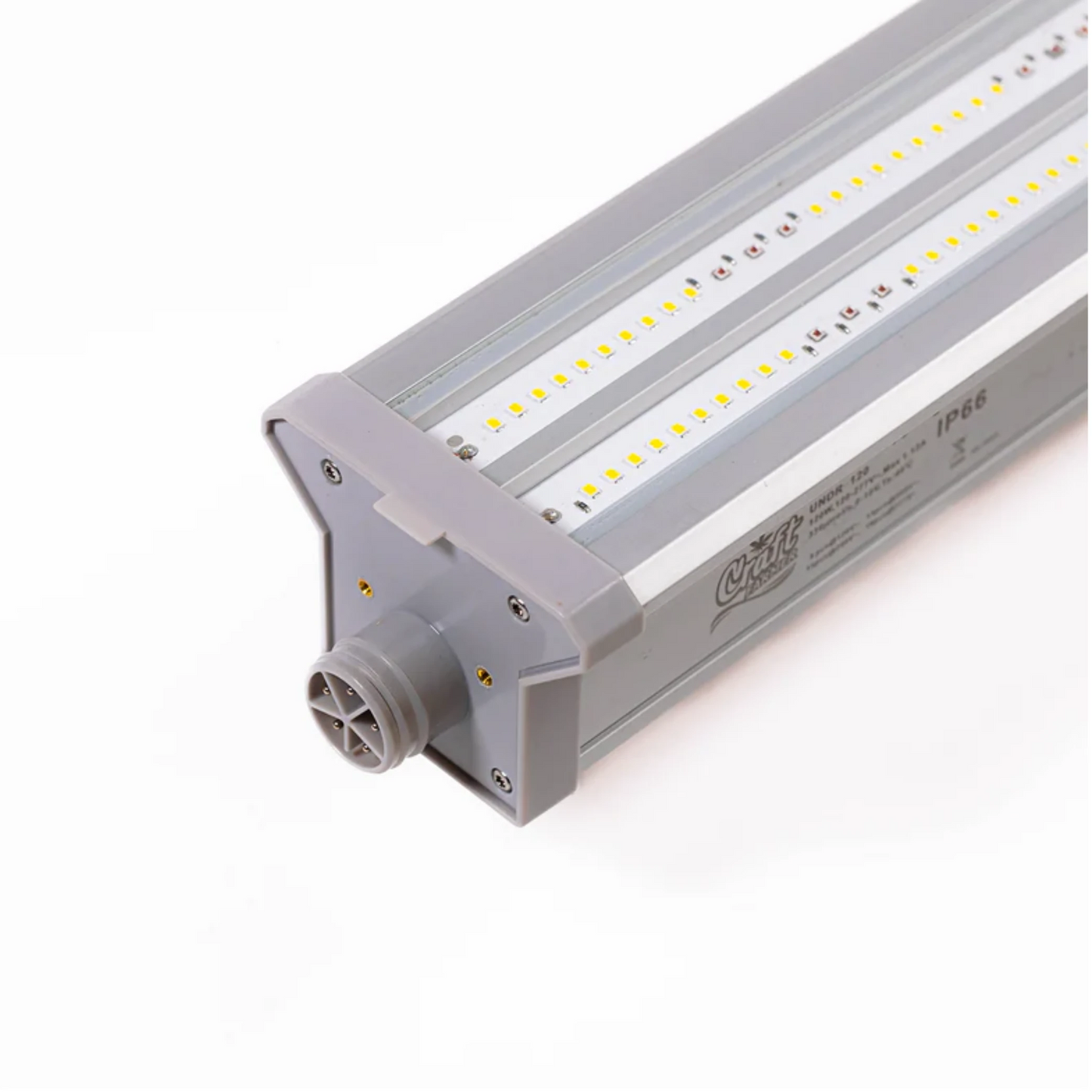

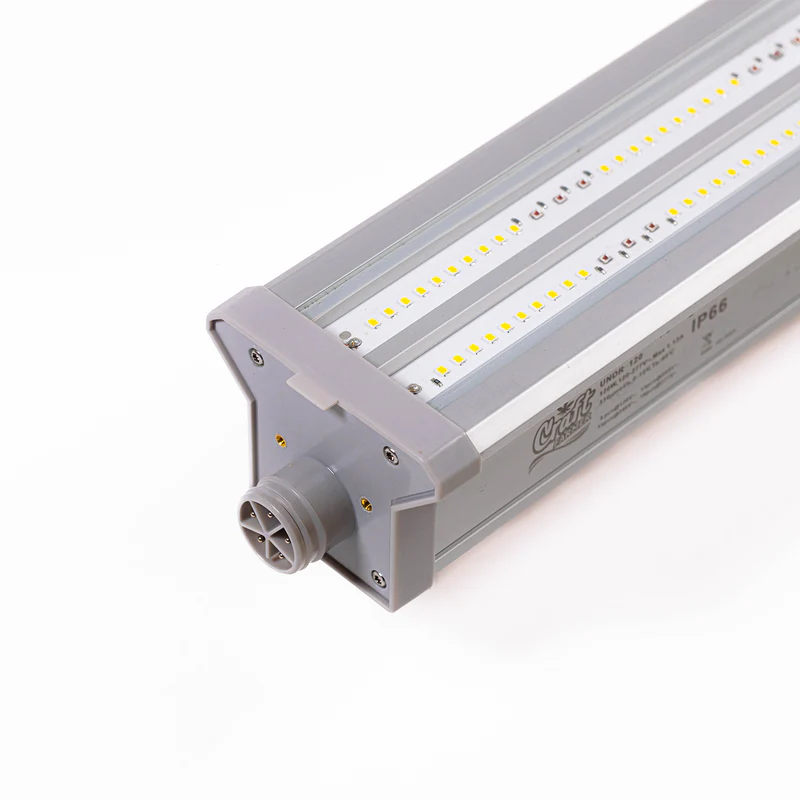

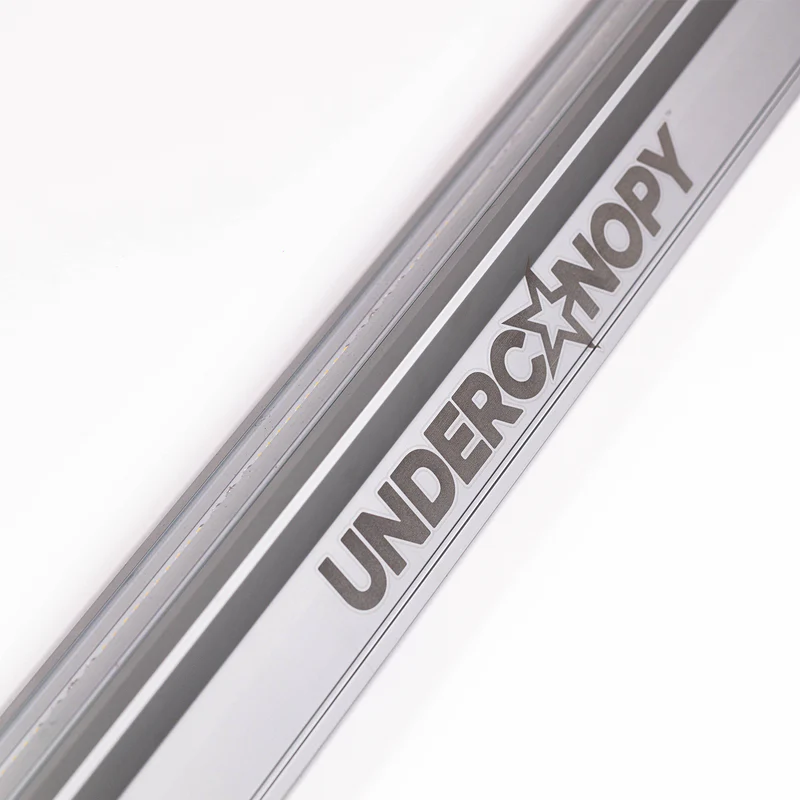

• IP66 Rated Build: Aluminum housing with glass top for wash-down cleaning between cycles.

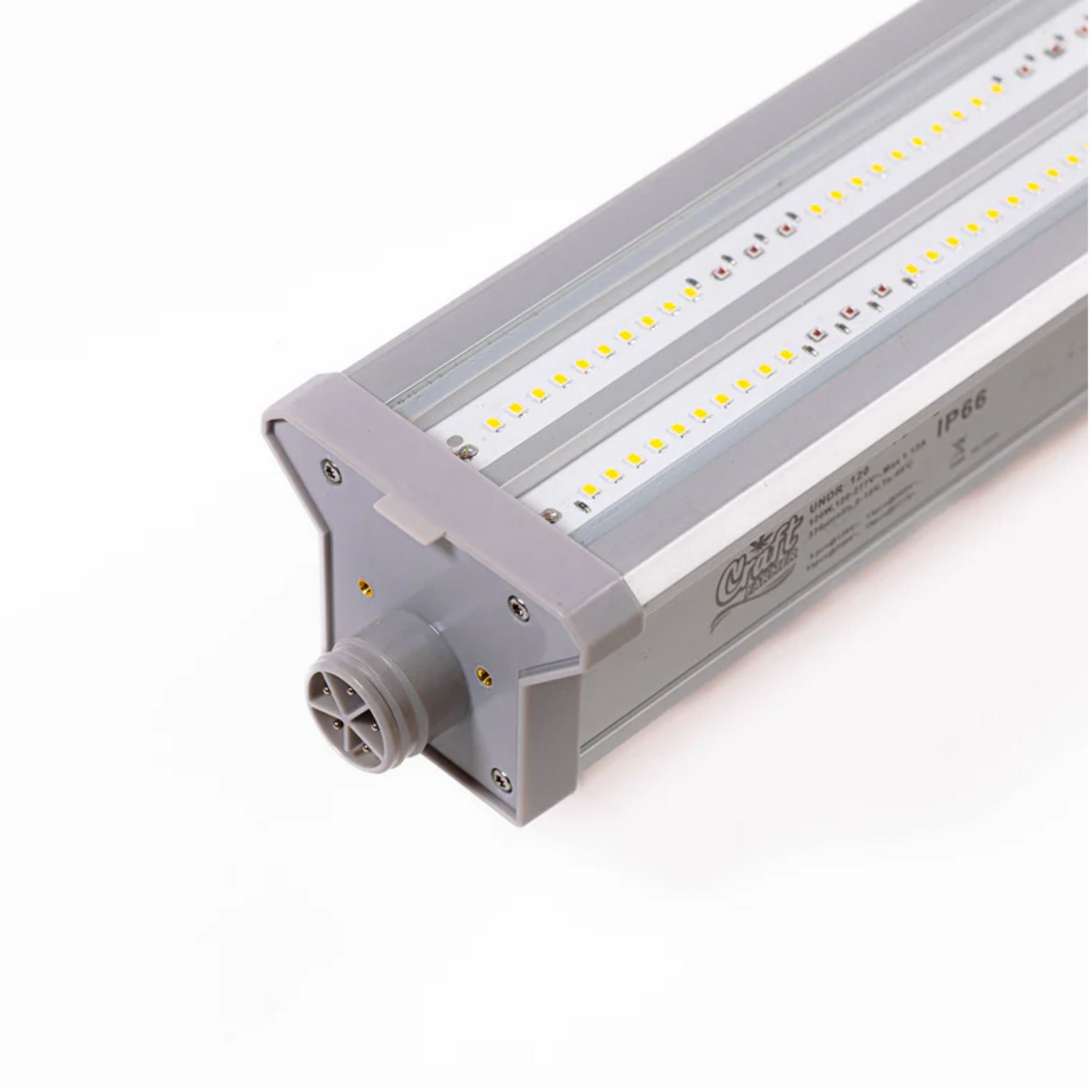

• Voltage Range: 120-277V auto-sensing on the 120v-277v voltage sensing LED bar driver.
• Daisy-Chain @ 120V: Up to 8 lights per circuit at 1A each for residential builds.
• Daisy-Chain @ 277V: Up to 18 lights per circuit at 0.43A each in commercial rooms.

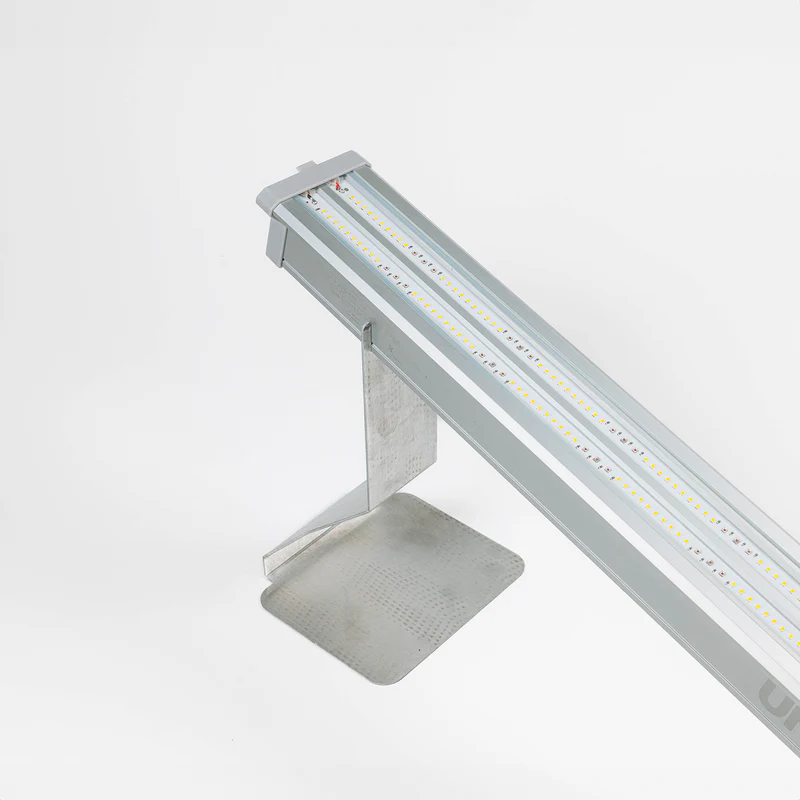

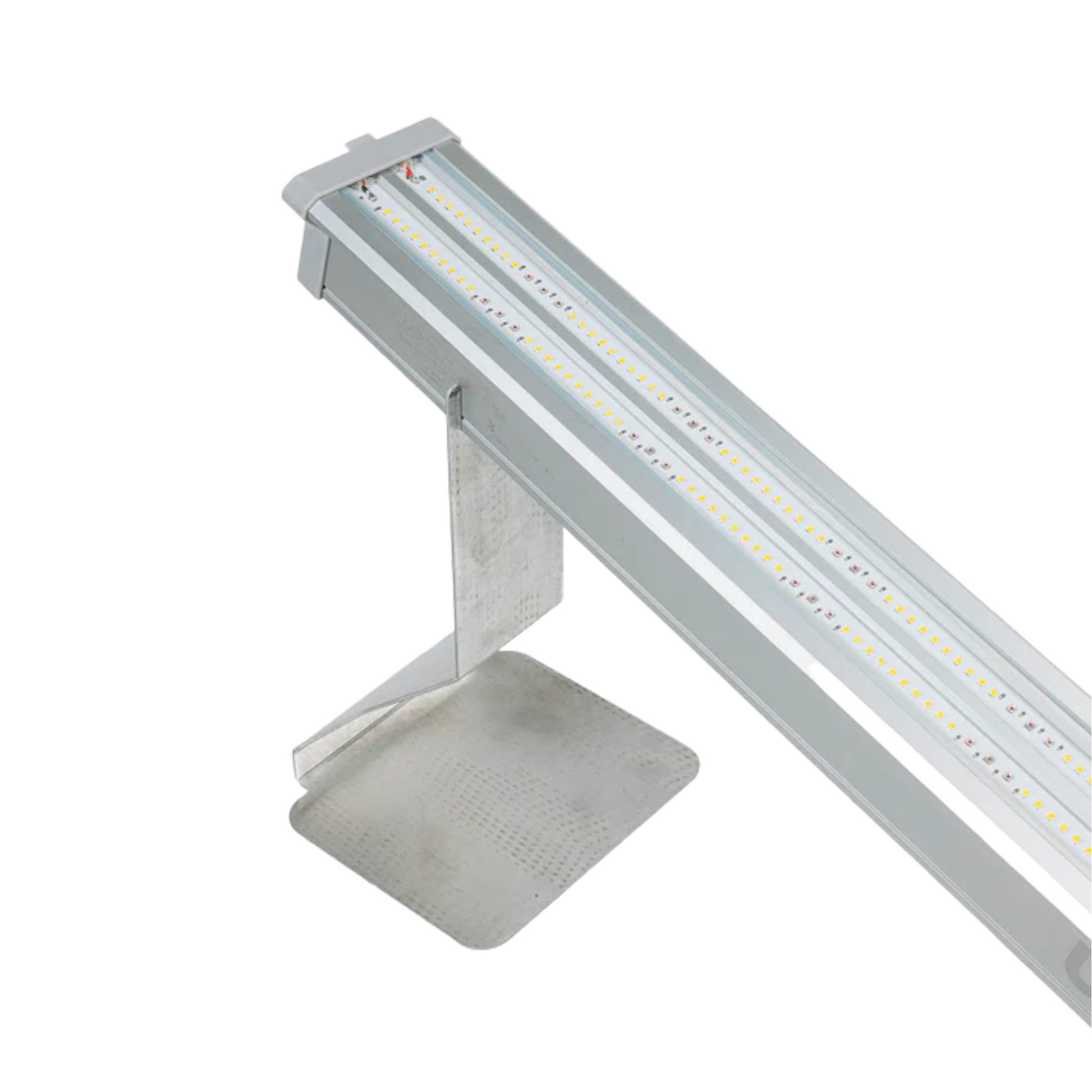

• Form Factor: Slim 4 ft bar profile fits under trellis without crowding canopy work.
• Warranty: 7-year warranty for multi-cycle commercial flower-room rotations.

Technical Specifications
