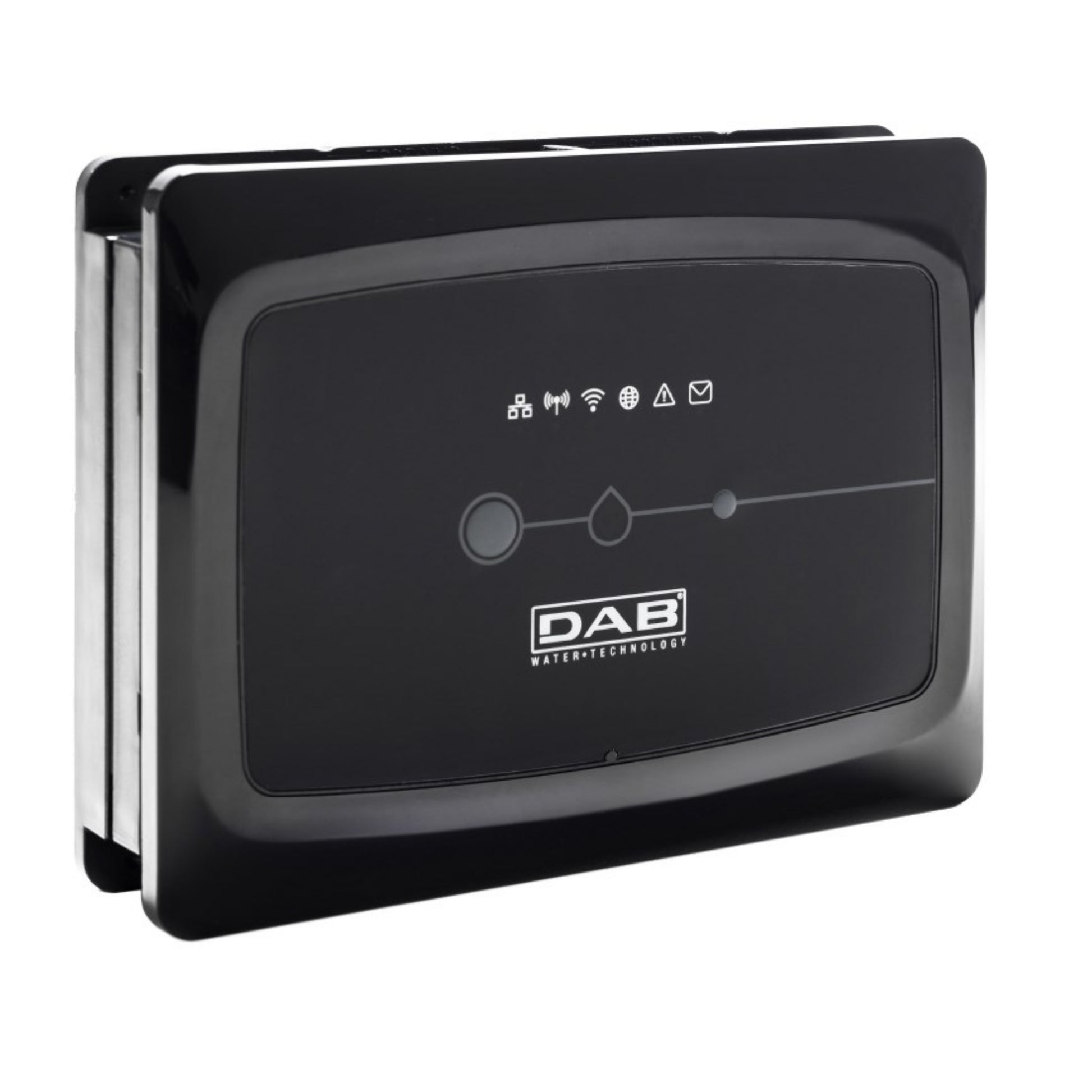

DAB DConnect Box Gateway for Pumps and Controllers

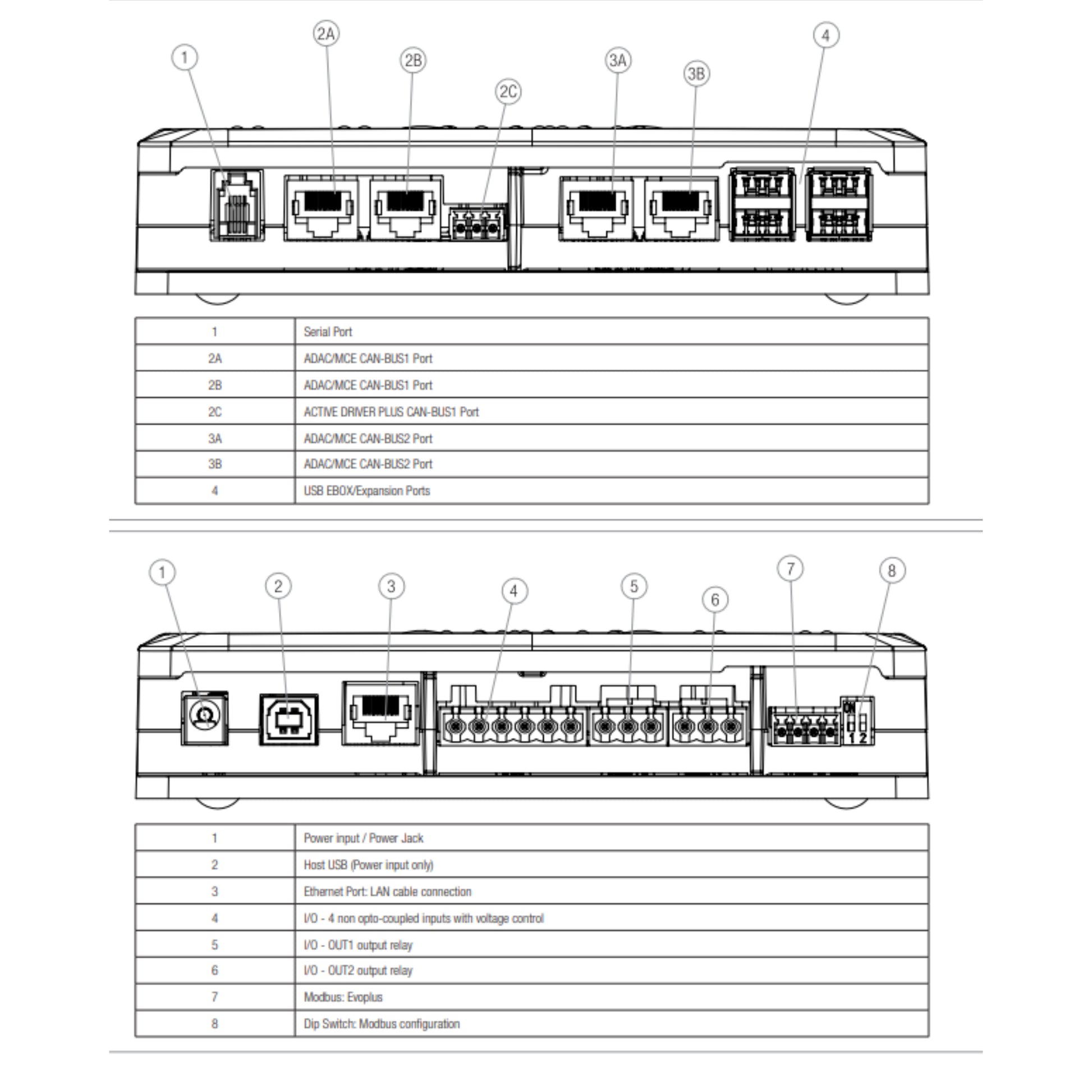

This DConnect Box is a wall or DIN-rail gateway that puts DAB pumps and pump controllers online. It talks to the local network over Wi-Fi 802.11 b/g/n with WPA or WPA2 encryption, or over a wired Ethernet port. The wired link supports 10Base-T and 100Base-TX, with cable runs up to 100 m. On the device side, it speaks Modbus over a 2-wire RS485 terminal and offers two CAN-BUS channels. Rear USB ports accept DAB's EBOX and e.sylink accessories. ESYBOX and ESYBOX Mini 3 pumps join without any cable through DAB's own wireless link. There are 4 digital inputs that accept a 0-10 V signal or a clean contact. Two relay outputs, rated 230 VAC, 3 A, can switch an alarm beacon or an external device. A wall adapter takes 100-240 VAC and feeds the box 12 V DC at 1.5 A. The housing is rated IP20, so it belongs indoors, in a dry panel or plant room.
Remote Pump Monitoring for Irrigation and Water Rooms
In a grow operation, the box becomes the window into the pump room when nobody is standing in it. It can manage up to 8 electronic pumps across pressurization, circulation and water recovery duties. Status, operating data and alarms show up in the DConnect app or a web browser. Settings such as set pressure can change from a phone, which saves a trip across the facility. Alerts reach staff quickly when a pump trips or a dry-run fault appears. Firmware updates download through the same internet link. The router must offer a 2.4 GHz band with DHCP active and no captive login page. The connection needs to stay up full time, since the box works through DAB's cloud service. Setup runs through the app on Android 7 or later, or iOS 11 or later. Each user registers an account with DAB before the first pairing.
Key Features
- Cloud access from anywhere: Status, settings and alarms are reachable through the DConnect app or a web browser.
- Wi-Fi or wired uplink: Connect over 2.4 GHz Wi-Fi or a 10/100 Ethernet port, whichever the site network offers.
- Modbus and CAN-BUS: Wired ports bring DAB circulators and pump controllers into the same dashboard as wireless boosters.
- Wireless ESYBOX pairing: ESYBOX and ESYBOX Mini 3 pumps connect over DAB's own radio link, with no signal cable to run.
- Inputs and relay outputs: Four digital inputs and two relays tie the box to float switches, alarms or a building panel.
- Flexible mounting: Fits a DIN rail with the included bracket, screws to a wall, or sits on rubber feet.
Technical Specifications
| Specification | Value |
|---|---|
| Part number | 60172819 |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz, WPA-PSK/WPA2-PSK |
| Ethernet | IEEE 802.3 10Base-T / 100Base-TX, up to 100 m cable |
| Modbus | RS485, 2-wire |
| CAN-BUS | 2 channels |
| USB | Rear ports for EBOX and e.sylink accessories |
| Digital inputs | 4, 0-10 V signal or clean contact |
| Relay outputs | 2, NO/NC, 230 VAC 3 A |
| Power | Wall adapter, 100-240 VAC in, 12 V DC 1.5 A out |
| Protection rating | IP20 |
| Pump capacity | Up to 8 electronic pumps |
| Wireless-compatible pumps | ESYBOX, ESYBOX Mini 3 |
| Mounting | DIN rail, wall or flat surface |
| App requirements | Android 7+ or iOS 11+, permanent internet, 2.4 GHz router with DHCP |
| In the box | DConnect Box, power supply with plug and ferrite core, DIN bracket, screws and wall plugs, Modbus, CAN-BUS, I/O and relay connectors |
