DAB DTRON2 45/90 Submersible Pump for Clean Water
A well or storage tank is only useful if the water reaches the house or the rows at steady pressure. A bare pump on a manual switch rarely holds that. This three-stage pump pushes clean water up to 147 ft of head at 32 GPM. Its built-in electronics then hold a set 34.8 PSI. It reads demand and starts when a tap or emitter opens, so a grower gets city-like pressure straight from a reservoir. An integrated 0.04-liter vessel and check valve smooth each cycle without a separate pressure tank on the wall. That turns a raw water source into a finished, pressurized supply.
On-Demand Pressure for Wells, Tanks, and Irrigation
This convertible unit runs fully submerged in a well, partly submerged in a cistern, or dry on the surface with the right jacket. The IP68 body sits down to 49 ft deep and needs only 1.38 in of water above the intake to keep priming. A 49-foot power cable with plug reaches from a deep tank to a 115V outlet without a splice. Dry-run protection, a debris filter, and an over-pressure valve guard the motor against empty tanks, grit, and water hammer. A grower drops it in, threads the 1-1/4 in NPT outlet, and has rainwater or well water feeding lines the same day.
Key Features
- 147 ft head, 32 GPM: Three technopolymer stages move clean water hard
- Built-in pressure control: Starts on demand and holds 34.8 PSI

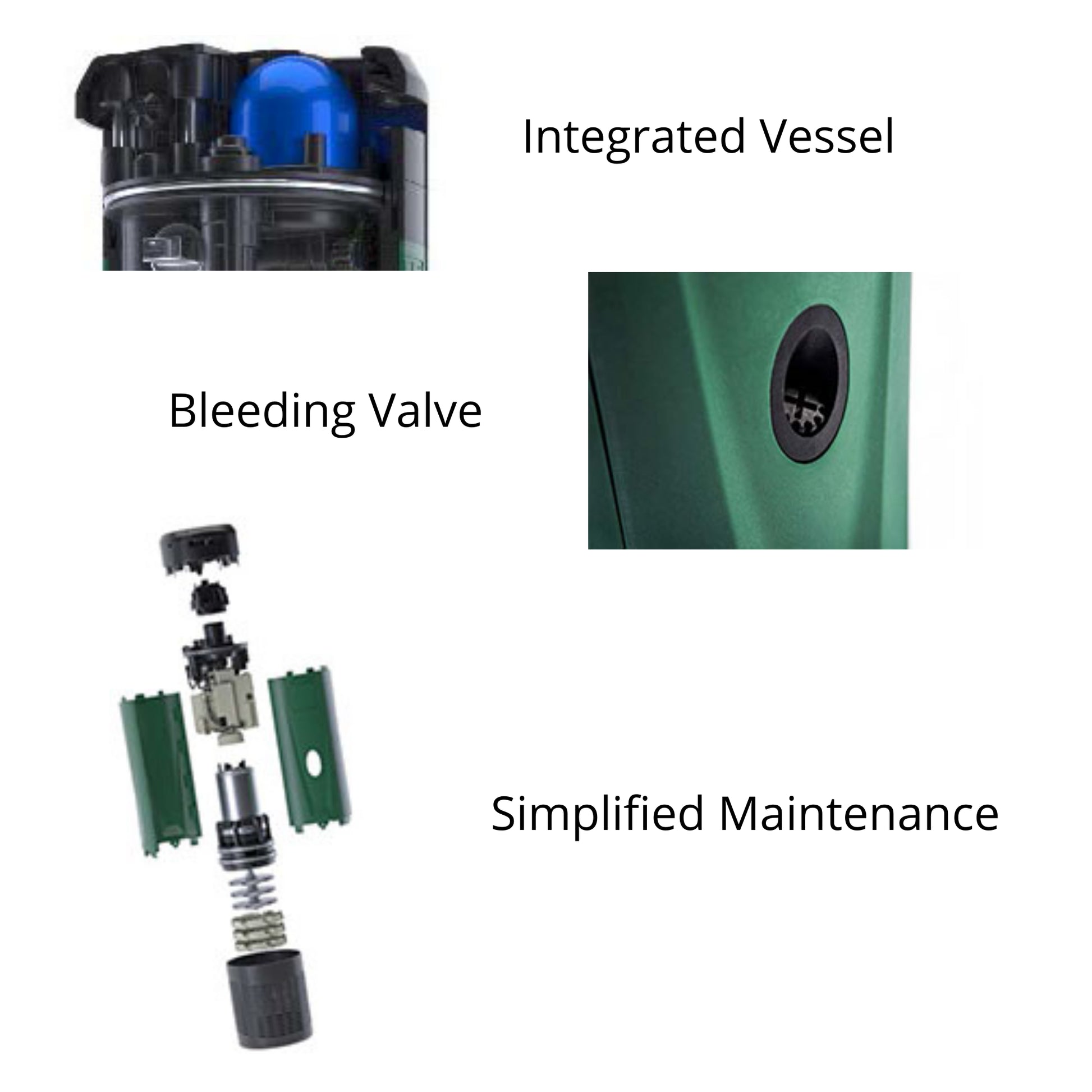

- Integrated 0.04 L vessel: Check valve and cushion, no external tank
- IP68 to 49 ft: Submersed, partial, or surface convertible mounting
- 115V with 49 ft cable: Plug-in power and a 1-1/4 in NPT outlet
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | DTRON2 45/90 (DAB60195643) |
| Type | 7 in electronic multi-stage submersible, convertible |
| Power | 115V / 60 Hz single-phase, ~0.8 HP (0.6 kW) |

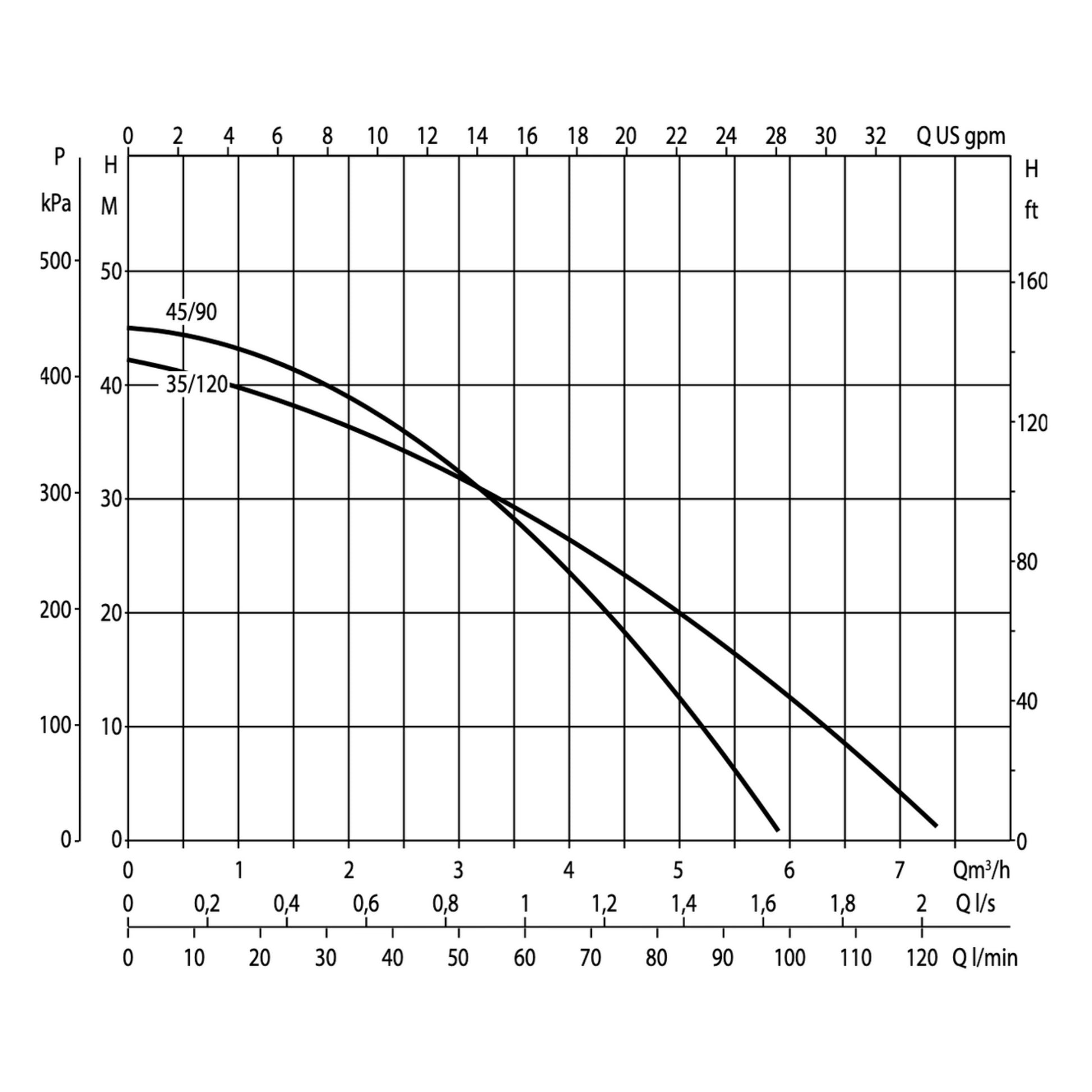

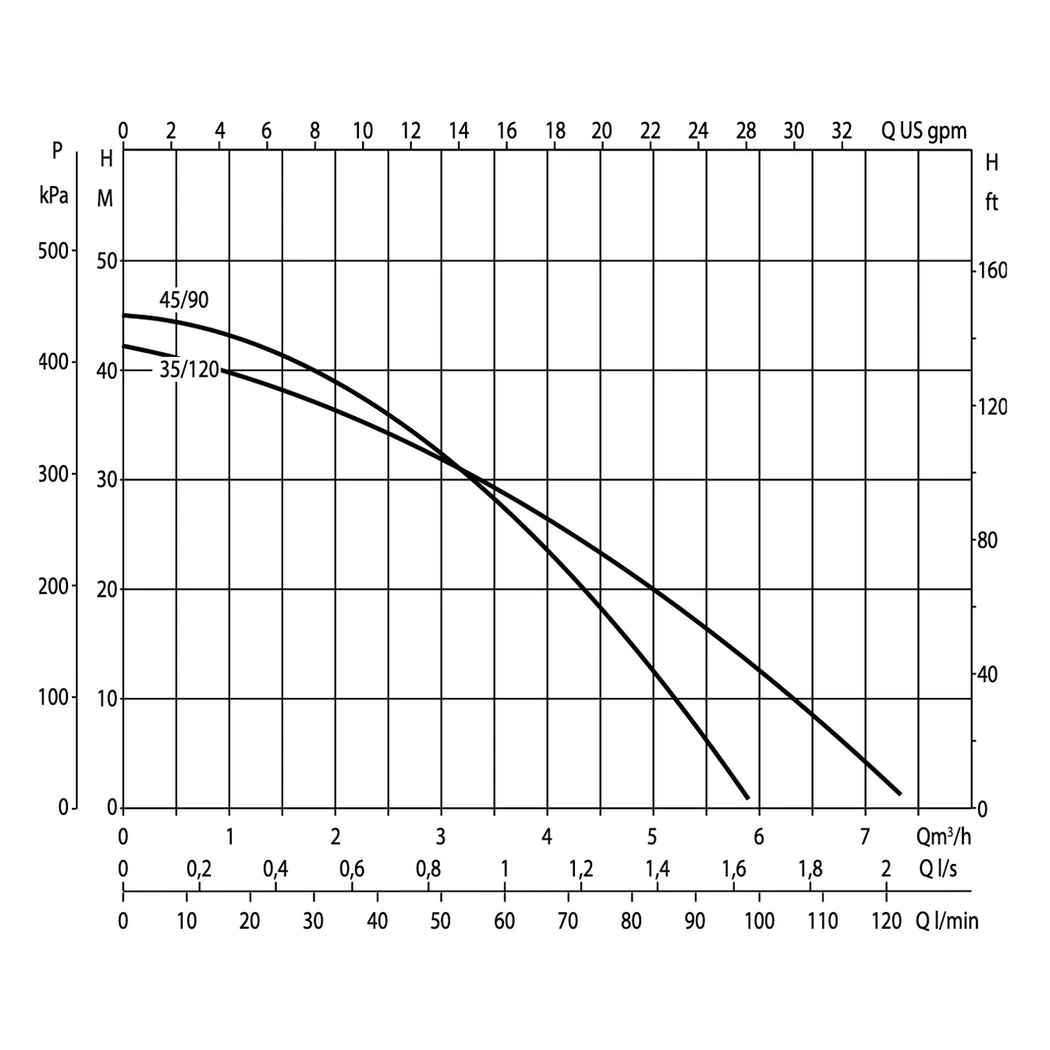

| Max Head | 147 ft (45 m) |
| Max Flow | 32.1 GPM (7.3 m³/h) |
| Cut-in Pressure | 34.8 PSI (2.4 bar) |
| Impellers | 3-stage, technopolymer with stainless steel |
| Outlet | 1-1/4 in NPT female threaded |
| Max Immersion | 49 ft (15 m) |
| Min Water Level | 1.38 in (35 mm) |
| Free Passage | 0.08 in (2 mm) solids |
| Expansion Vessel | Integrated 0.04 L |
| Protection | IP68, dry-run, check valve, debris filter, over-pressure |
| Liquid Temp | 32 to 122°F (0 to 50°C) |
| Cable | 49 ft (15 m) with plug |
| Diameter / Weight | 7.28 in (185 mm) / 35 lbs |
