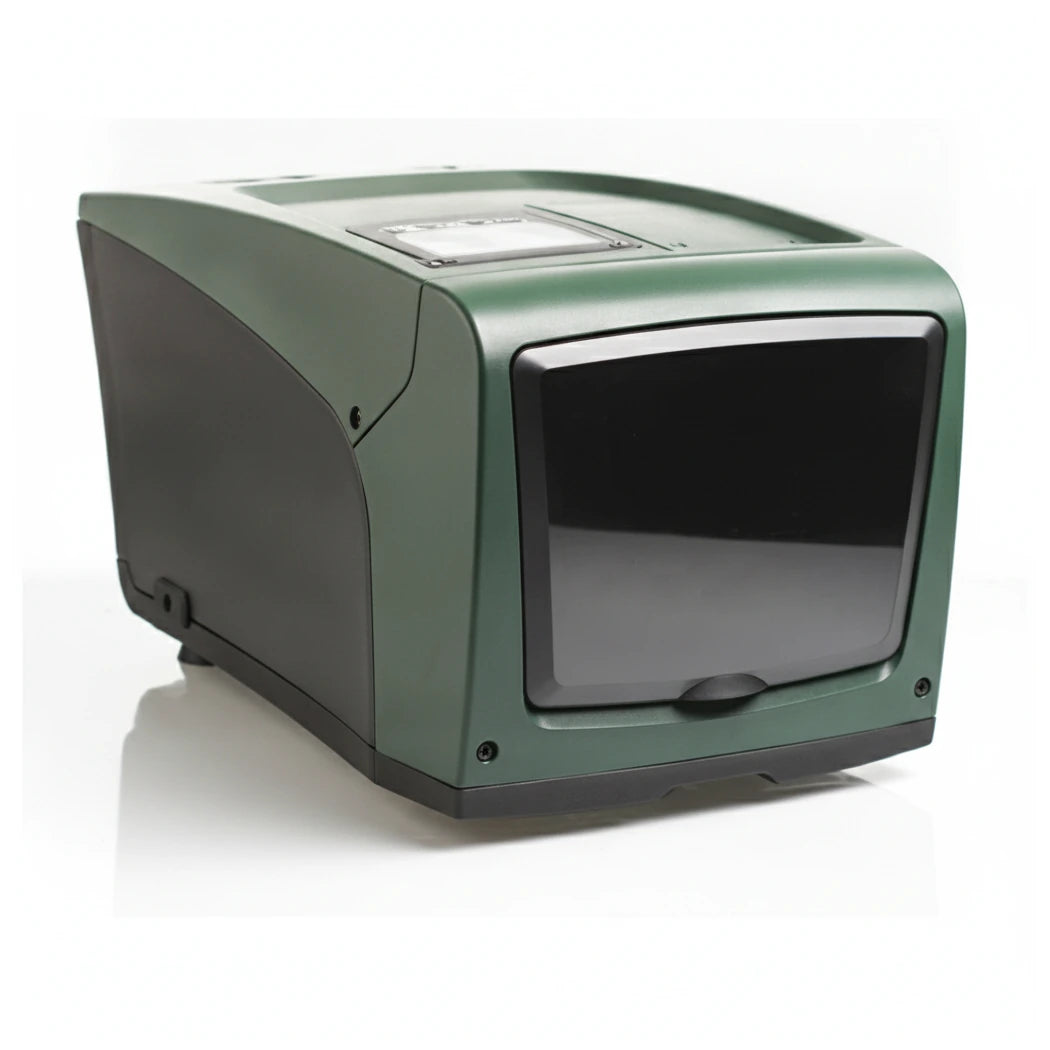

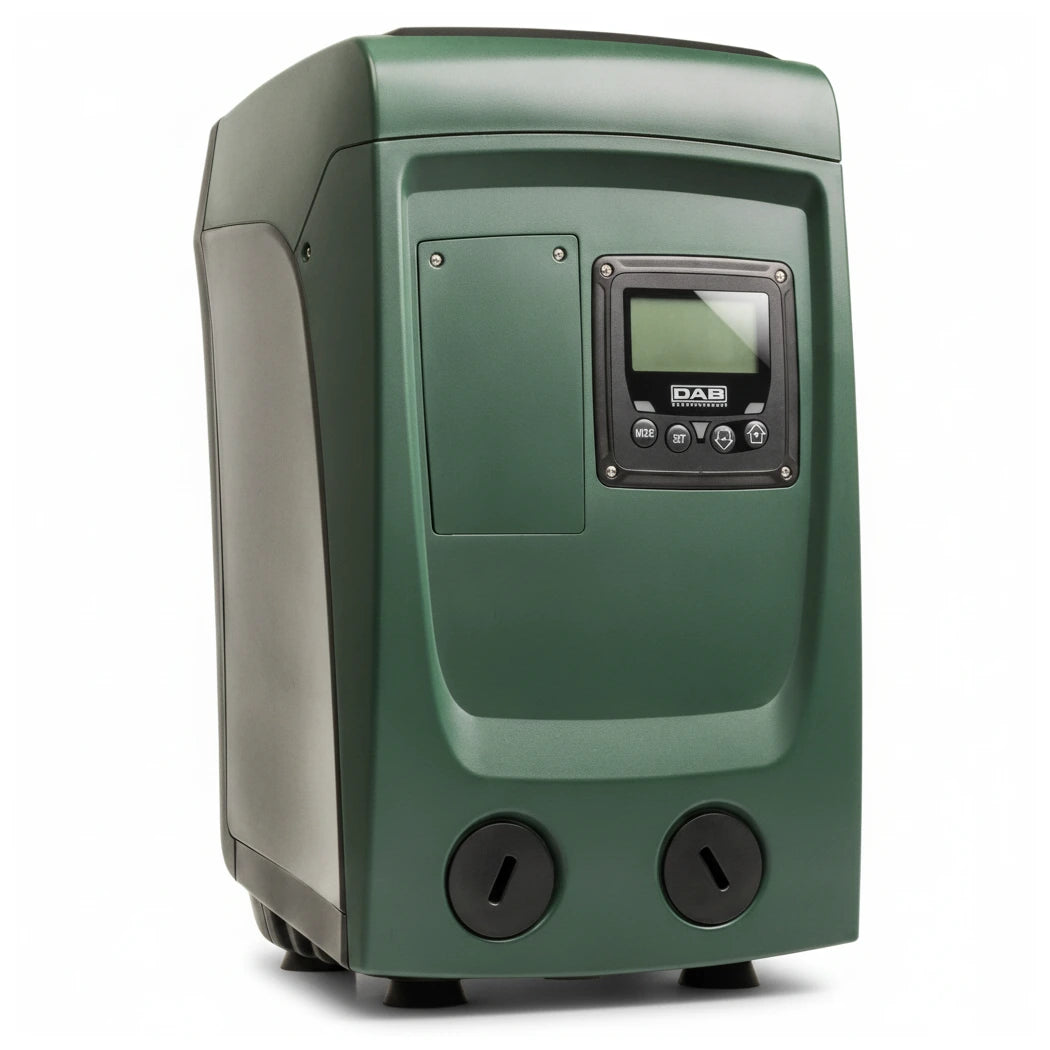

DAB e.sybox mini for Quiet, Constant Water Pressure
Pressure sags the moment a second tap or a row of emitters opens. A bare pump answers by cycling on and off with a clatter. This all-in-one system holds a steady set pressure instead, using an inverter that varies motor speed to match demand in real time. Everything a booster needs sits in one compact housing: the pump, the drive, a 1-liter expansion vessel, and pressure, flow, and temperature sensors. It runs at roughly 45 dB, quiet enough to sit in a utility closet next to living space. A grower or homeowner gets even, on-demand pressure without the water hammer of a switch-driven pump.
Self-Priming Booster for Homes, Wells, and Gardens
A high-frequency double-impeller design self-primes and lifts water up to 26 feet, so it draws from a well, a cistern, or a rainwater tank. Once primed, it pushes 80 liters per minute to about 50 meters of head for a home, a garden, or an irrigation zone. Dry-run and antifreeze protection guard the motor when a tank empties or temperatures drop. The unit is roughly 30% smaller than a traditional tank-and-pump setup and mounts horizontally or vertically to fit a tight recess. With 1-inch ports and an adjustable LCD, a grower sets the target pressure once and lets the system hold it.
Key Features
- Inverter constant pressure: Varies speed to hold a set pressure on demand
- All-in-one housing: Pump, drive, 1 L vessel, and sensors in one compact unit
- Self-priming to 26 ft: Draws from wells, cisterns, and rainwater tanks

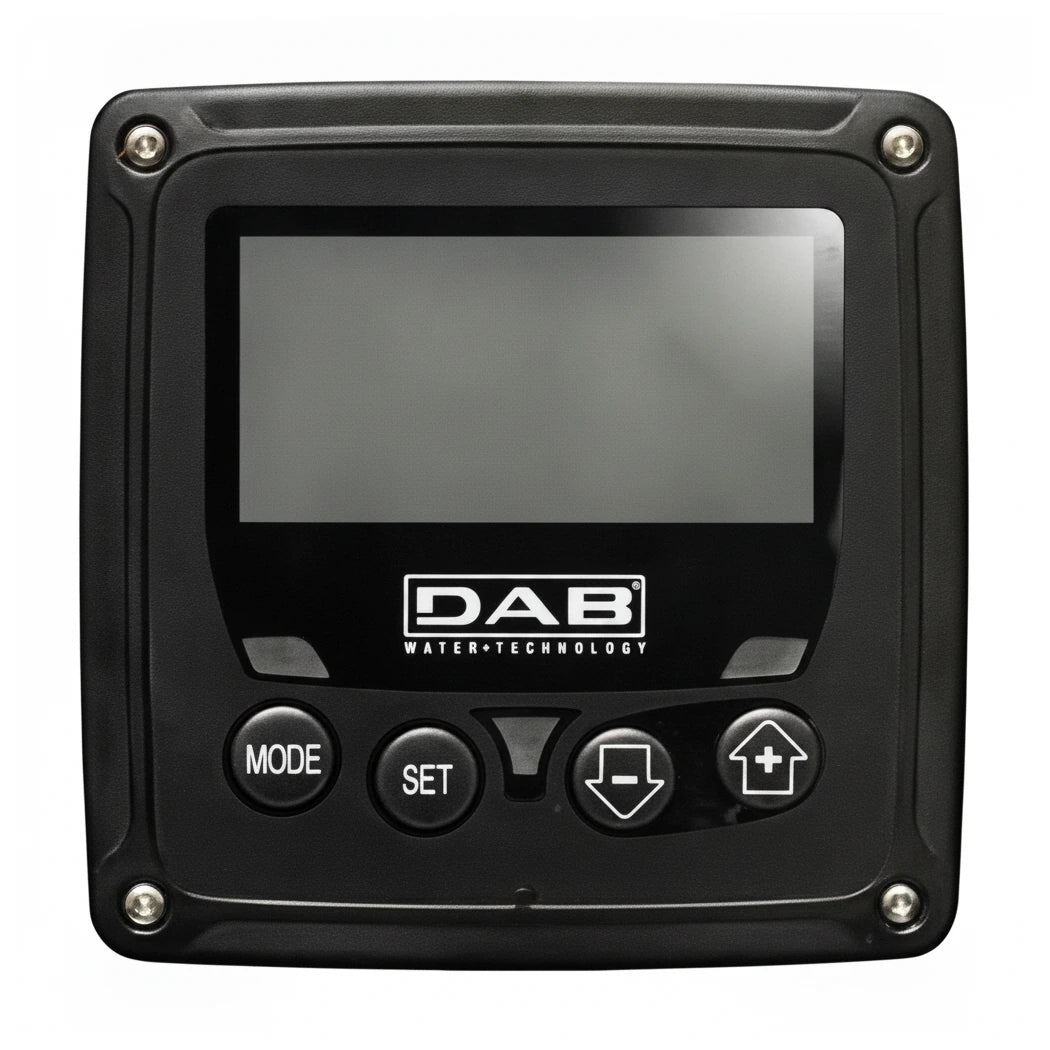

- Quiet operation: Runs at about 45 dB with an adjustable LCD
- Protected motor: Dry-run and antifreeze safeguards built in
Technical Specifications
| Specification | Detail |
|---|---|
| Product / SKU | e.sybox mini 3 (727956) |
| Type | Compact electronic self-priming booster / pressure system |
| Motor | ~1.1 HP (0.8 kW) inverter, variable speed |
| Voltage | 115V / 230V, single-phase, 50/60 Hz |
| Max Head | 164 ft (50 m) |
| Max Flow | 80 L/min (~21 GPM, 1320 GPH) |
| Max Pressure | 7.5 bar (108 PSI) casing |
| Set Pressure | Up to 5.5 bar (79 PSI) |
| Expansion Vessel | Integrated 1 L, drinking-water certified |
| Ports | 1 in suction and delivery |
| Suction Lift | Up to 26 ft (8 m), self-priming under 5 min |
| Noise | About 45 dB(A) |
| Protection | Dry-run, antifreeze, IPX4 |
| Max Liquid Temp | 95°F domestic / 104°F other |

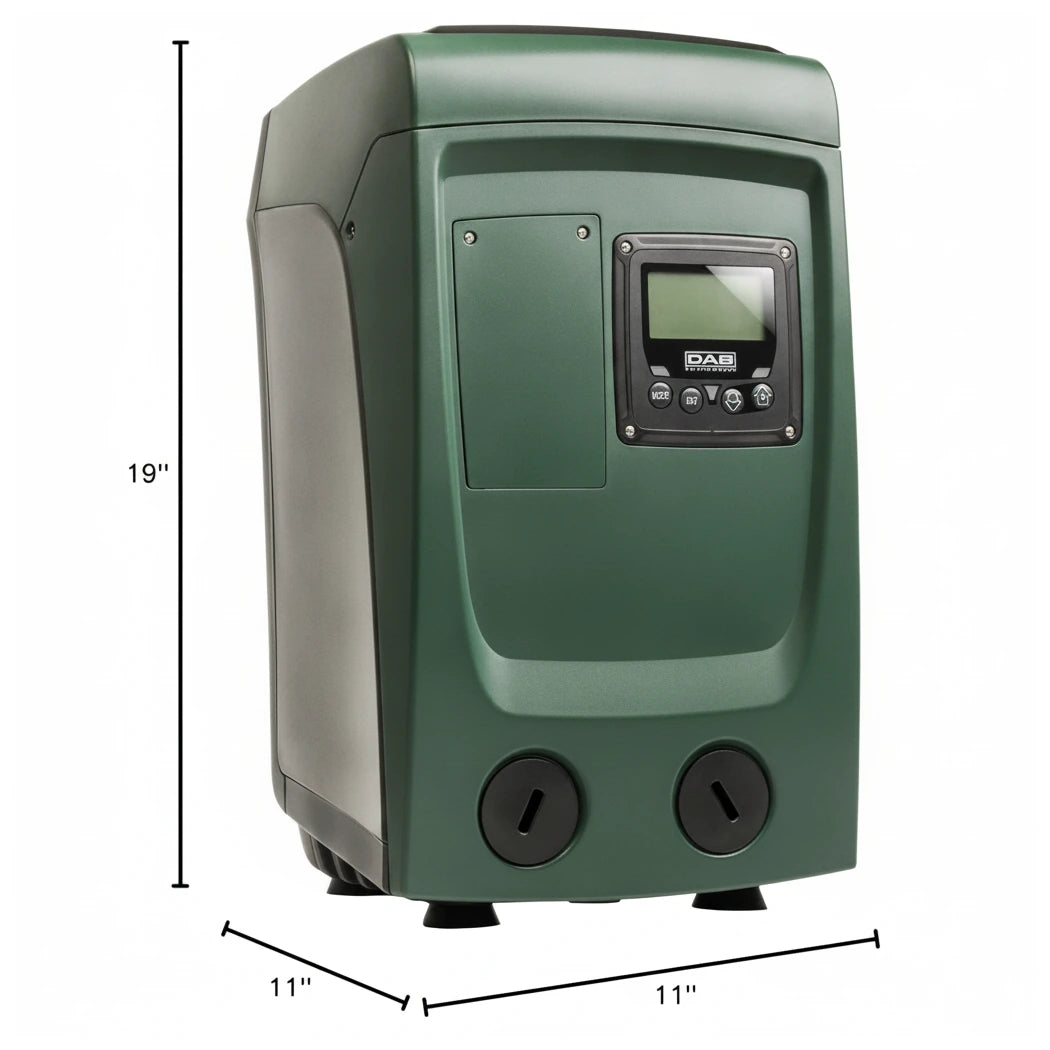

| Dimensions / Weight | 19 x 11 x 11 in / 32 lbs |
