DAB E.SYWALL Mount Bracket | Wall Kit for E.SYBOX & E.SYBOX Mini 3

DAB E.SYWALL Mount Bracket for E.SYBOX and E.SYBOX Mini 3

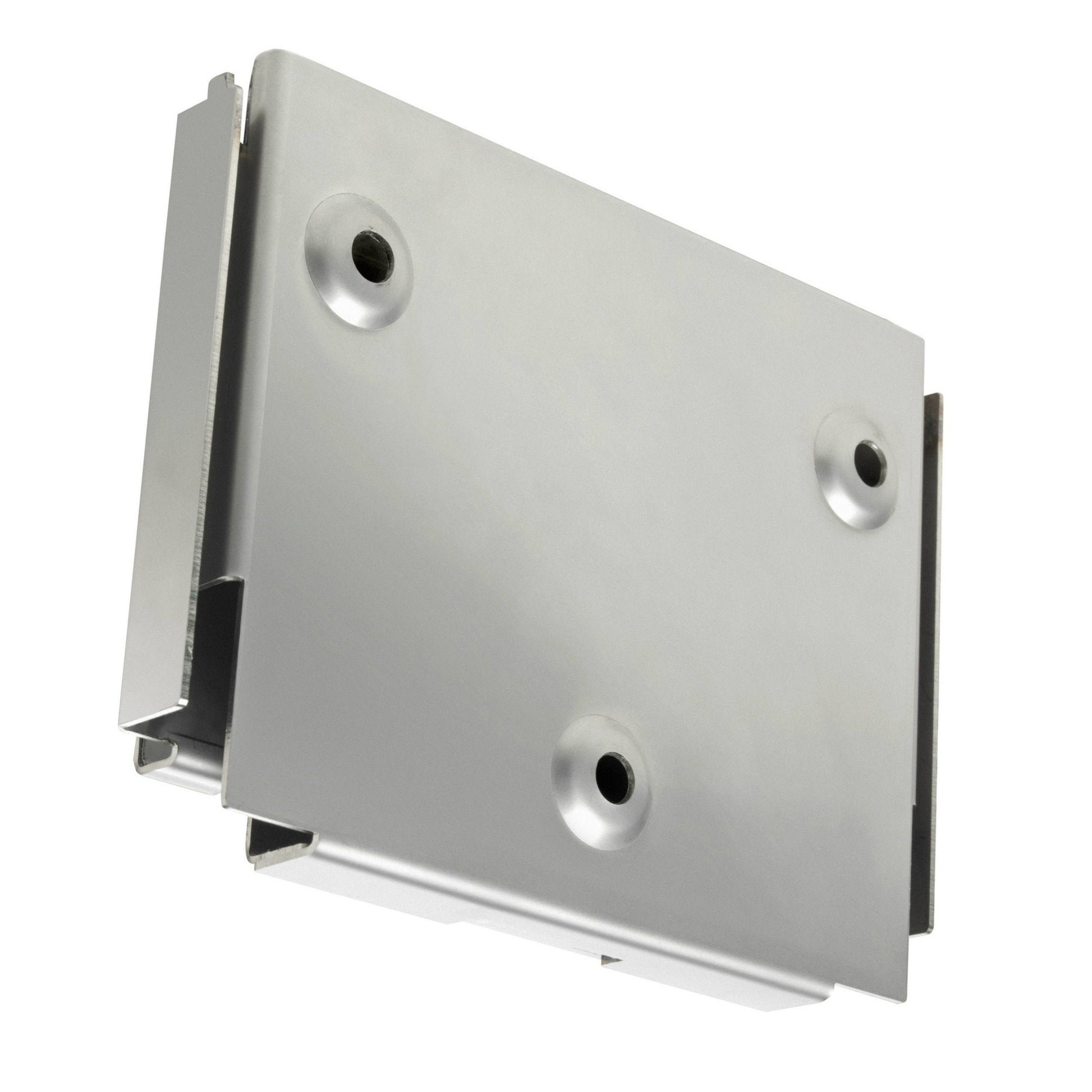

The E.SYWALL is the bracket set DAB makes for hanging an E.SYBOX or E.SYBOX Mini 3 on a wall, off the floor. The kit carries part number 60161442 and ships with brackets, screws, wall dowels and two shock-absorbing spacers. Packed, the whole set measures about 14 x 10 x 2 in and weighs roughly 2.2 lb. The brackets fasten to the pump body and to the wall, so the unit hangs as one tidy block. Those spacers sit between the pump and the mounting surface. They soak up motor vibration before it reaches masonry or a stud wall. That matters most when the pump shares a wall with an office, a dry room or a neighbor. Lifting the unit off the floor also keeps it clear of standing water when a reservoir overflows or a fitting lets go. In a fertigation room, floor space usually belongs to tanks, mixing carts and injectors. Hanging the booster frees that area and shortens the run to an overhead manifold. Plan the drill pattern before mounting, since a full pump is a heavy, awkward lift.

Fitting the Wall Mounting Kit in a Grow or Utility Room

Most installs put the booster at about shoulder height beside the reservoir it draws from. That makes the display easy to read and the filling plug easy to reach when priming. Use flexible connectors or braided hose between the pump and hard pipe, so the brackets are not carrying plumbing strain. Solid masonry takes the supplied dowels well. On drywall, find a stud or back the bracket with a plywood panel first. Keep the suction line short and free of high points, so air does not collect on its way to the pump. Tighten the wall screws before hanging the pump, then check them again after the first week of cycling. This kit fits only the E.SYBOX and the E.SYBOX Mini 3. Twin-pump layouts use the E.SYTWIN station instead, so confirm which unit you run before fitting it. Once mounted, the pump runs, primes and services exactly as it would on the floor.

Key Features

• Complete kit: Brackets, screws, wall dowels and spacers arrive together, so the install needs no separate hardware run.
• Shock-absorbing spacers: Two spacers isolate motor vibration from the wall, which keeps a booster quiet in rooms people work in.
• Matched fit: Made for the E.SYBOX and E.SYBOX Mini 3 housings, so the pump sits square and level on the wall.
• Off-floor placement: Raising the pump frees floor space for tanks and keeps it out of standing water after a spill.
• Unchanged service access: Display, filling plug and service bay stay reachable, so priming and checks work as they do on the floor.

Technical Specifications
