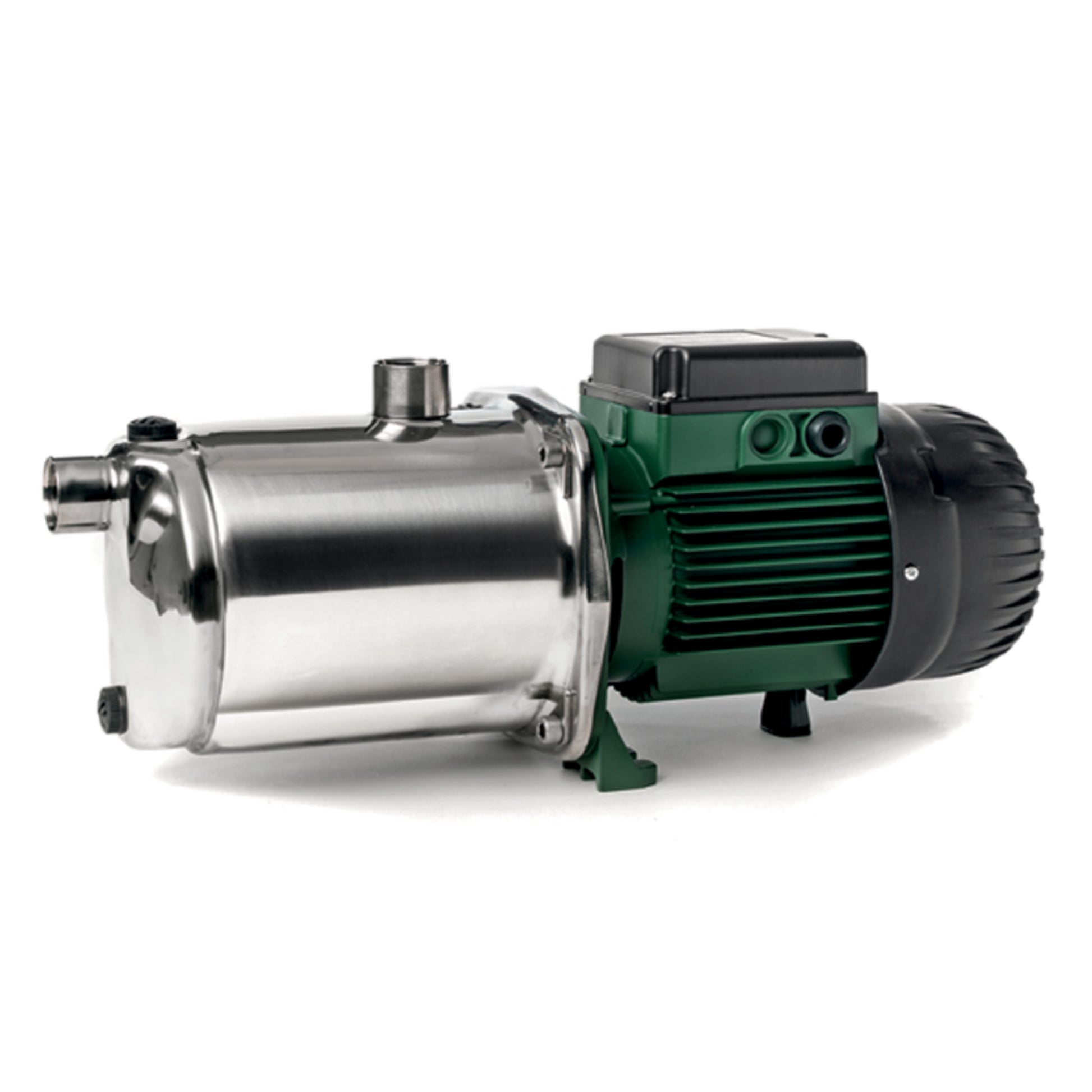

DAB EUROINOX 30/506 M for Compact Pressure Boosting
The EUROINOX 30/506 M is a horizontal multistage centrifugal pump with a stainless steel body. It is the smallest of the three EUROINOX 506 sizes, running a 0.75 HP (0.55 kW) motor. The motor is dual voltage, drawing about 8.3 A on 115V and 4.3 A on 230V at 60 Hz. A 50 µF capacitor is built in, along with thermal and current overload protection. Maximum head is about 138 ft at zero flow. Suction and delivery are both 1 in NPT. Inside, the rotors, diffusers and diffuser bodies are technopolymer, with stainless adjustment rings. The shaft and seal holder are AISI 304 stainless, sealed by a carbon and ceramic mechanical seal. The motor support is die-cast aluminum. The motor is rated IP44, the terminal board IP55, with Class F insulation. The pump measures about 15.1 in long and weighs roughly 23.1 lb.
Putting a Stainless Multistage Booster Pump to Work
This size suits a hobby greenhouse, a small nursery bench or a home with a garden irrigation line. Stacked impellers build pressure in stages, which lets a small motor reach useful head for drip and sprinkler lines. The stainless body resists rust in damp pump rooms and outbuildings. Mount it horizontally, either fixed to a base or set up as a portable unit. Fill the pump with water before the first start and keep the suction line airtight. A foot valve and strainer on the intake hold prime and keep debris out of the stages. Add a pressure switch and tank, or an electronic controller, to have it start and stop with demand. The pump is rated for operating pressure up to 116 psi. Clean water between 32 and 95°F suits domestic use, with ambient air up to 104°F. Larger EUROINOX 40/506 and 50/506 models share the same layout when more head is needed.
Key Features
- Stainless steel pump body: Resists rust in damp pump rooms and outbuildings.
- Multistage hydraulics: Several technopolymer impellers in series build pressure from a small motor.
- Dual-voltage motor: Wires for 115V or 230V, with a built-in capacitor and overload protection.
- 1 in NPT ports: Suction and delivery share one size for simple plumbing.
- Compact and light: At about 23 lb, it is easy to place or move between tanks.
Technical Specifications
| Specification | Value |
|---|---|
| Model | EUROINOX 30/506 M |
| Part number | 60119514 |
| Power supply | 115/230V, 60 Hz, single phase |
| Motor | 0.75 HP (0.55 kW P2) |
| Current | 8.3 A at 115V / 4.3 A at 230V |
| Capacitor | 50 µF, 250 V |
| Max head | Approx. 138 ft |
| Max operating pressure | 116 psi |
| Connections | 1 in NPT suction and delivery |
| Pump body | Stainless steel |
| Rotors and diffusers | Technopolymer |
| Shaft and seal holder | AISI 304 stainless steel |
| Mechanical seal | Carbon/ceramic |
| Motor protection | IP44 (terminal board IP55) |
| Insulation class | F |
| Liquid temperature | 32-95°F domestic use; up to 104°F other use |
| Max ambient temperature | 104°F |
| Length | Approx. 15.1 in |
| Weight | 23.1 lb |
| Installation | Horizontal, fixed or portable |
