DAB Jet 150 Self-Priming Centrifugal Pump for Reliable Water Transfer
The DAB Jet 150 self-priming centrifugal pump (1.5 HP, 230V) is built for dependable water transfer in residential, agricultural, and light industrial applications. Its internal ejector and high suction capacity up to 29 ft handle challenging suction lines and water with air bubbles or minor sandy impurities. A cast iron pump body and motor support pair with techno-polymer hydraulics (impeller, diffuser, Venturi, sand guard) and carbon/ceramic mechanical seals for long service life. Stainless steel adjustment rings help maintain performance and efficiency over time. Designed for domestic water supply, irrigation lines, small-scale farming, and gardening, this unit supports steady pressure and consistent flow. With UL/CSA certifications, IP44 motor protection, and horizontal fixed installation, the DAB Jet 150 offers a robust, ready-to-work solution.
Benefits for Growers and Installers
Fast self-priming cuts setup headaches, while the rugged design resists wear from typical water conditions. Reliable operation helps protect downstream equipment and maintain even distribution across drip lines and sprinklers.
Features
- Wide and comprehensive range
- Availability of pump body and motor support in cast iron
- Internal ejector
- Design of fan guard to also function as air conveyor
- Interchangeable pump body
- Ability also to handle water containing gas
- Very high suction capacity
- Structure strength and flexibility
- Optimal motor cooling
- Ability to operate also in the presence of air bubbles and small quantities of sand
- Prevention of malfunctions and maintenance of motor efficiency
- Standardization of components enables optimal spare parts management
Specifications
- Power Supply: Single Phase 230V / 60 Hz

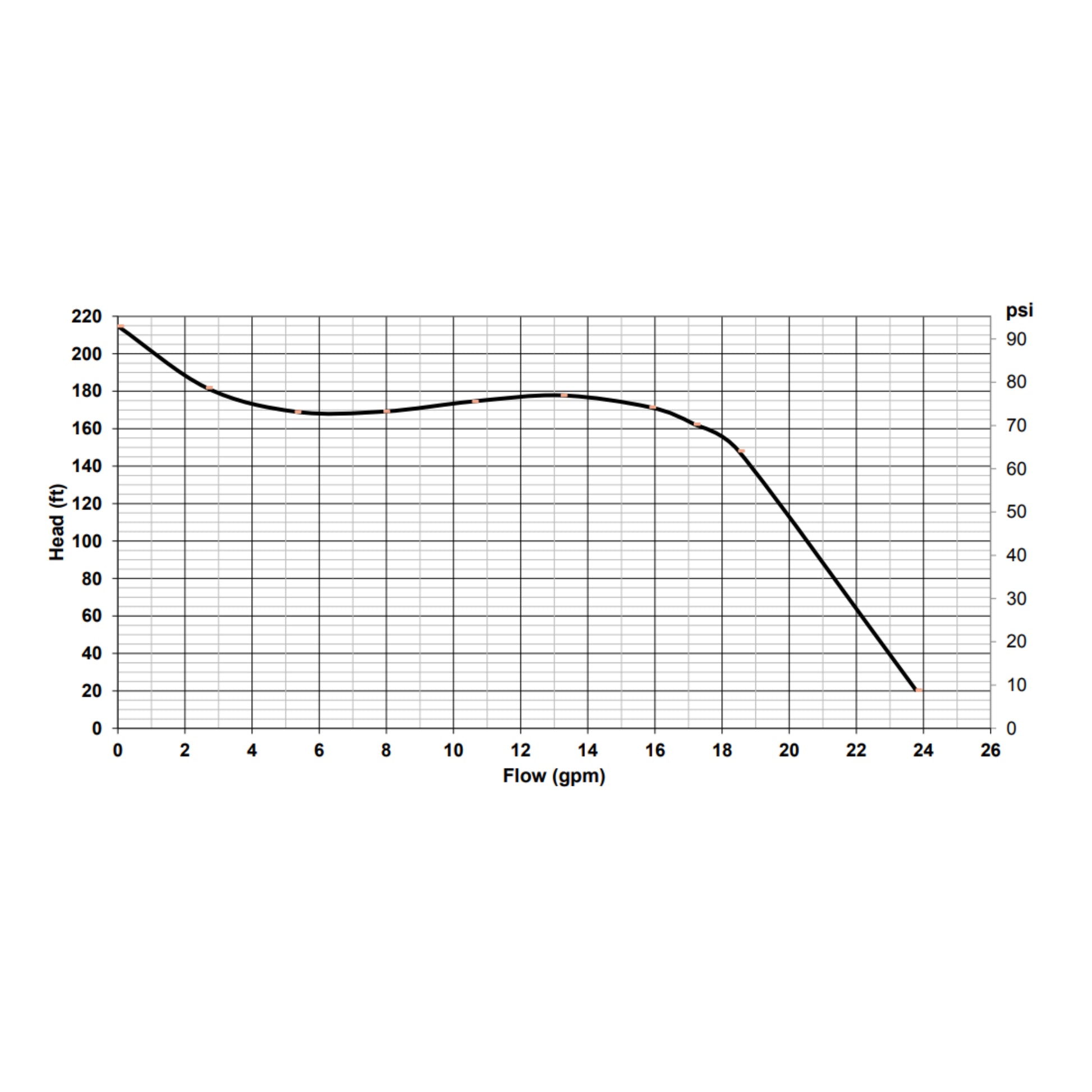

- Operating Range: Capacity up to 47gpm; Head up to 218 ft (94 psi)
- Motor Power: 1.1 kW / 1.5 hp
- Motor Performance: 7.7A / 3400 RPM
- Maximum Flow Rate: Up to 23 gpm
- Maximum Pressure: 115 psi
- Maximum Suction Depth: 29 ft
- Liquid Temperature Range: 32°F to +104°F
- Maximum Ambient Temperature: +104°F
- Discharge Port (DNA): 1-1/4in NPT
- Delivery Port (DNM): 1in NPT
- Insulation Class: F
- Service Factor: 1.3
- Installation: Horizontal Fixed Position
- Motor Protection Rating: IP 44
- Terminal Block Protection Rating: IP 55
- Certifications: CSA Standard C22.2, UL Standard 778 5th Edition
