DAB JETCOM 132 M Self-Priming Jet Pump | 1.36 HP, 115/230V, 1 in NPT

DAB JETCOM 132 M for Bigger Draws From Tanks and Ponds

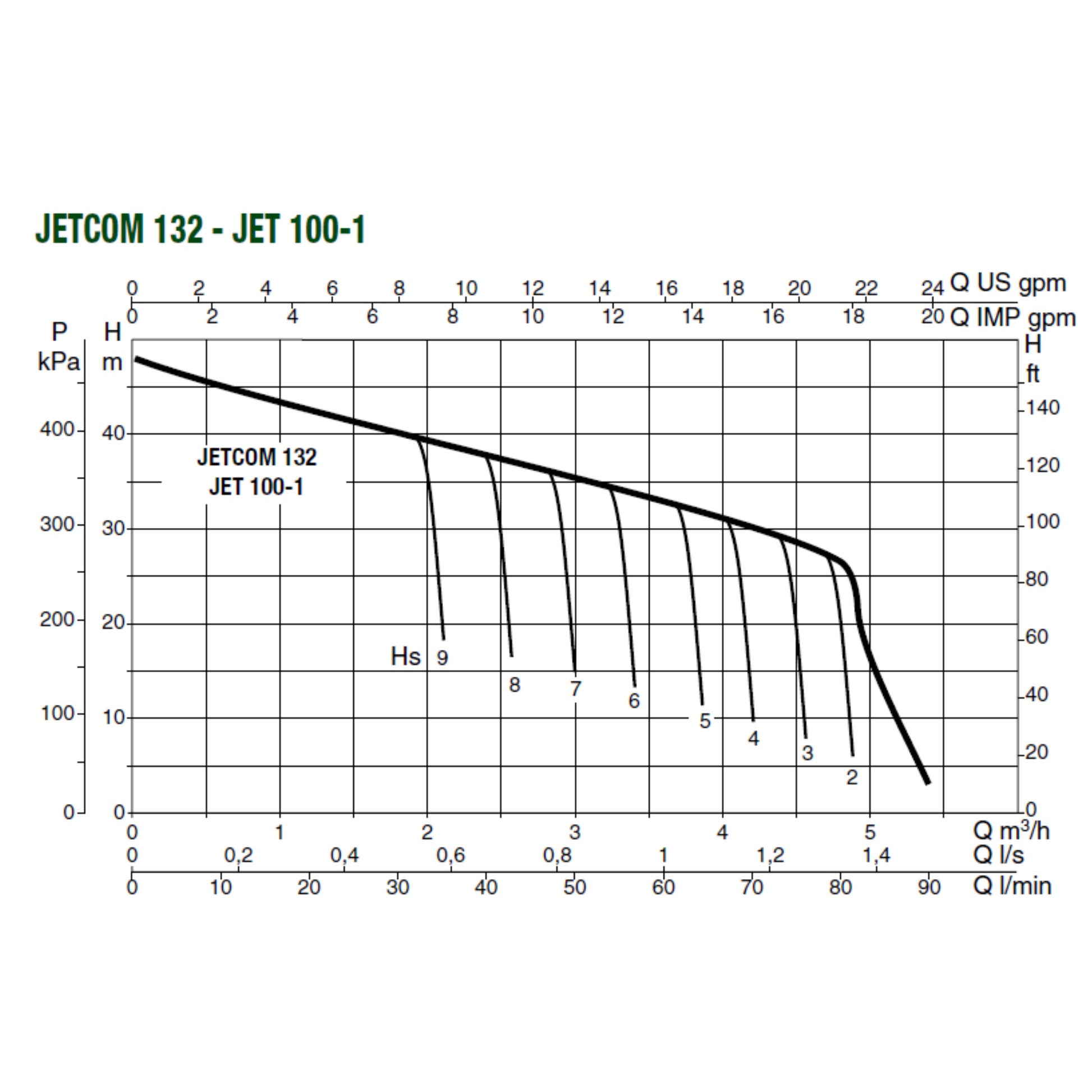

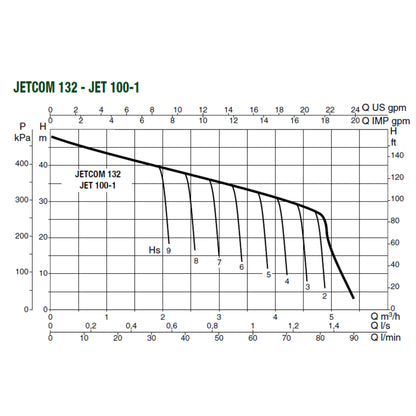

The JETCOM 132 M is the largest motor in DAB's JETCOM line of self-priming surface pumps. Its 1.36 HP (1 kW) motor runs on 115/230V, 60 Hz, drawing about 14.7 A on 115V and 7.5 A on 230V. An 80 µF capacitor handles starting. Maximum head is about 158 ft at zero flow. A built-in venturi ejector clears air from the suction line and lifts water from below the pump. The pump body is technopolymer, as are the impeller, diffuser, venturi tube and sand guard. Stainless steel adjustment rings and a carbon and ceramic mechanical seal complete the hydraulics. Suction and discharge are both 1 in NPT. The motor is rated IP44, with an IP55 terminal board and Class F insulation. The pump measures about 16.7 in long and weighs roughly 23.1 lb.

Where a Technopolymer Jet Pump Earns Its Place

The larger motor gives this model more reserve than the smaller JETCOM sizes when several outlets draw at once. Growers use it to transfer water from storage into mixing tanks or to feed small irrigation zones. It also pressurizes a supply line to hose bibs, wash stations and spray benches. The ejector tolerates small amounts of air and fine sand, so it suits rainwater and pond sources. Install it horizontally on a solid base, fixed in place or as a portable unit. Prime the pump body before the first start and keep all suction joints airtight. A foot valve with a strainer at the intake holds prime and keeps debris out. Choose fittings and hose rated for the pump's maximum operating pressure of 87 psi. Water should be clean and between 32 and 95°F for domestic use, with ambient air up to 104°F. Pair it with a pressure switch and tank, or an electronic controller, for automatic on-demand starts.

Key Features

• 1.36 HP dual-voltage motor: The largest JETCOM motor, wired for 115V or 230V.
• Self-priming ejector: Lifts water from below the pump and recovers from air in the suction line.
• Technopolymer body: A rust-free housing for damp pump rooms and outbuildings.
• Handles air and fine sand: Keeps working with small amounts of entrained air or grit.
• Matched 1 in NPT ports: Suction and discharge share one size for simple plumbing.

Technical Specifications
