DAB NFC Tank Water Level Sensor for DTRON3 & ESYBOX DIVER | App Monitoring

DAB NFC Tank Water Level Sensor for Remote Tank Readings

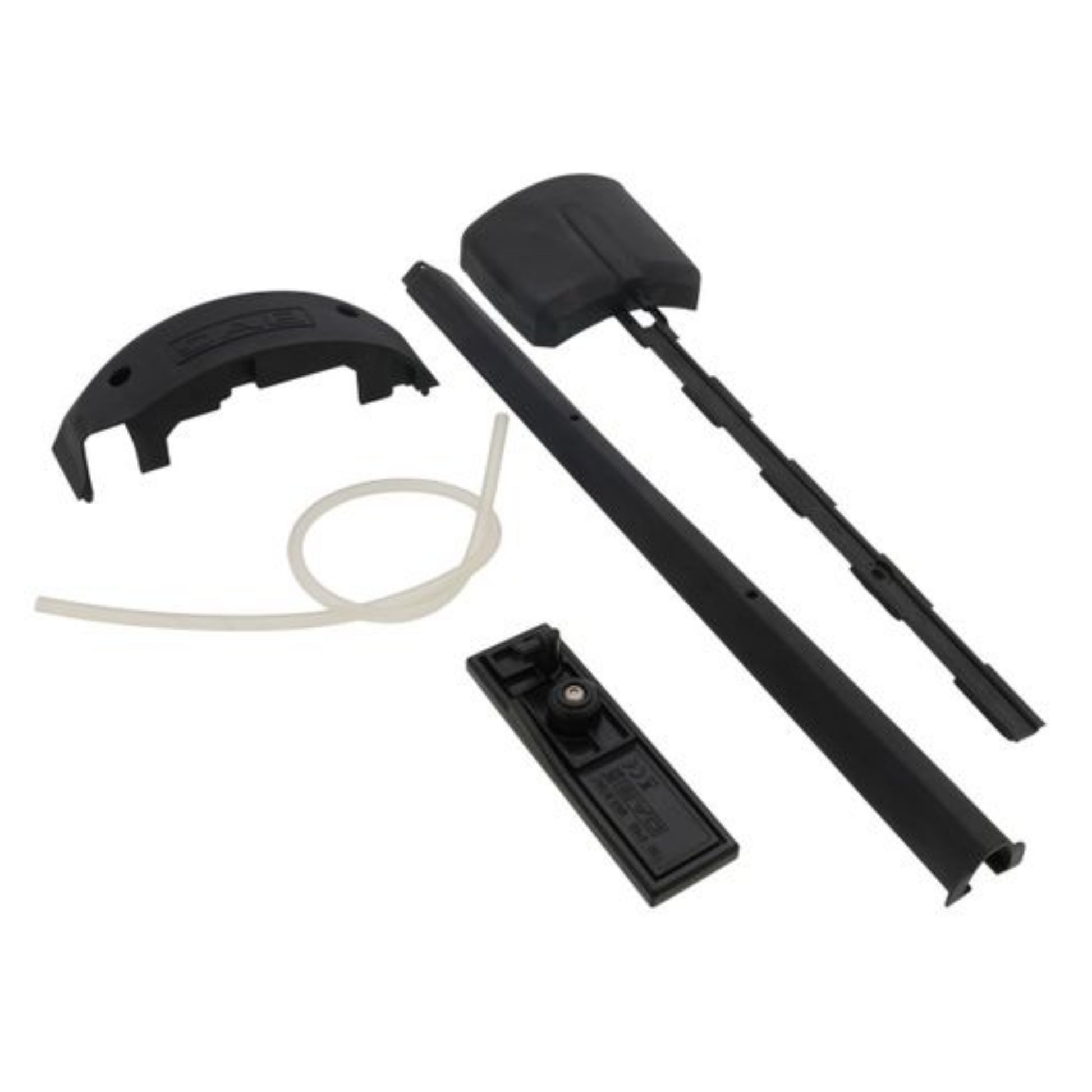

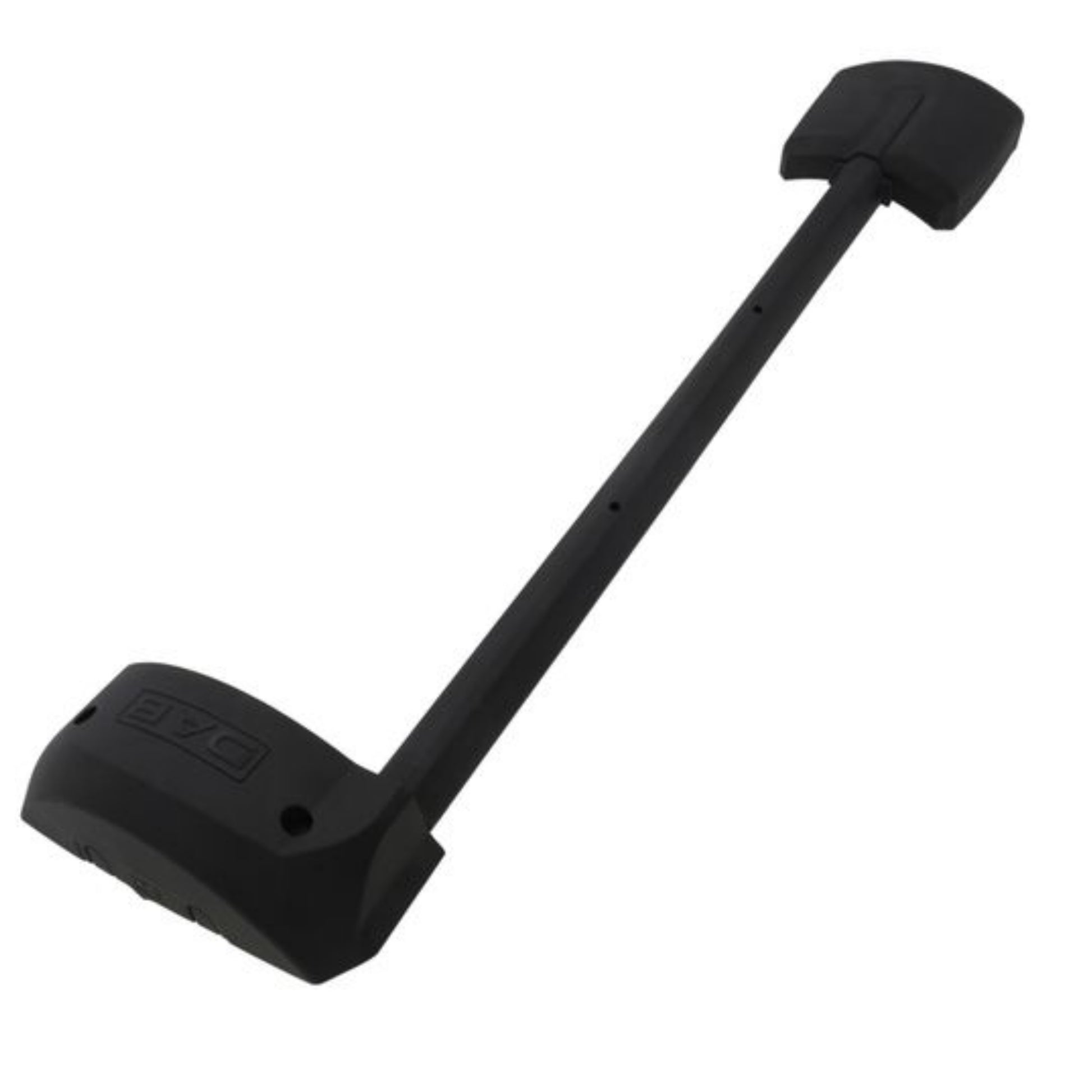

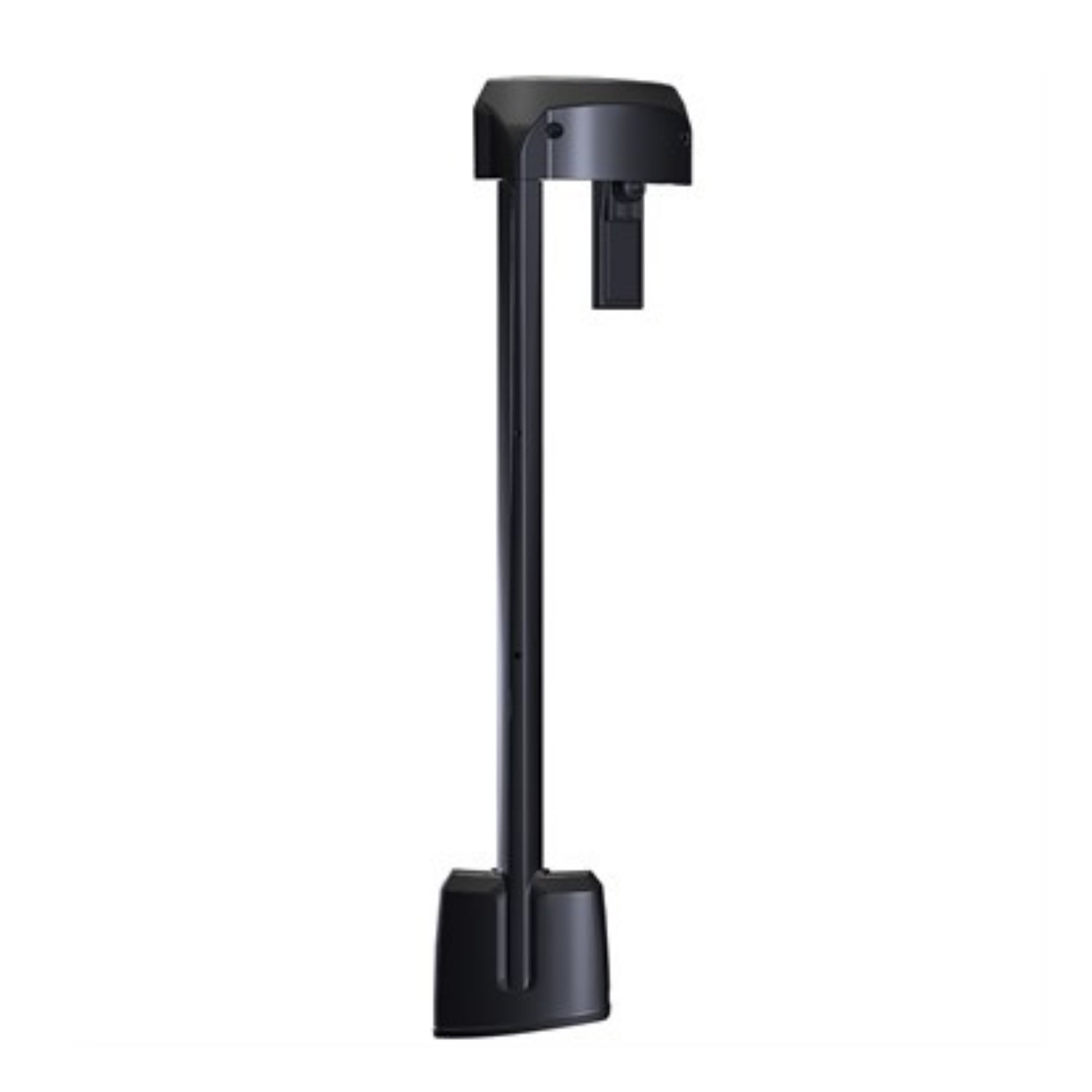

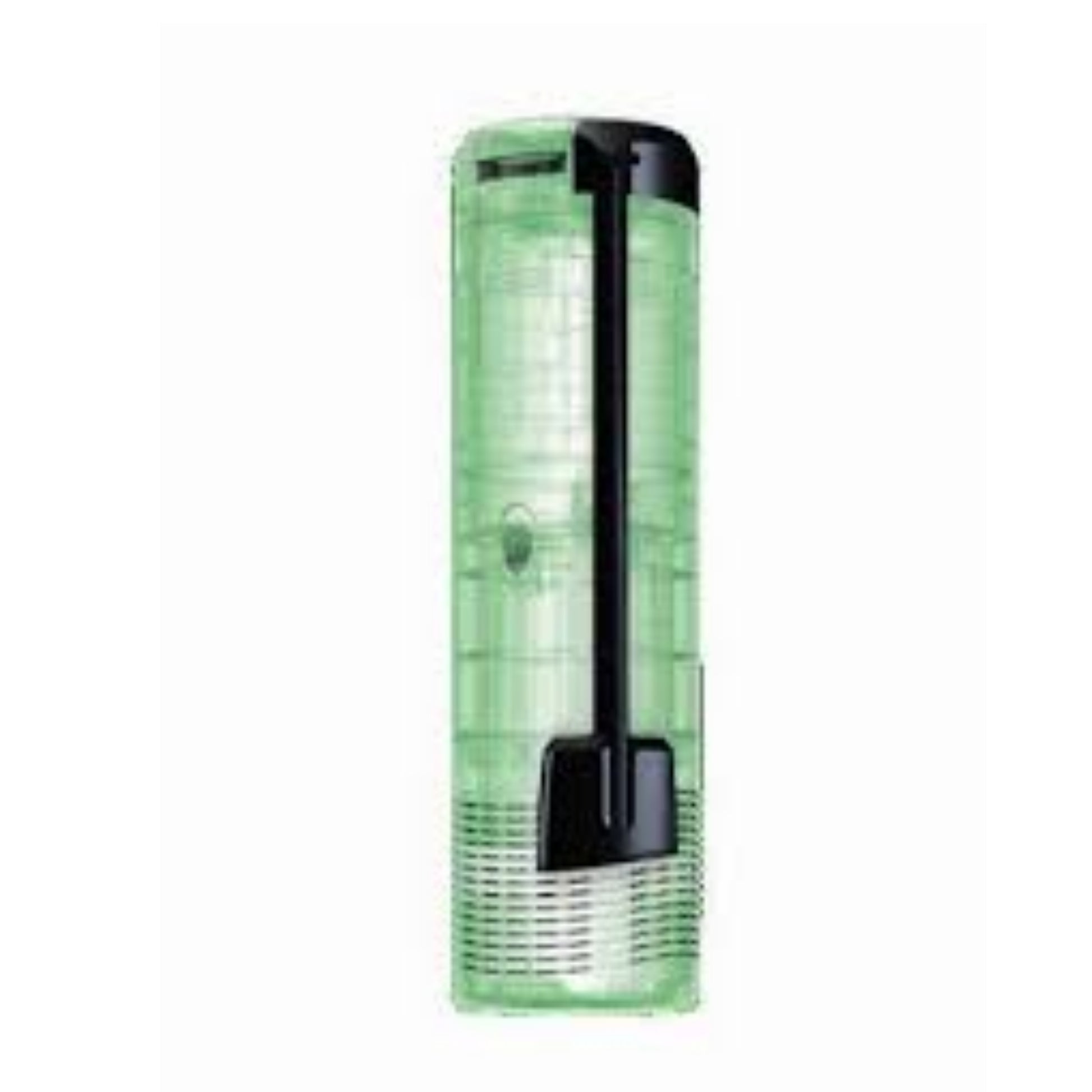

This sensor is DAB's water level measurement accessory, part number 60184570, for the DTRON3 and the ESYBOX DIVER. It fits onto the pump and links through the NFC pocket built into the pump body. Because the signal crosses by near-field communication, the pump's sealed housing stays closed. No extra cable has to run from the tank up to the surface. The pump then passes the level data over its power cable to a DConnect Box 2. From there, readings appear in DAB's DConnect app on a phone or browser. That turns a buried cistern or closed tank into one you can check at a glance. The same NFC pocket also accepts DAB's float switch for low-level cutoff. A DConnect Box 2 is required to see readings, and it comes standard with the ESYBOX DIVER. DTRON3 owners need to add the box separately.

Using Tank Level Monitoring to Plan Irrigation

Knowing the water level matters most when irrigation draws from stored rainwater or a single holding tank. A quick look at the app shows whether there is enough water for the next run of drip cycles. It also helps time refills from a well or mains so the tank never drops too low. In a closed vault, it saves lifting a heavy lid just to check the level. Pair the sensor with the NFC float when you also want an automatic shutoff at low level. Fit the sensor to the pump before lowering it into the tank. Confirm that the DConnect Box 2 sits within range of the home or facility Wi-Fi network. After setup, compare the app reading with a dipstick or sight gauge to build confidence in it. Check the sensor at each tank cleaning and rinse off any film or sediment. Keep pump firmware and the DConnect app current so readings stay reliable.

Key Features

• Remote level readings: Tank water level shows in the DConnect app on a phone or browser.
• NFC connection: Links through the pump's NFC pocket, so the pump housing stays sealed.
• No wiring into the tank: Data rides the pump's power cable to the DConnect Box 2.
• Works with the NFC float: Shares the pocket system with DAB's float switch for low-level cutoff.
• Made for DAB submersibles: Fits the DTRON3 and the ESYBOX DIVER.
