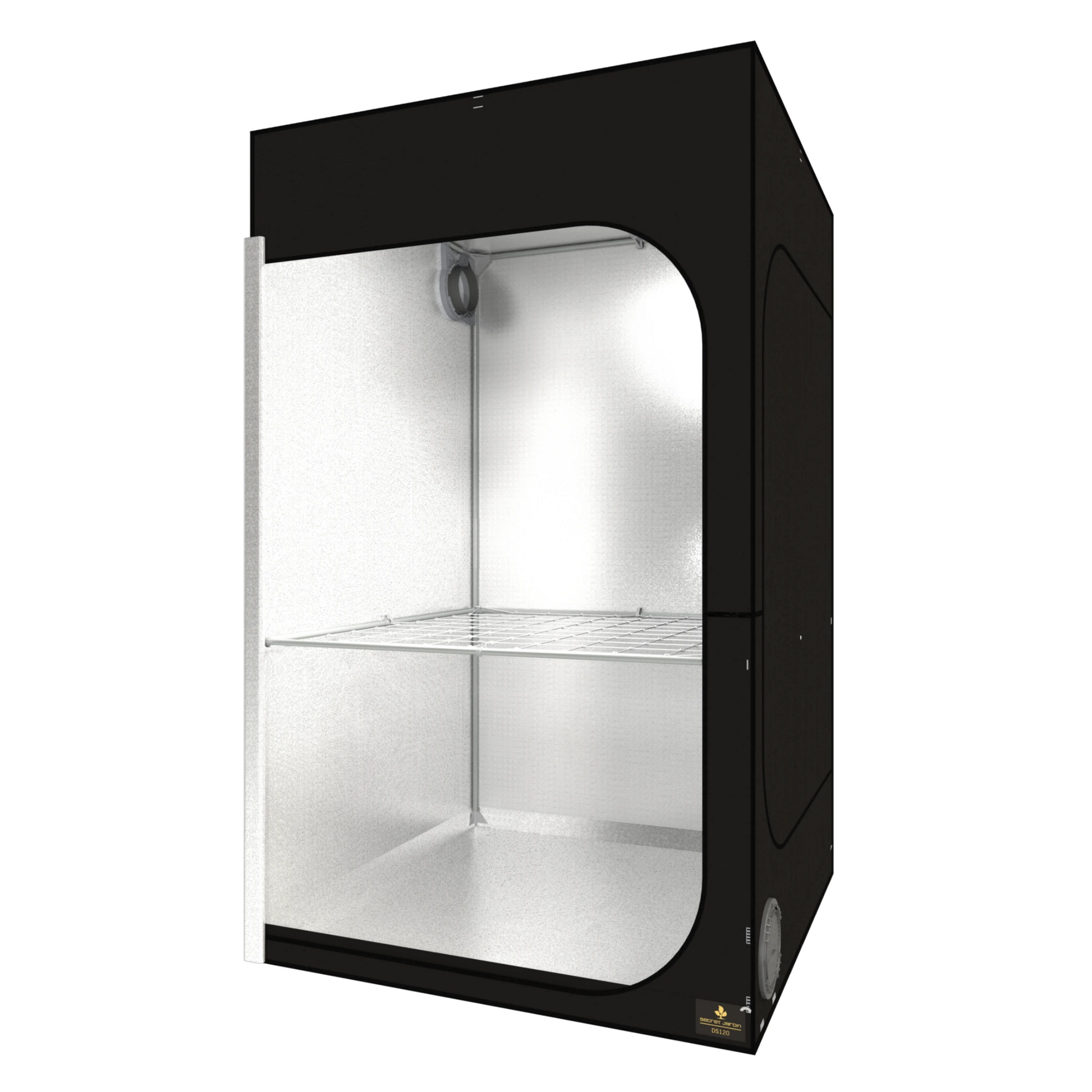

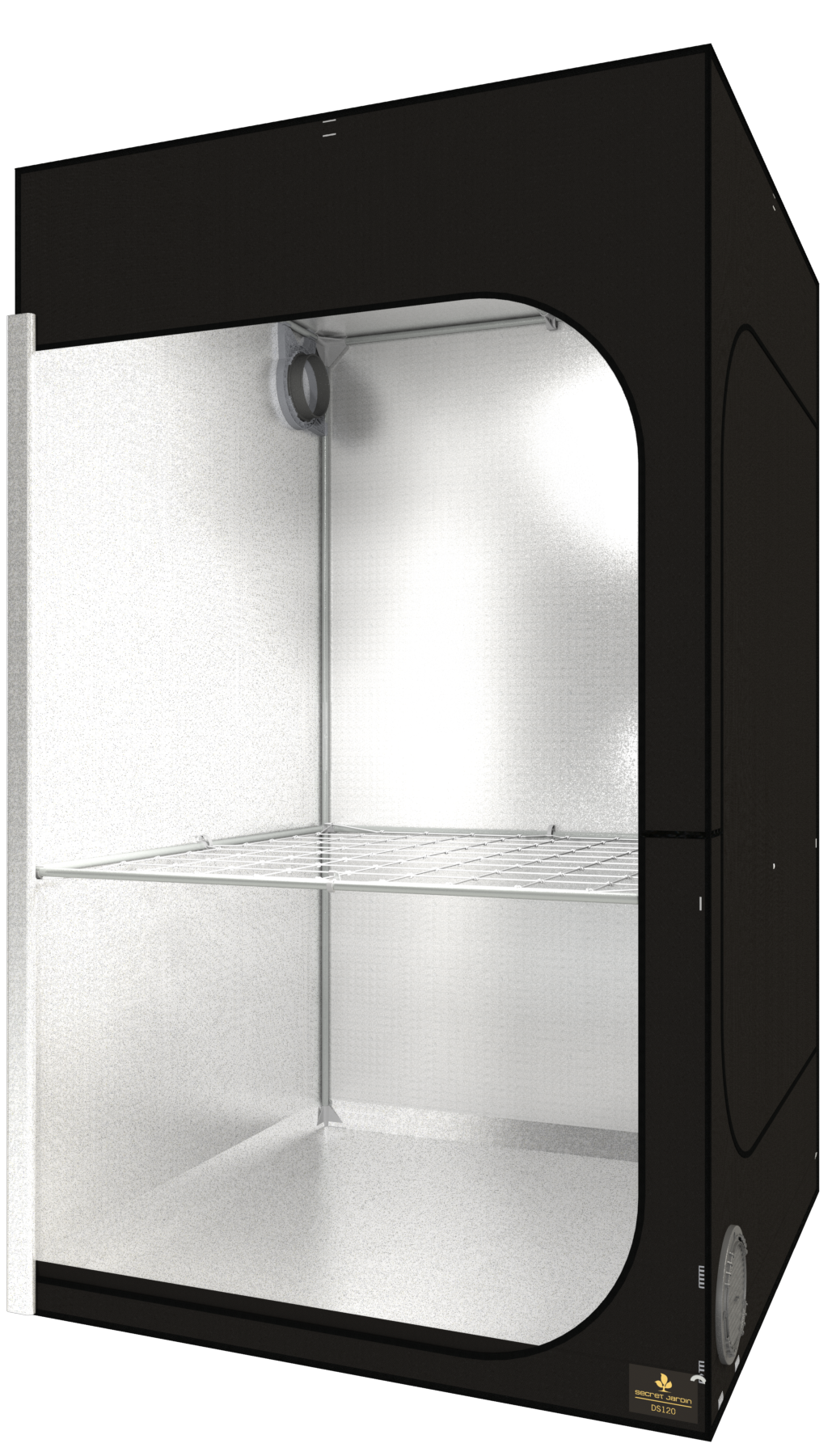

Secret Jardin Dark Street 120: Pre-Equipped 4 x 4 Tent

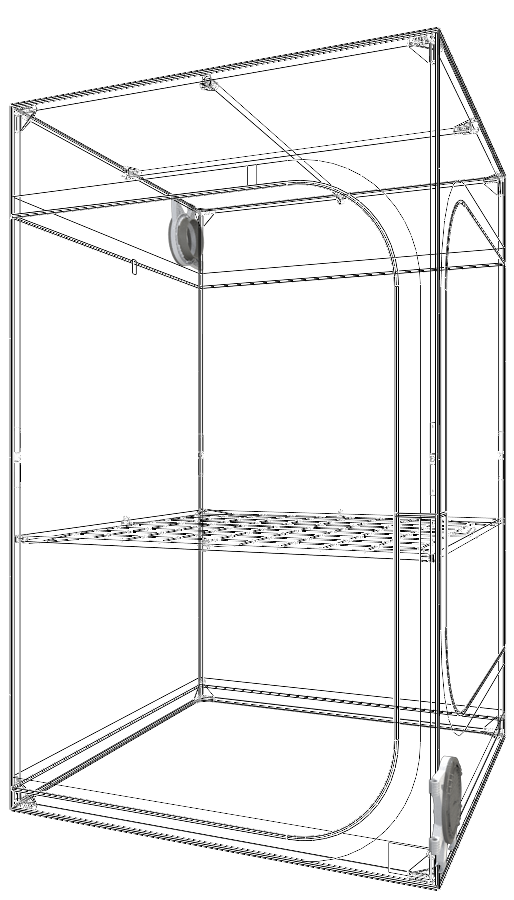

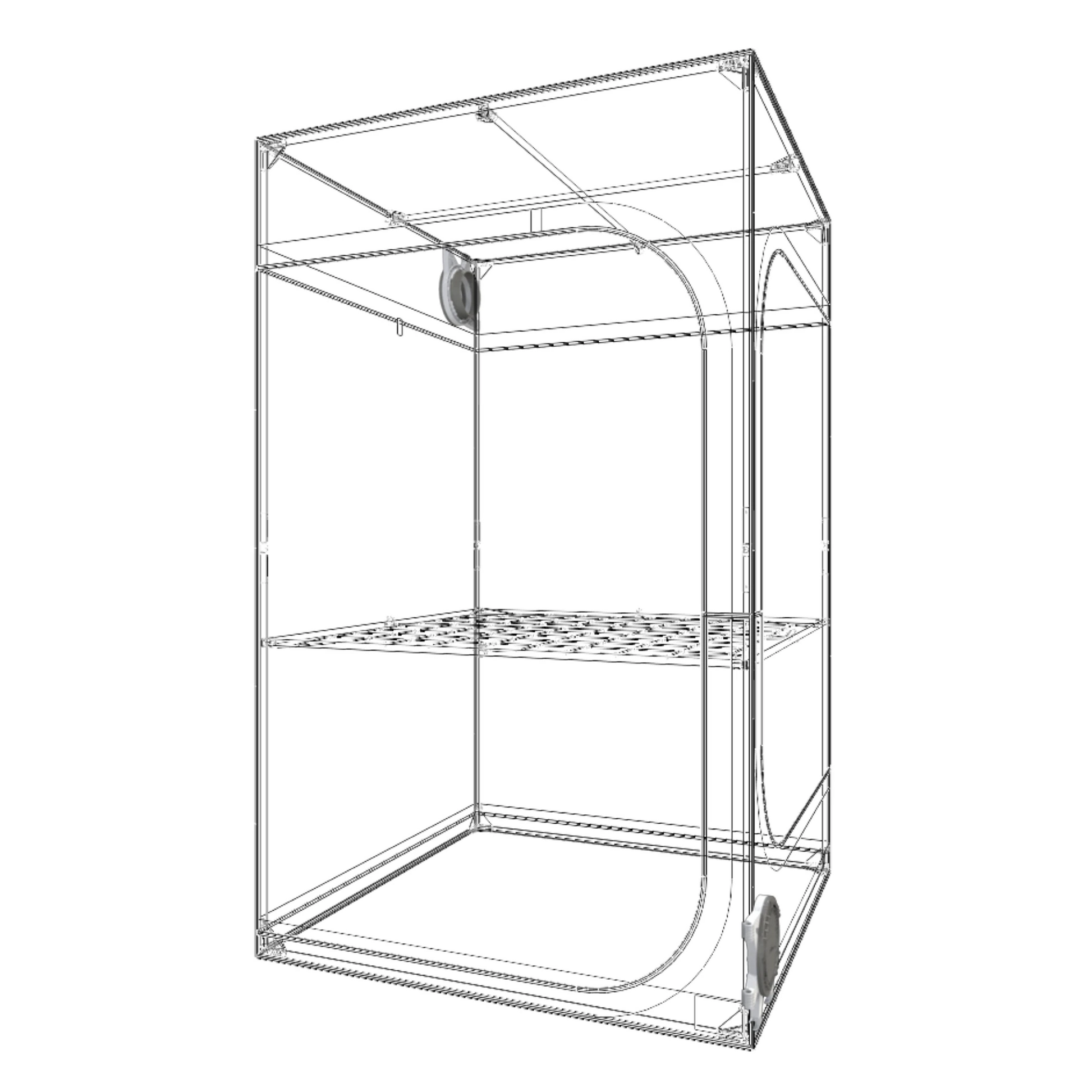

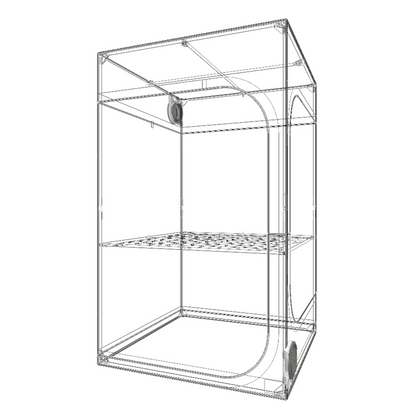

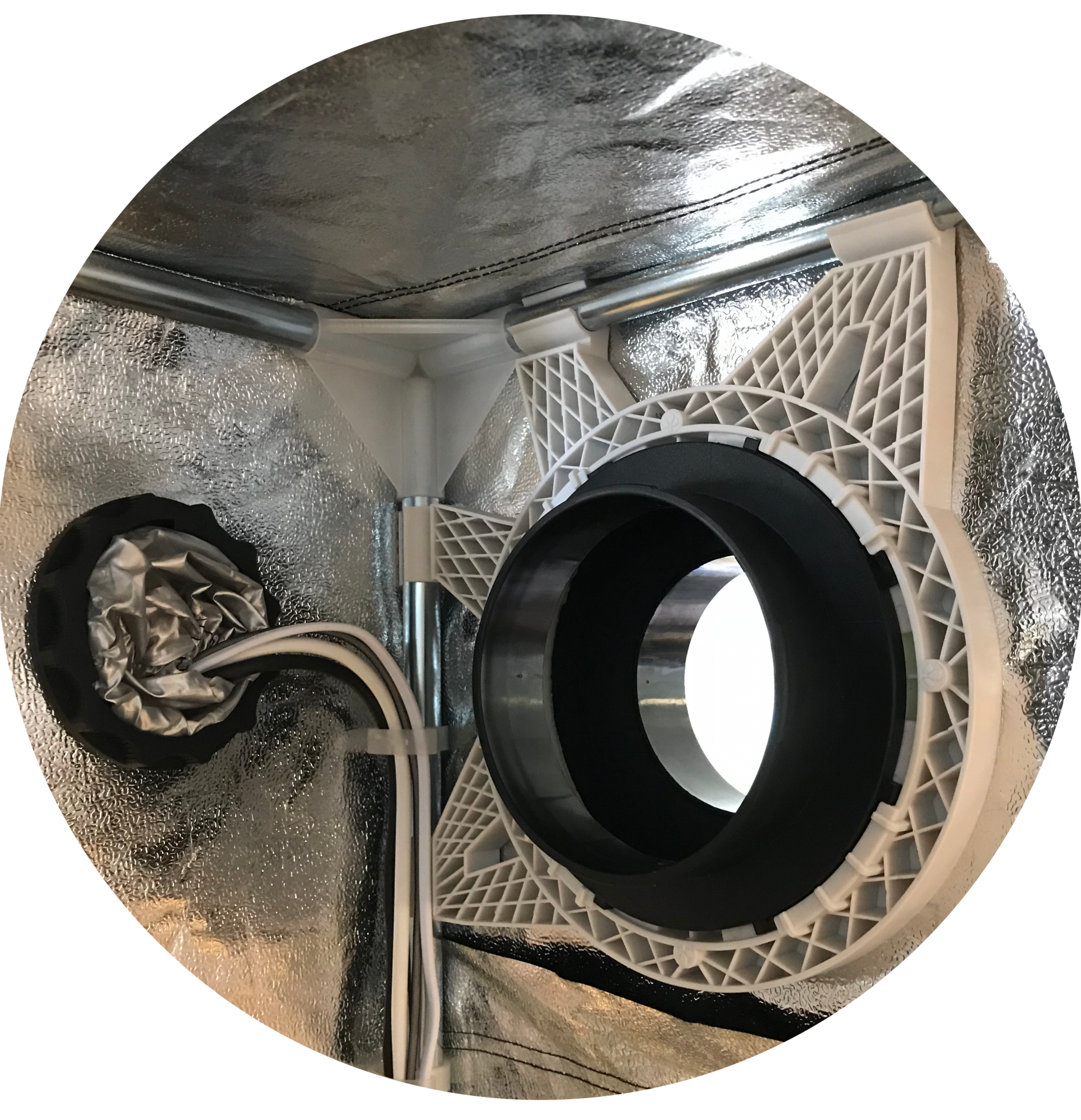

The Dark Street 120 is the 4 x 4 ft model in the R4.00 generation of Secret Jardin's Dark Street line. Assembled, it measures 47 x 47 x 79 in and encloses about 112 cubic feet. Secret Jardin builds the Dark Street for plants of 20 to 60 in tall. The canvas is M210D with a Mylar lining, and the door closes on a double-flap zip that keeps the tent fully lightproof. The front opens through 270 degrees, which gives full access to every plant. The frame runs on 0.75 in Q195 steel poles, chrome plated, joined with polypropylene corners. Each roof pole carries up to 30 lb, with 60 lb for the tent as a whole. The tent comes pre-equipped instead of as a bare shell. Two DF16 ducting flanges with 6 in connectors handle intake and exhaust, and a light baffle passes air while stopping light. A CF7 cable flange brings power cords in cleanly. A removable Mylar water tray sits on the floor, and a WebIT plant net comes in the box. Hanging hardware includes a pair of StrapIT straps, a pair of HookIT hooks and fifteen CableIT clips. A PocketIT pouch, a Space Booster and a PatchIT repair kit complete the kit. Everything packs into a sturdy bag with a shoulder strap.
Setting Up a 4x4 Grow Tent for Light and Air

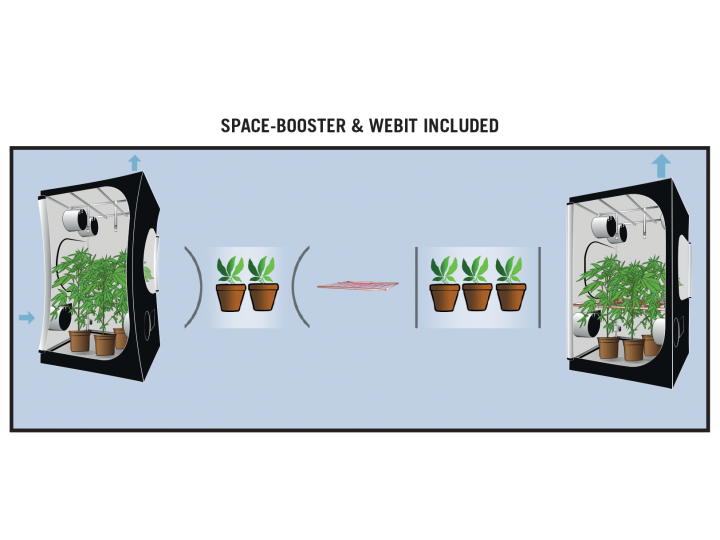

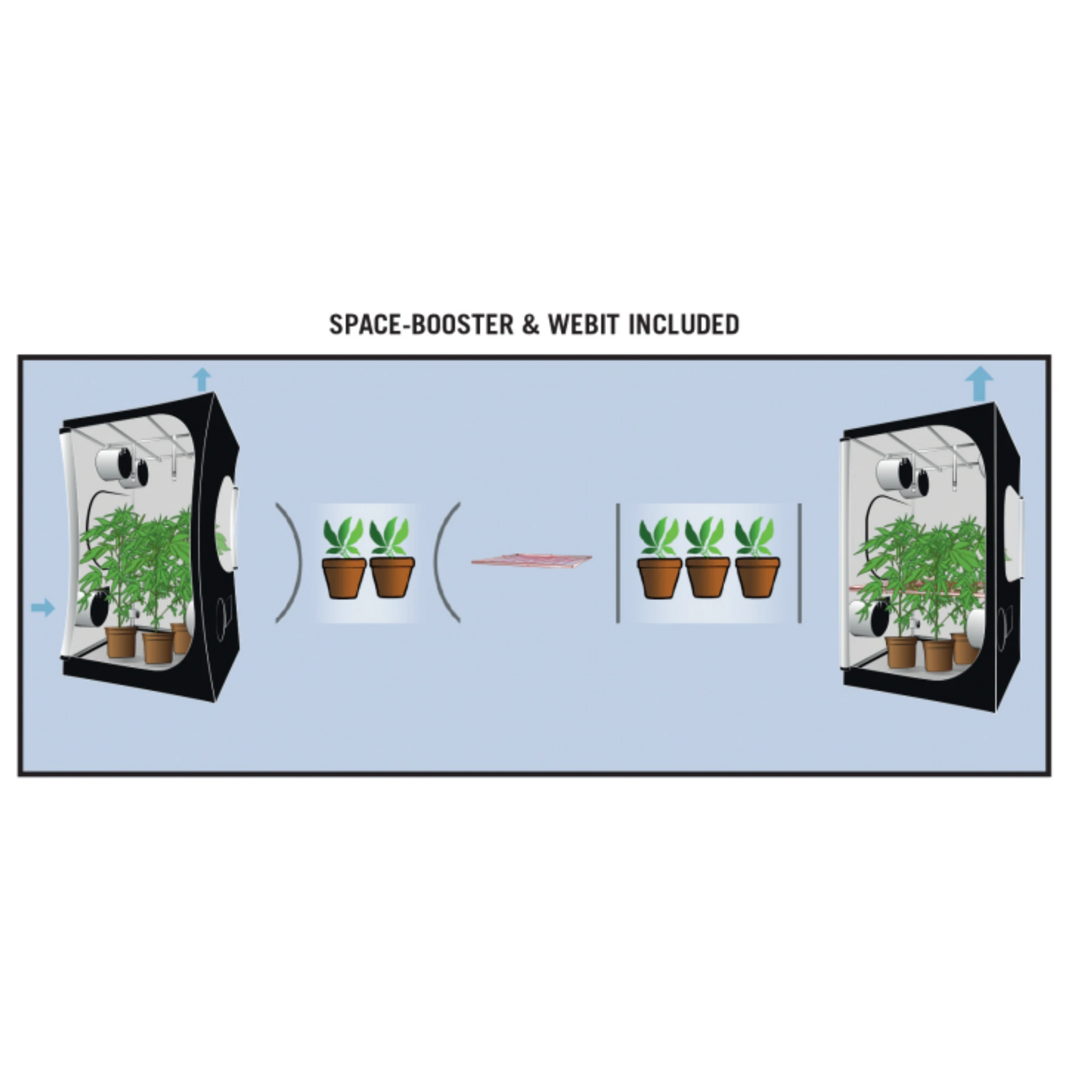

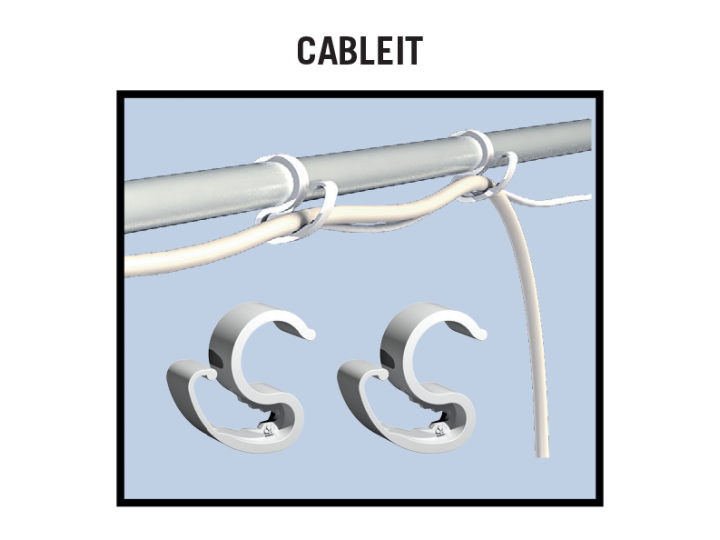

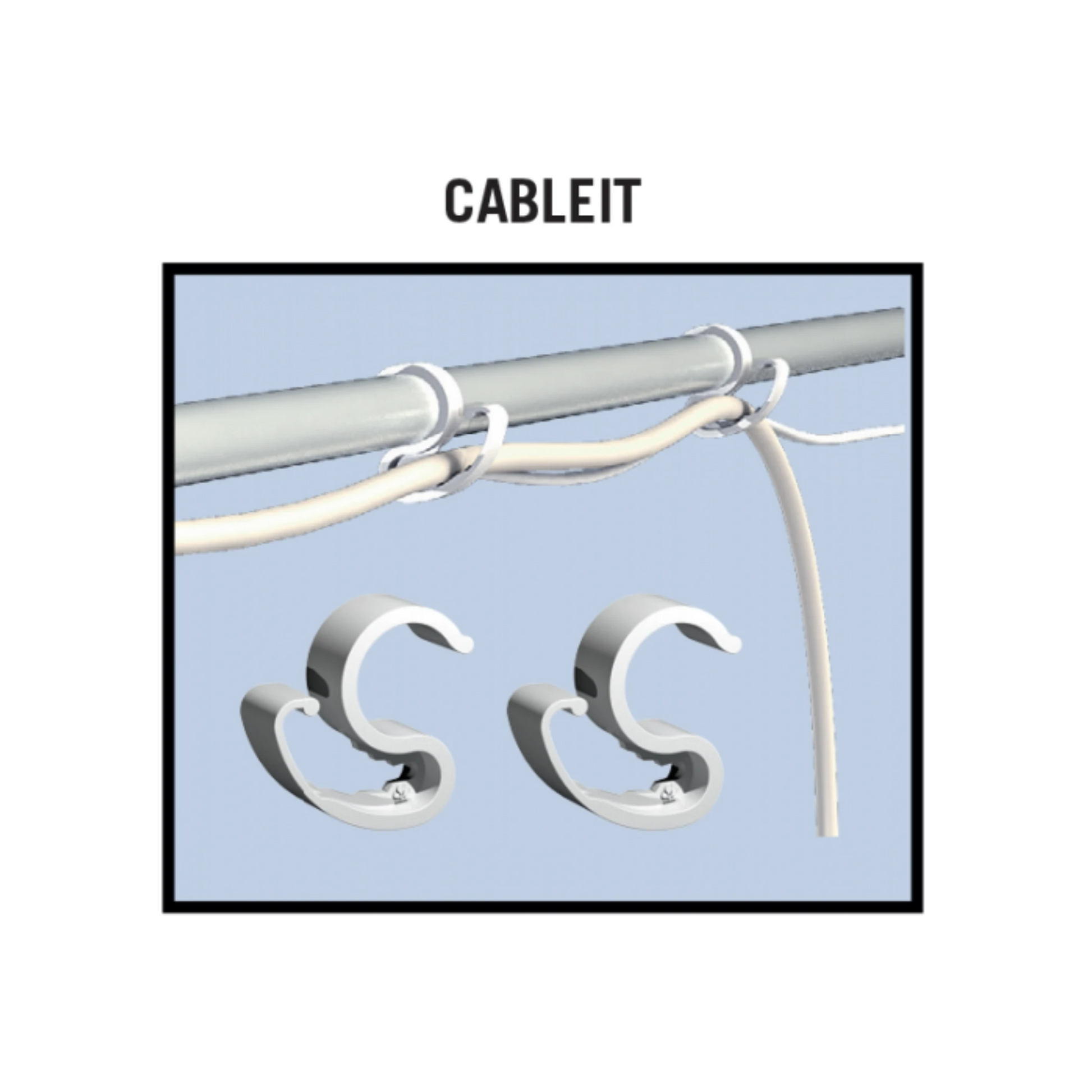

Assemble the frame on a level floor, then slide the canvas over it before tightening the corners. Fit the Space Booster so the walls hold their shape when the fan pulls air. Cut the ducting flanges to the size of your fan and filter, and fit the connectors before running ducting. Secret Jardin advises a Monkey Fan MFO20 for air movement inside the tent. For a level III garden, it suggests about 400 W of LED, or 200 W for a lighter level II grow. With a carbon filter, extraction should run about 210 cfm to change the air every minute. A two-minute cycle needs about 150 cfm. Without a filter, reduce those figures by 40 percent. Hang the light from the HookIT hooks and the filter from the StrapIT straps. Route every cable through the CableIT clips so nothing rests on the canopy. Lay the water tray before the first pots go in, and lift it out to clean between runs. Run the lights for a minute with the room dark to spot any light leaks around the flanges.
Key Features
- 47 x 47 x 79 in: 4 x 4 ft footprint and about 112 cu ft of grow space.
- Lightproof canvas: M210D with Mylar lining and a double-flap zip door.
- 0.75 in steel poles: Q195 chrome-plated; 30 lb per pole, 60 lb per tent.

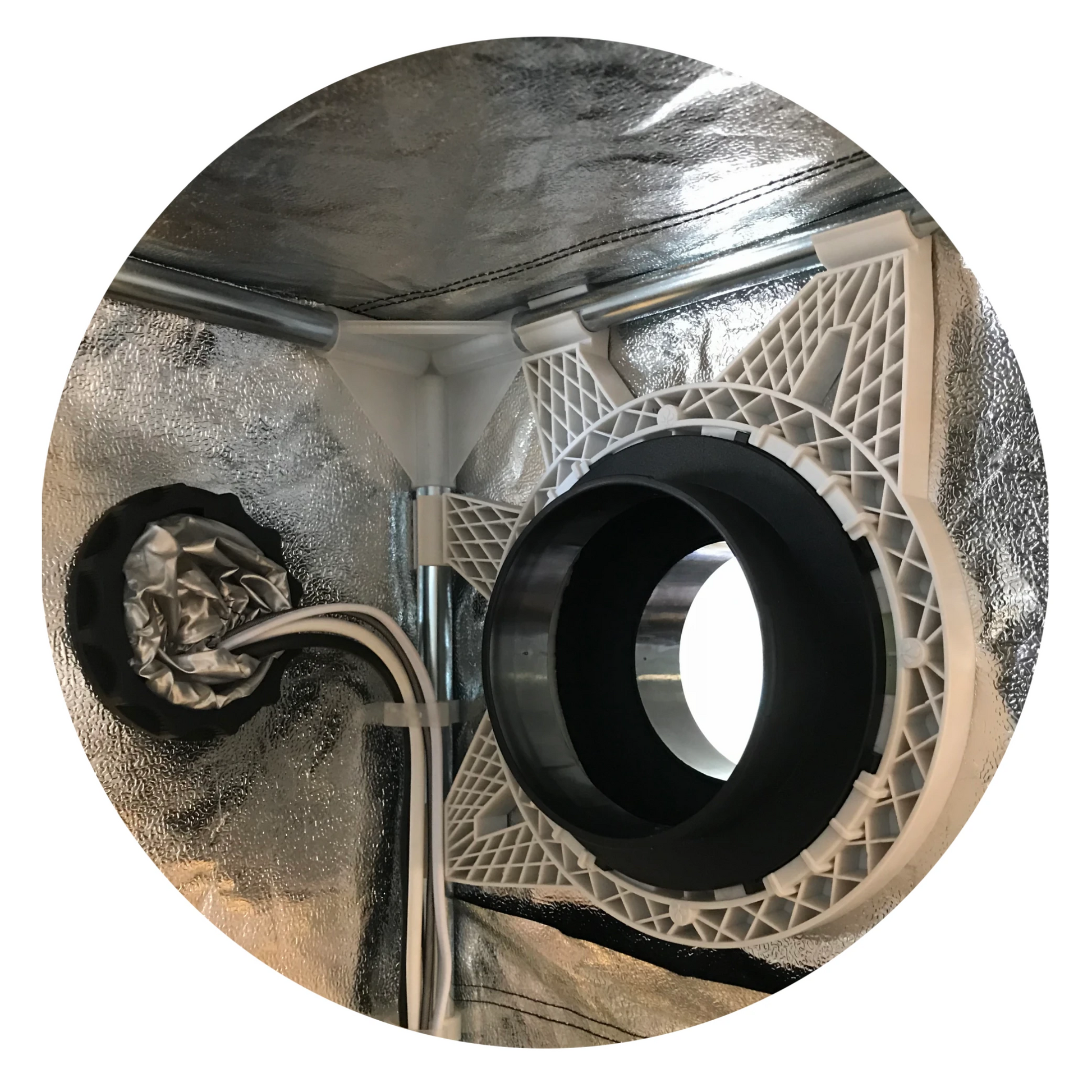

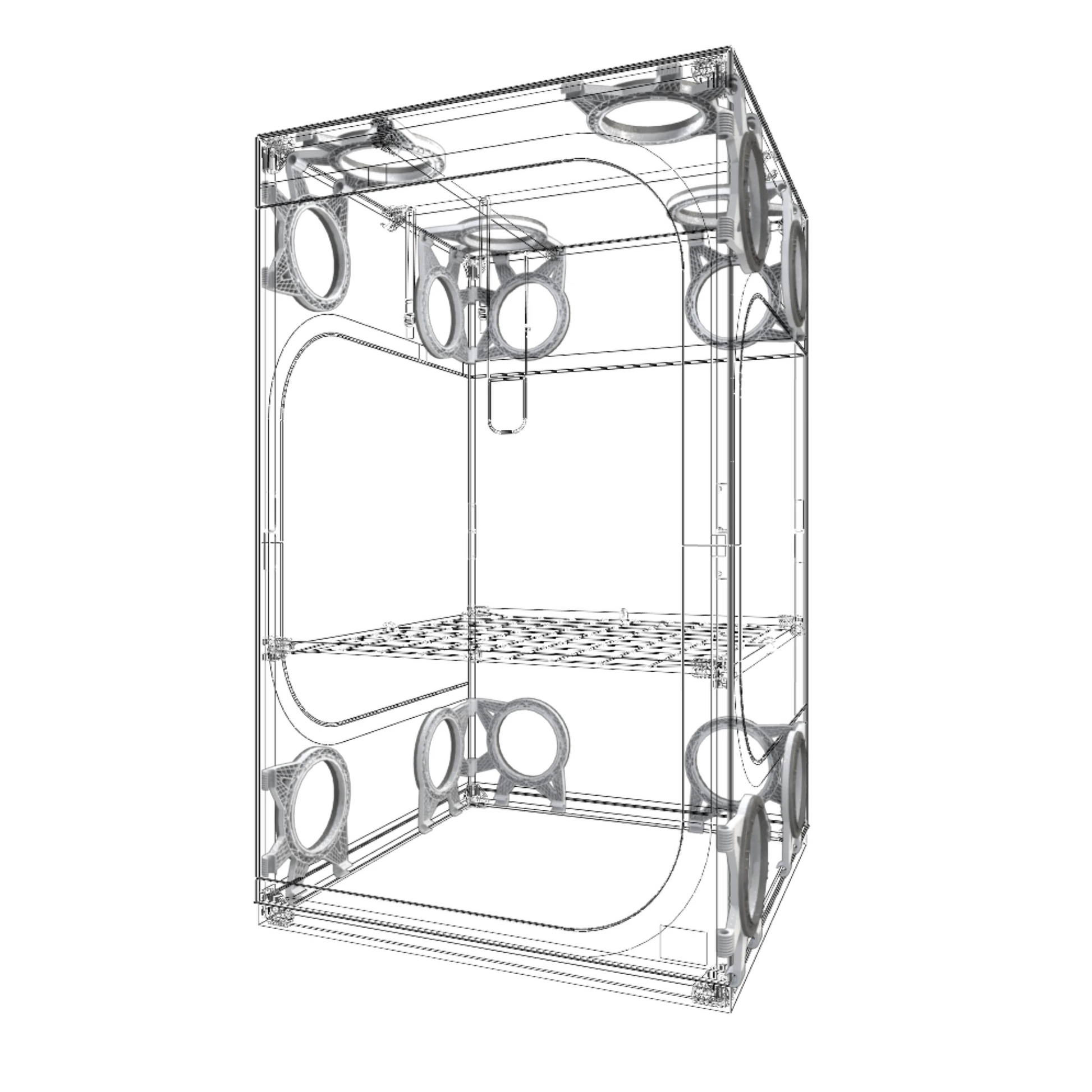

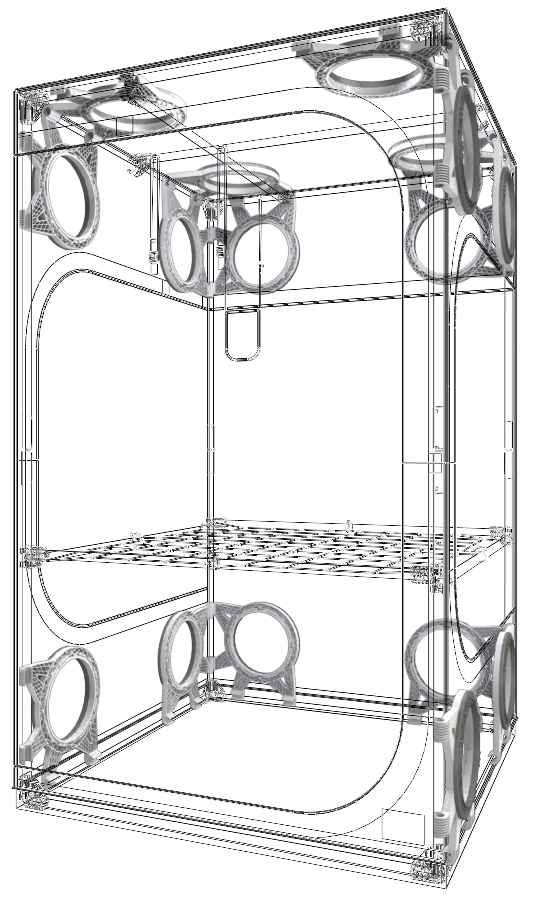

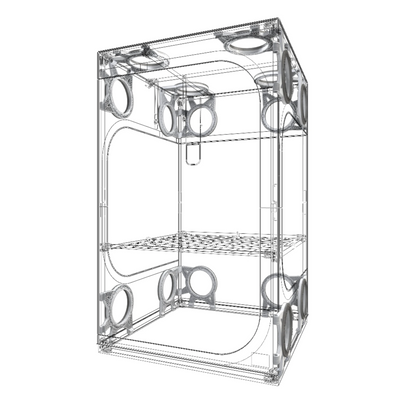

- Pre-equipped: Two DF16 flanges with 6 in connectors, light baffle and cable flange.

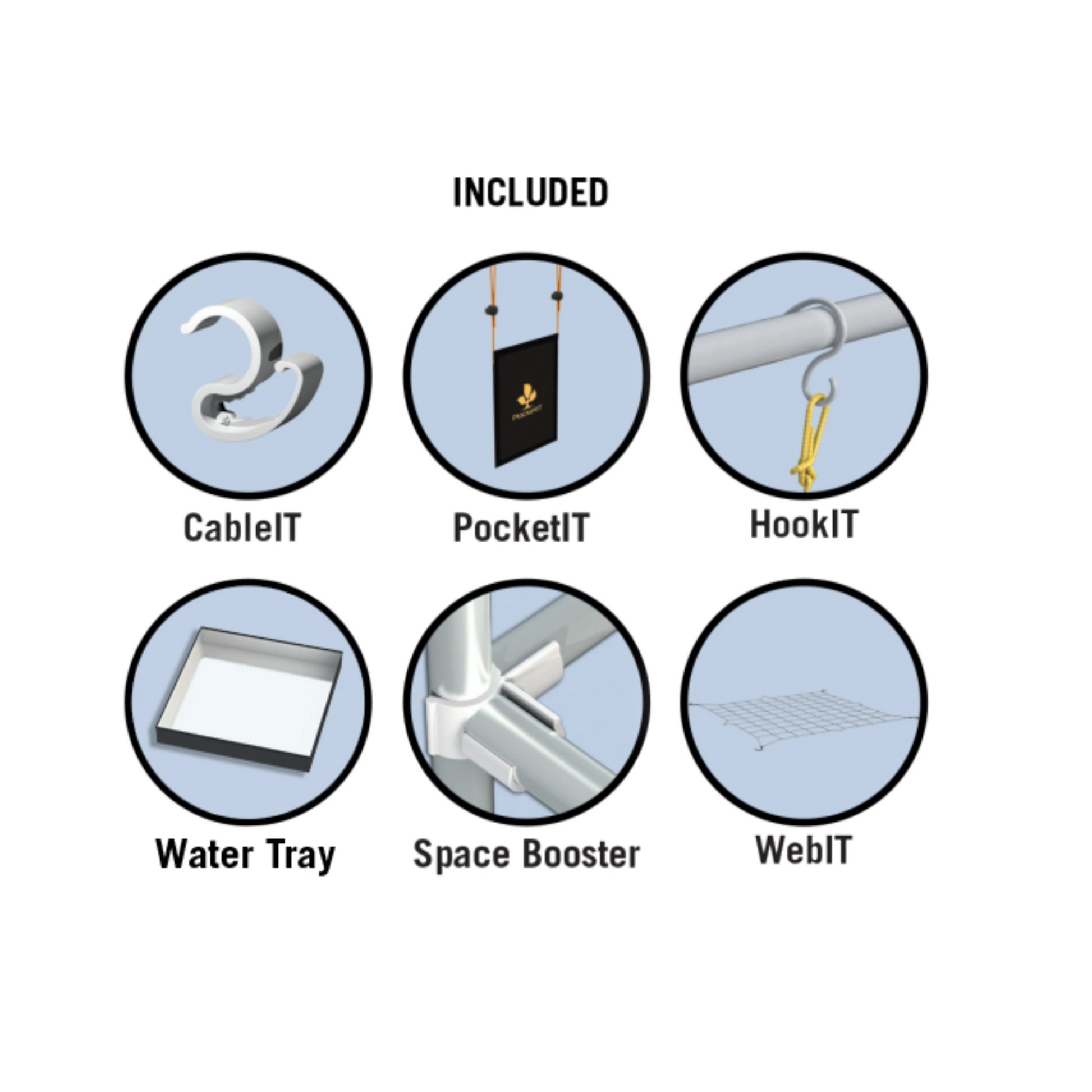

- Accessories included: Water tray, WebIT net, StrapIT, HookIT, CableIT, PocketIT, PatchIT.

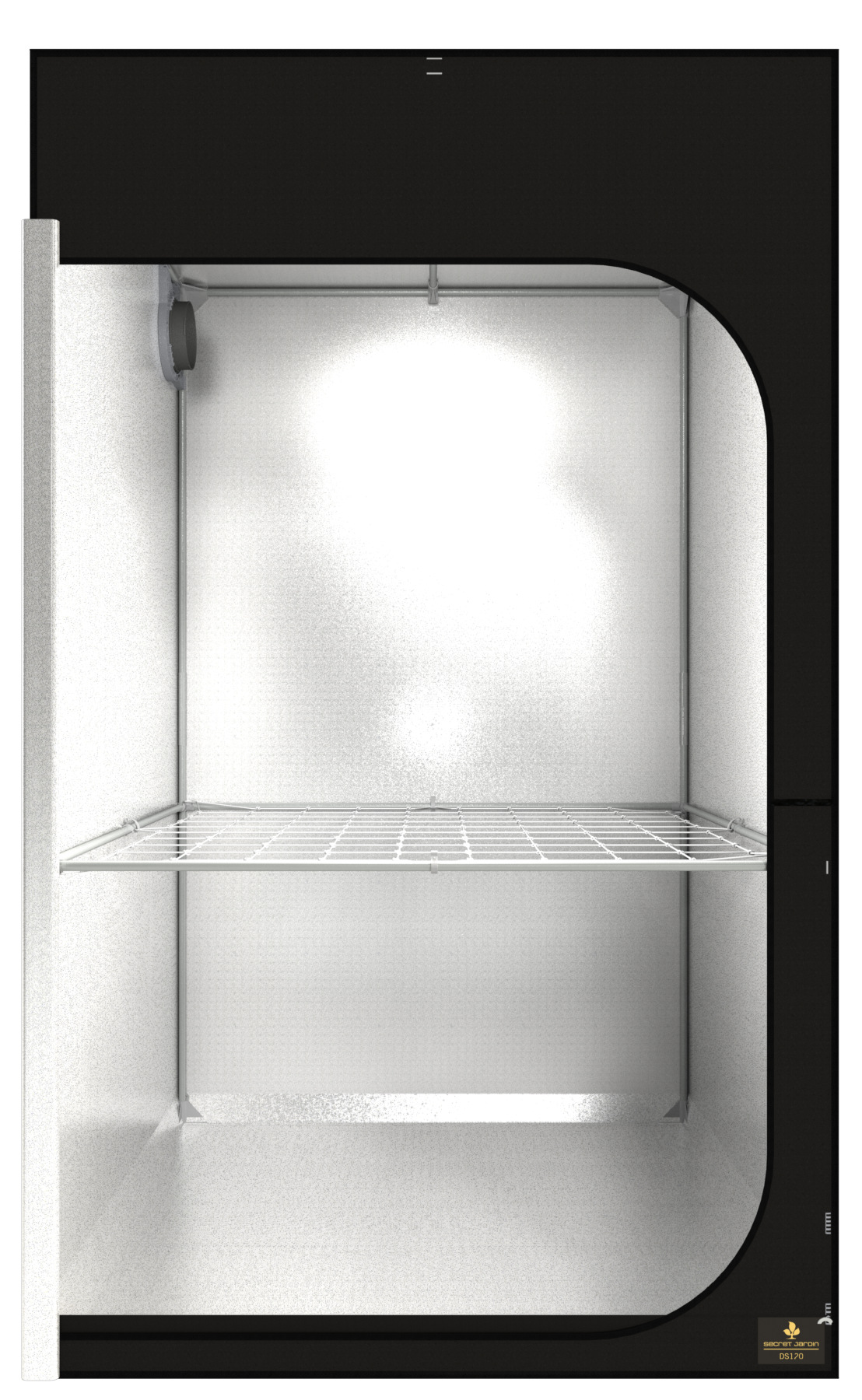

- 270-degree opening: Full access to plants from the front.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Secret Jardin |
| Model | DS120, Dark Street 120 |
| Revision | R4.00 |
| Assembled size (W x D x H) | 47 x 47 x 79 in |
| Volume | 112 cu ft |
| Net weight | 32.2 lb |
| Canvas | M210D with Mylar lining |
| Floor and bag | PE600D bottom, PE210D bag |
| Poles | 0.75 in Q195 steel, chrome plated |
| Corners | Polypropylene |
| Max load | 30 lb per pole, 60 lb per tent |
| Ducting | 2 DF16 flanges, 2 connectors 6 in, 1 light baffle |
| Cable access | 1 CF7 cable flange |
| Water tray | Removable M210D Mylar tray (WTL120) |
| Plant net | WebIT (WEBTH120) |
| Hanging hardware | 1 pair StrapIT, 1 pair HookIT, 15 CableIT |
| Other accessories | PocketIT, Space Booster, PatchIT repair kit |
| Advised lighting | 400 W LED (level III), 200 W LED (level II) |
| Advised extraction with filter | 210 cfm (1 min cycle), 150 cfm (2 min cycle) |
| UPC | 5425030262016 |
