Brand: TrolMaster

TrolMaster BETA-1 Day/Night Remote Controller for Mini Split AC | IR Learning

TrolMaster BETA-1 Day/Night Remote Controller for Mini Split AC | IR Learning

SKU: SKU:BETA1

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $135.16 USD
Regular price $135.16 USD Sale price $135.16 USD
Sale Sold out
Shipping calculated at checkout.

The TrolMaster BETA-1 mini split controller learns the codes from your AC's infrared remote and resends them on a day/night schedule. A built-in photocell picks the program, and an IR emitter on a bracket sends the signal straight to the unit.

View full details

TrolMaster BETA-1 Mini Split Controller Features

Most mini-splits only hold one setpoint, which leaves a grower adjusting the remote by hand every time the lights change. The BETA-1 takes over that job without wiring into the air conditioner. You teach it your remote's signals, one temperature at a time, and it stores up to 24 learned points. After that, it sends the day setpoint when its photocell sees light and the night setpoint when the room goes dark. The signal goes out through a small IR emitter that mounts on a bracket facing the unit's receiver window. Temperature control spans 38 to 99 F. A remote sensor on a 16 ft cable watches the canopy temperature. If the room drifts more than 10 F from the setting, the BETA-1 resends the command to correct it. After a power cut, it also resends the signal to turn the AC back on at the right setpoint. It runs on 120 V AC and draws only 0.2 A. The LCD screen shows the current mode and settings.

Teaching a Mini Split Remote Controller Your AC Codes

This kind of mini split remote controller fits sealed rooms and tents cooled by a ductless unit. Plan the setting range before you start teaching it. Write down the lowest and highest setpoints your remote allows, then work through them in one-degree steps. The first signal it learns is the OFF command, followed by each setpoint up the range. If a step fails, the screen shows an error and you resend that setpoint. To run both heating and cooling, assign each learned temperature to one mode only. A common split is heat or auto from 64 to 72 F and cool from 73 to 86 F. The AC still regulates itself with its own sensor; the BETA-1 just moves its target on schedule. Place the controller where the photocell sees the grow lights clearly and nothing else. Keep the emitter close to the AC with a clear line of sight to its receiver. The unit is rated for rooms between 32 and 104 F with humidity at 90% or below.

Key Features

  • Learns Your IR Remote: Stores up to 24 setpoints from the AC's own remote.
  • Day and Night Setpoints: Photocell switches programs with the lights.
  • IR Emitter With Bracket: Sends commands straight to the AC's receiver.
  • Self-Correcting: Resends the setpoint if the room drifts 10 F off target.
  • Power-Loss Recovery: Turns the AC back on at the right setting after an outage.
  • 16 ft Canopy Sensor: Monitors temperature where the plants are.

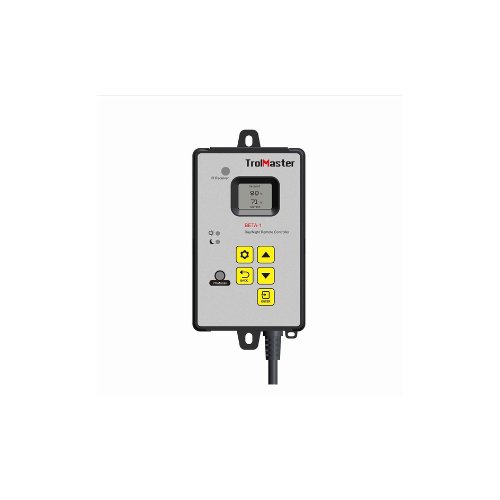

TrolMaster BETA-1 day/night remote controller for mini split AC

Technical Specifications

Specification Value
Brand TrolMaster
Model BETA-1
Input Voltage 120 V AC
Max Current 0.2 A
Temperature Control Range 38-99 F
Learned Setpoints Up to 24
Sensor Cable 16 ft NTC
Power Cord 1.8 m
Display LCD
Operating Environment 32-104 F, 90% RH or less
Compatibility Most IR remote-controlled air conditioners, including mini-splits

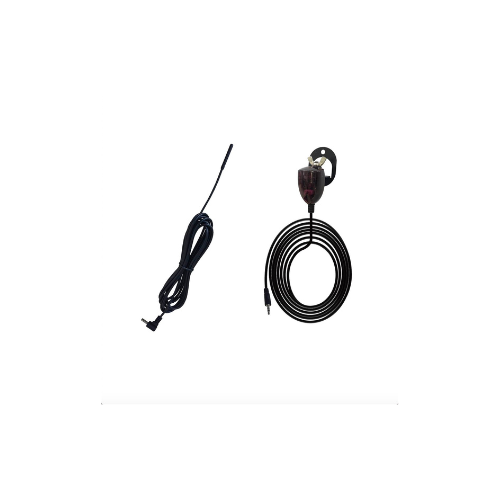

Included BETA-1 controller, IR emitter, 16 ft NTC sensor
