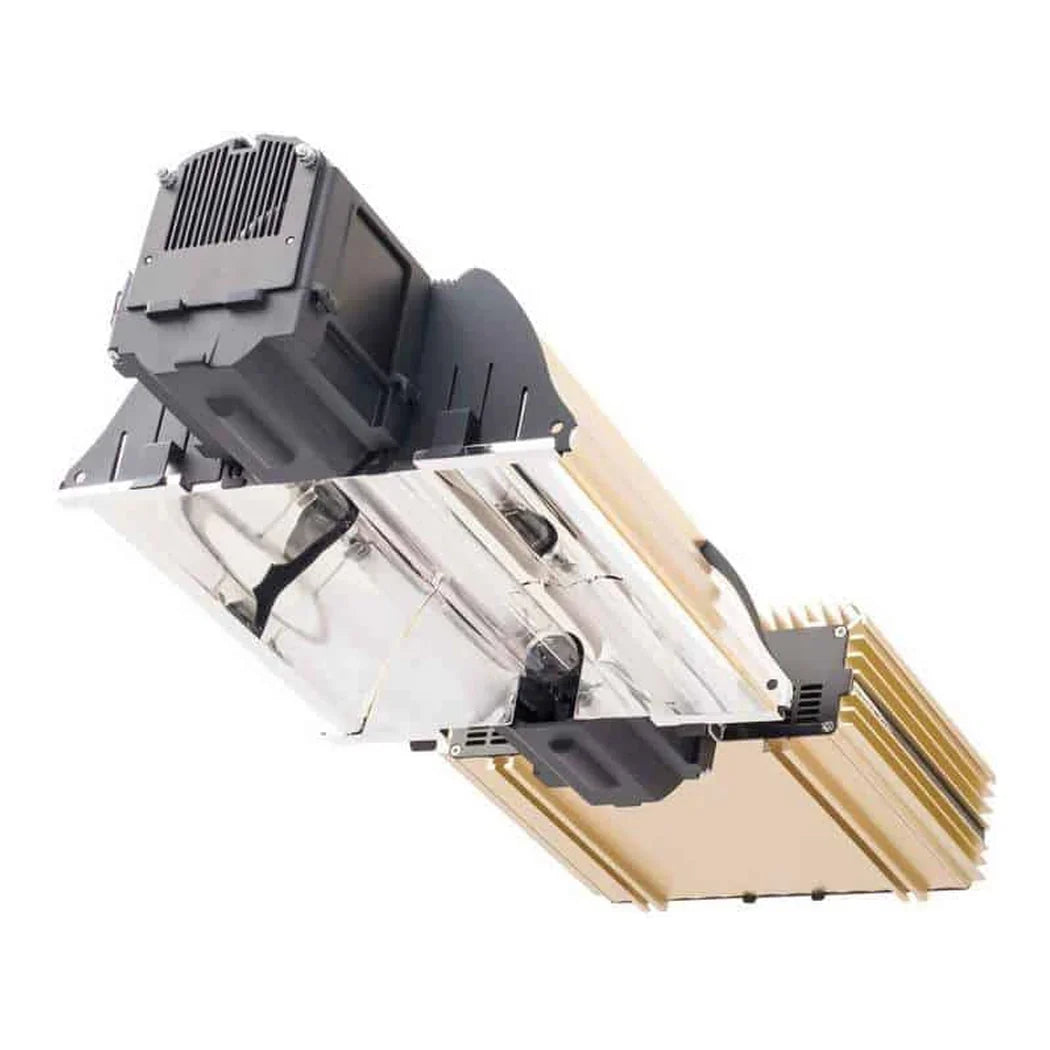

Why the DimLux 1000W Comes in a 277V Build
Voltage decides the wiring, not the light. This is the same Expert Series fixture as the 240V version, built for a 277V supply. That is what a commercial three phase panel usually offers. The line is discontinued, so what is here is remaining stock.
Running a 277V Grow Light on a Commercial Panel
The reason to pick 277V is copper. A 480V three phase panel gives you 277V line to neutral. Running fixtures there rather than at 240 cuts the current for the same wattage. Lower current means smaller conductors and more fixtures on a breaker, which is where the saving lands on a big install. Everything else matches the range. The Xtreme ballast gives 600 to 1200W over seven dim levels and a soft off, with soft start, soft dim and diagnostic LEDs. The reflector is Alpha Optics in 98% Miro Silver aluminium, with adjustable sides and a 50 mm extraction port. A Philips Greenpower 1000W 400V EL lamp comes with it, and the ballast steps the supply internally so a 400V lamp runs from mains.
Key Features
- 277V for a commercial panel: 480V three phase gives 277V line to neutral. Less current, thinner cable.

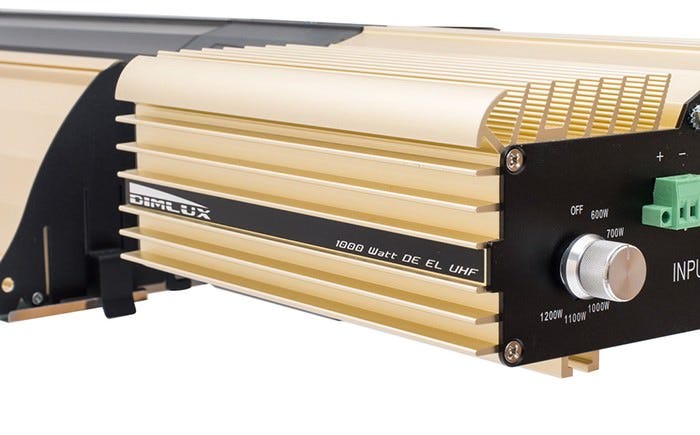

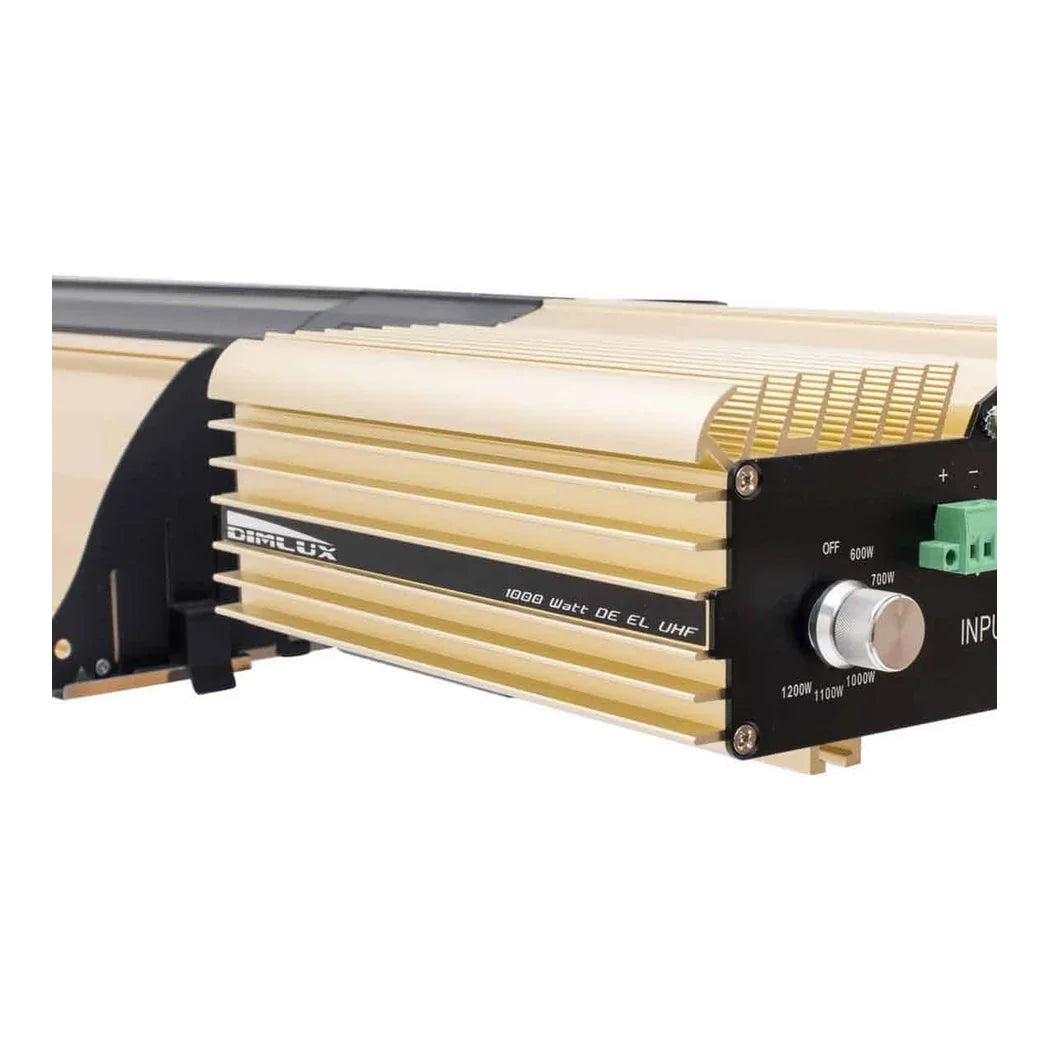

- 600 to 1200W, seven dim levels: On the Xtreme ballast, with soft start, soft dim and a soft off.

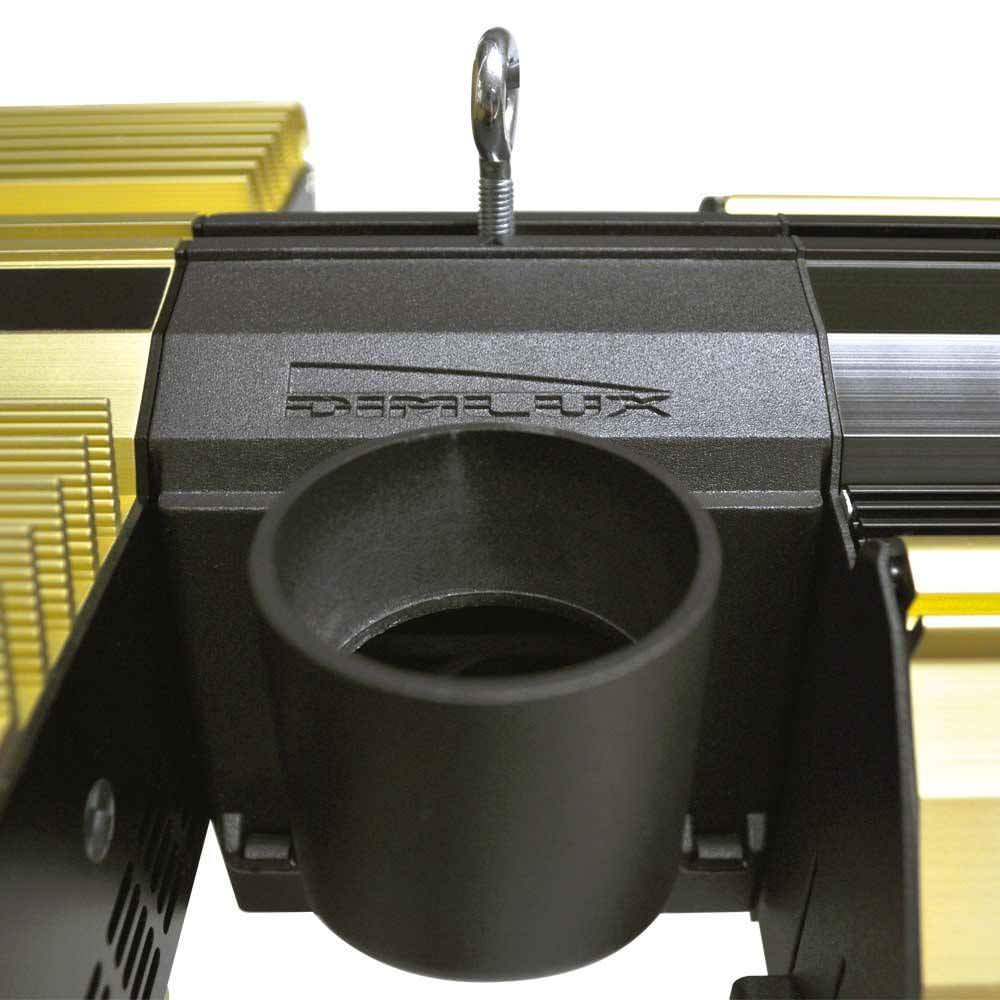

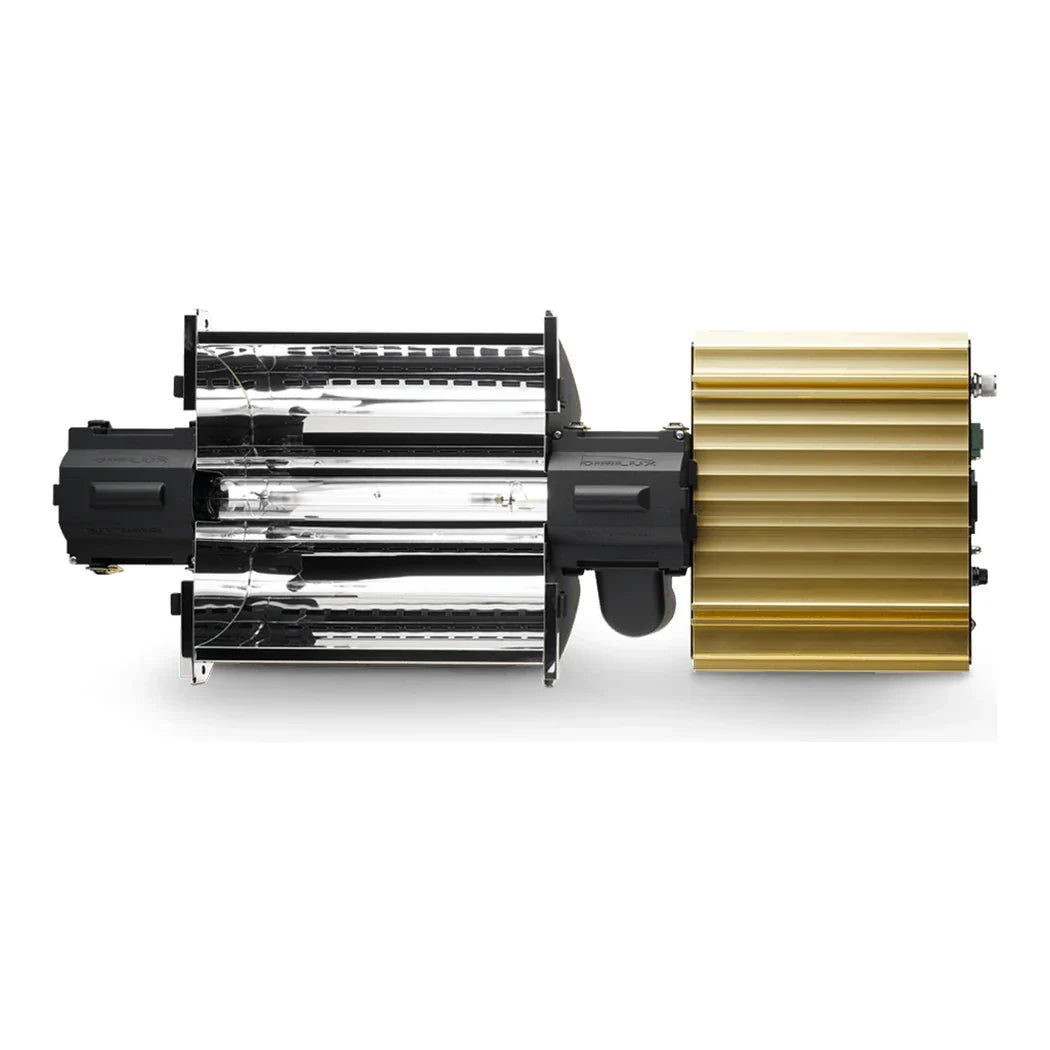

- 98% Miro Silver reflector: Alpha Optics geometry with adjustable sides and a 50 mm port.
- 400V lamp from mains: The ballast steps the supply internally, so no separate transformer.
- Diagnostic LEDs: Status at a glance, with power cut on a bad contact or a short.
- Philips Greenpower lamp included: 1000W 400V EL, supplied with the fixture rather than sold on.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | DimLux |
| Series | Expert |
| Build Voltage | 277V |
| Lamp Type | Double ended, 1000W 400V EL UHF |
| Output Range | 600 to 1200W |
| Dim Levels | 7 plus soft off |
| Overdrive | 20% |
| Ballast | Xtreme, ultra high frequency |
| Reflector | Alpha Optics, 98% efficiency |
| Reflector Material | Miro Silver aluminium |
| Side Reflectors | Adjustable |
| Extraction Port | 50 mm |
| Lamp Cooling | Passive, with active extraction optional |
| Soft Start | Low inrush standalone, zero inrush with a Maxi Controller |
| Controller | Maxi Controller, up to 160 fixtures |
| Diagnostics | LED status, power cut on bad contact or short |
| Included | Philips Greenpower 1000W 400V EL lamp, cable and plug |
| Availability | Discontinued by DimLux. Remaining stock |
| Part Number | DL10D277 |
