What the DimLux Nanotube Adds to the Expert Series

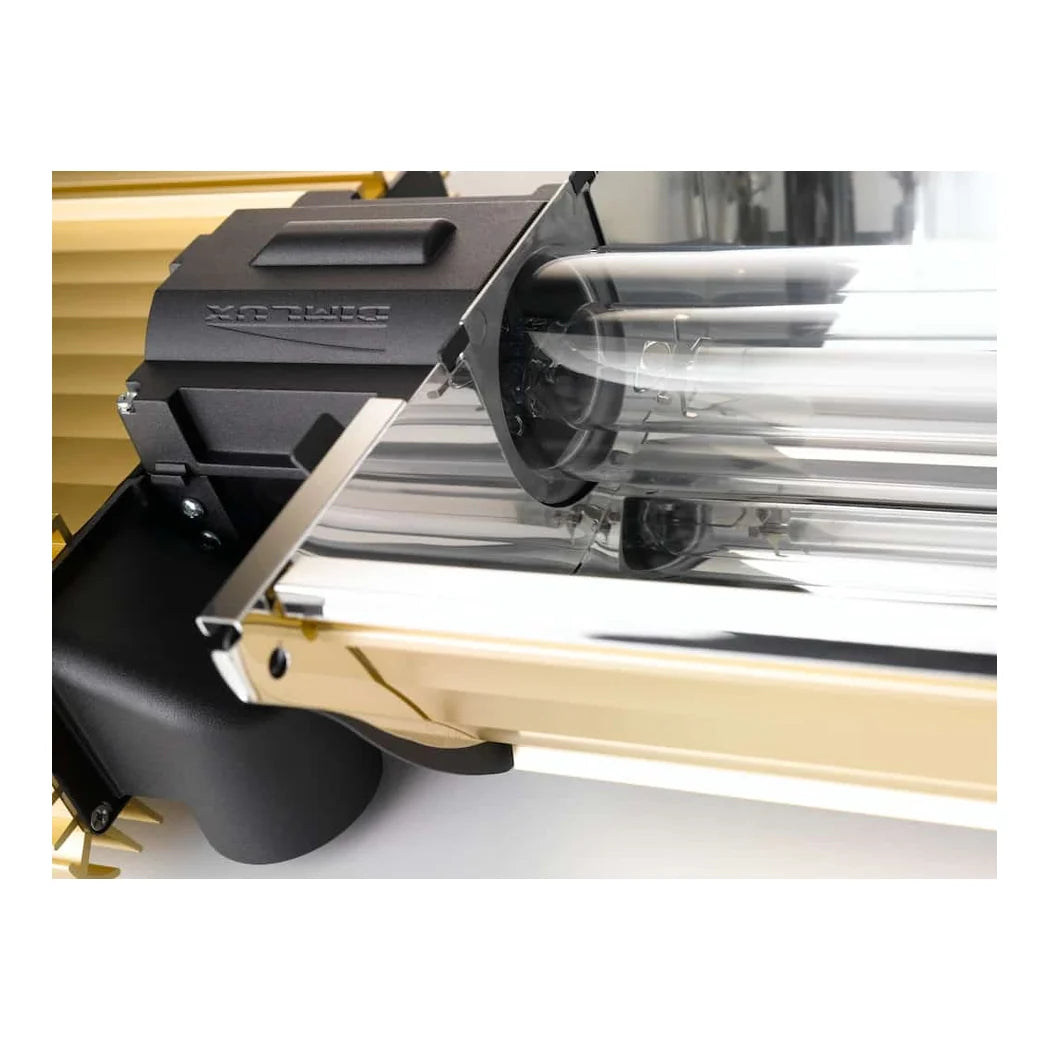

A duct through the fixture. The Nanotube draws air in parallel across the lamp rather than around the outside of the reflector. That holds the lamp at its ideal temperature instead of letting it run hot. DimLux rates the gain at up to 20% more lumens against passive cooling.
Running an Air Cooled Reflector Without Losing Output
Most air cooled designs cost you light. Put glass between the lamp and the canopy and some of the output stops there. That is the trade every sealed hood asks you to make. This one keeps the Alpha Optics reflector open and pulls the heat through a separate path instead. The reflector still works on Single Bounce Clear Sight, in 98% Miro Silver aluminium, with adjustable sides and a 50 mm port on top. Electrically it is the standard Expert Series. The Xtreme ballast runs 600 to 1200W across seven dim levels, with soft start, soft dim, diagnostic LEDs and a fault cut-out. A Philips Greenpower 1000W 400V EL lamp is included. Two notes before you commit. This is made to request, with roughly a 30 day lead time, and DimLux has discontinued the line.
Key Features
- Parallel air path over the lamp: It holds the lamp at temperature rather than letting it climb.
- Up to 20% more lumens: DimLux rates the actively cooled fixture against the same one passive.

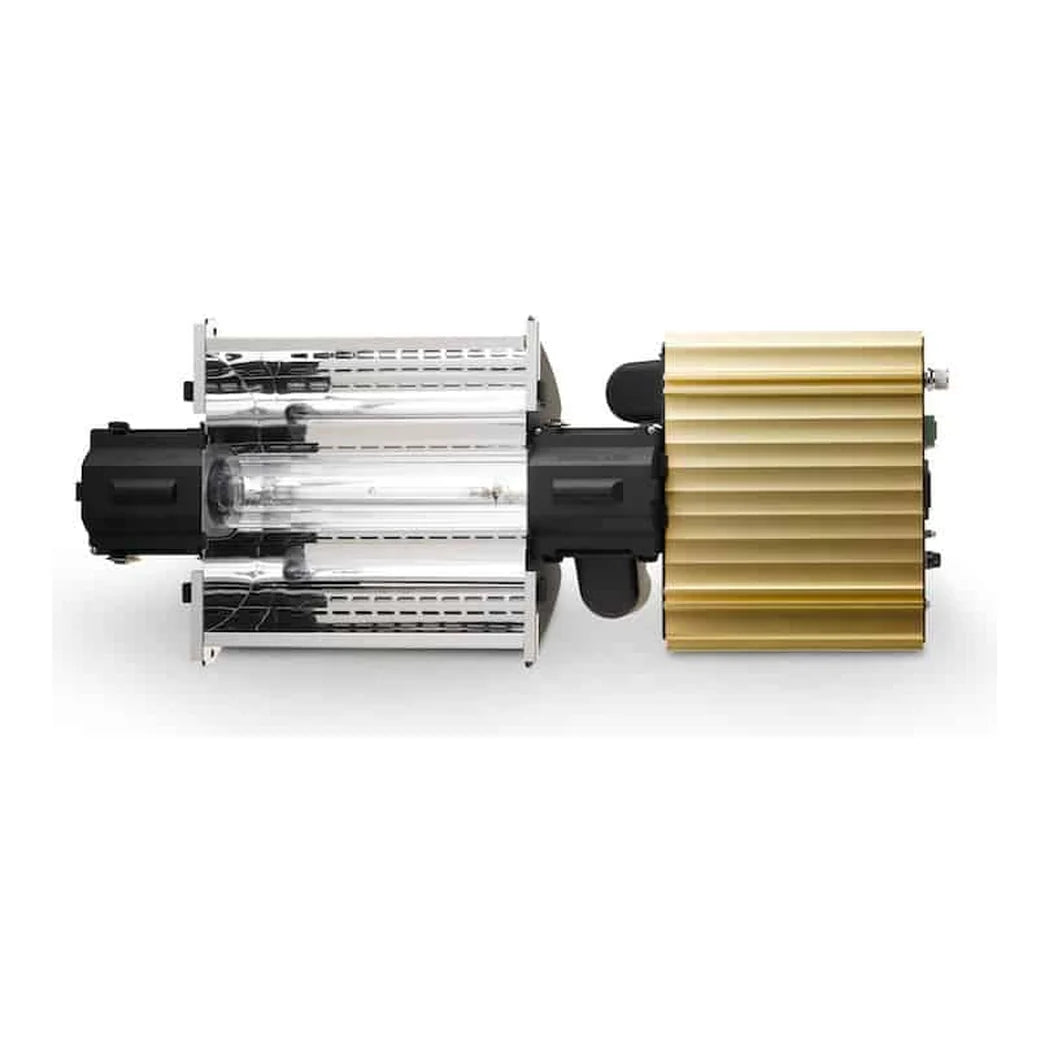

- Reflector stays open: No glass between lamp and canopy, so nothing is lost on the way down.
- 98% Miro Silver reflector: Single Bounce Clear Sight, adjustable sides, 50 mm port on top.

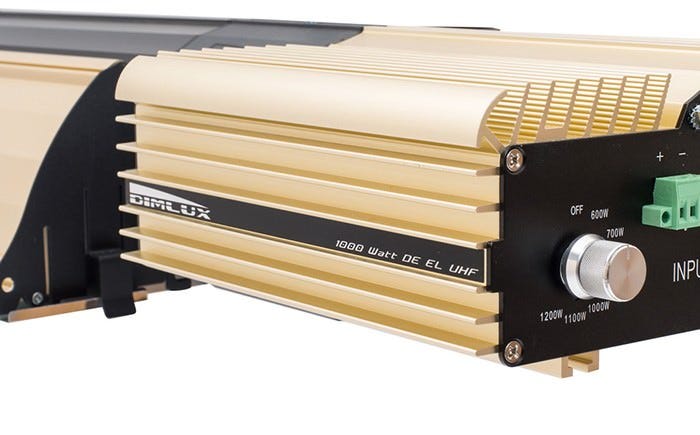

- 600 to 1200W on seven levels: The standard Xtreme ballast, with diagnostics and a fault cut-out.
- Made to request, 30 day lead: Discontinued by DimLux, and built on request rather than held in stock.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | DimLux |
| Series | Expert, Nanotube build |
| Build Voltage | 240V |
| Lamp Type | Double ended, 1000W 400V EL UHF |
| Output Range | 600 to 1200W |
| Dim Levels | 7 plus soft off |
| Overdrive | 20% |
| Ballast | Xtreme, ultra high frequency |
| Connection | 230V nominal |
| Cooling | Nanotube, parallel air extraction over the lamp |
| Cooling Gain | Up to 20% more lumens when actively cooled |
| Reflector | Alpha Optics, 98% efficiency |
| Reflector Material | Miro Silver aluminium |
| Side Reflectors | Adjustable |

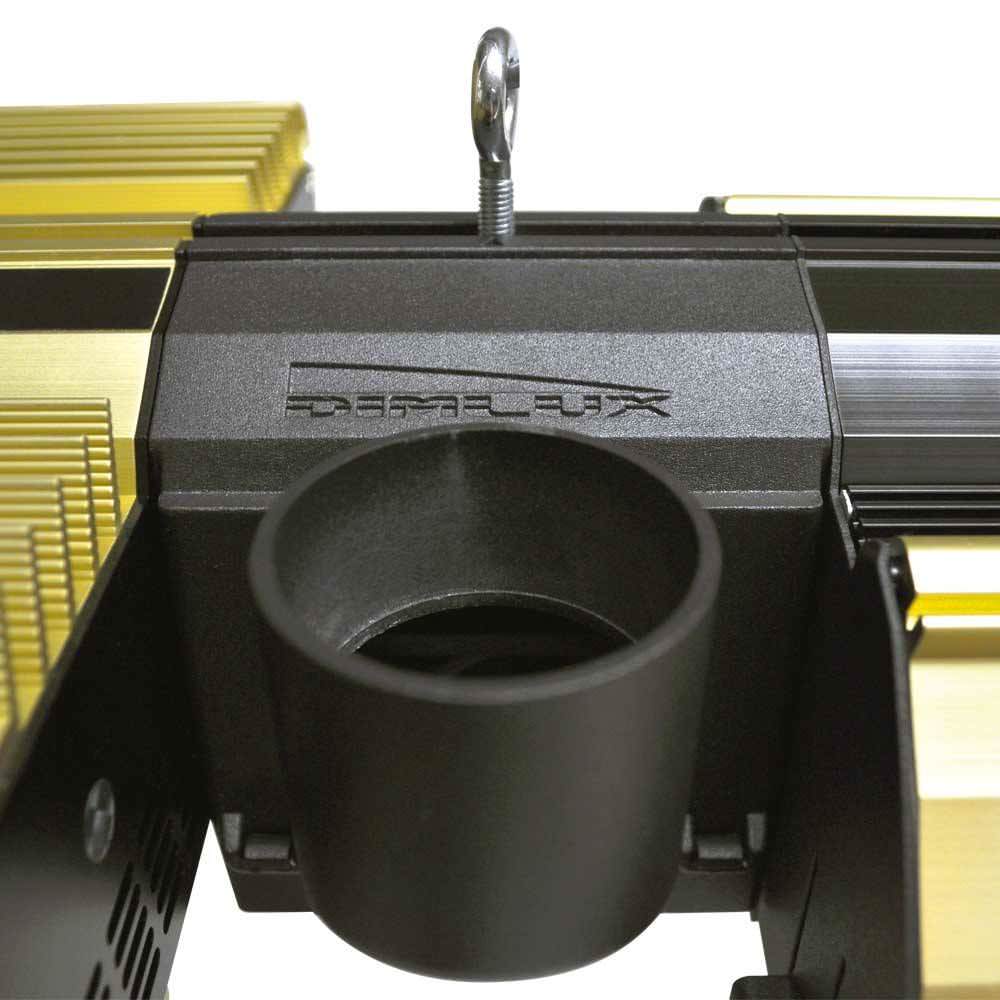

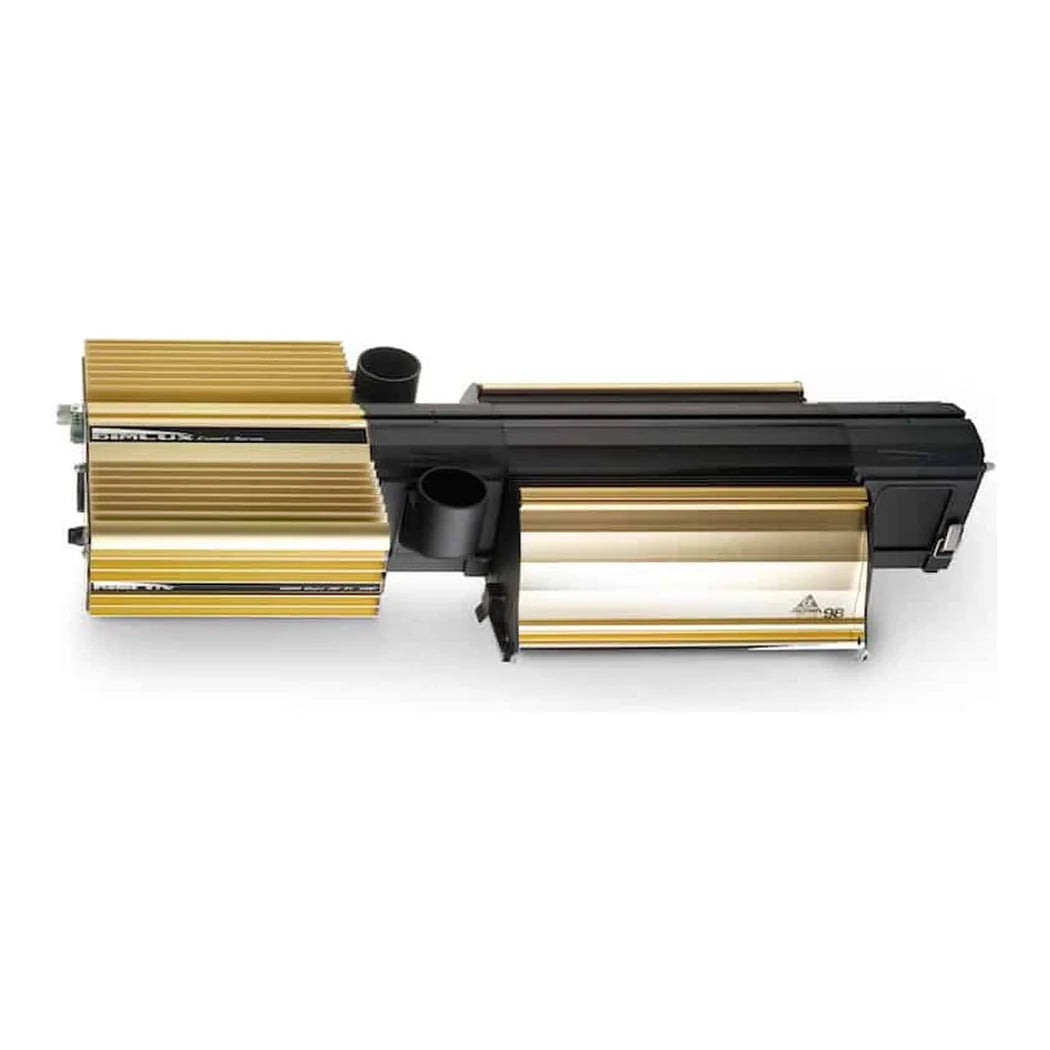

| Extraction Port | 50 mm |
| Soft Start | Low inrush standalone, zero inrush with a Maxi Controller |
| Controller | Maxi Controller, stepless dimming |
| Diagnostics | LED status |
| Included | Philips Greenpower 1000W 400V EL lamp, 4 m cable and plug |
| Lead Time | Made to request, about 30 days |
| Availability | Discontinued by DimLux |
| Part Number | DL10DEN |
