Industrial-Strength Precision for High-Performance Hydroponics

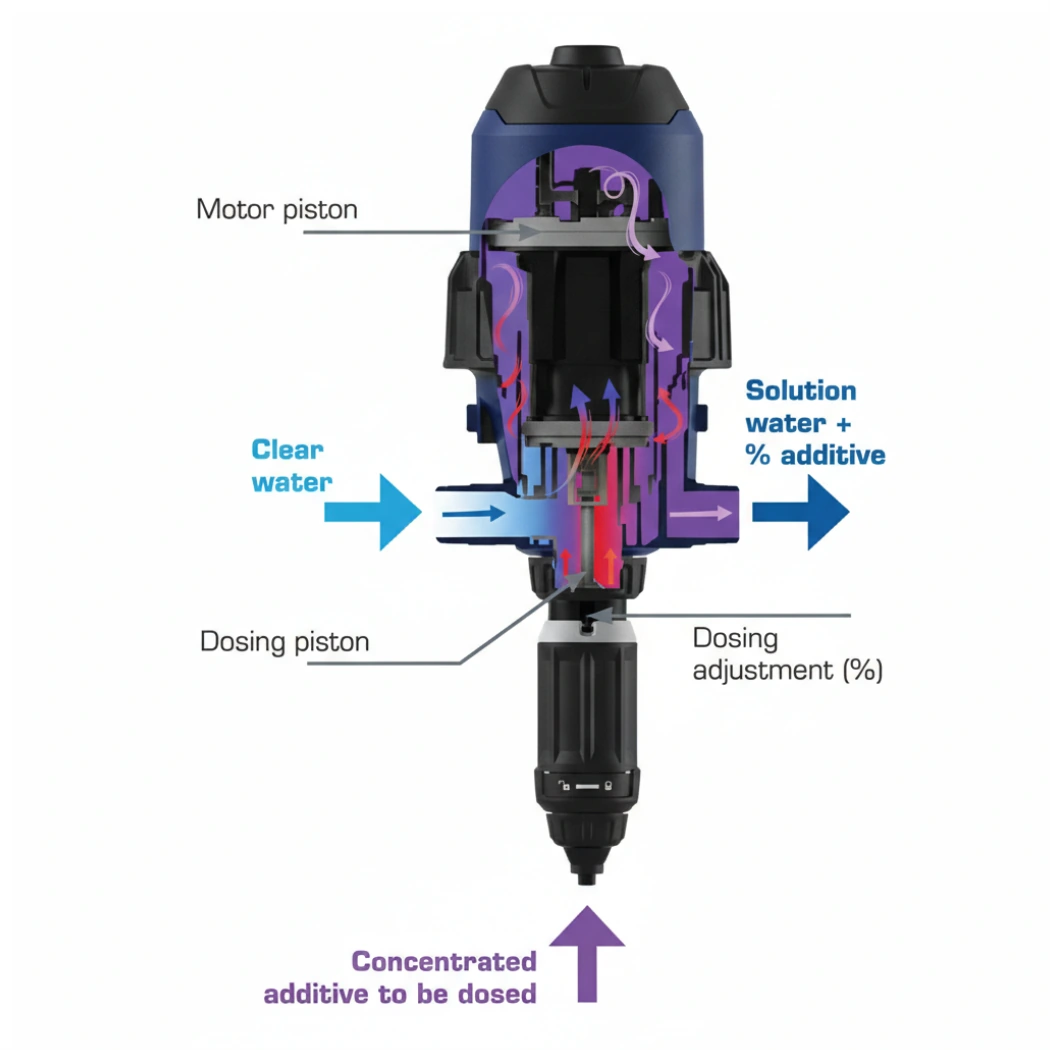

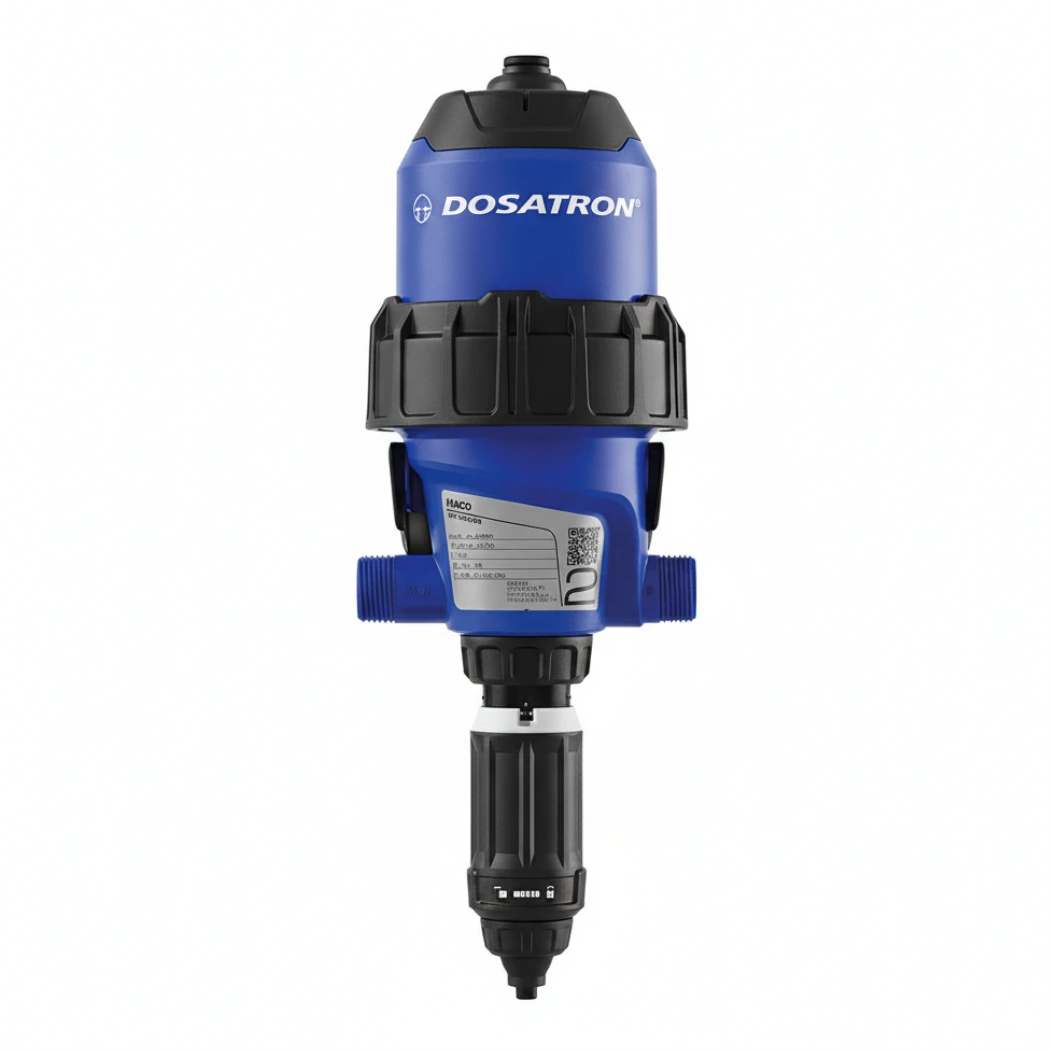

The Dosatron MidFlo Series is engineered for large-scale operations requiring a robust 1 1/4 inch connection and high-flow capabilities. Operating entirely on water pressure, these injectors maintain a constant injection rate regardless of fluctuations in pressure or flow, providing unmatched reliability for your irrigation manifold. This series is the preferred choice for growers who demand professional-grade durability and the ability to scale their nutrient delivery systems without compromising on accuracy.
Advanced Chemical Compatibility and Versatile Seal Options
To handle the diverse range of concentrated minerals and acids used in modern gardening, the MidFlo Series features specialized seal configurations tailored to your specific chemical profile. Whether you are managing high pH alkaline solutions or aggressive acidic concentrates, these units provide the chemical resistance necessary to prevent leaks and maintain calibration. Each unit includes an integrated bypass switch for easy maintenance, allowing you to flush your lines with fresh water without disconnecting the injector from the main supply line.
Key features:
- Water-Driven Efficiency: Operates without the need for electrical pumps, reducing overhead costs and complexity.
- High-Flow Capacity: Designed to handle up to 40 GPM, making it the ideal solution for large greenhouse and indoor grow facilities.
- Customizable Seal Technology: Available with Aflas, Viton, or Kalrez seals to ensure compatibility with your specific nutrient lineup.
- Consistent Nutrient Ratios: Automatically adjusts to water flow variations to prevent over-feeding or under-feeding of your crop.
- Comprehensive Installation Kit: Every unit comes with a mounting bracket, suction tube, weighted strainer, and quick start guide for immediate deployment.
Variants:
| SKU | Injection Range | Dilution Ratio | Seal Type |
|---|---|---|---|
| D6MZ3000BPAFHY | 1.25 to 11 mL (0.03% to 0.3%) | 1:3000 – 1:333 | Aflas |
| D6MZ3000BPVFHY | 1.25 to 11 mL (0.03% to 0.3%) | 1:3000 – 1:333 | Viton |
| D6MZ3000BPVFKHY | 1.25 to 11 mL (0.03% to 0.3%) | 1:3000 – 1:333 | Kalrez |
| D6MZ1000BPVFHY | 3.75 to 37.5 mL (0.1% to 1%) | 1:1000 – 1:100 | Viton |
| D6MZ1000BPVFKHY | 3.75 to 37.5 mL (0.1% to 1%) | 1:1000 – 1:100 | Kalrez |
| D6MZ1000BPHTAFHY | 3.75 to 37.5 mL (0.1% to 1%) | 1:1000 – 1:100 | Aflas |
| D6MZ2BPVFHY | 7.5 to 75 mL (0.2% to 2%) | 1:500 – 1:50 | Viton |
| D6MZ2BPVFHYK | 7.5 to 75 mL (0.2% to 2%) | 1:500 – 1:50 | Kalrez |
| D6MZ2BPHTAFHY | 7.5 to 75 mL (0.2% to 2%) | 1:500 – 1:50 | Aflas |
