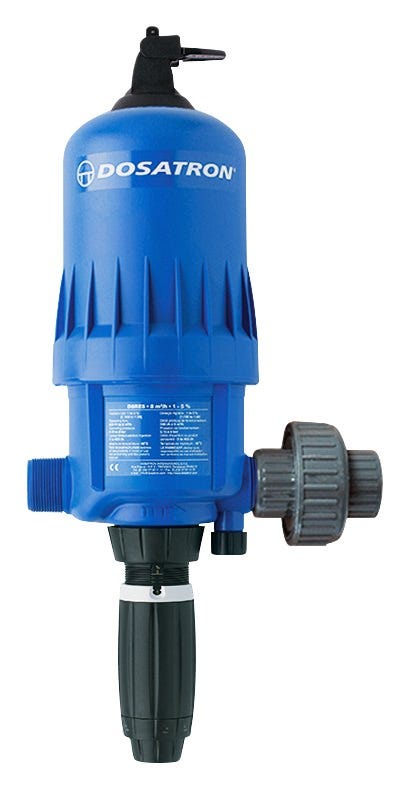

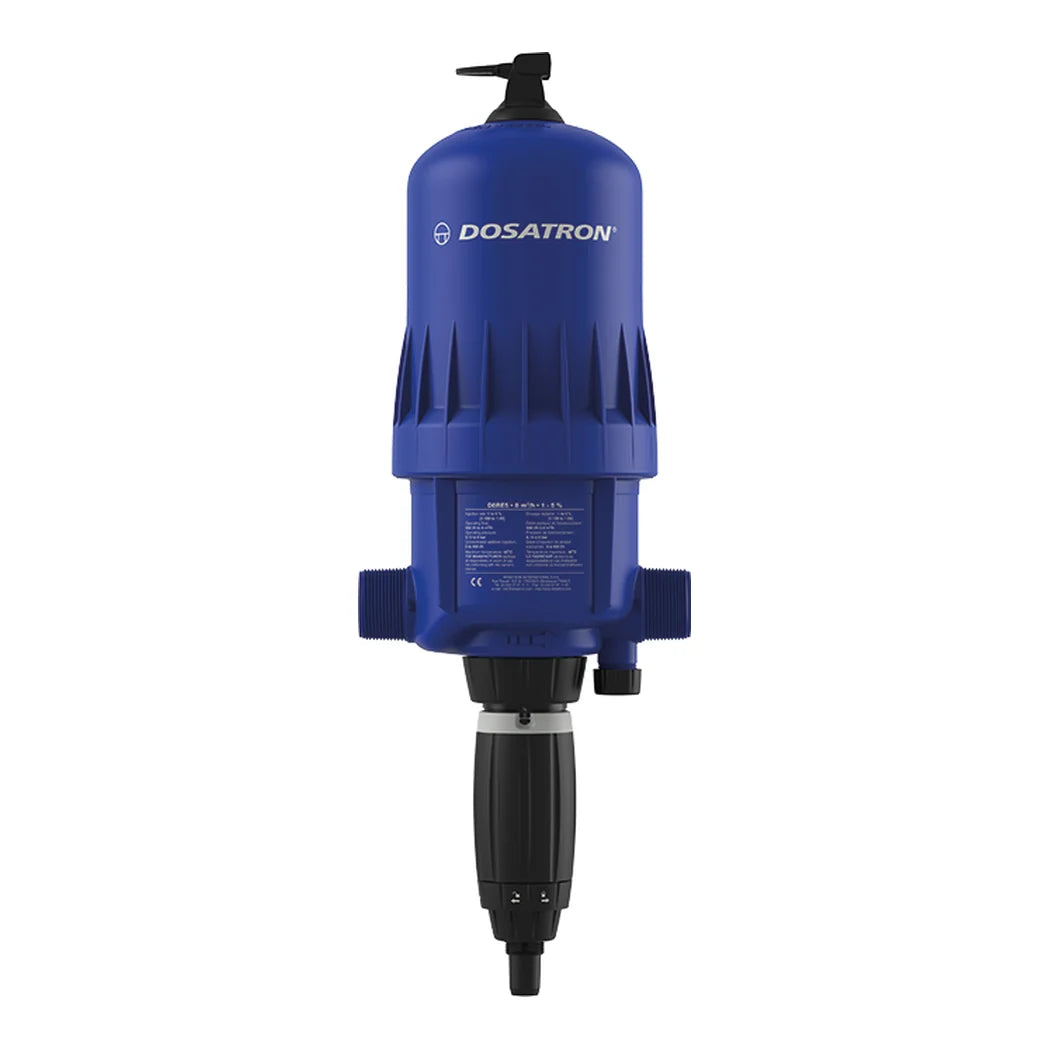

Dosatron Water Powered Doser 40 GPM 1:100 to 1:20 - 1-1/2 in (D8RE5VFBPHY)

Where the Dosatron D8RE5 Fits a Big Line

Two numbers place it. Flow runs 2.2 to 40 GPM on a 1-1/2 in NPT body, and dose runs 1:100 to 1:20. That is 1 to 5%, or 37.5 to 190 mL per gallon. It sits at the concentrated end of the D8RE range rather than the dilute one.

Picking a Fertilizer Injector by Ratio, Not Size

Flow tells you what fits the pipe. Ratio tells you what the machine is for, and that is the common mistake when choosing a fertilizer injector. At 1:20 this unit puts nearly 190 mL in every gallon. That suits thick organic feeds, teas and heavy stock solutions, where a dilute injector runs out of adjustment. If your recipe sits nearer 1:500, the D8RE2 is the model. If you are metering acid or a trace element in parts per million, the D8RE3000 is. Pressure tolerance is wide, 2.2 to 116 PSI. The unit stands about 25-15/16 in by 8-1/2 in and weighs 12 lbs. Feed water should stay under 104 F.

Key Features

• 2.2 to 40 GPM on 1-1/2 in: Sized for a main line rather than a bench feed or a single room.
• 1:100 to 1:20: 1 to 5%, or 37.5 to 190 mL per gallon. The concentrated end of the range.
• Water powered: Line pressure runs it. No cord, no controller and no breaker.
• 2.2 to 116 PSI: A wide tolerance, so a swing in mains pressure does not change the dose.

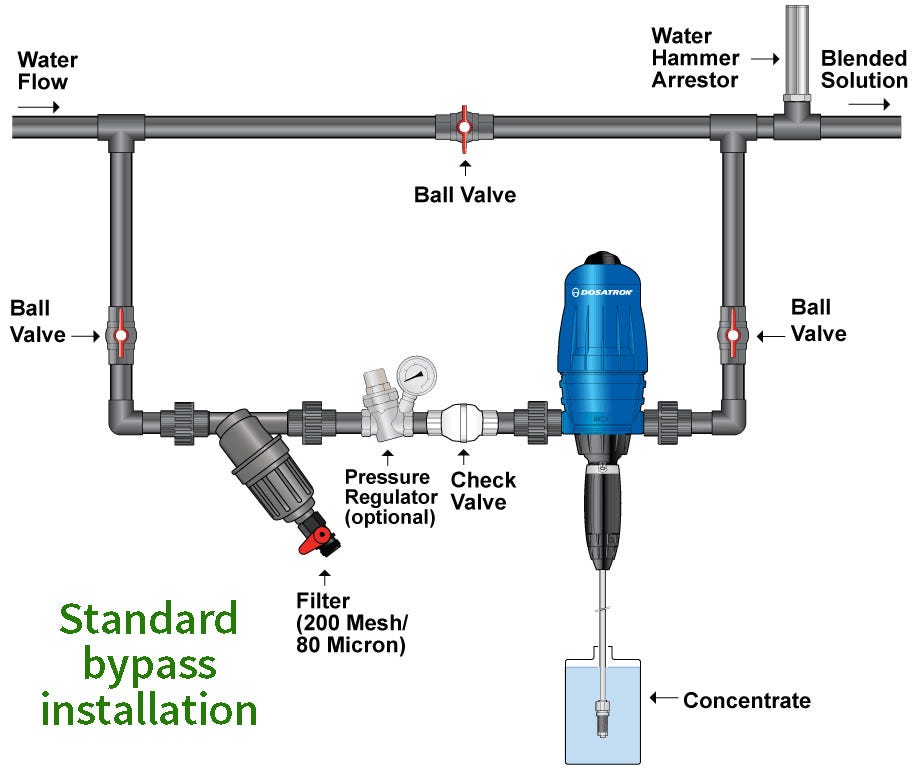

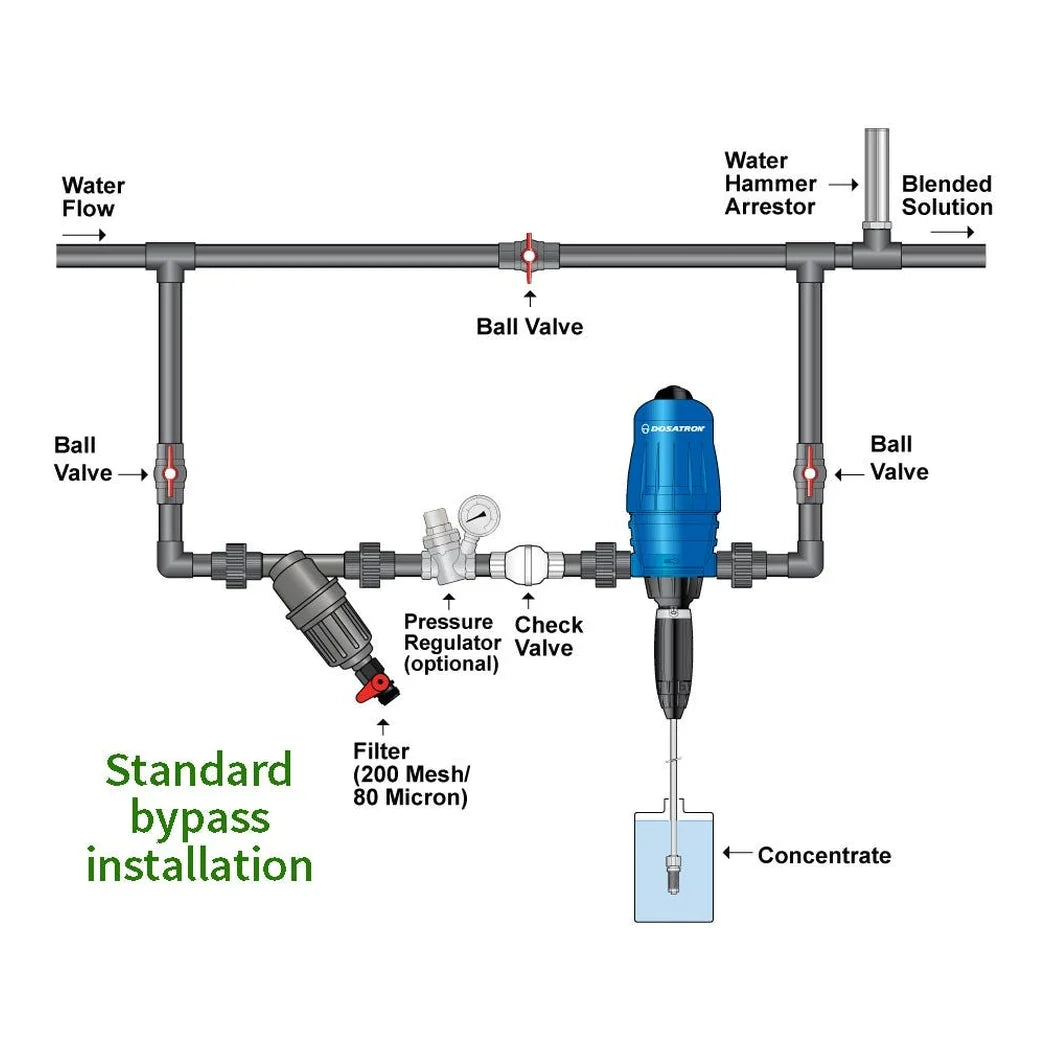

• Viton seals and a bypass: VF for fertiliser salts and acids. BP lets plain water pass without removal.
• 12 lbs, about 26 in tall: Mounting bracket, suction hose, union, weighted strainer and guide included.
