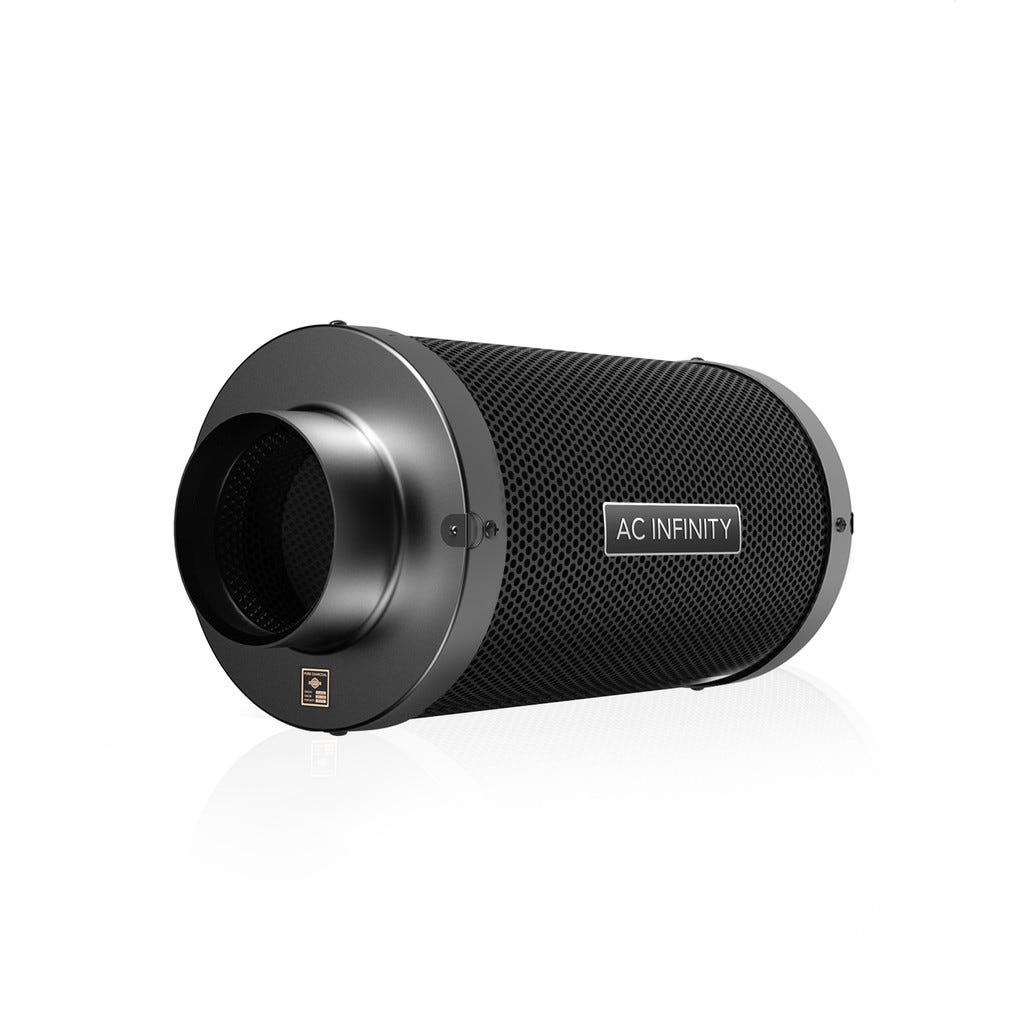

AC Infinity Duct Carbon Filter for 4-Inch Lines

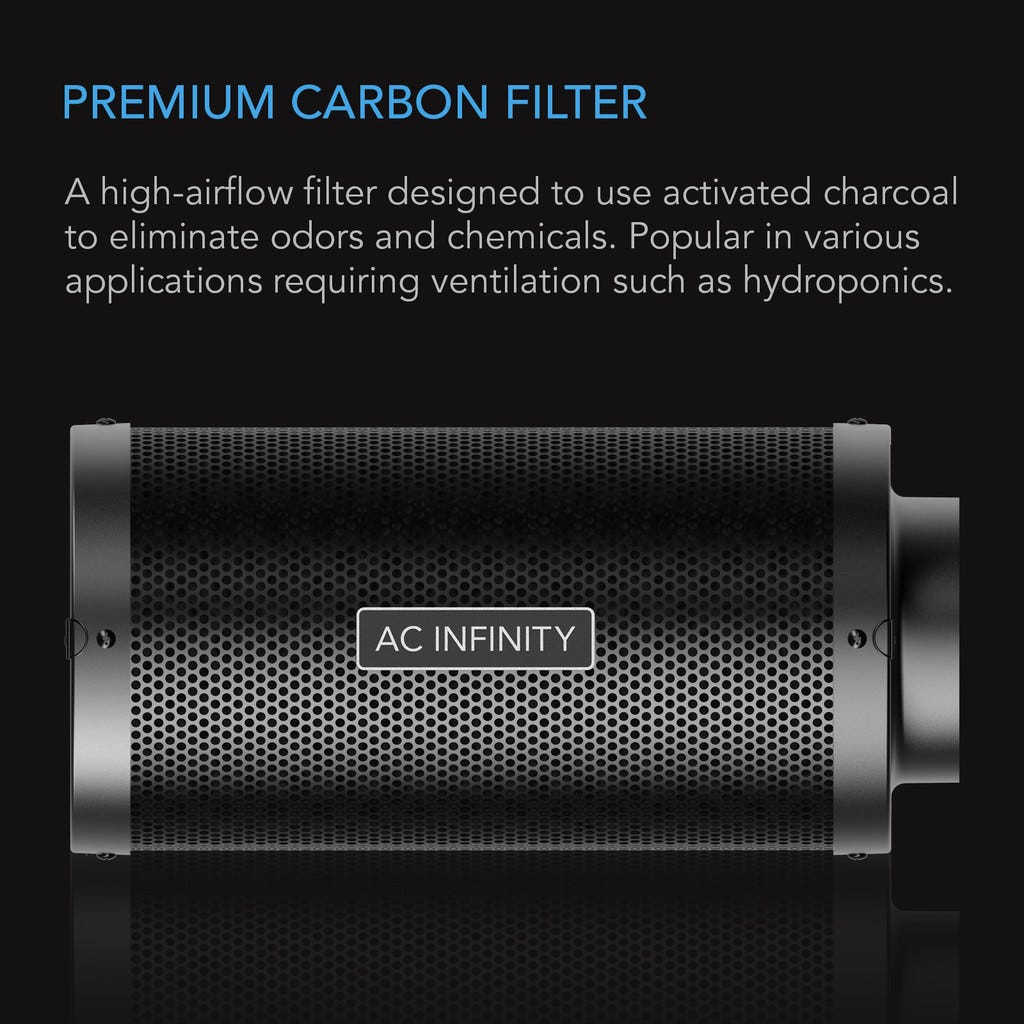

This compact filter removes odor from tent or closet air moving through a 4-inch duct. It measures 11.81 in long and 6.96 in across, small enough for a 2 x 2 or 2 x 4 tent. A 38 mm bed of Australian virgin RC412 activated charcoal fills the body. The carbon carries a 1200+ IAV rating for a large internal surface. Rust-resistant galvanized steel mesh with a gunmetal finish holds the bed on both sides. Aluminum flanges, 1.46 in long, connect to a fan or duct collar. The flanges are reversible, so they can be moved to the opposite ends to use the whole carbon bed. Swapping them takes only a screwdriver and a few minutes. AC Infinity rates the filter for up to 210 CFM. Two washable pre-filter cloths and two nylon hanging straps come in the box. The aluminum frame holds up in the high humidity of an active grow space. AC Infinity backs the filter with a two-year warranty. The illustrated manual is attached.
Using a 4 Inch Carbon Filter in a Small Tent

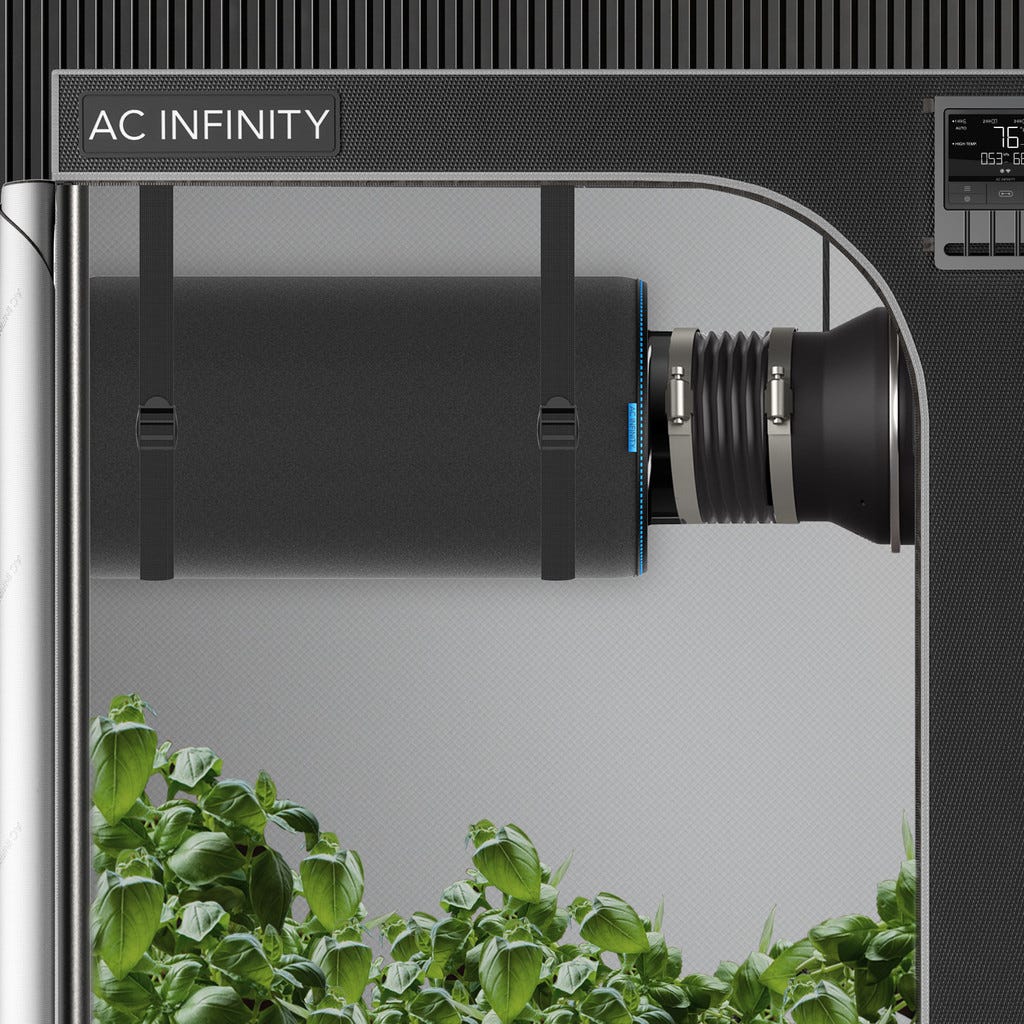

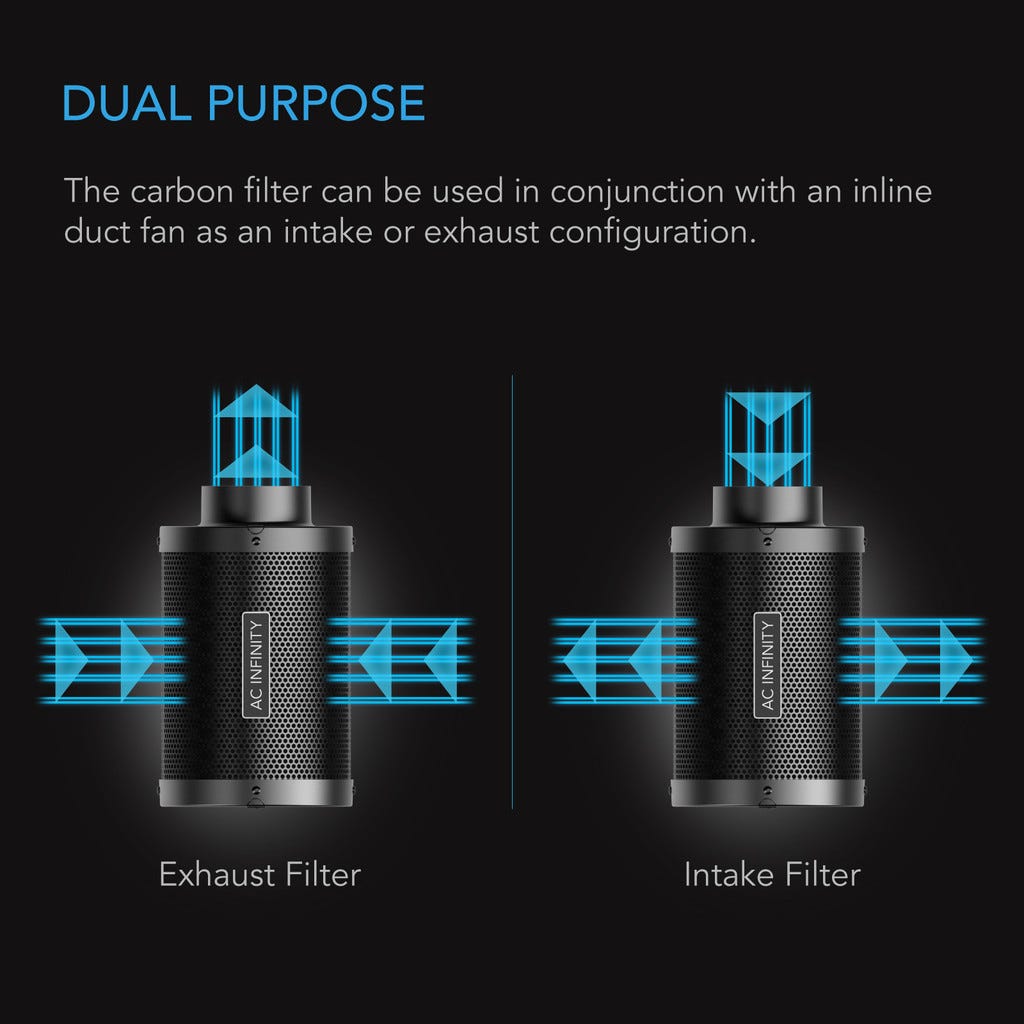

Pull a pre-filter cloth over the canister so the whole mesh is covered. Loop each strap over a tent bar, thread it through the ladder lock and set the hanging height. Connect the filter to the intake end of the inline fan, so tent air passes through the carbon first. Clamp the duct and add aluminum tape at each joint to stop leaks. Hang it at the highest point in the tent, where heat and humidity rise. If the filter has to sit outside the tent, attach it to the fan's exhaust end. In that case, stuff the cloth inside the filter rather than wrapping the outside. Keep the fan speed at or below the filter rating once bends and duct length are taken into account. High humidity cuts the carbon's capacity, so a dehumidifier helps in late flower. When the filter is about halfway through its life, unscrew the flanges and swap them end to end. Wash the cloth whenever dust shows and at least every six months. Replace the filter when odor starts to escape at the exhaust.

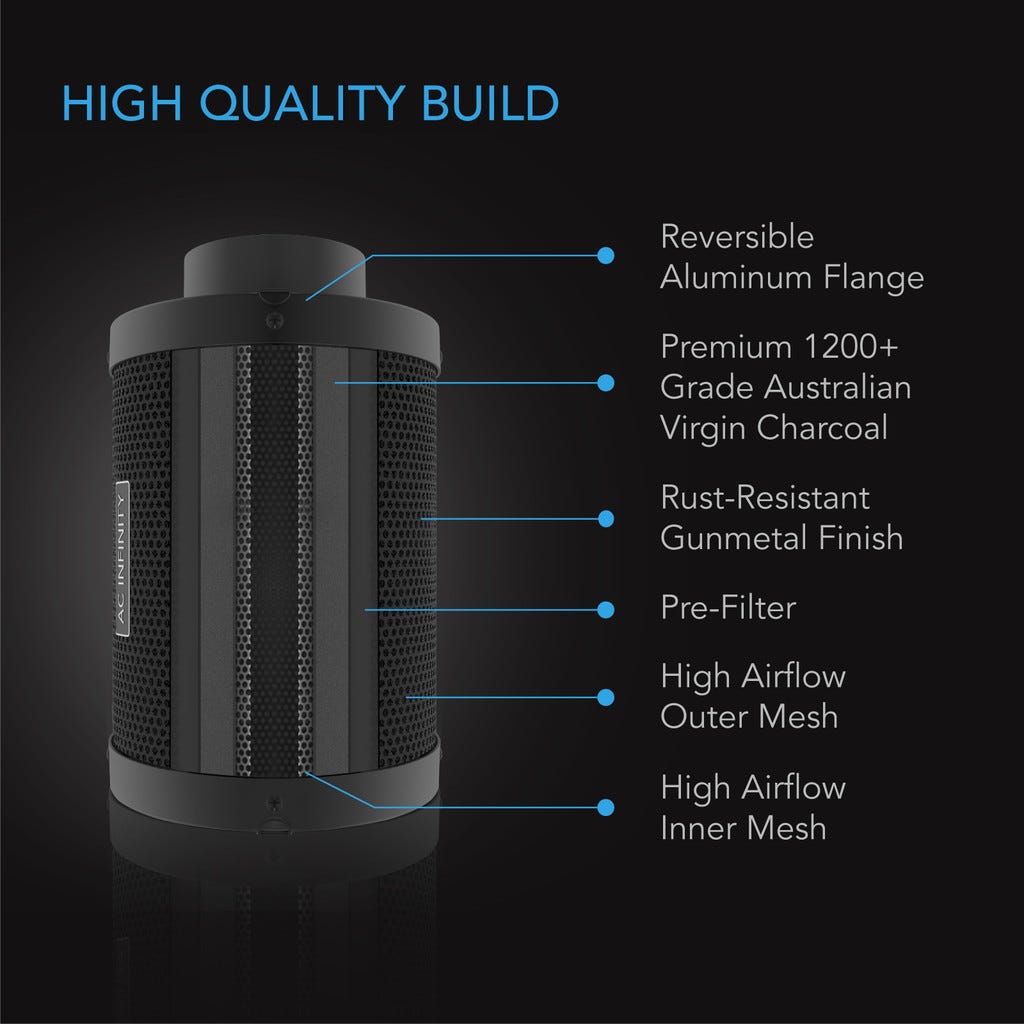

Key Features
- RC412 Australian Charcoal: 1200+ IAV virgin activated carbon.
- 38 mm Carbon Bed: Deep bed in a compact body.
- Reversible Flanges: Swap ends to use the whole carbon bed.
- Up to 210 CFM: Rated airflow on a 4-inch line.

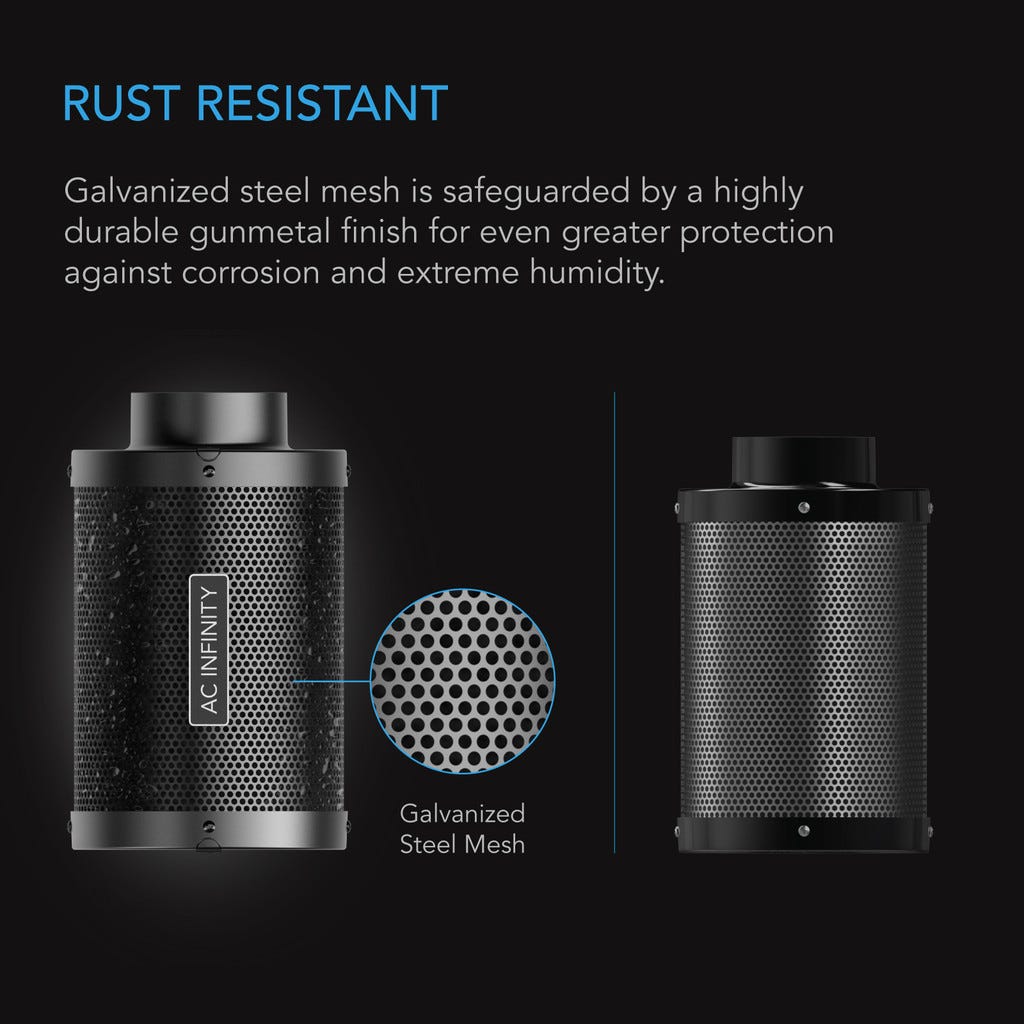

- Rust-Resistant Mesh: Galvanized steel with a gunmetal finish.

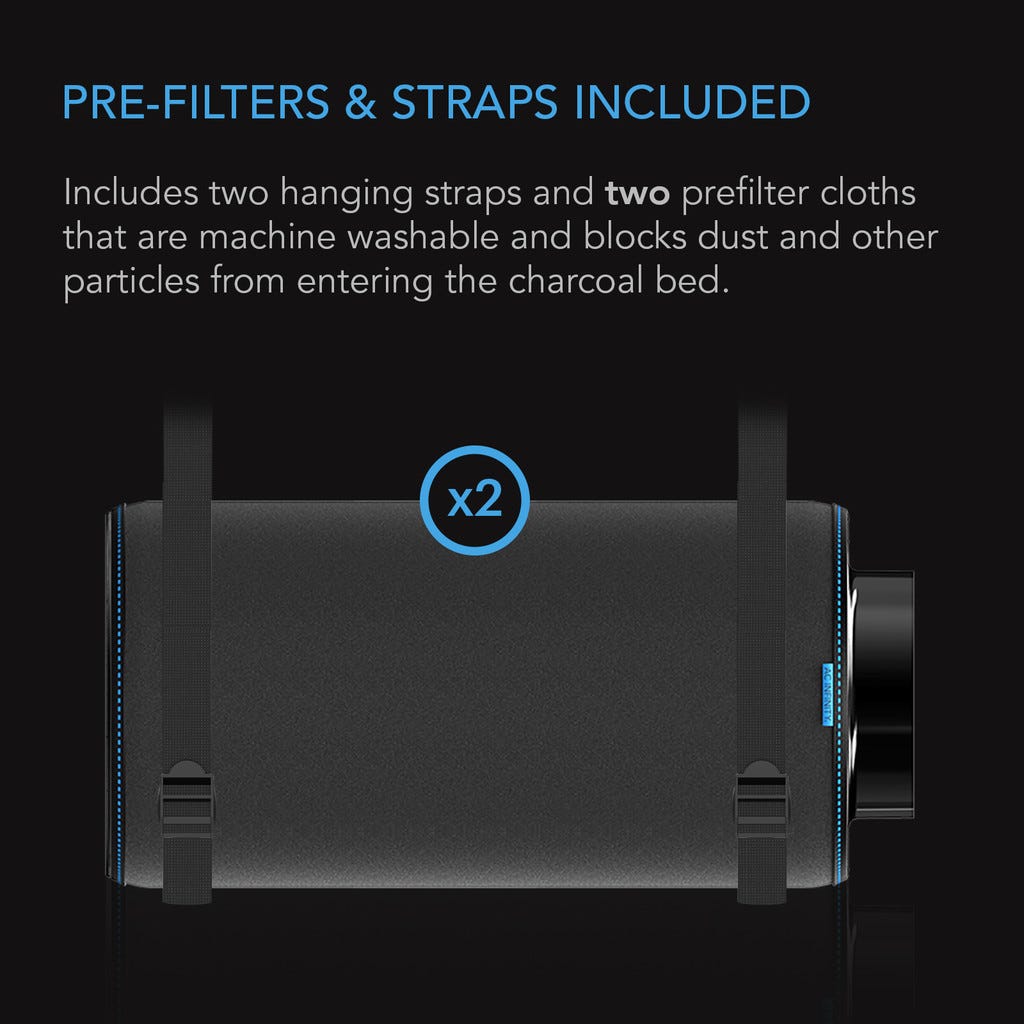

- Straps and Pre-Filters: Two nylon straps and two washable cloths.

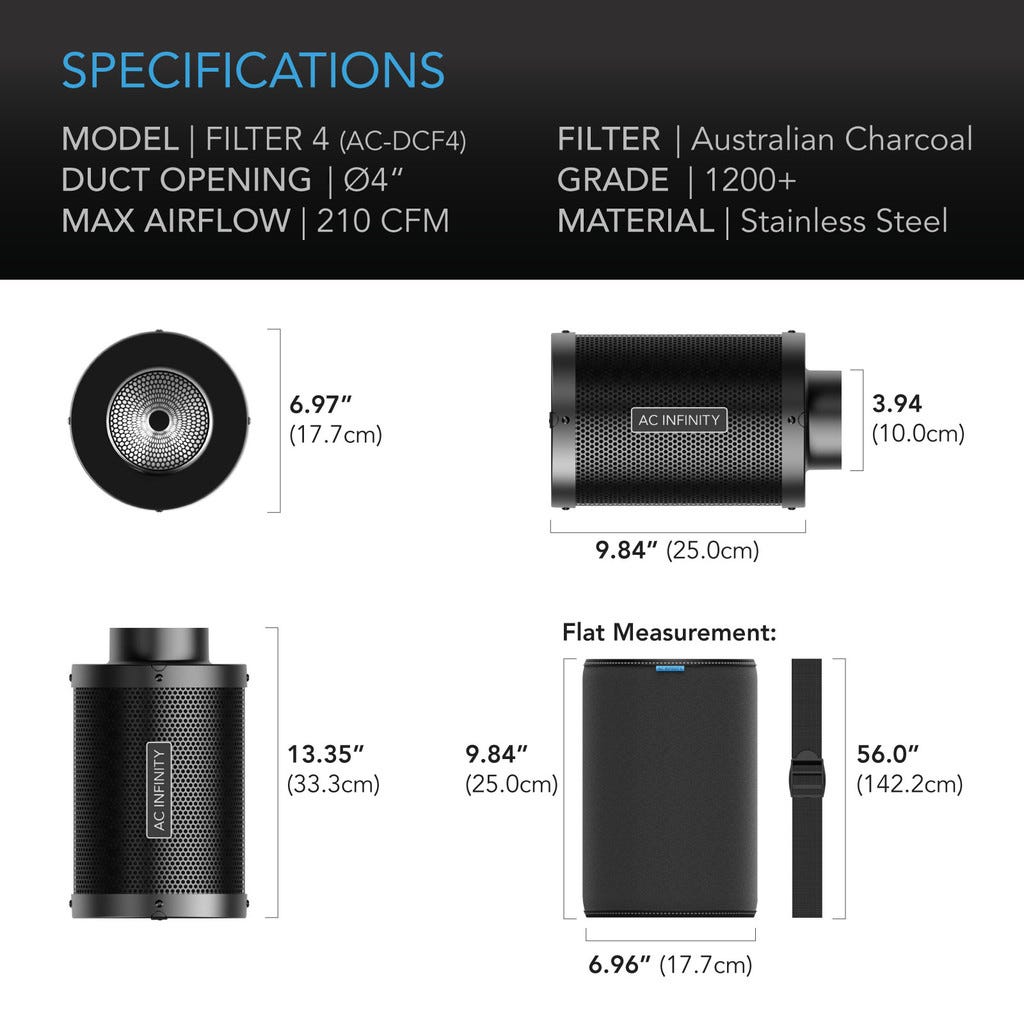

Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-DCF4 |
| UPC | 819137020665 |
| Duct opening | 4 in |
| Total dimensions | 11.81 x 6.96 in (30.0 x 17.7 cm) |
| Flange length | 1.46 in (3.7 cm) |
| Flange material | Aluminum |
| Flange design | Reversible |
| Mesh material | Galvanized steel, gunmetal finish |
| Carbon type | Australian virgin RC412 |
| Carbon grade | 1200+ IAV |
| Carbon thickness | 38 mm |
| Maximum airflow | 210 CFM |
| Included | Filter, 2 pre-filter cloths, 2 hanging straps |
| Warranty | 2 years |
