Brand: AC Infinity

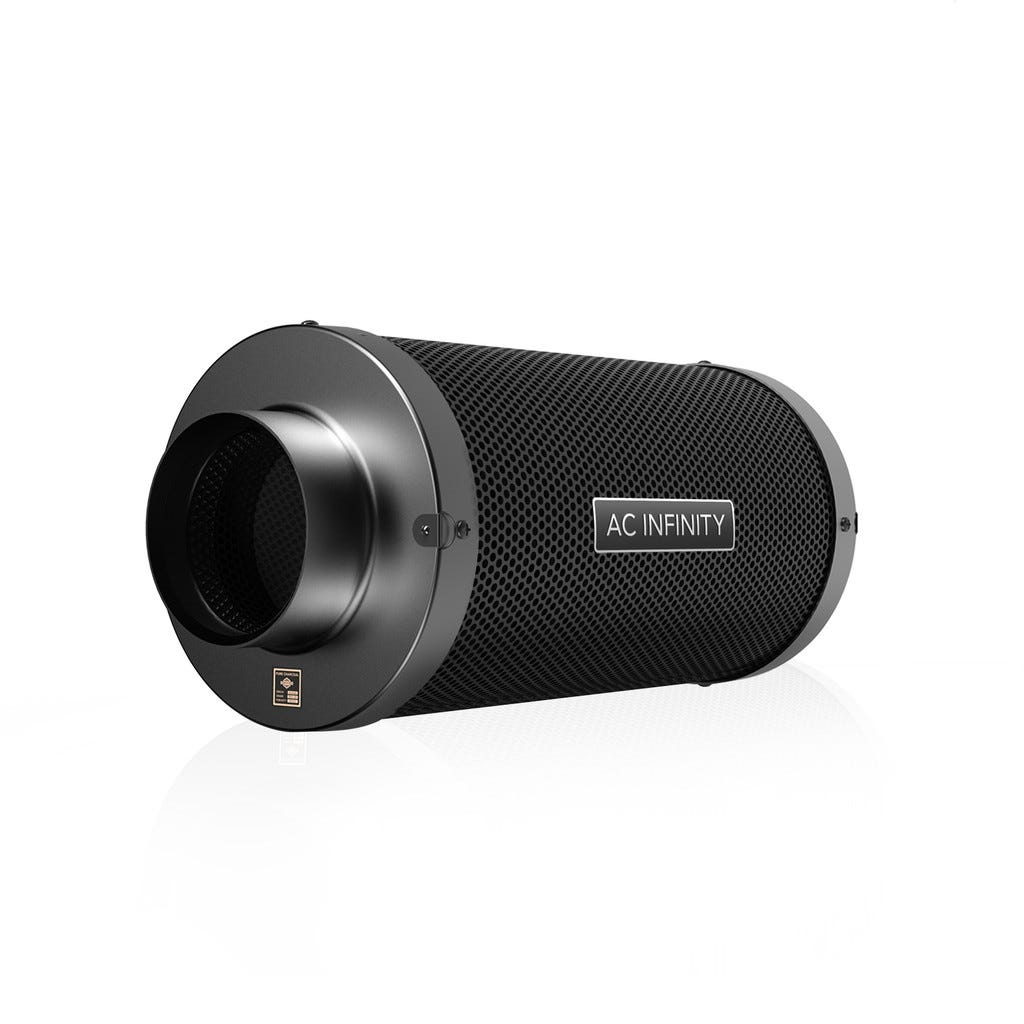

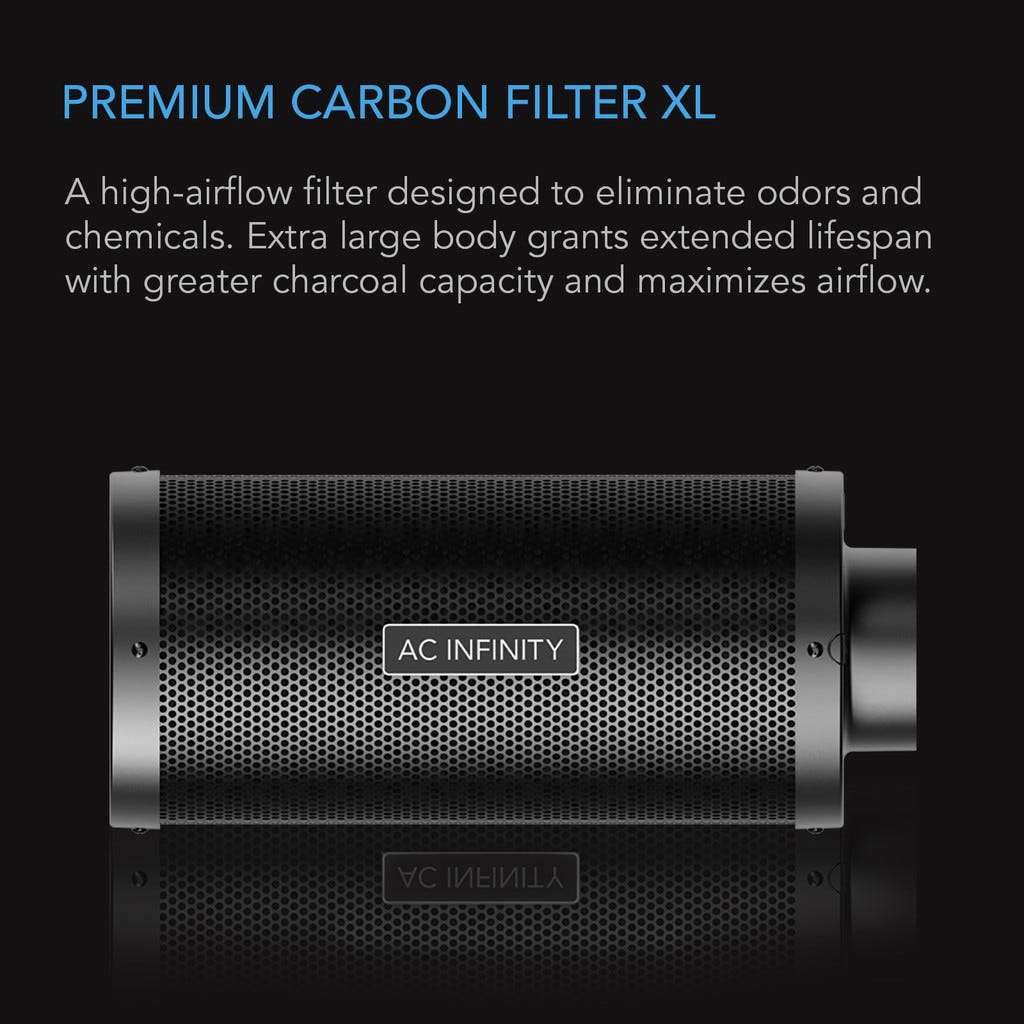

AC Infinity 4-Inch Carbon Filter XL - Australian RC412 Charcoal, 300 CFM, 15.74 in

AC Infinity 4-Inch Carbon Filter XL - Australian RC412 Charcoal, 300 CFM, 15.74 in

SKU: SKU:AC-DCF4-XL

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $69.99 USD
Regular price $69.99 USD Sale price $69.99 USD
Sale Sold out
Shipping calculated at checkout.

KILLER PRICE
This item is heavily discounted and may not qualify for discounts.

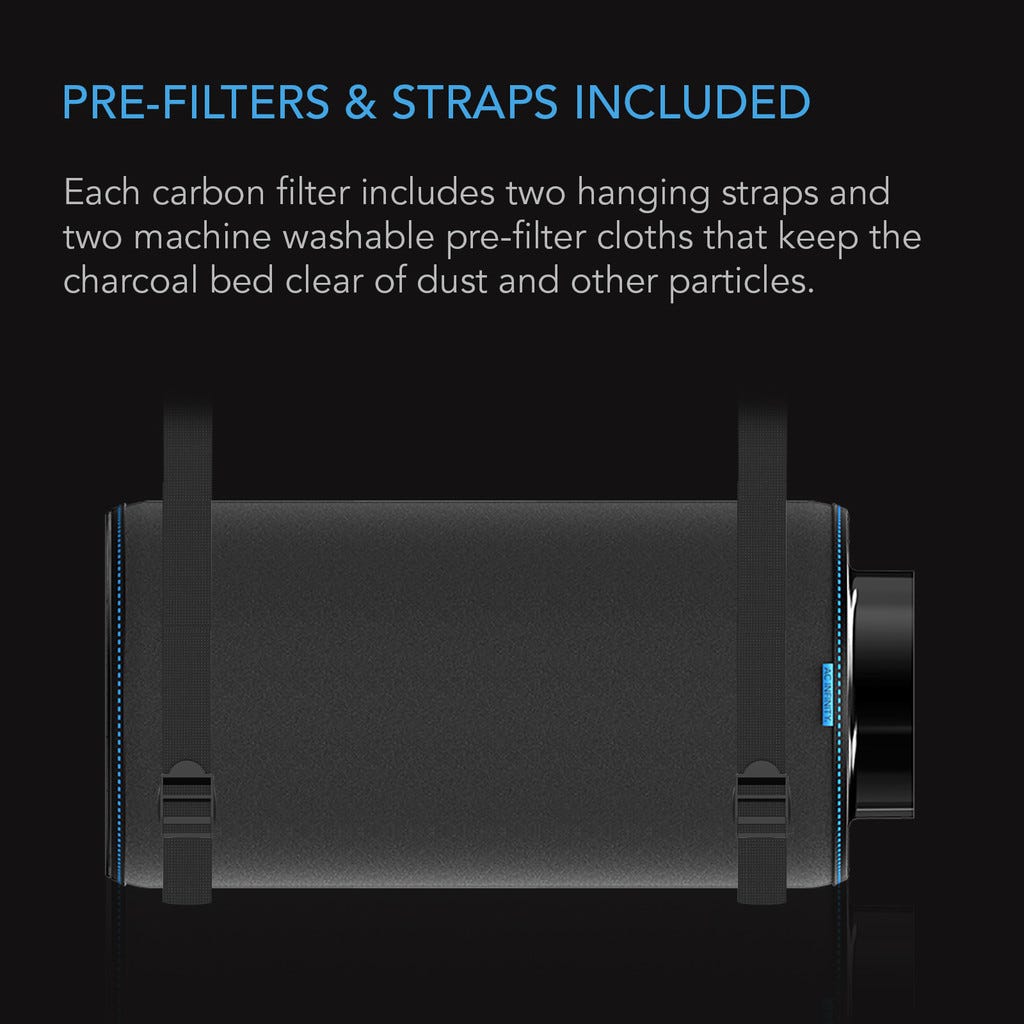

The AC Infinity 4-inch carbon filter XL packs a 38 mm bed of RC412 Australian charcoal into a 15.74 in body rated to 300 CFM. This extra long carbon filter comes with two pre-filters, two straps and two rope clips.

View full details

AC Infinity 4-Inch Carbon Filter XL for Small Tents

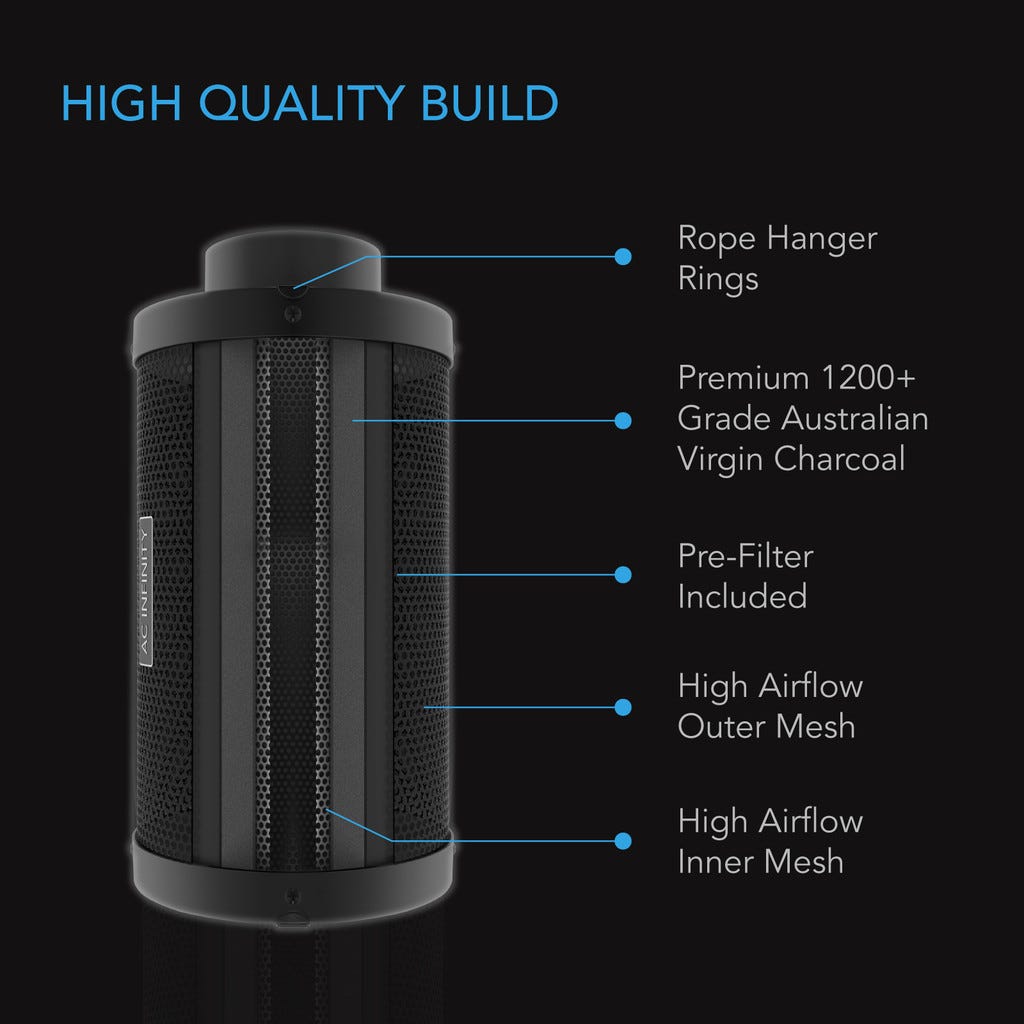

This filter scrubs odor from the air leaving a tent or small room on a 4-inch duct line. Its body runs 15.74 in long and 6.96 in across, so it hangs neatly in the top of a compact tent. Inside sits a 38 mm bed of Australian virgin RC412 activated charcoal. That carbon is rated at 1200+ IAV, a measure of how much surface it offers for odor molecules to stick to. Air passes through a galvanized steel mesh on both sides of the bed. Aluminum flanges cap each end and measure 1.46 in long for a firm duct or fan connection. AC Infinity rates the filter for up to 300 CFM of airflow. That leaves room to run a 4-inch inline fan near the top of its range without choking it. Two machine-washable pre-filter cloths come in the box to keep dust off the carbon. Two hanging straps and two rope clips let it hang from a tent bar or ceiling hook. Hooks on the flanges take the rope clip carabiners directly. AC Infinity backs it with a two-year warranty. The illustrated manual is attached for setup.

Setting Up an Extra Long Carbon Filter on a 4-Inch Fan

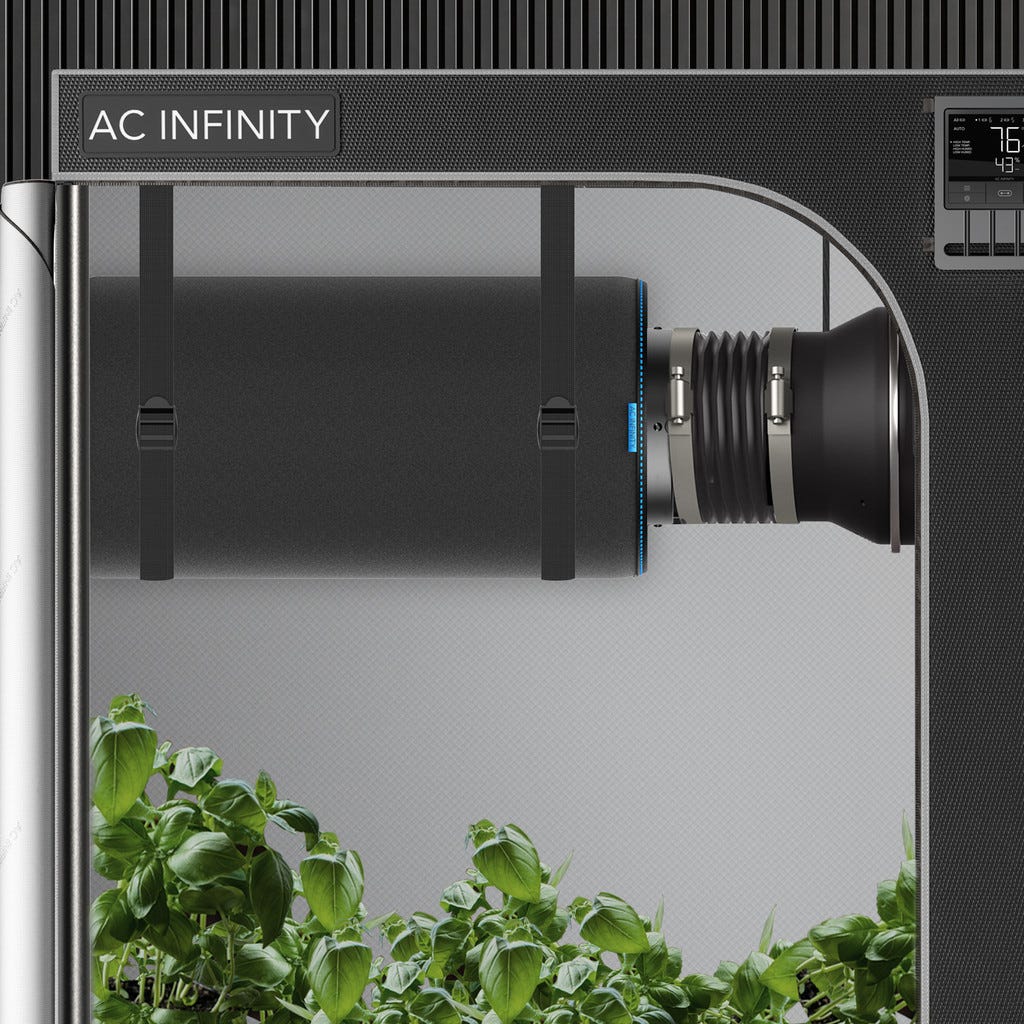

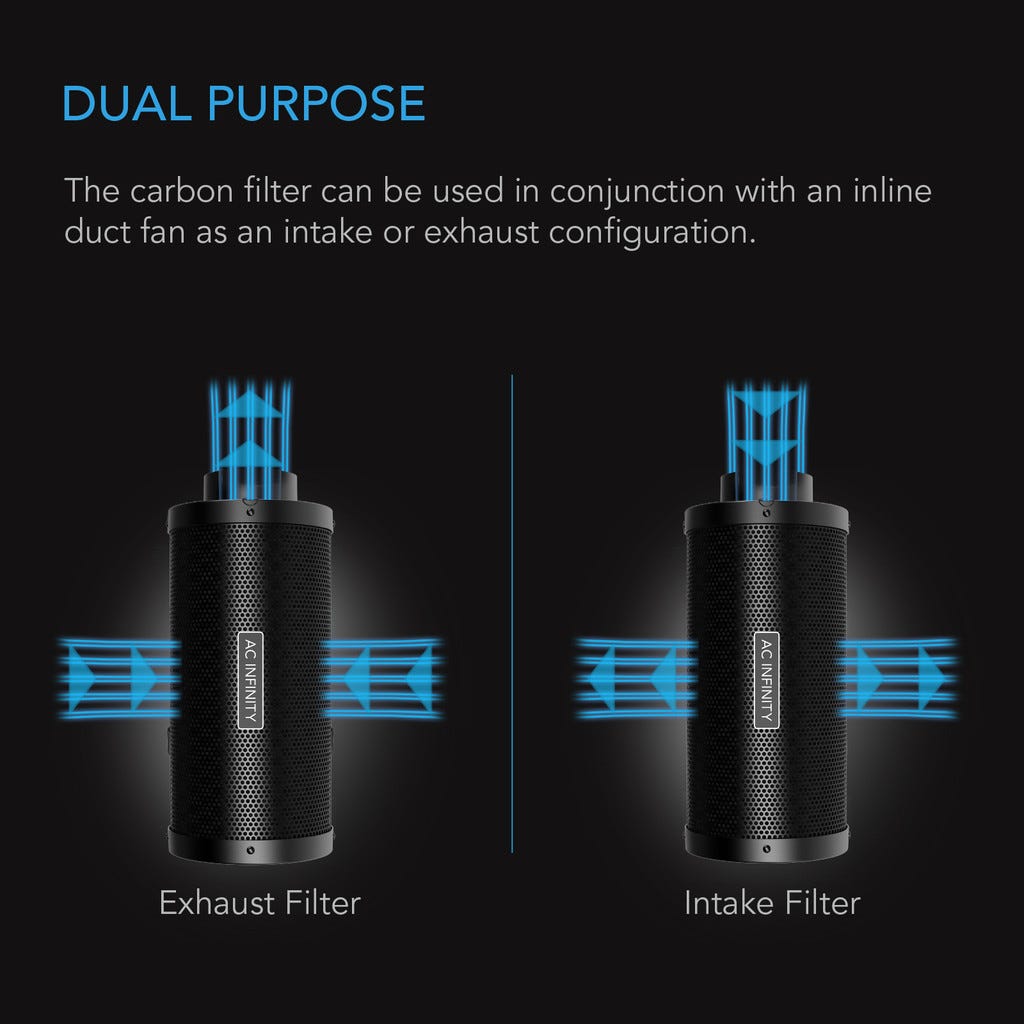

Slip one pre-filter cloth over the filter first so the whole metal mesh is covered. For the usual exhaust setup, hang the filter inside the tent and connect it to the intake side of the inline fan. Air is then pulled through the carbon before it leaves the tent. Secure the duct or fan collar over the flange with a duct clamp, and add aluminum tape for an airtight seal. In humid tents, mount the filter as high as possible, since moisture competes with odor for space on the carbon. Keeping humidity under control during late flower stretches the life of the bed. Choose a fan setting that stays at or below the filter's rated airflow once duct bends and length are counted. Long runs and tight turns cut real airflow, so the fan may need a higher setting to compensate. Wash the cloth whenever dust builds up, and at least every six months. Keep the spare cloth ready so the filter is never left bare during a wash. Replace the filter once odor starts slipping through at the exhaust, rather than waiting for a full failure. Check the duct tape and clamps at each grow so no air bypasses the carbon.

Key Features

  • RC412 Australian Charcoal: 1200+ IAV virgin activated carbon.
  • 38 mm Carbon Bed: Deep bed for odor adsorption.
  • Up to 300 CFM: Rated airflow on a 4-inch duct line.
  • Aluminum Flanges: 1.46 in long, with hooks for rope clips.
  • Galvanized Steel Mesh: Holds the carbon bed on both sides.
  • Hanging Kit Included: Two straps, two rope clips and two pre-filters.

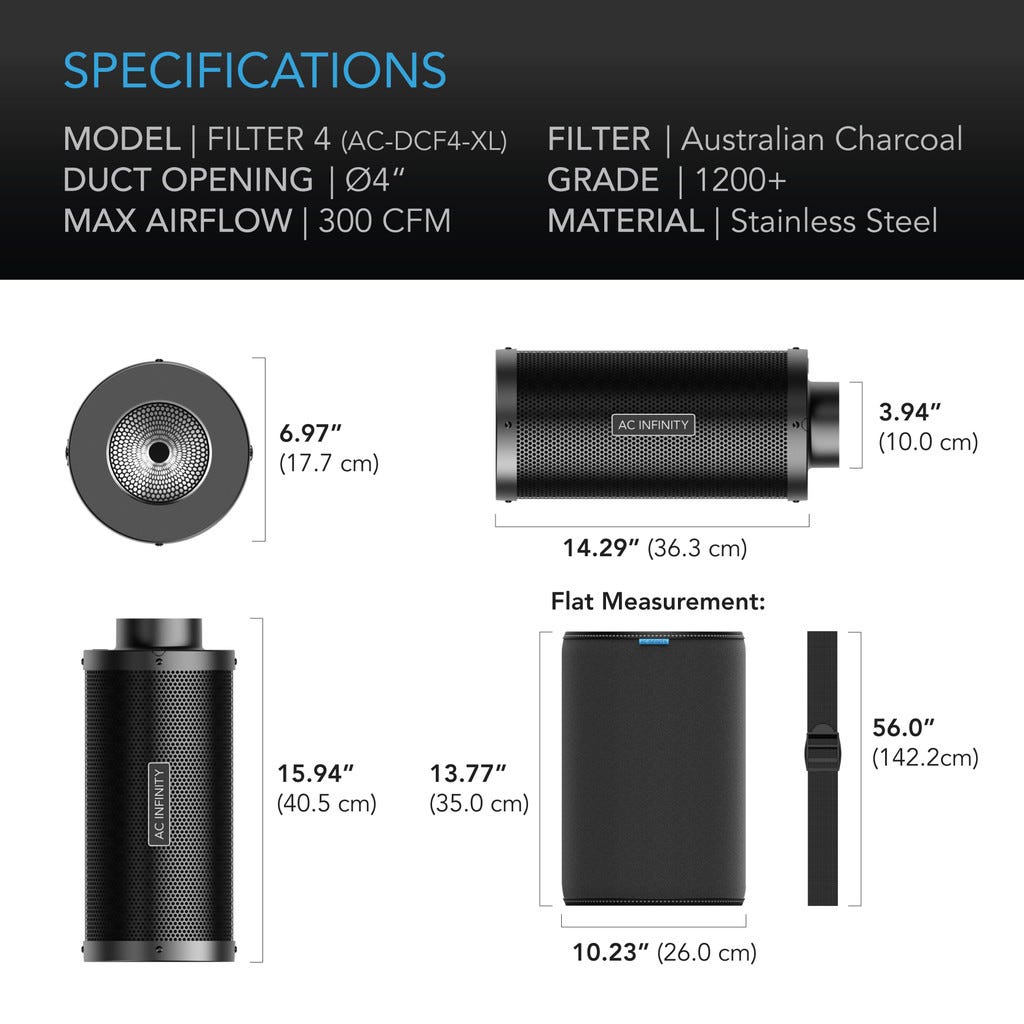

Technical Specifications

Specification Value
Brand AC Infinity
Model AC-DCF4-XL
UPC 819137023000
Duct opening 4 in
Total dimensions 15.74 x 6.96 in (40.0 x 17.7 cm)
Flange length 1.46 in (3.7 cm)
Flange material Aluminum
Mesh material Galvanized steel
Carbon type Australian virgin RC412
Carbon grade 1200+ IAV
Carbon thickness 38 mm
Maximum airflow 300 CFM
Included Filter, 2 pre-filter cloths, 2 hanging straps, 2 rope clips
Warranty 2 years
