Dutch Lighting Innovations Diode-Series 600 FS-DC LED | 630W 208–400V

Dutch Lighting Innovations Multilayer LED Grow Light at 630W

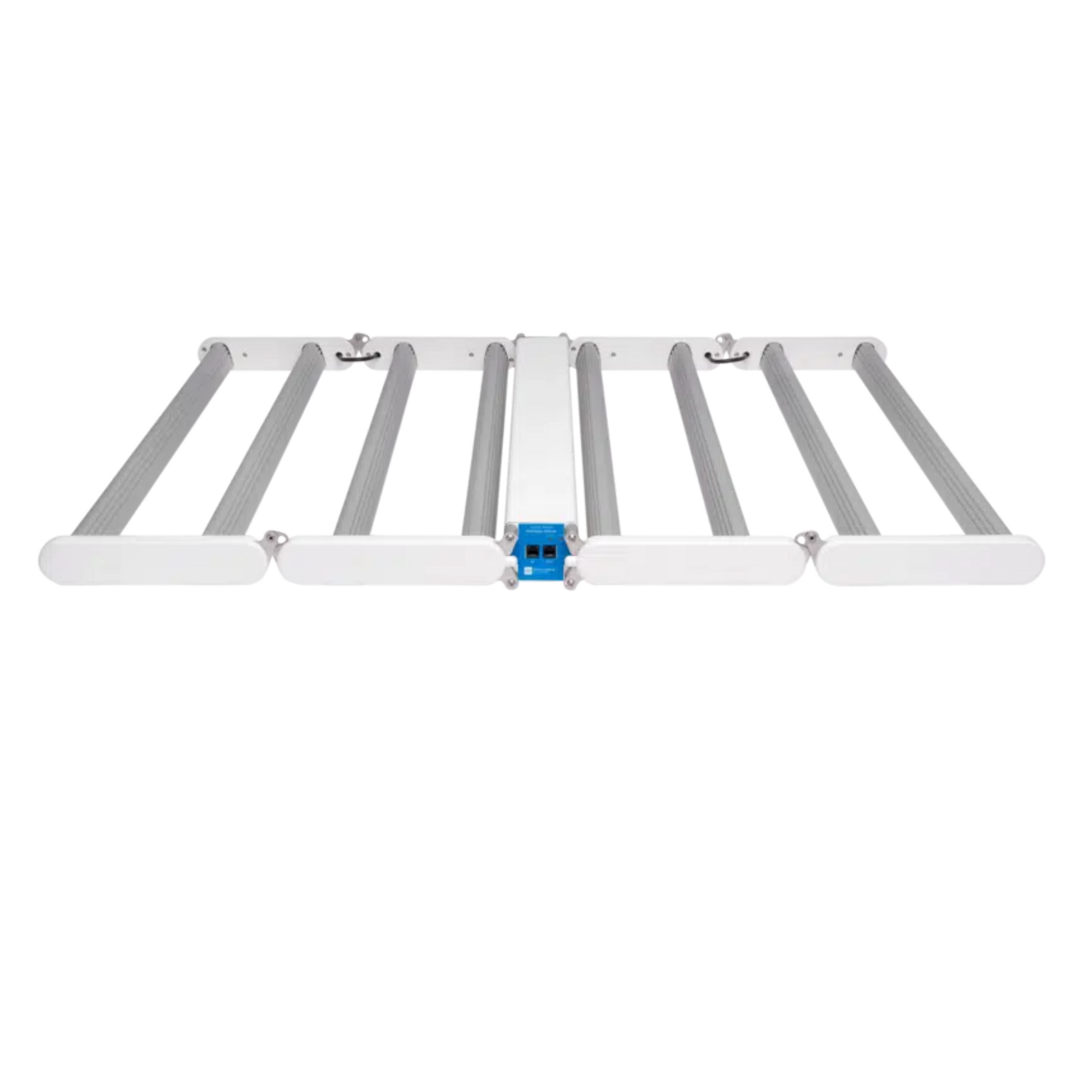

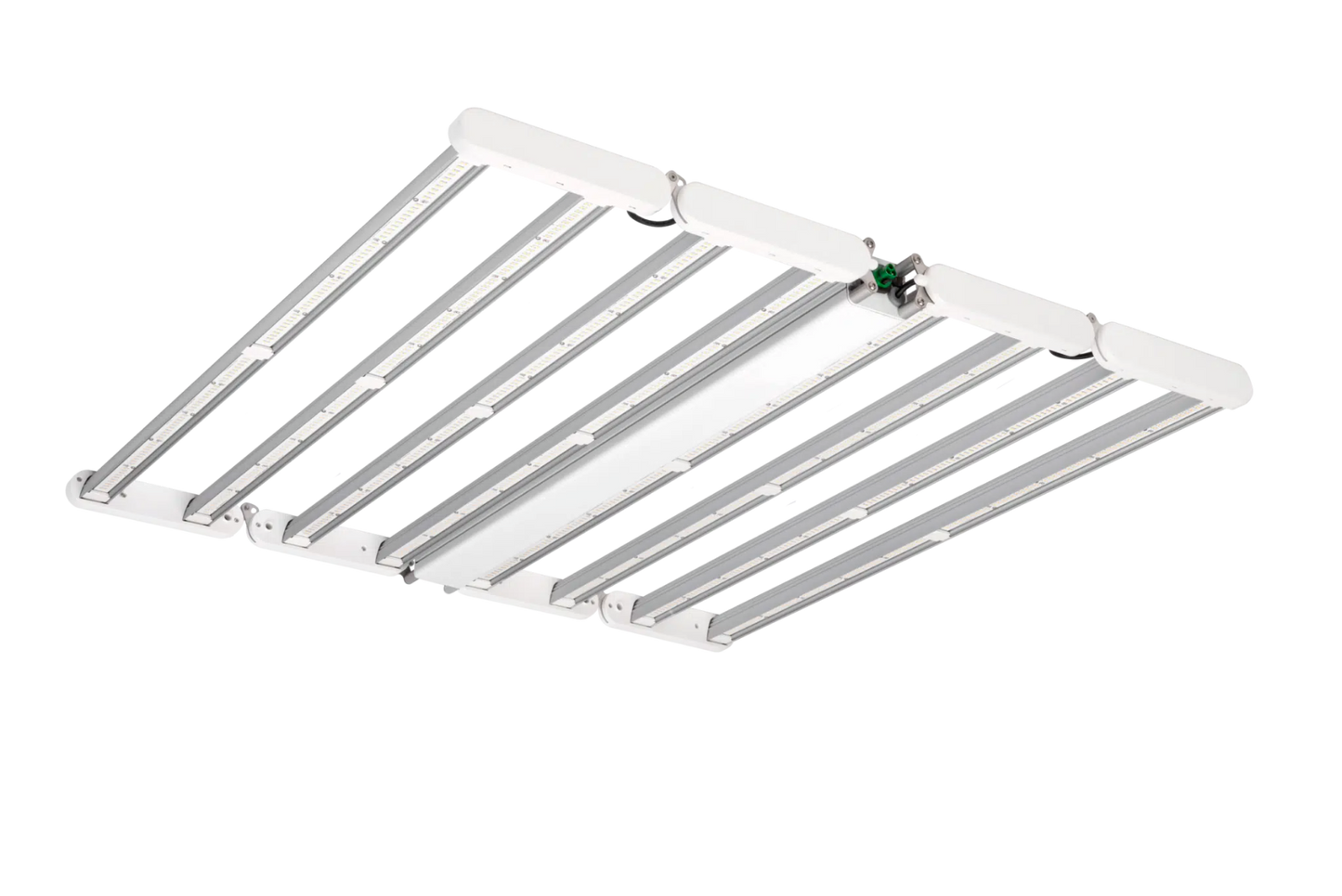

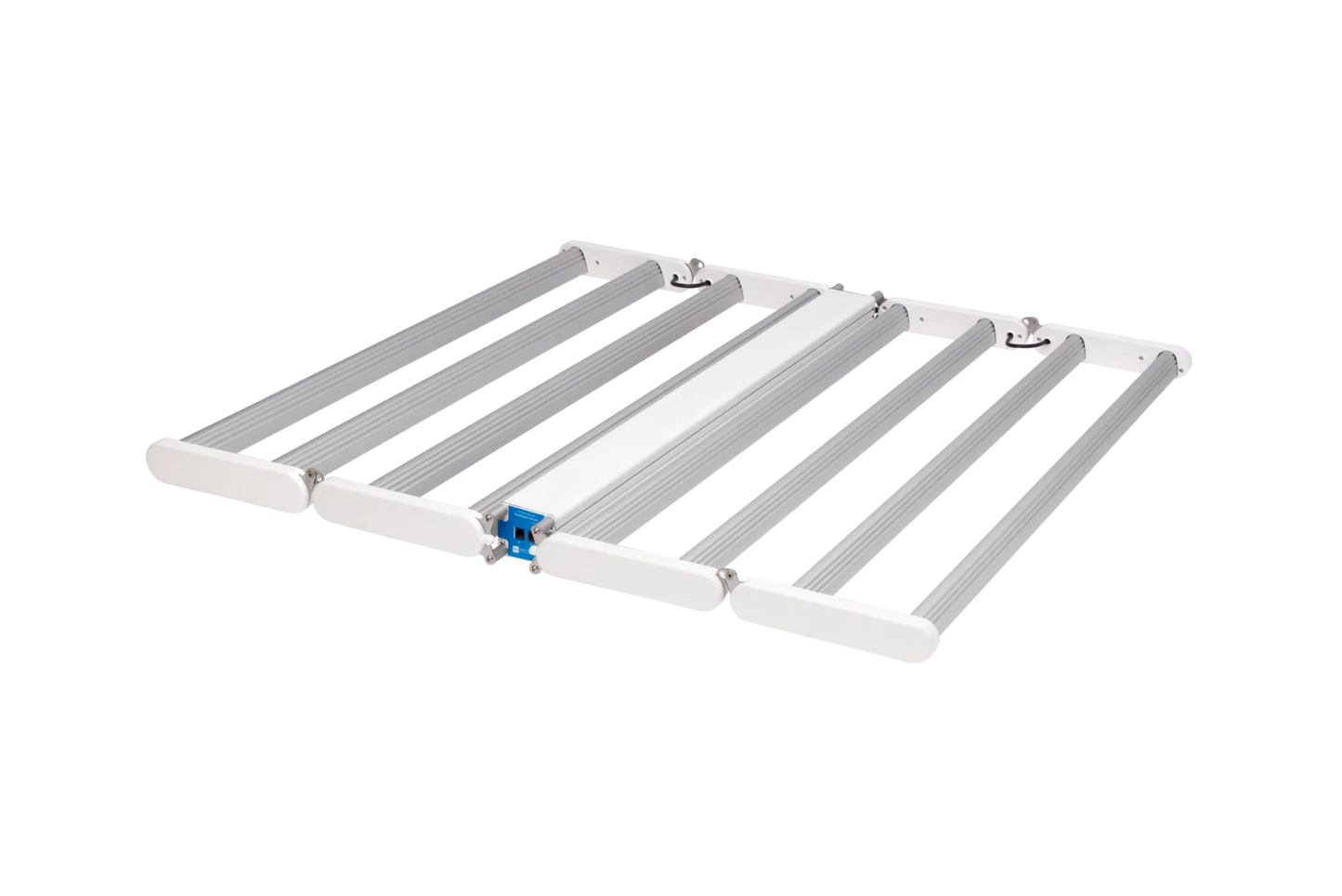

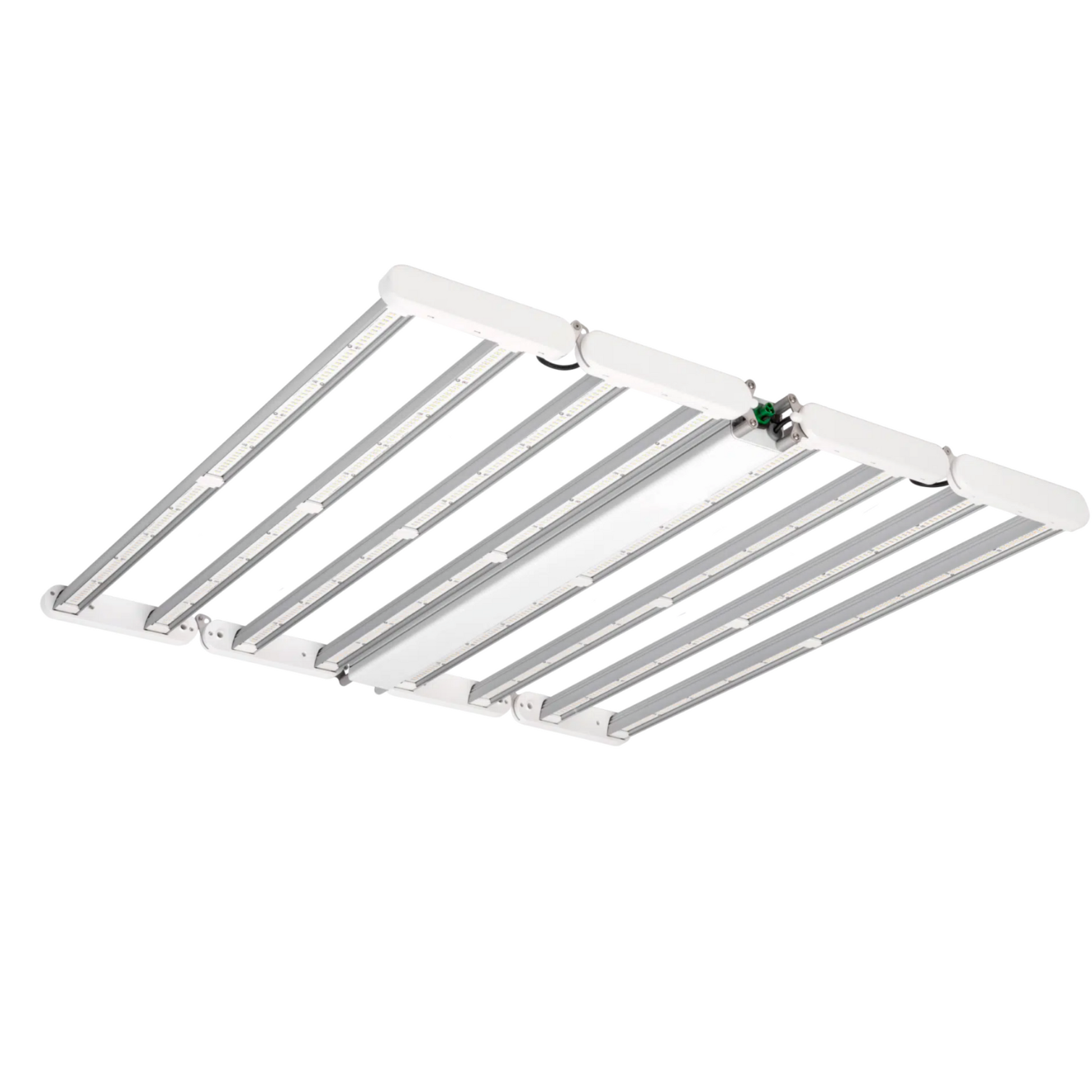

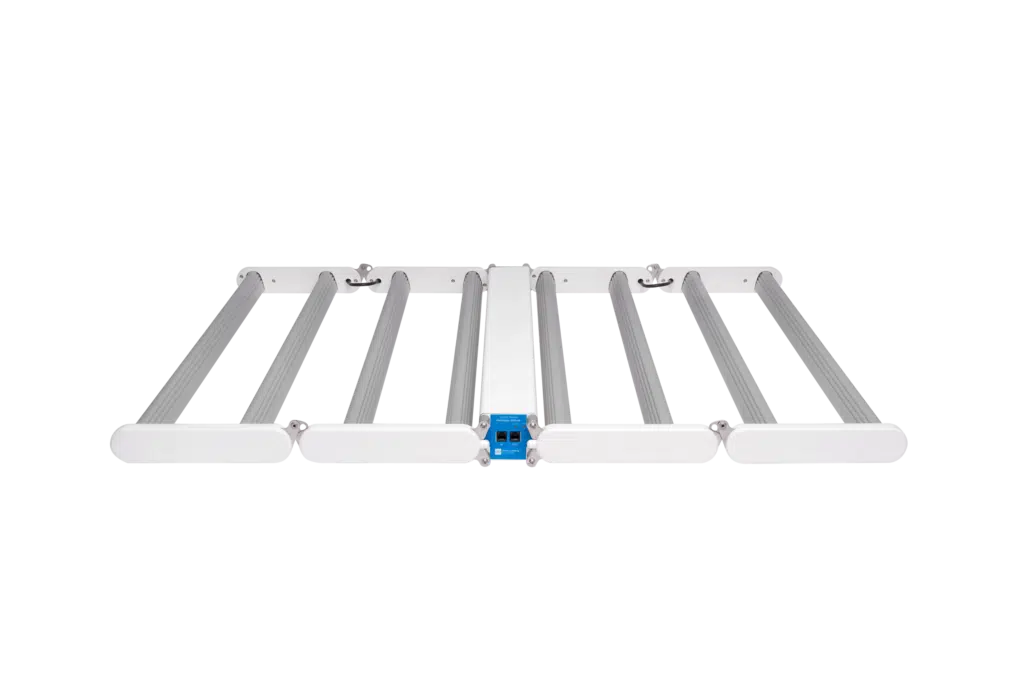

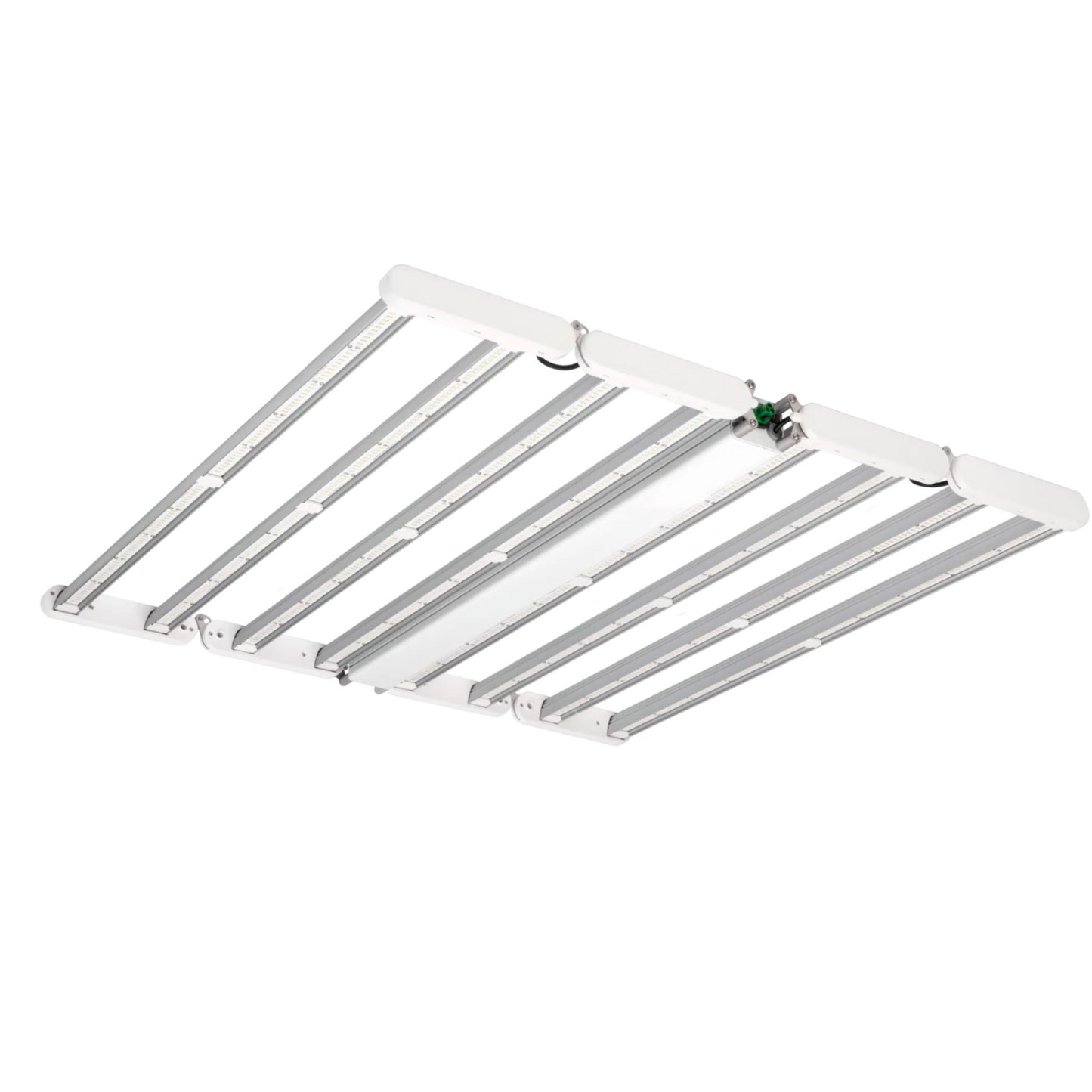

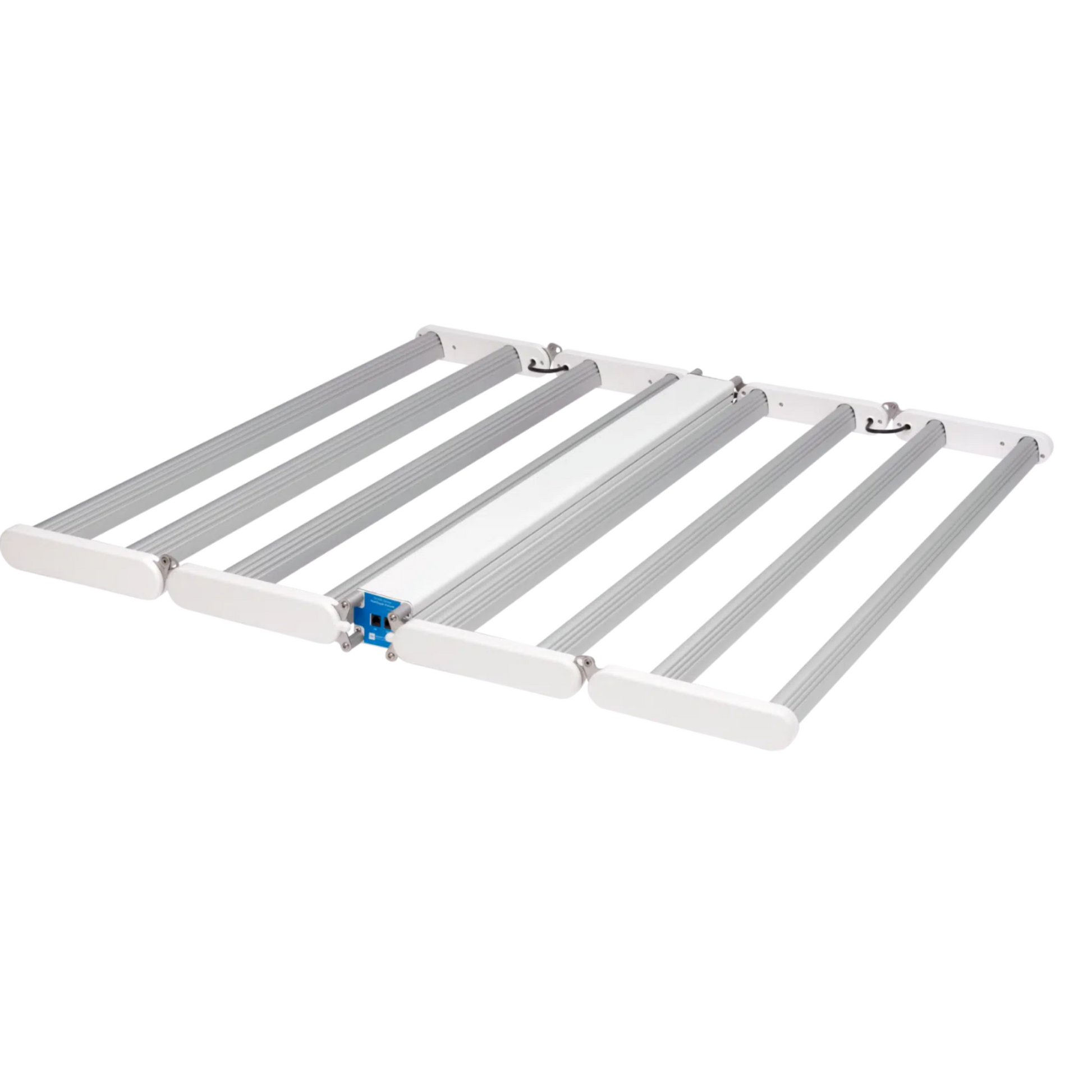

The Diode-Series 600 FS-DC is a foldable, low-profile multilayer LED grow light. It pulls 630W on a wide 208–400V input. PPF reaches 1,815 µmol/s at 2.9 µmol/J PPE on OSRAM Top Bin diodes. The 42.71 × 44.72 × 2.64 in chassis is built for vertical farm and multilayer installs. Ceiling clearance is tight there, and a remote driver matters. UL 8800 and IP65 rated, with a 5-year warranty.

Why the FS-DC Fits Vertical Farming and Multilayer Setups

On a multi-tier rack, the fixture FS-DC's 2.64 in profile gives back canopy headroom. The remote driver hangs outside the rack, so heat goes where ambient HVAC is already pulling. The 208–400V range covers 240V single-phase, 277V commercial, and 400V three-phase service. Mount the fixture 8–18 inches above canopy depending on tier height. Dim via 0–10V control to balance flux across stacked levels.

Key Features

• 630W Wide-Voltage Input: 208–400V auto-voltage spans 240V single-phase, 277V, and 400V three-phase, so one fixture model fits residential, commercial, and industrial service.

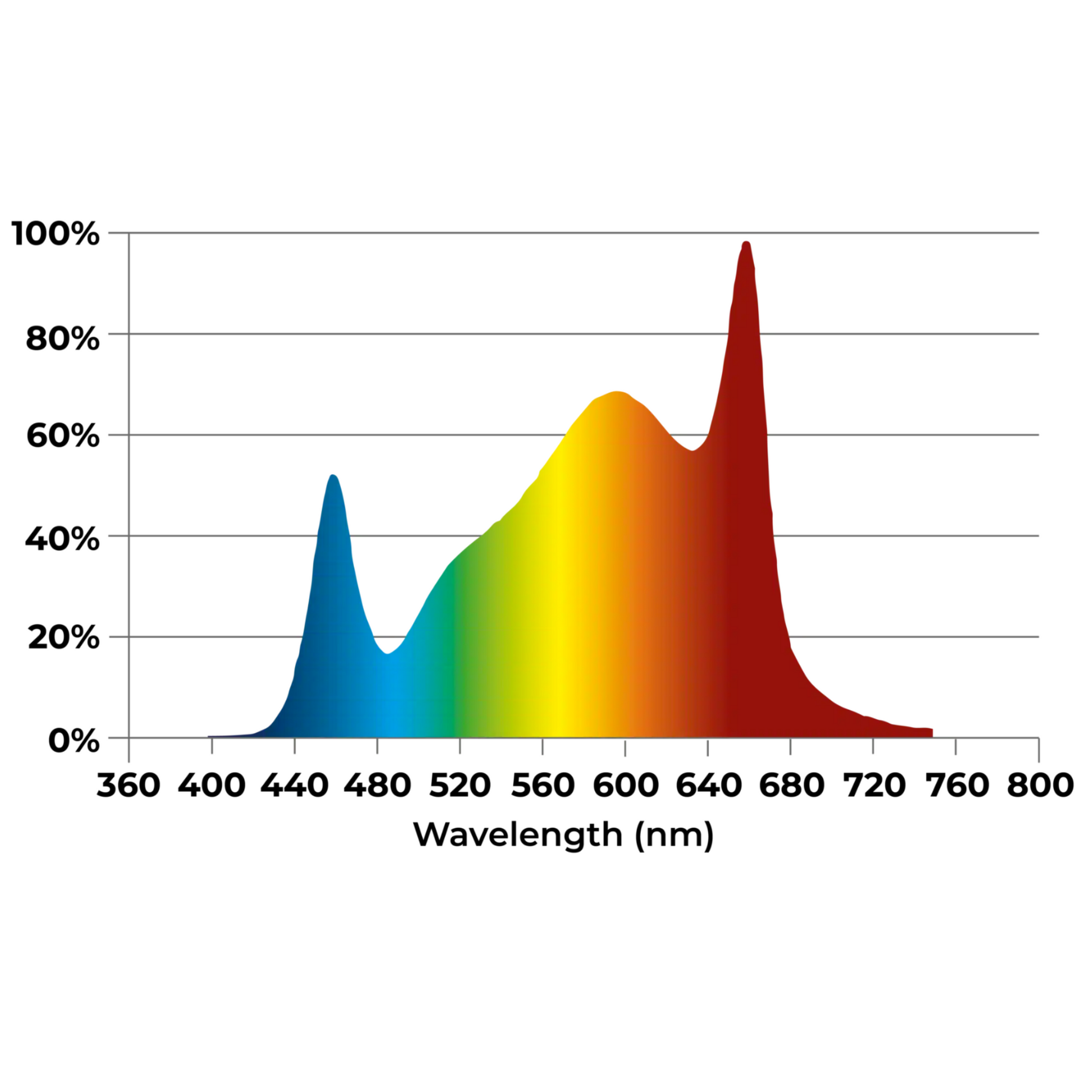

• 1,815 µmol/s PPF at 2.9 µmol/J: OSRAM Top Bin diodes hit commercial-tier efficacy for full-cycle DC output.

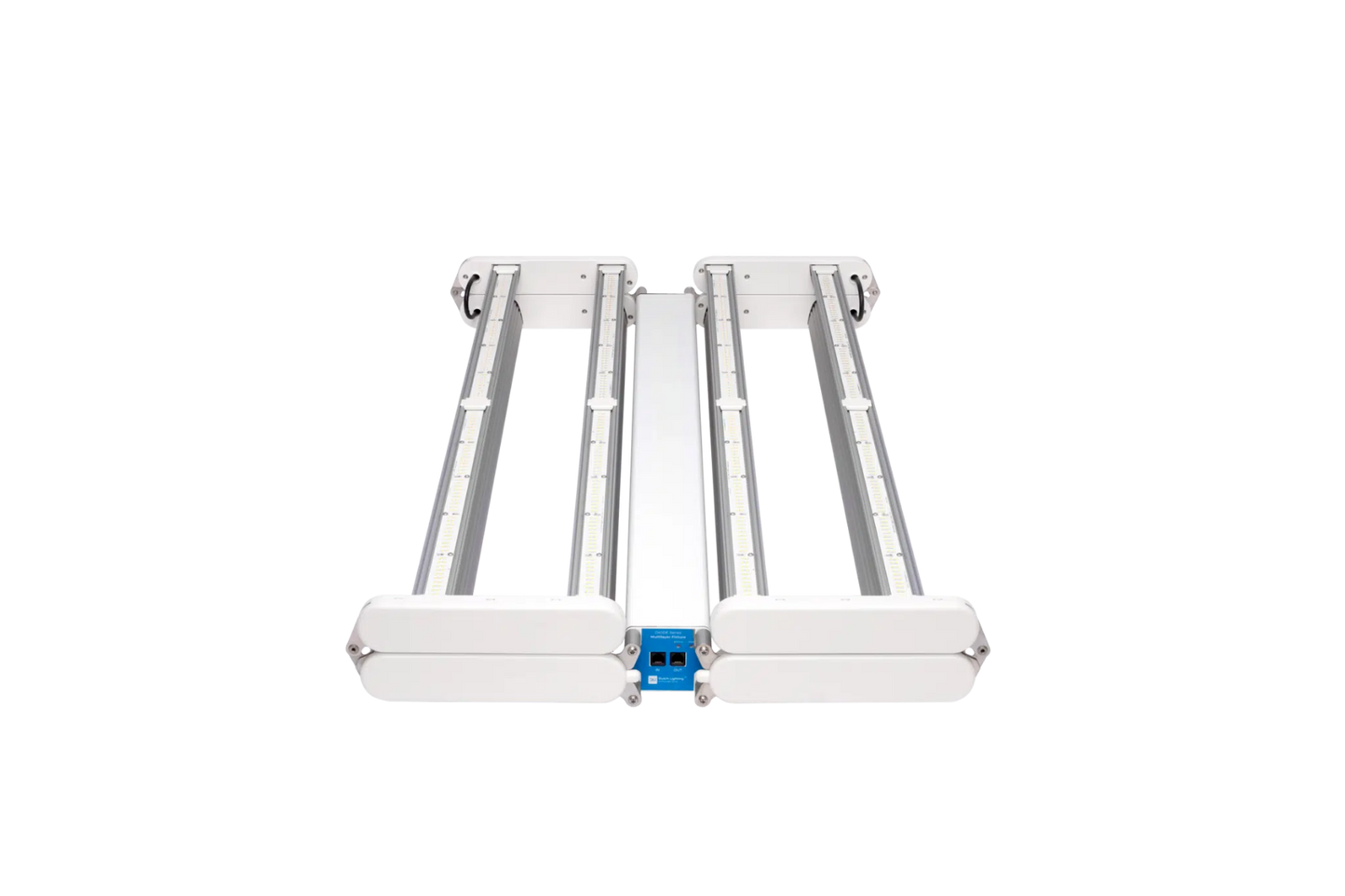

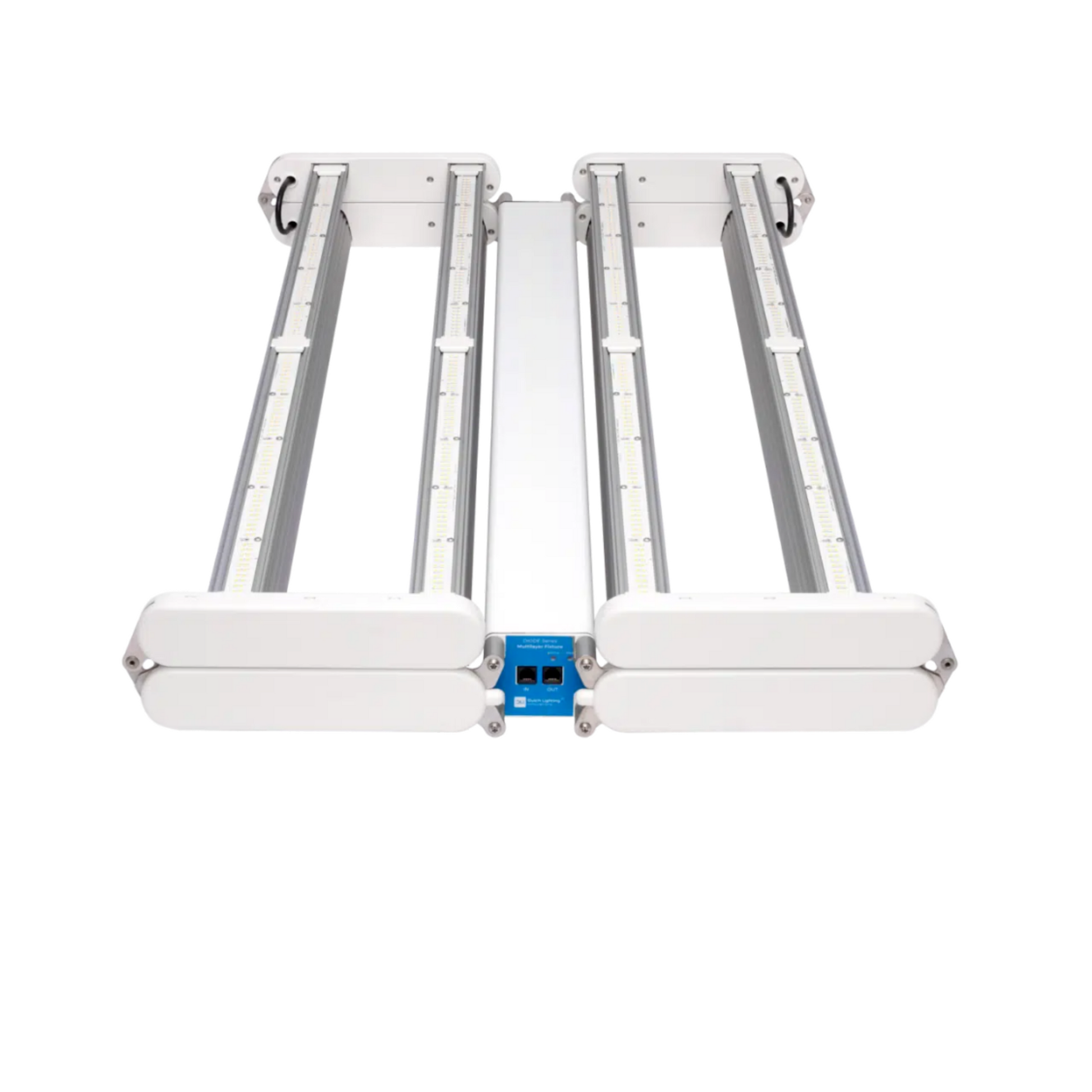

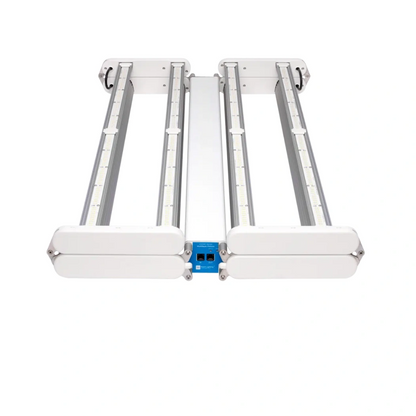

• Foldable Low-Profile Frame: 42.71 × 44.72 × 2.64 in fold-flat chassis ships compact and clears tight multilayer rack ceilings.
• Remote Driver Mounting: Detached driver puts heat outside the canopy zone and shaves weight on the rack itself.
• UL 8800 + IP65 Rated: Wet-location rated for sealed rooms and humid finishing environments.
• 5-Year Warranty: Bare-fixture warranty backs the build for the typical commercial cultivation depreciation cycle.

Technical Specifications
