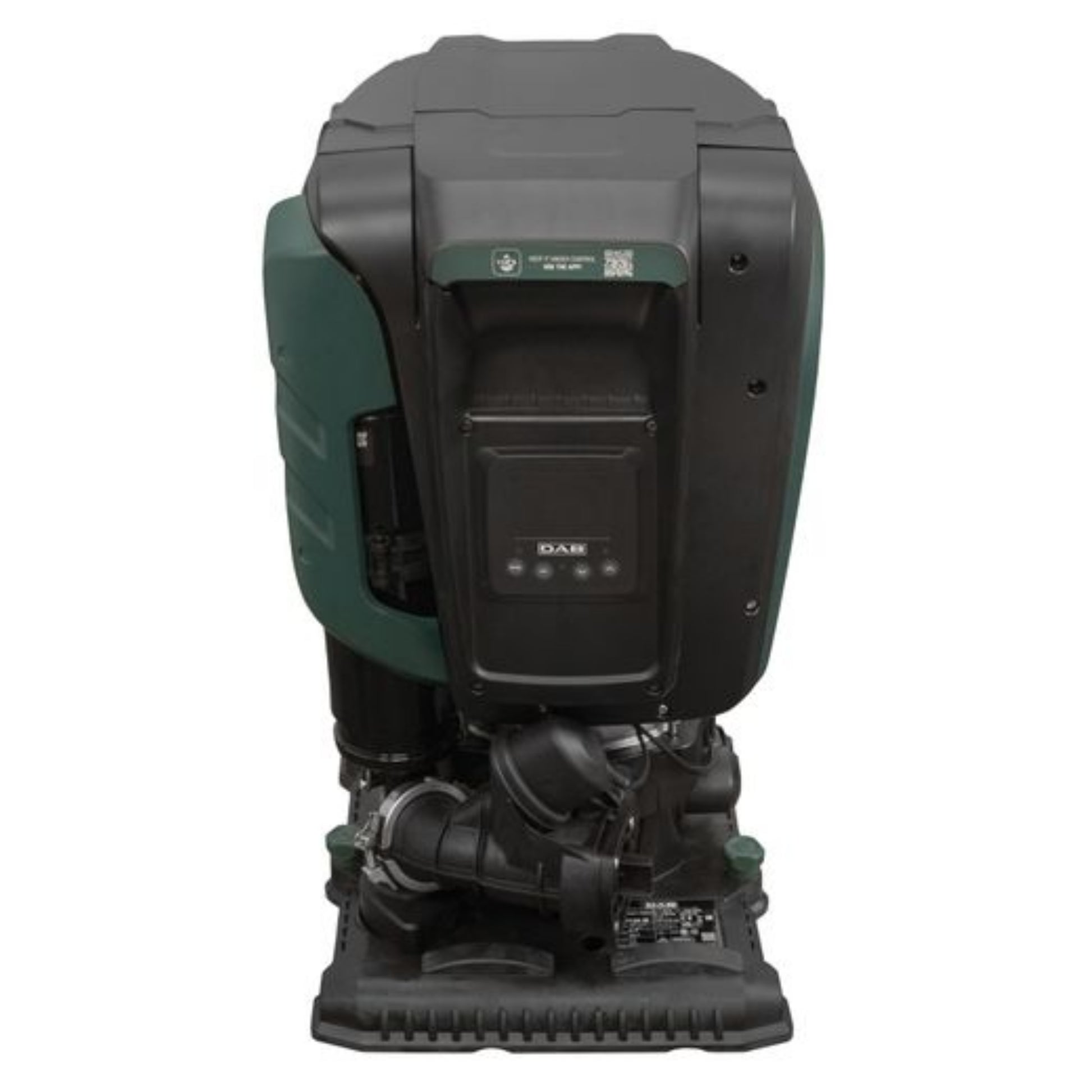

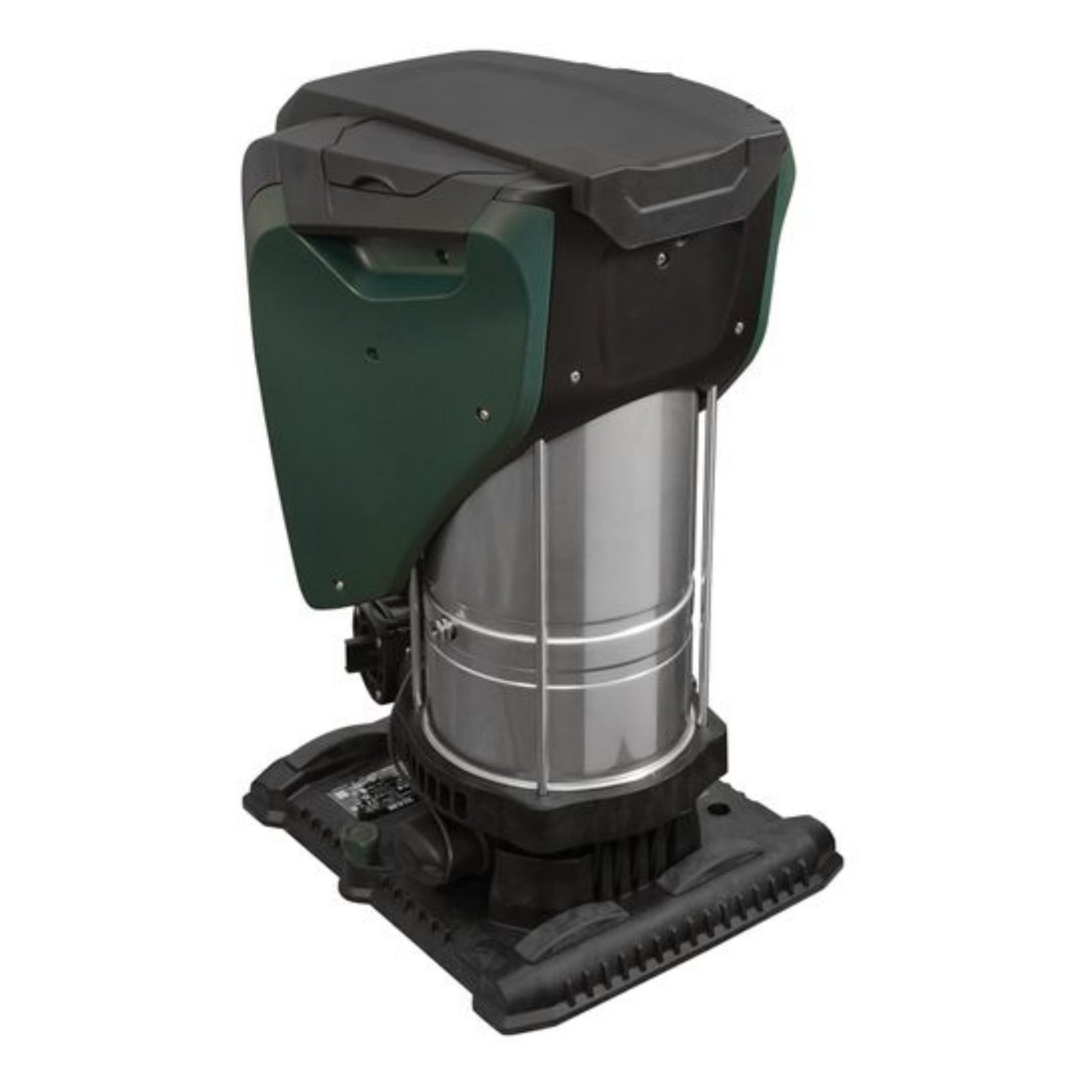

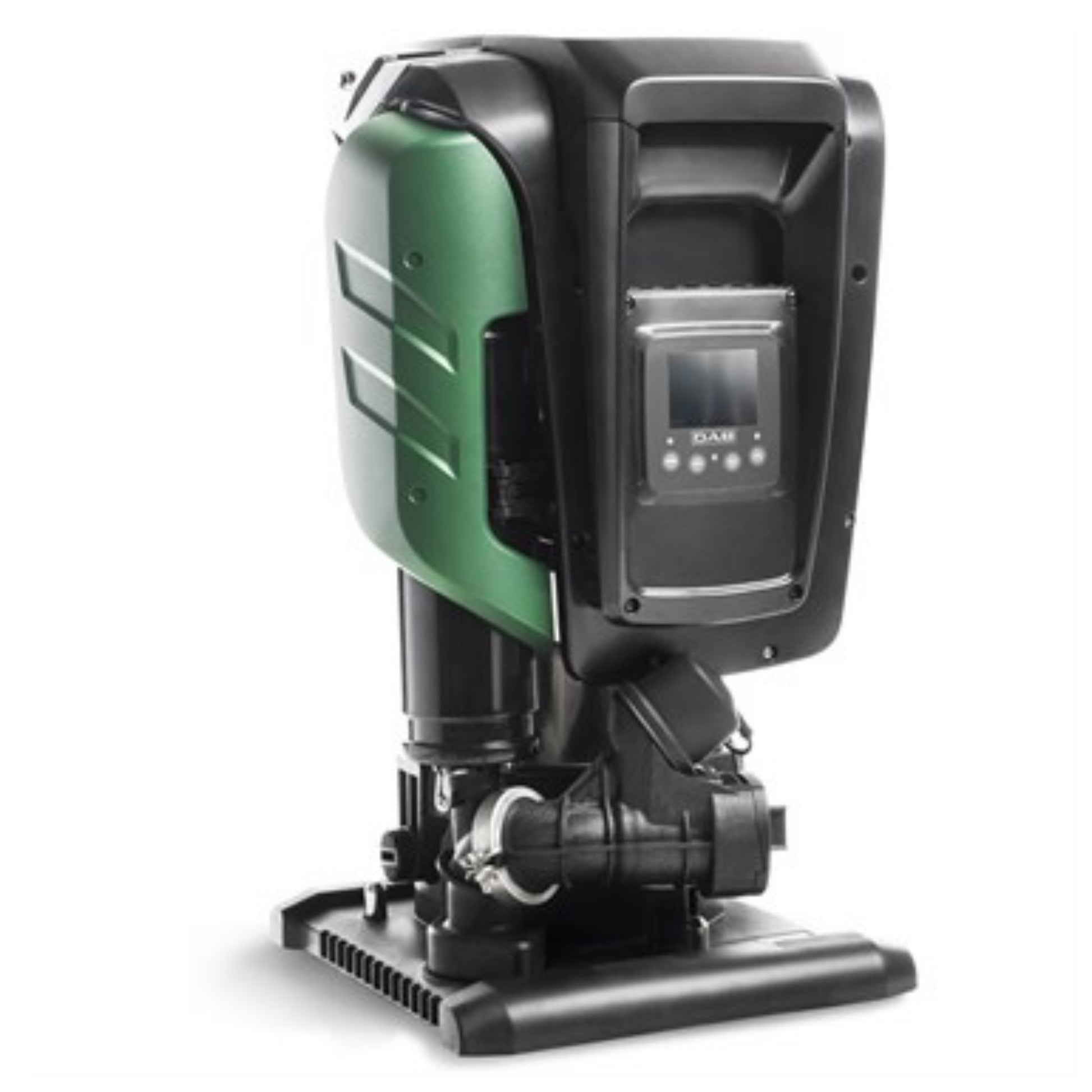

DAB ESYBOX MAX 60/120 M for Commercial Irrigation Pressure

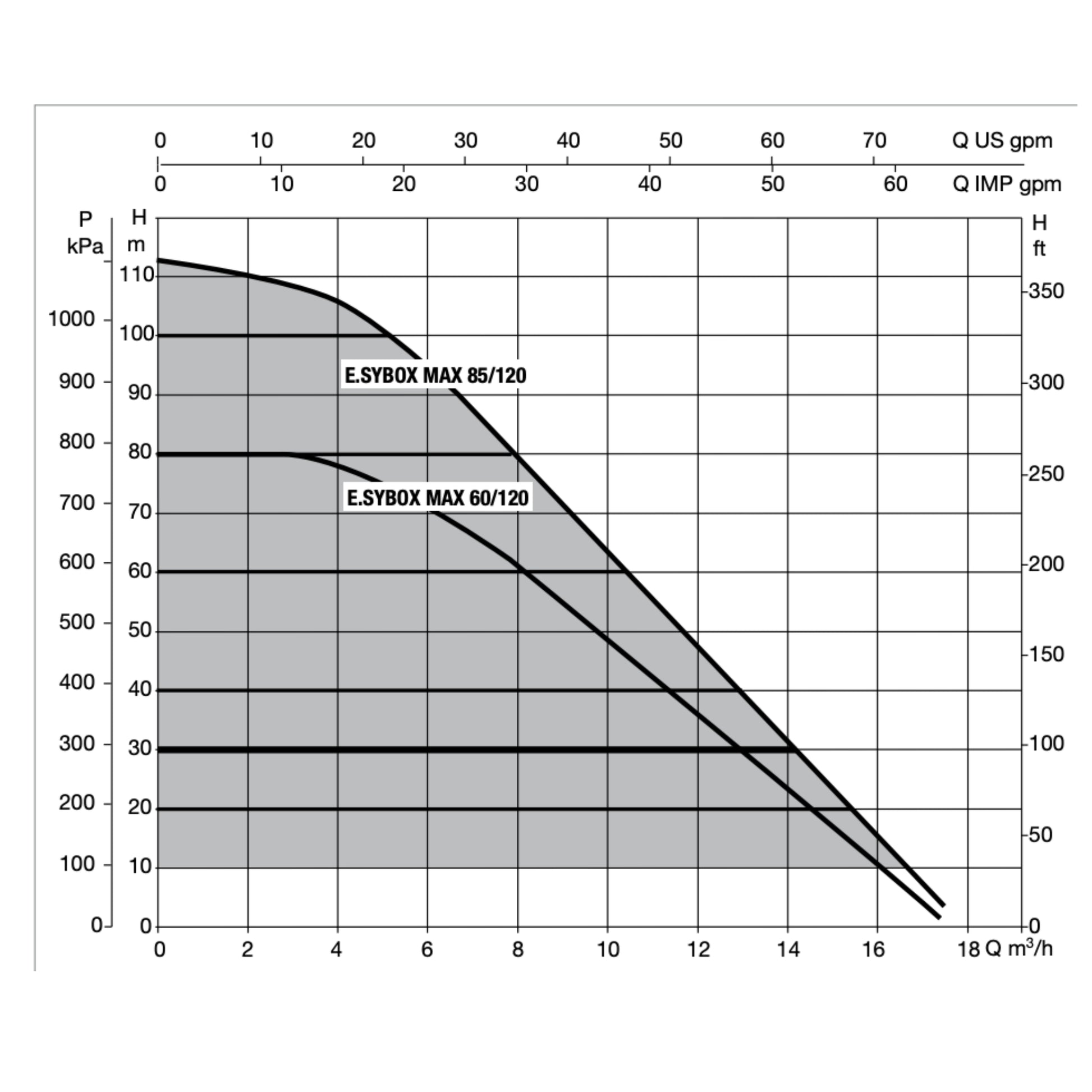

The ESYBOX MAX is DAB's commercial-scale constant pressure pump, combining a vertical multistage pump, inverter, sensors and expansion vessel in one housing. This 60/120 M version runs on 208-240V single phase, 50/60 Hz, with a 3.6 HP (2.68 kW) motor drawing 11.5 to 12.5 A. It moves up to 76 GPM and reaches a maximum head of about 226 ft. The set point adjusts from 15 to 174 psi, with 45 psi as the factory preset. Inlet pressure must stay at or below 72 psi, and the housing is rated to 174 psi. Three technopolymer impellers do the work, and the connections are 1-1/4 in suction and 2 in discharge. The motor carries an IPX5 rating with Class F insulation. It handles clean water up to 104°F in rooms up to 113°F. Running noise is about 63 dB(A) at one meter. The unit weighs roughly 63.9 lb and is listed to UL 778, CSA C22.2 Number 108, NSF/ANSI 61 and NSF/ANSI 372.
An Electronic Water Pressure Booster Sized for Multi-Zone Grows
Greenhouses and indoor farms fit this model when the irrigation header serves many zones and the building has no three-phase supply. The inverter ramps motor speed with demand, so pressure at the far bench stays close to the near one. Energy use falls when only a few valves are open, which is most of the day in many rooms. The pump installs fixed and upright on an ESYDOCK MAX base, sold separately, which carries all of the piping. Up to four ESYBOX MAX units can group wirelessly to share duty and back each other up. Built-in Wi-Fi links the pump to DAB's H2D app for live status and alarms. A check valve and expansion vessel sit inside the unit, so no separate pressure tank is needed in most layouts. Feed it clean water, because abrasive solids will wear the impellers. Keep municipal or upstream pressure within the inlet limit, adding a regulator if the supply runs high. Leave service access around the unit for the display and its maintenance points.
Key Features
- Inverter constant pressure: Motor speed tracks demand, which keeps emitter pressure even across zones and trims energy at low flow.
- Single-phase supply: Runs on 208-240V single phase, so it installs where three-phase service is not available.
- Wide pressure range: A set point adjustable across a broad range covers drip, micro-spray and overhead systems on one pump.
- Wireless grouping: Up to four units share duty and cover for each other, which protects irrigation from a single pump fault.
- Built-in Wi-Fi: Connects to DAB's H2D app for status, alarms and set point changes from a phone.
- Certified for potable water: UL, CSA and NSF/ANSI 61 and 372 listings suit sites where the same supply feeds people and crops.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ESYBOX MAX 60/120 M |
| Part number | 60207561 |
| Power supply | 208-240V, single phase, 50/60 Hz |
| Motor | 3.6 HP (2.68 kW) |
| Current | 11.5-12.5 A |
| Max flow | 76 GPM |
| Max head | 226 ft |
| Set point range | 15-174 psi (45 psi preset) |
| Max inlet pressure | 72 psi |
| Nominal pressure (PN) | 174 psi |
| Impellers | 3, technopolymer |
| Connections | 1-1/4 in suction, 2 in discharge |
| Noise | 63 dB(A) at 1 m |
| Motor protection | IPX5 |
| Insulation class | F |
| Max liquid temperature | 104°F |
| Max ambient temperature | 113°F |
| Installation | Fixed, vertical, on ESYDOCK MAX base (sold separately) |
| Grouping | Up to 4 units |
| Weight | 63.9 lb |
| Certifications | UL 778, CSA C22.2 Number 108, NSF/ANSI 61, NSF/ANSI 372 |
