The Fantech 36-inch shutter exhaust fan pulls 8,058 CFM at 850 RPM to evacuate heat, humidity, and odor from greenhouses, grow warehouses, and farm buildings. This wall-mounted greenhouse exhaust fan runs galvanized steel blades and a totally enclosed motor behind factory-installed shutters, with AMCA-certified airflow and a UL 705 listing.

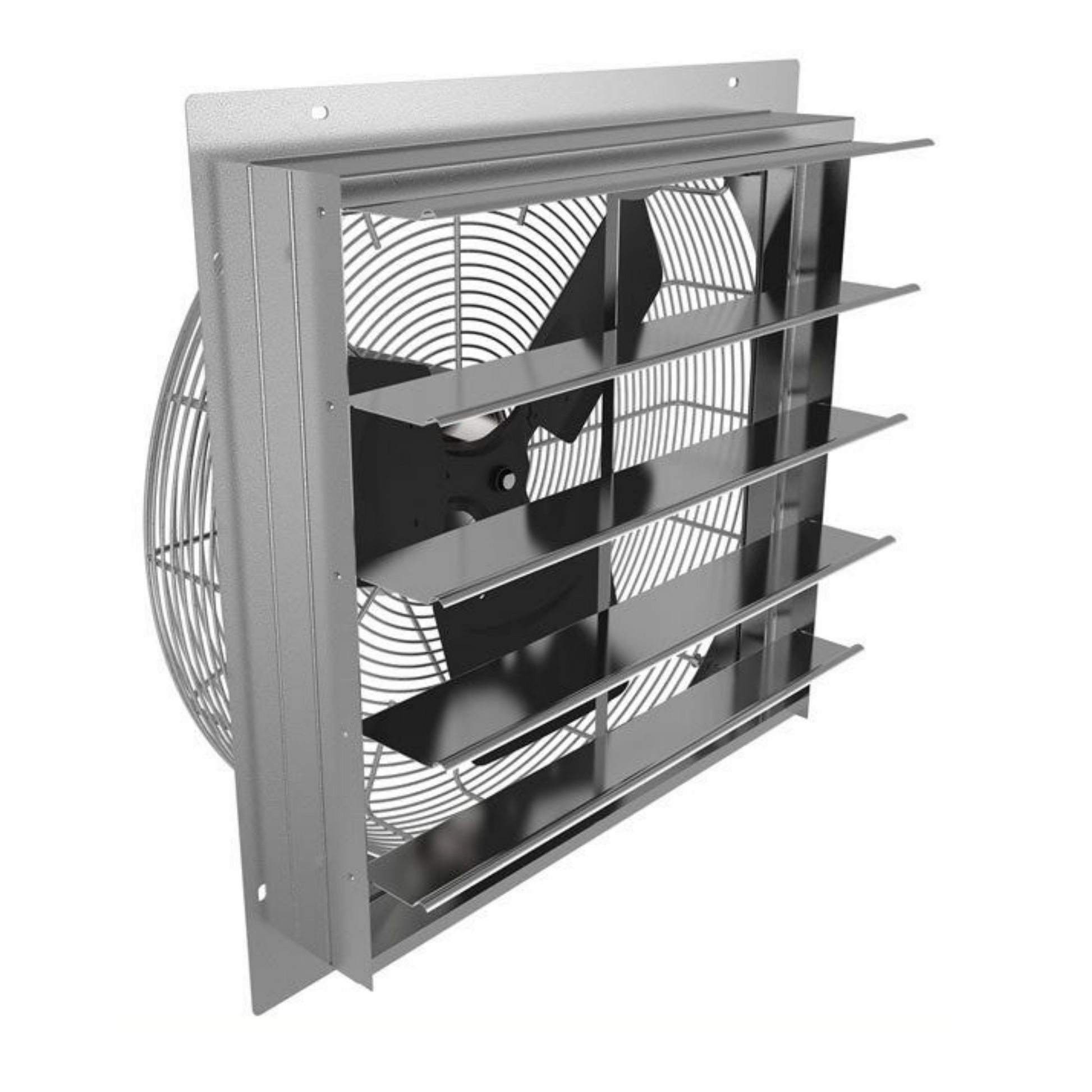

Fantech 36-Inch Shutter Exhaust Fan for High-Volume Ventilation
The Fantech 36-inch shutter exhaust fan (model 2SHE36D1) moves up to 8,058 CFM at 850 RPM on a 115V, single-phase, 60 Hz motor drawing 5.6 A, making it a ventilation backbone for large greenhouses and hydroponic warehouses. Galvanized steel blades and a totally enclosed motor stand up to the humidity, nutrient mist, and foliar spray that corrode lesser fans. Factory-installed shutters open on airflow and close when it stops, and the square 39 1/8" frame with prepunched holes drops into new or existing walls.
Certified Greenhouse Exhaust Fan for Climate and VPD Control
Paired with intake louvers or ducting, this greenhouse exhaust fan sets up a controlled airflow path that pulls fresh, CO₂-rich air through the canopy and pushes stale, humid air out — the kind of steady negative-pressure exhaust that helps HVAC and dehumidifiers hold VPD in a packed room. OSHA-compliant guards, AMCA-certified airflow, and a cULus/UL 705 listing keep it code-compliant in commercial cultivation. At roughly 75 lbs, it mounts as a permanent wall exhaust rather than a portable unit.
Key Features
- 8,058 CFM at 850 RPM: High-volume exhaust clears heat and humidity fast in large greenhouses and grow warehouses.
- Galvanized steel blades: Resist rust from high humidity, nutrient mist, and foliar spray.
- Totally enclosed motor: Keeps dust, moisture, and fertilizer salts out to extend motor life.
- Shutter-mounted, wall-ready: Factory-installed shutters and a square 39 1/8" prepunched frame drop into new or existing walls.
- Certified and compliant: AMCA-certified airflow, cULus/UL 705 listing, and OSHA-compliant guards for commercial facilities.
- 115V single-phase: Runs on standard single-phase power at 5.6 A.
Specifications
| Spec | Value |
|---|---|
| Max Airflow | 8,058 CFM |
| Fan Speed | 850 RPM |
| Blade Size | 36 in |
| Voltage | 115V, 1-Phase, 60 Hz |
| Current | 5.6 A |
| Motor Power | 562 W |
| Frame | 39 1/8" square, prepunched |
| Blades | Galvanized steel |
| Motor | Totally enclosed |
| Certifications | AMCA Air Certified, cULus/UL 705 |
| Weight | 75 lbs |
