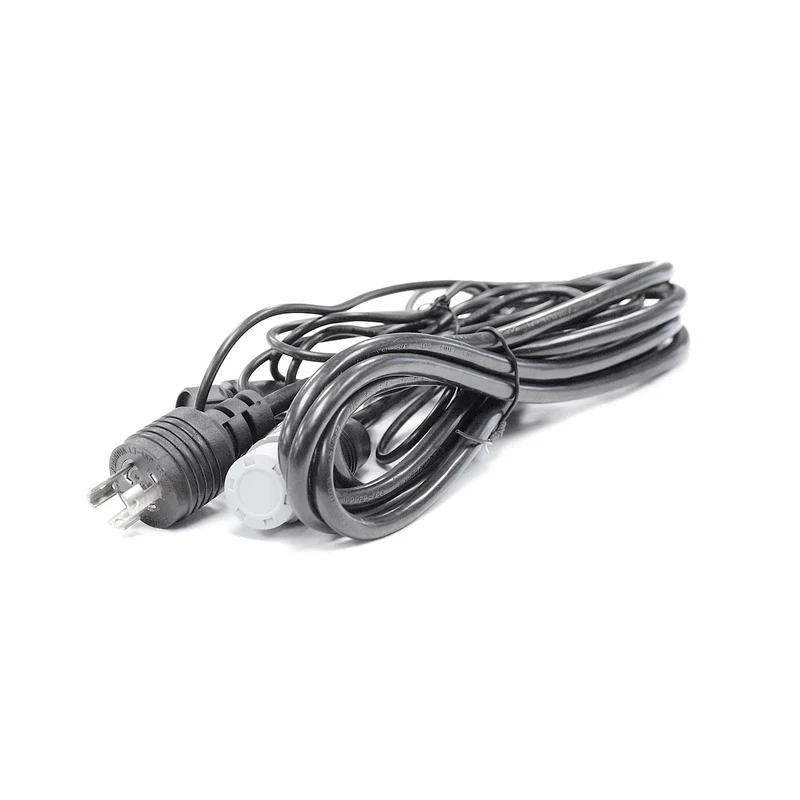

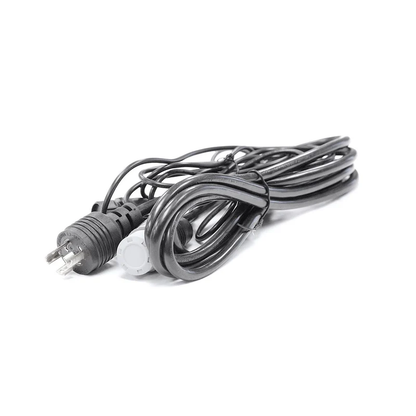

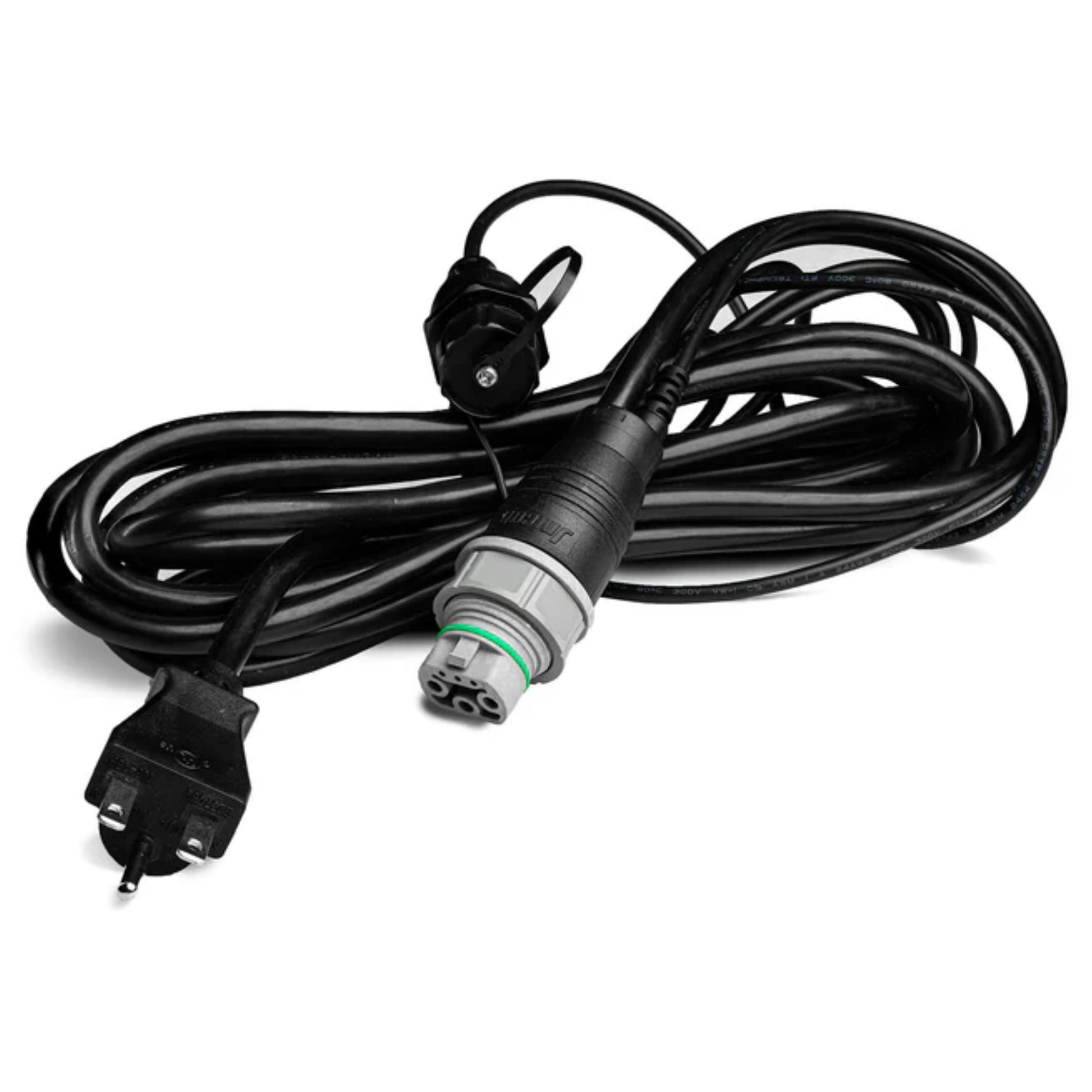

Faven 120V Power Cord for Under Canopy R6 and R8 LEDs
The Faven 120V power cord runs 10 ft from a standard 3-prong wall outlet to the lead Faven R6 or R8 Under Canopy fixture. It is the residential and small-room input cord for the Faven Under Canopy line. The cord ships with an accessory dimming wire that integrates with the Faven Mini Controller. A single 15 A 120V circuit handles up to 10 R6 or R8 fixtures in one chain. The 10 ft reach lines up with most under-bench outlets in tents and small flower rooms. Pair it with the Faven 3 ft jumper cable to extend across rows.
Faven 10 ft 120V Cord with Dimming Wire for R6 R8 Under Canopy Chains
Growers typically place this cord on a dedicated 15 A circuit when running a full chain. A single bench should not trip a shared breaker mid-cycle. The dimming wire runs alongside the AC line and carries the analog control signal. The Mini Controller pairs once and remembers each chain. The 120V build trades chain length for outlet flexibility — 10 fixtures per circuit vs. 17 on the 240V sibling and 20 on 277V. That fits small tents better than commercial flower rooms. Plug it in at any wall outlet. A 15 A circuit handles the full row. Plug it in and pair the chain once.
Key Features
- 120V Standard Wall Plug: Plugs directly into any 15 A residential or small-room outlet
- 10 ft Length: Reaches under-bench outlets in tents and small flower rooms
- Includes Dimming Wire: Accessory control line pairs the chain to the Faven Mini Controller
- Up to 10 Fixtures per Chain: One 120V 15 A circuit drives a 10-fixture row of R6 or R8 LEDs
- R6 R8 Compatibility: Direct-fit input cord for the Faven R6 and R8 Under Canopy LED bars
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | 120V AC |
| Length | 10 ft |

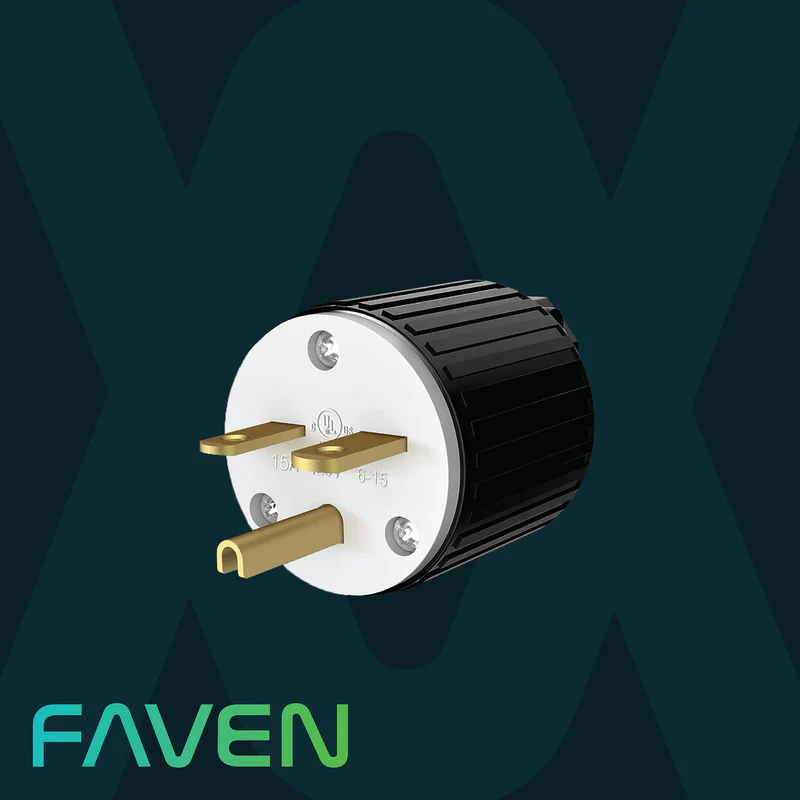

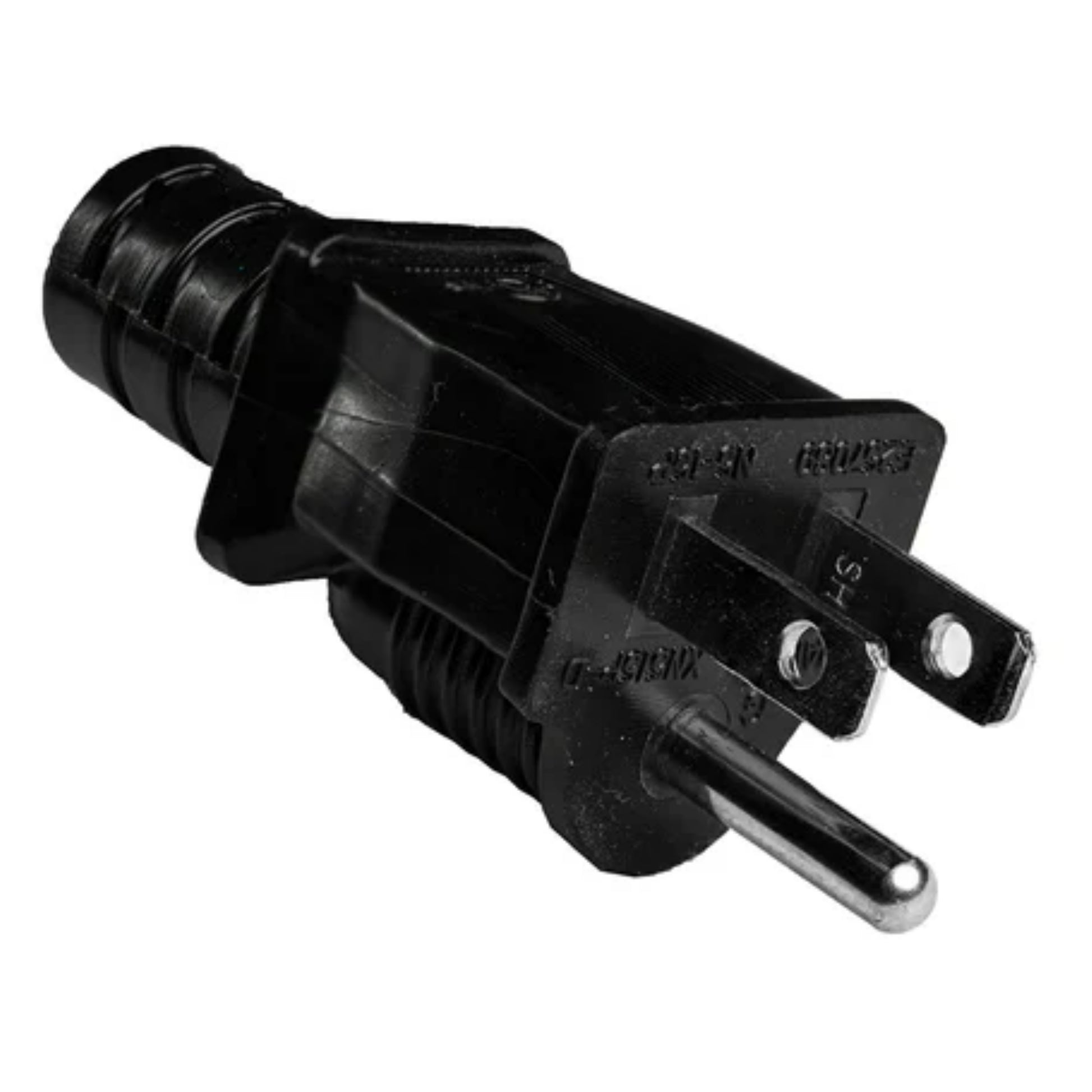

| Plug | Standard 3-prong (NEMA 5-15P class) |
| Dimming Wire | Included; integrates with Faven Mini Controller |
| Max Daisy Chain @ 120V | 10 fixtures |
| Compatibility | Faven R6 and R8 Under Canopy LEDs (R-series, not Chroma) |
