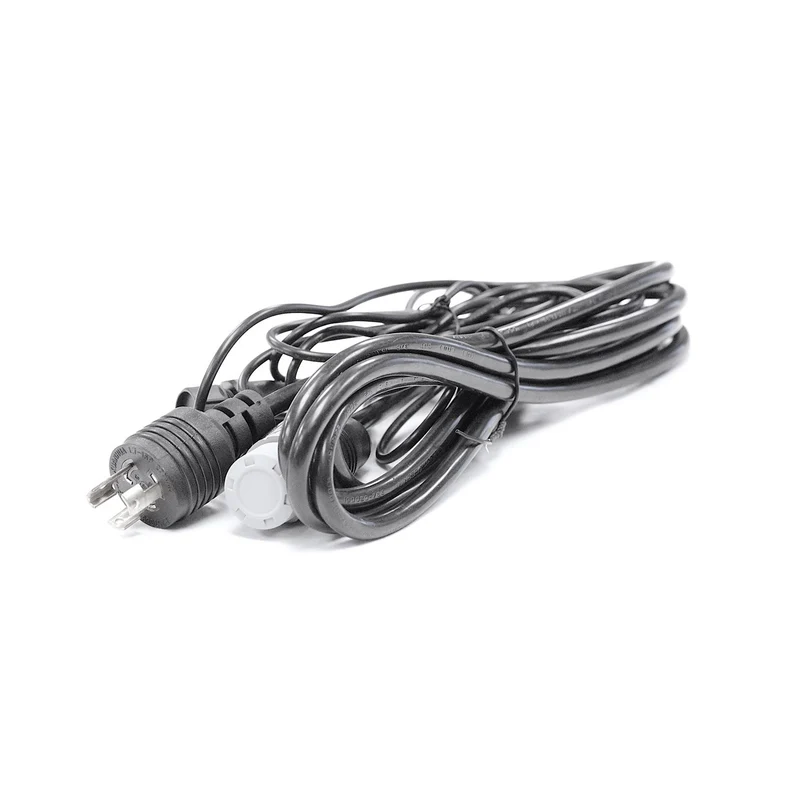

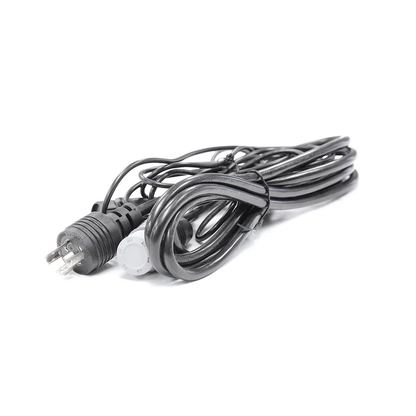

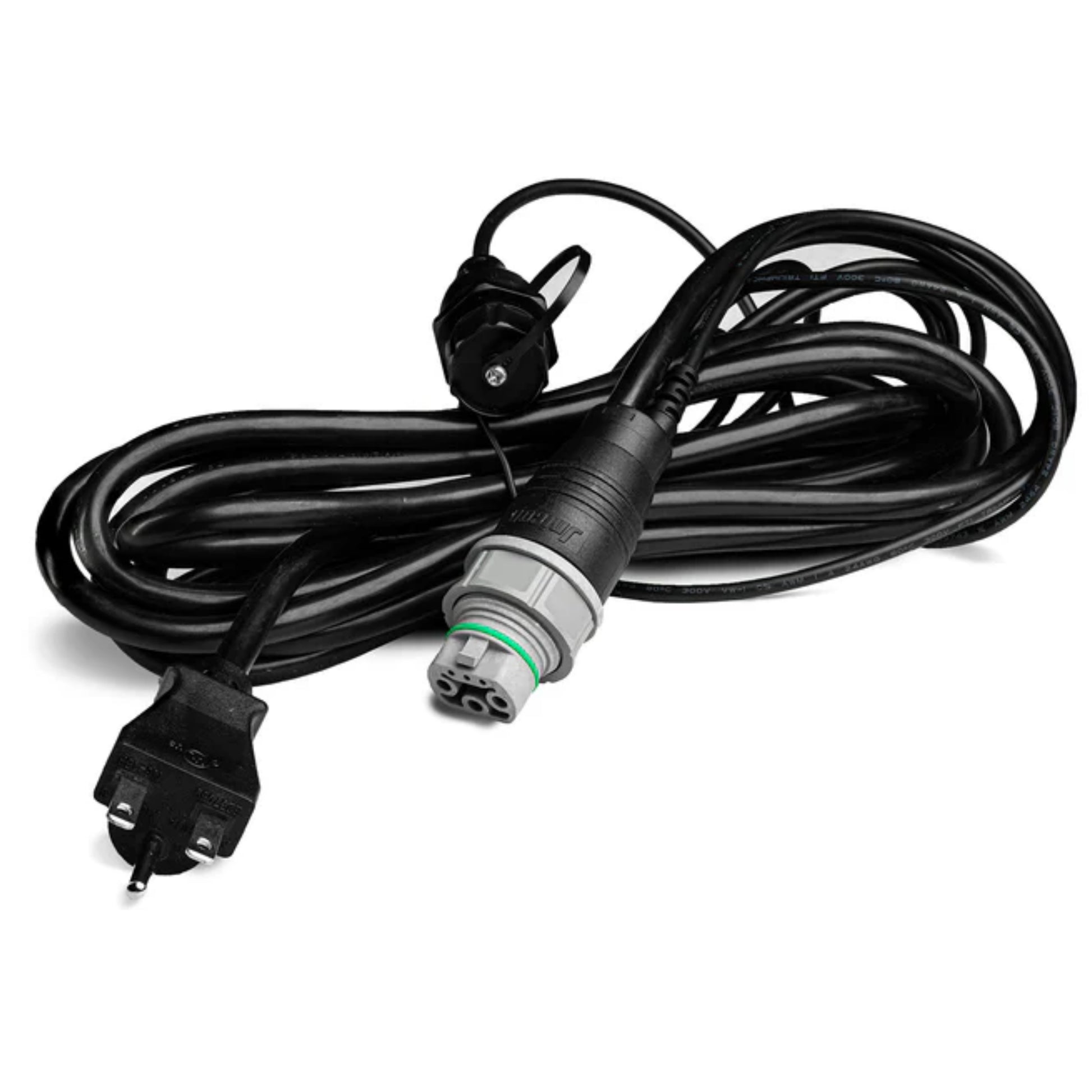

Faven 240V Power Cord for Under Canopy R6 and R8 LEDs
The cord runs 10 ft from a 240V outlet to the lead Faven Under Canopy R6 or R8 fixture in a chain. It is the commercial-room input cord for the Faven Under Canopy line. The cord ships with an accessory dimming wire that integrates with the Faven Mini Controller. One 240V circuit handles up to 17 R6 or R8 fixtures in a single daisy chain. The 10 ft reach lines up with overhead 240V drops above standard rolling benches. Pair the cord with the Faven 3 ft jumper cable to extend across rows.
Faven 10 ft 240V cord with dimming wire for R6 R8 daisy chains
Growers typically place this cord on a dedicated 240V circuit when running a full row. The dimming wire is an accessory line that runs alongside the AC cord. It carries the analog control signal between fixtures. The 240V build hits a sweet spot between the 120V cord (10 fixtures) and the 277V cord (20 fixtures). It fits most non-utility commercial flower rooms with 240V panel availability. Confirm the panel feed and breaker before pulling fixtures into a new room. Pair the chain once and ramp the dim curve from there.
Key Features

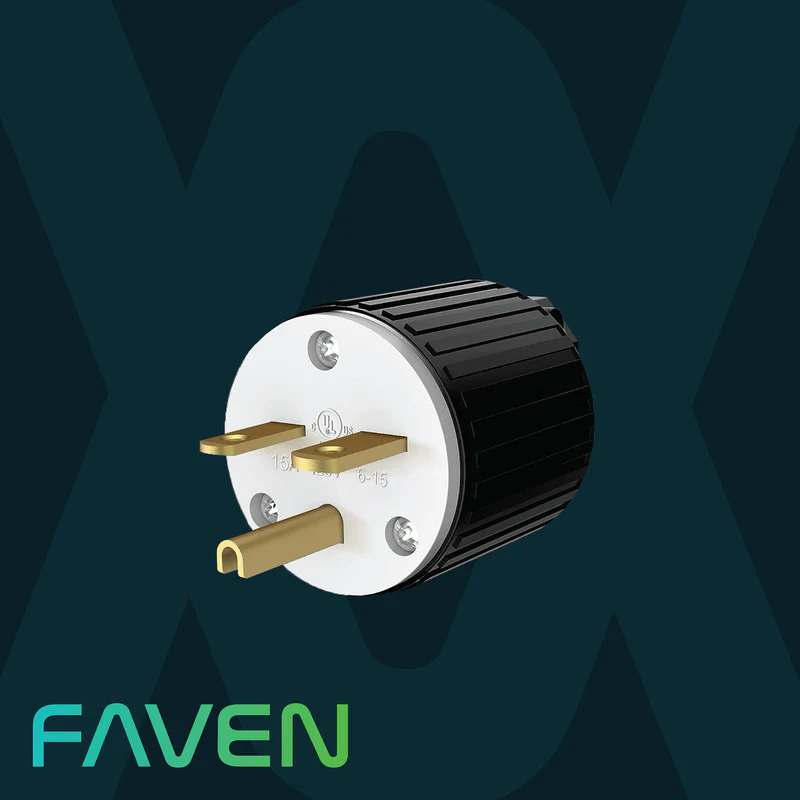

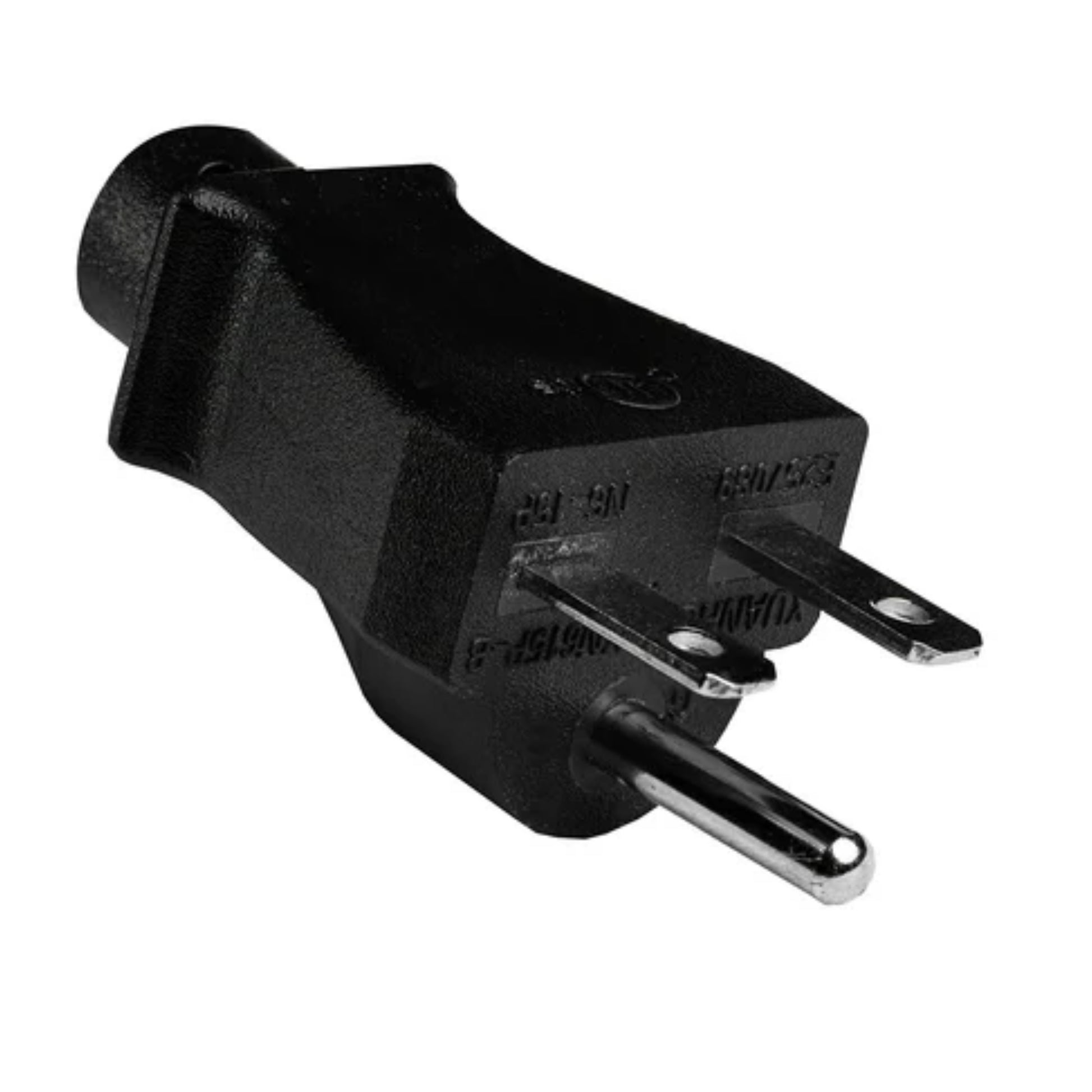

- 240V Commercial Plug: Standard 240V wall plug for commercial flower rooms with 240V circuits.
- 10 ft Length: Reaches overhead 240V drops above standard rolling bench heights.
- Includes Dimming Wire: Accessory control line pairs the chain to the Faven Mini Controller.
- Up to 17 Fixtures per Chain: One 240V circuit drives a 17-fixture row of R6 or R8 LEDs.
- R6 / R8 Compatibility: Direct-fit input cord for the Faven R6 and R8 Under Canopy LED bars.
Technical Specifications
| Specification | Value |
|---|---|
| Type | Dimmable input power cord |
| Voltage | 240V AC |
| Length | 10 ft |
| Plug | 240V wall plug |
| Dimming Wire | Included; integrates with Faven Mini Controller |
| Dim Protocol | 0-10V analog |
| Max Daisy Chain @ 240V | 17 fixtures |
| Per-Fixture Draw | ~0.5 A |
| Compatibility | Faven R6 and R8 Under Canopy LEDs |
