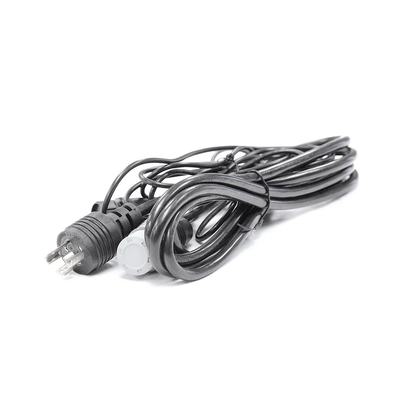

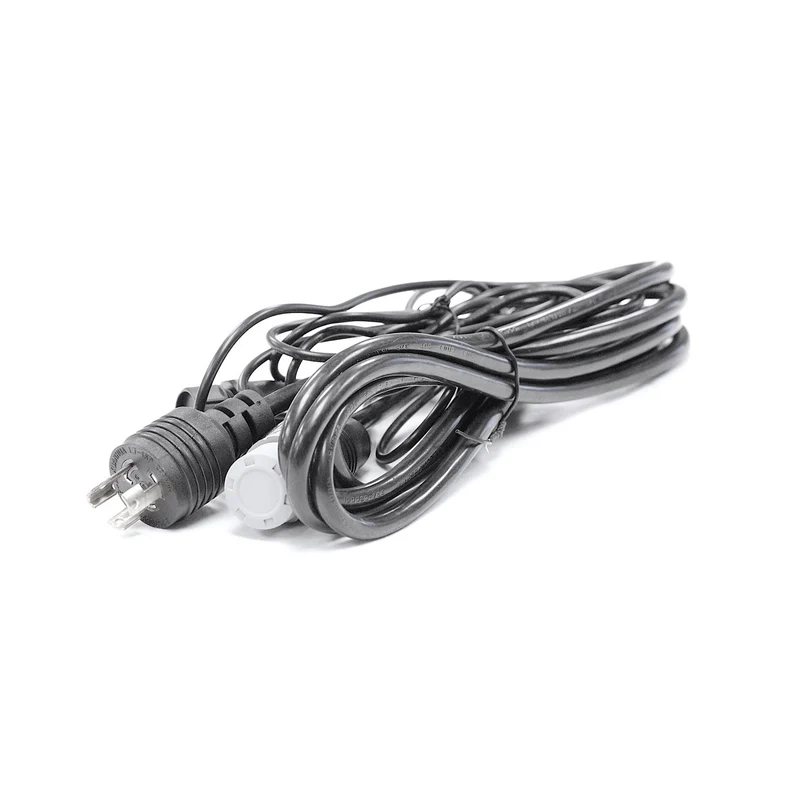

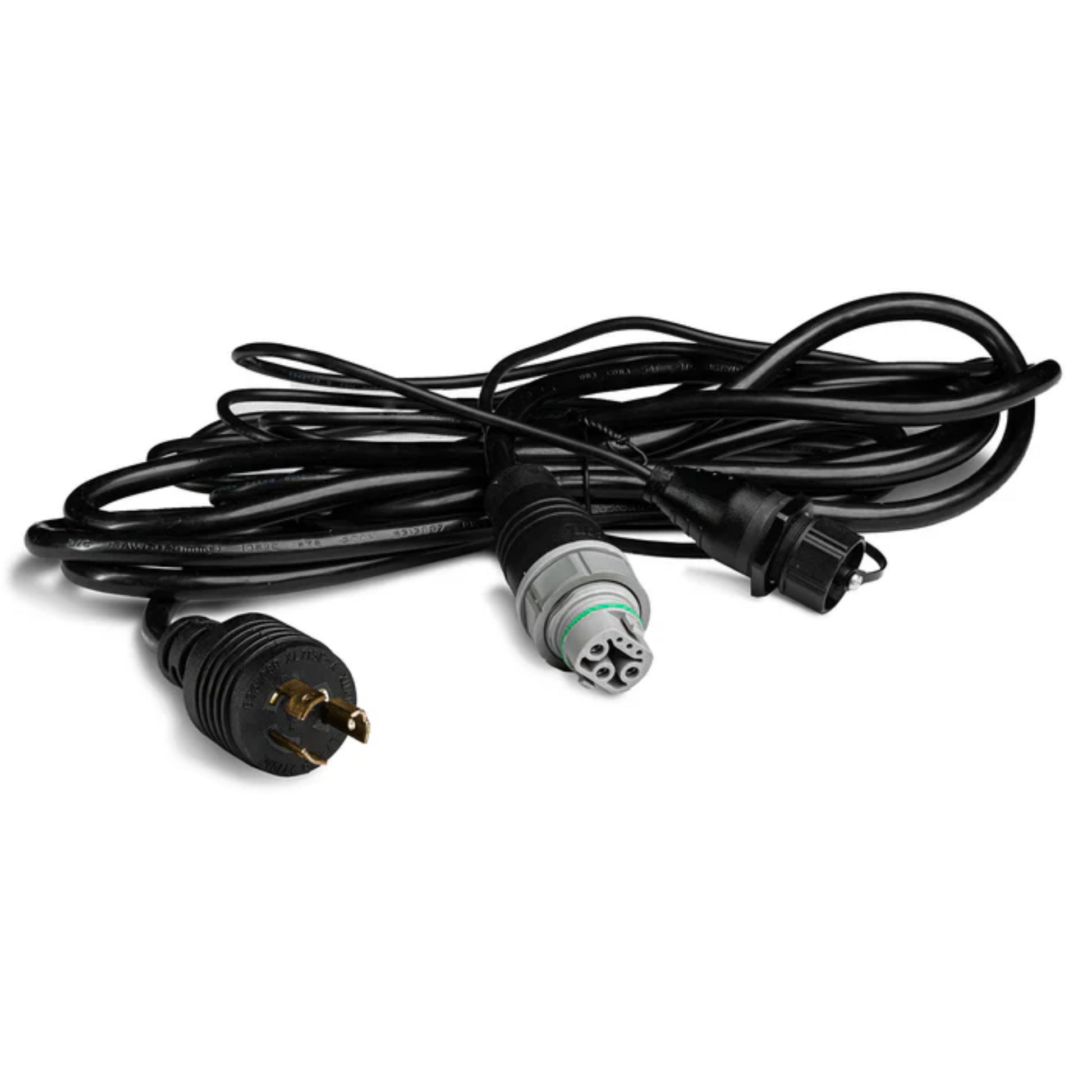

Faven 277V Power Cord for Under Canopy R6 and R8 LEDs
The Faven 277V power cord runs 10 ft from a NEMA L7-15 twist-lock outlet to the lead Faven Under Canopy R6 or R8 fixture. It powers commercial 277V circuits and ships with an accessory dimming wire. The dimming wire integrates with the Faven Mini Controller for daisy-chained intensity control. One 277V circuit drives up to 20 R6 or R8 fixtures from a single feed at roughly 0.43 A per fixture. The 10 ft reach lines up with overhead 277V conduit drops above standard rolling benches. Pair the cord with the Faven 3 ft jumper cable to extend the chain row by row.
Faven 10 ft 277V Cord with Dimming Wire for R6 R8 Daisy Chains
Growers typically place this cord above the canopy and run the chain along the rack so the dimming wire drops cleanly to the Mini Controller. NEMA L7-15 is a commercial 277V plug, so confirm the panel feed and breaker before pulling fixtures into a new room. The dimming wire is an accessory line that runs alongside the AC cord. It carries the analog control signal between fixtures. The 277V build keeps the per-fixture amperage low enough that one 20 A circuit handles a full row. The Mini Controller pairs once and remembers each chain. Each chain pairs once.
Key Features

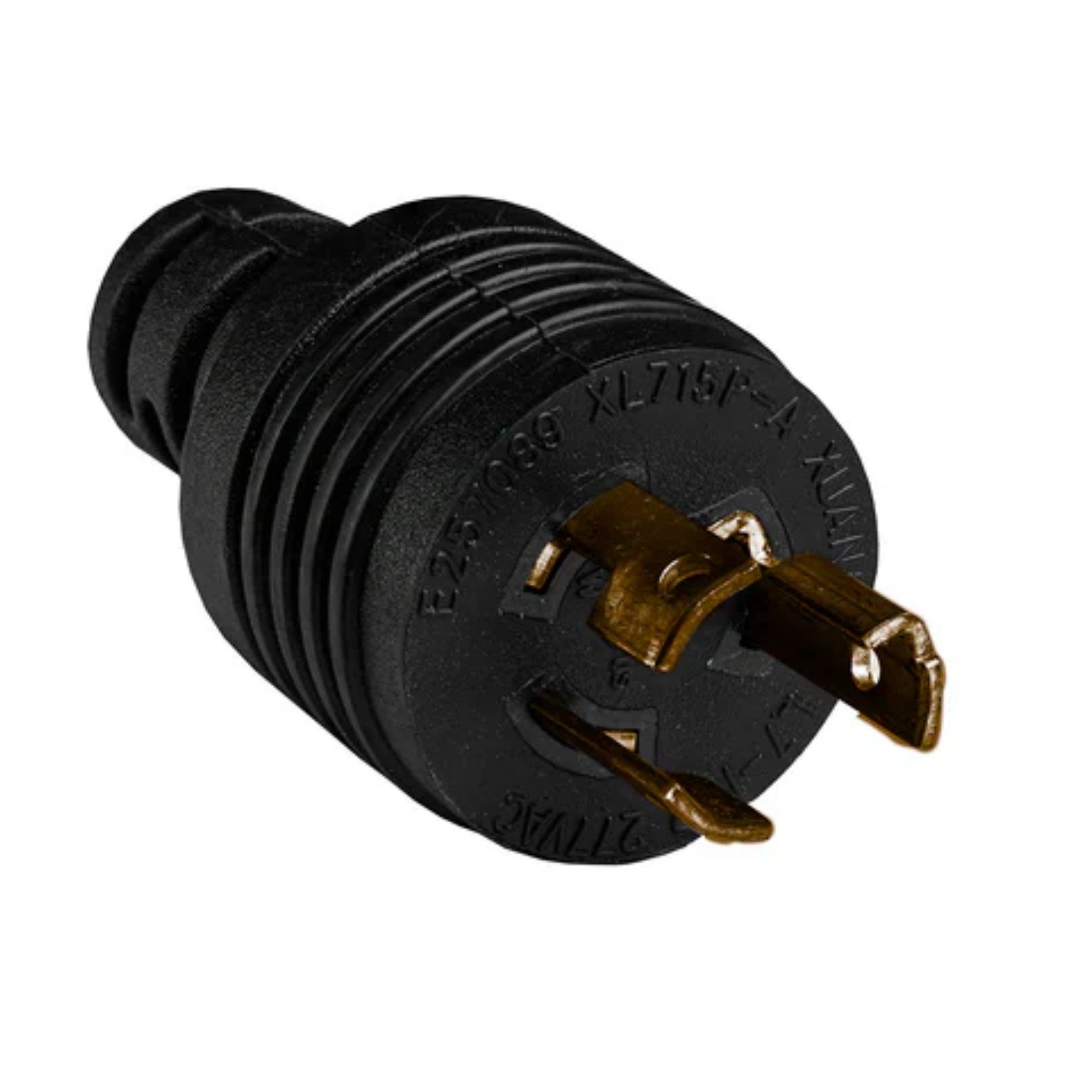

- NEMA L7-15 Twist-Lock: Standard 277V commercial plug for industrial circuits and panels
- 10 ft Length: Reaches overhead 277V conduit drops above standard rolling bench heights
- Includes Dimming Wire: Accessory control line pairs the chain to the Faven Mini Controller
- Up to 20 Fixtures per Chain: One 277V circuit drives a full row of R6 or R8 Under Canopy LEDs
- R6 R8 Compatibility: Direct-fit input cord for the Faven R6 and R8 Under Canopy LED bars
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | 277V AC |
| Length | 10 ft |
| Plug | NEMA L7-15 twist-lock |
| Dimming Wire | Included; integrates with Faven Mini Controller |
| Max Daisy Chain @ 277V | 20 fixtures |
| Compatibility | Faven R6 and R8 Under Canopy LEDs |
