Faven Lighting - R6 Dimmable LED 120w, 46" Under-canopy Light (60% red) (Individual strip)

Faven Lighting R6 Dimmable LED Under-Canopy Light for Lower-Tier Photosynthesis

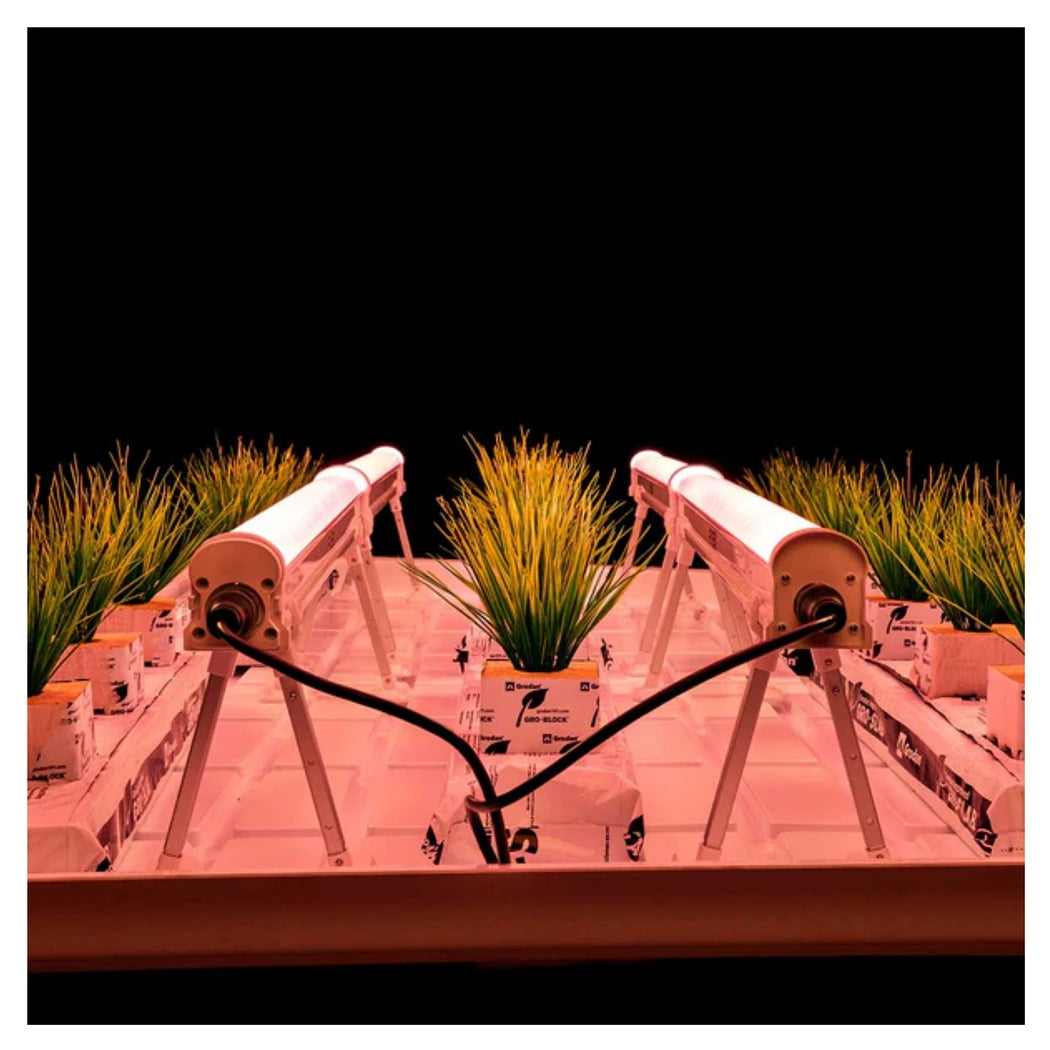

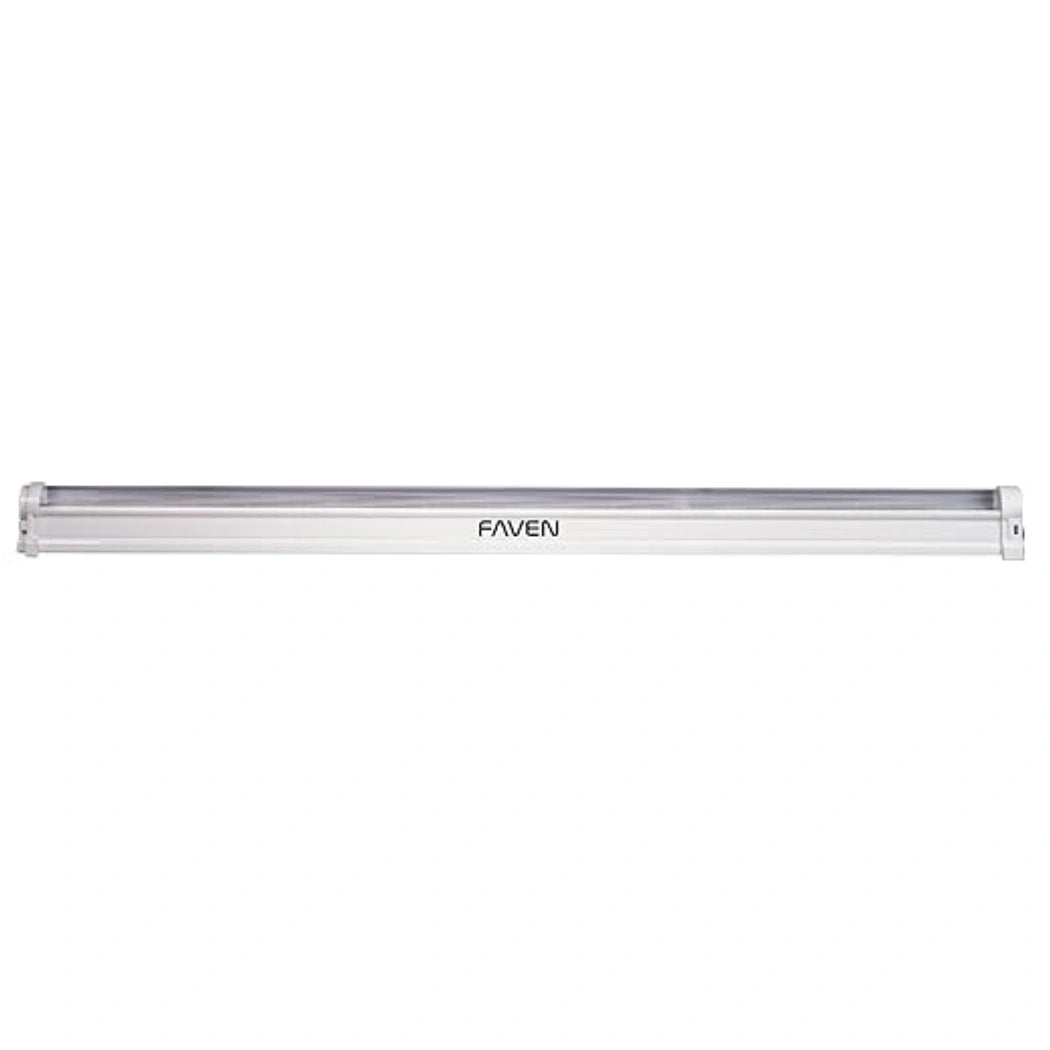

The Faven Lighting R6 is a 120W under-canopy LED bar measuring 46 inches and weighing 5.73 lbs, engineered to drive a 60% red spectrum into the lower canopy where HPS and full-spectrum top lights drop off. The fixture delivers up to 340 µmol/s PPF at 2.9 µmol/J and runs on 120V, 240V, or 277V cords.

Red-Rich Under-Canopy Supplemental LED for Tighter Bud Sites

A bubbled-lens diffuser spreads light evenly under dense canopies, while 0-10V compatibility with TrolMaster and Vivosun controllers dims the bar to 35-40% of maximum. The IP66 rating allows direct exposure to irrigation overspray, and waterproof connectors daisy-chain up to 20 strips per circuit using extension cords (sold separately).

Key Features

• 120W Power Draw: Pulls 120W per strip with a dimming range down to 35-40% for stage-by-stage intensity tuning.
• 340 µmol/s PPF: Outputs up to 340 µmol/s at 2.9 µmol/J efficacy, sized for under-canopy supplementation rather than overhead replacement.
• 60% Red Spectrum: Concentrates red wavelengths to fill the ROY gap left by HPS top lights and improve flower-stage photosynthesis.

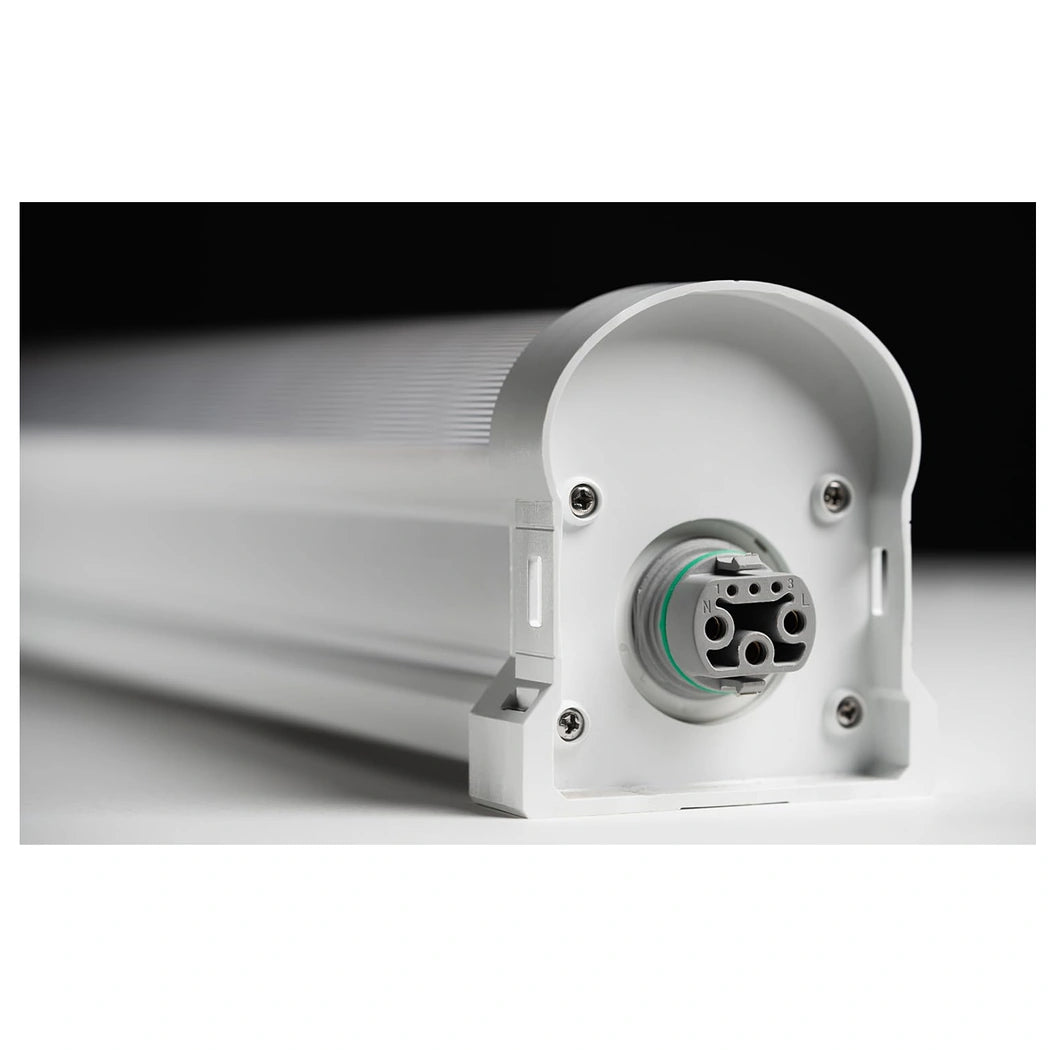

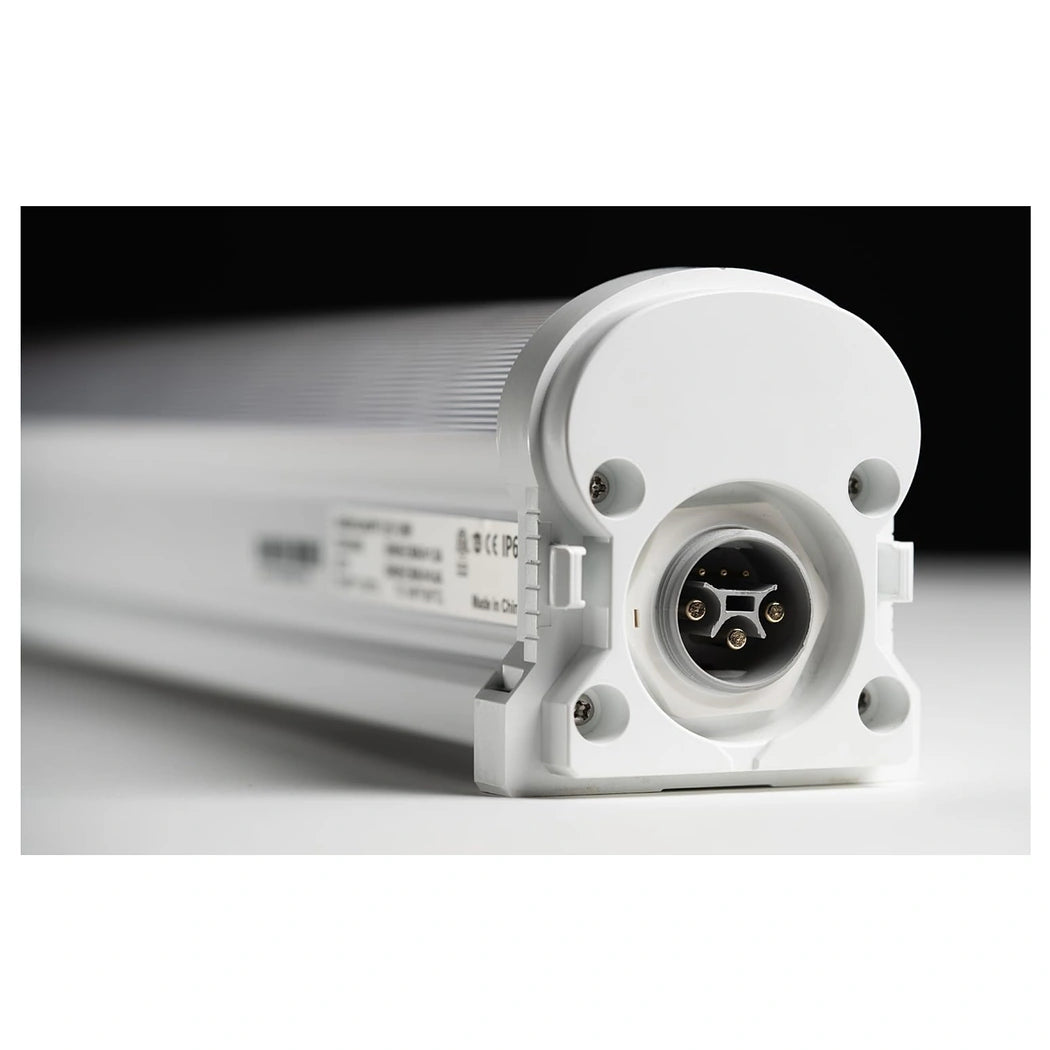

• IP66 Waterproof Build: Sealed bar and waterproof connectors stand up to misters, fogging systems, and direct irrigation contact.

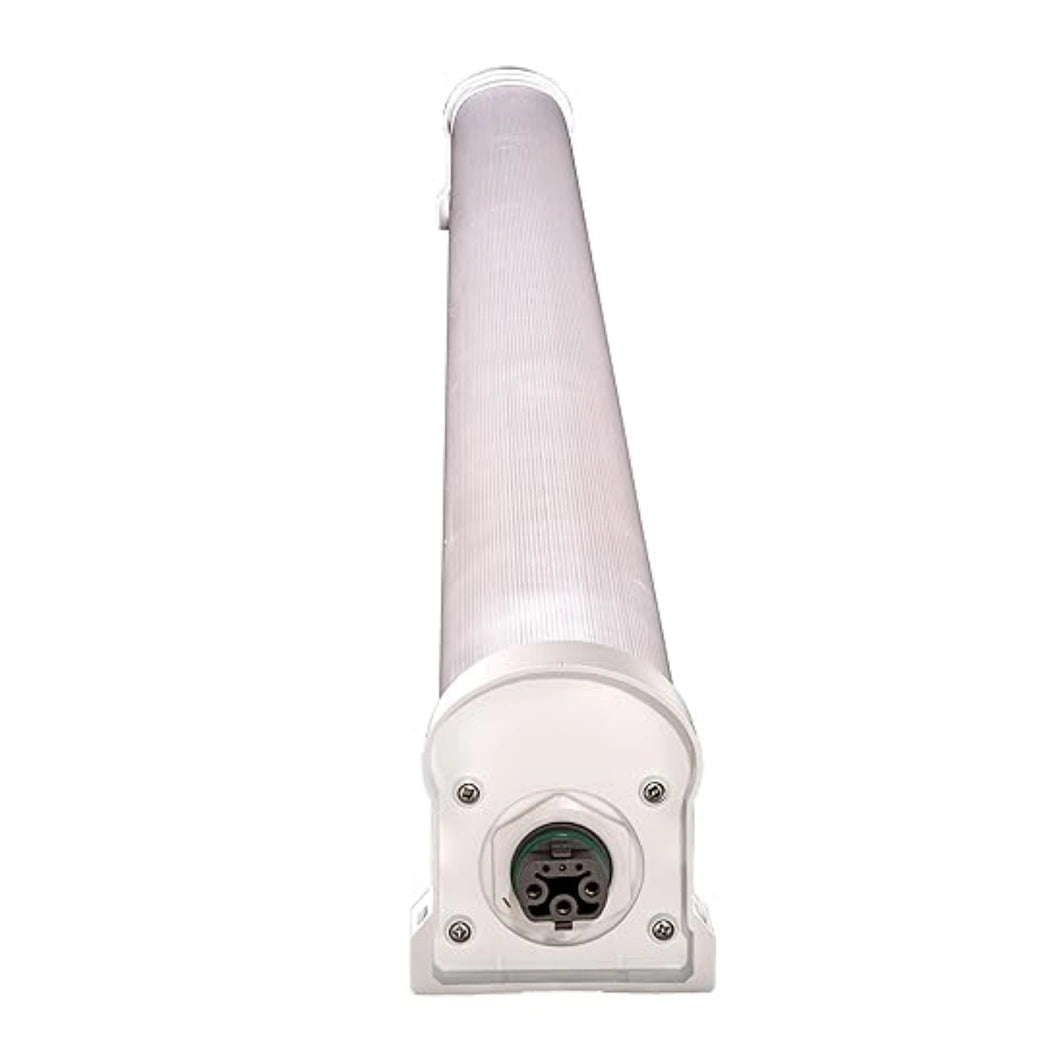

• Bubbled-Lens Diffusion: Bubbled lens diffuses light evenly under dense canopies for uniform lower-canopy growth.
• TrolMaster + Vivosun Compatible: 0-10V control pairs with TrolMaster and Vivosun controllers for stage-by-stage dimming.

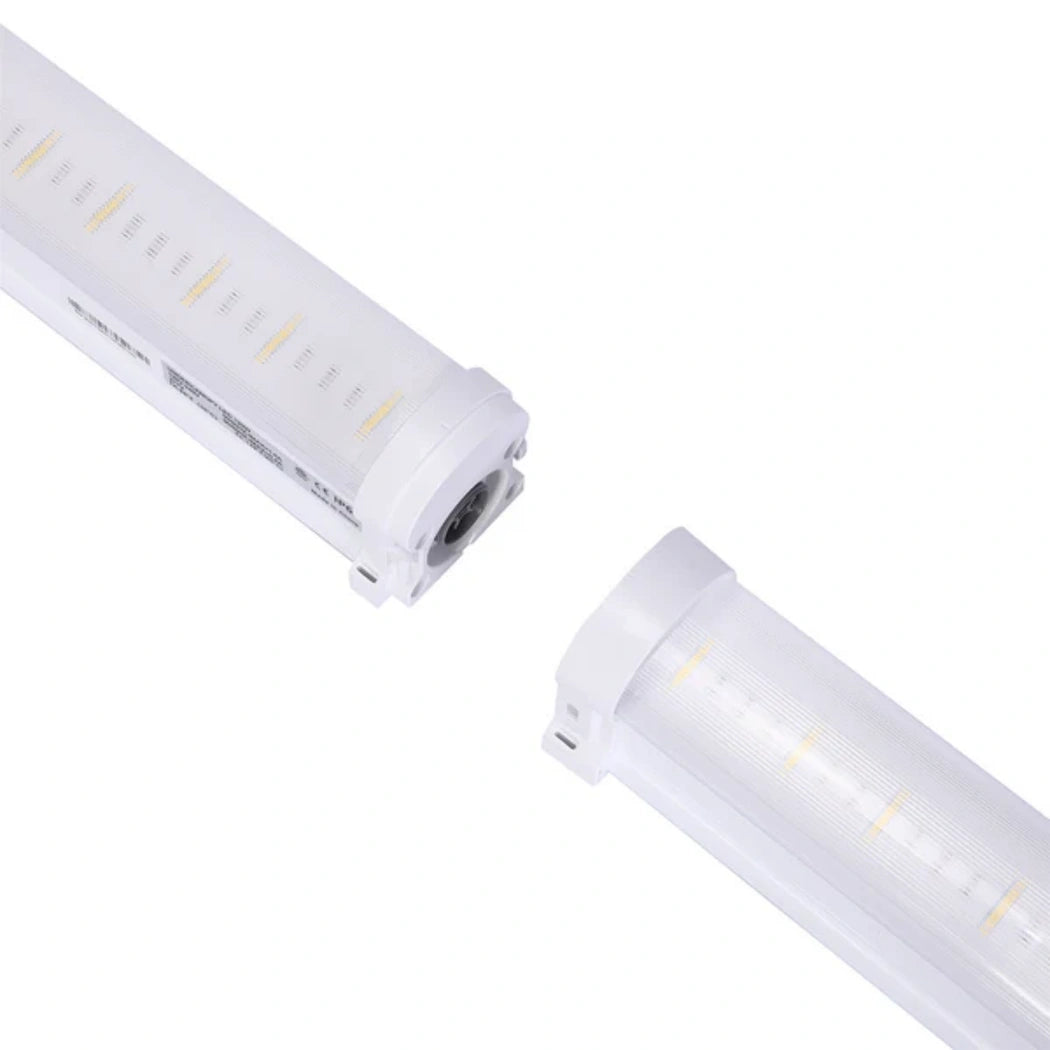

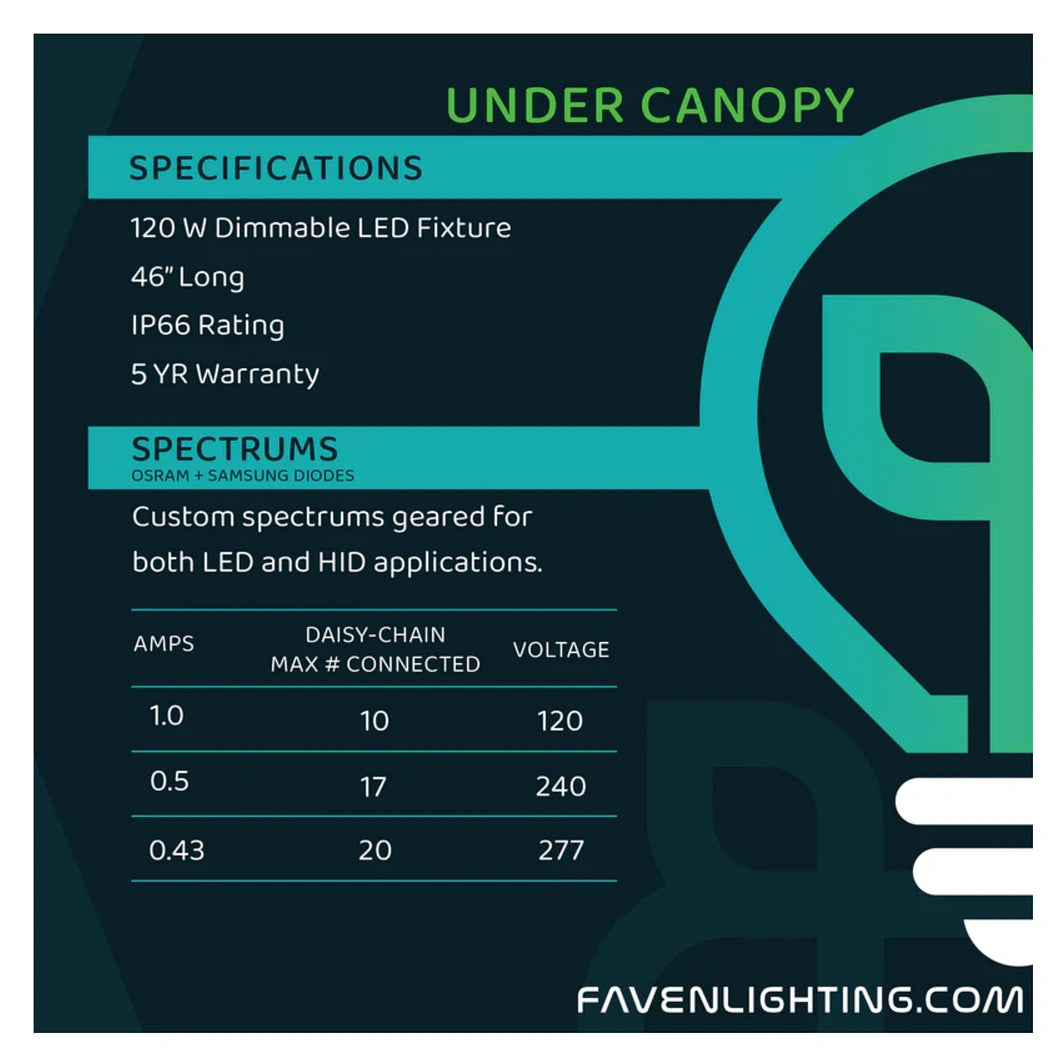

• Daisy-Chain to 20 Bars: Links up to 20 strips per circuit on 120V, 240V, or 277V supplies for full bench or rack coverage.

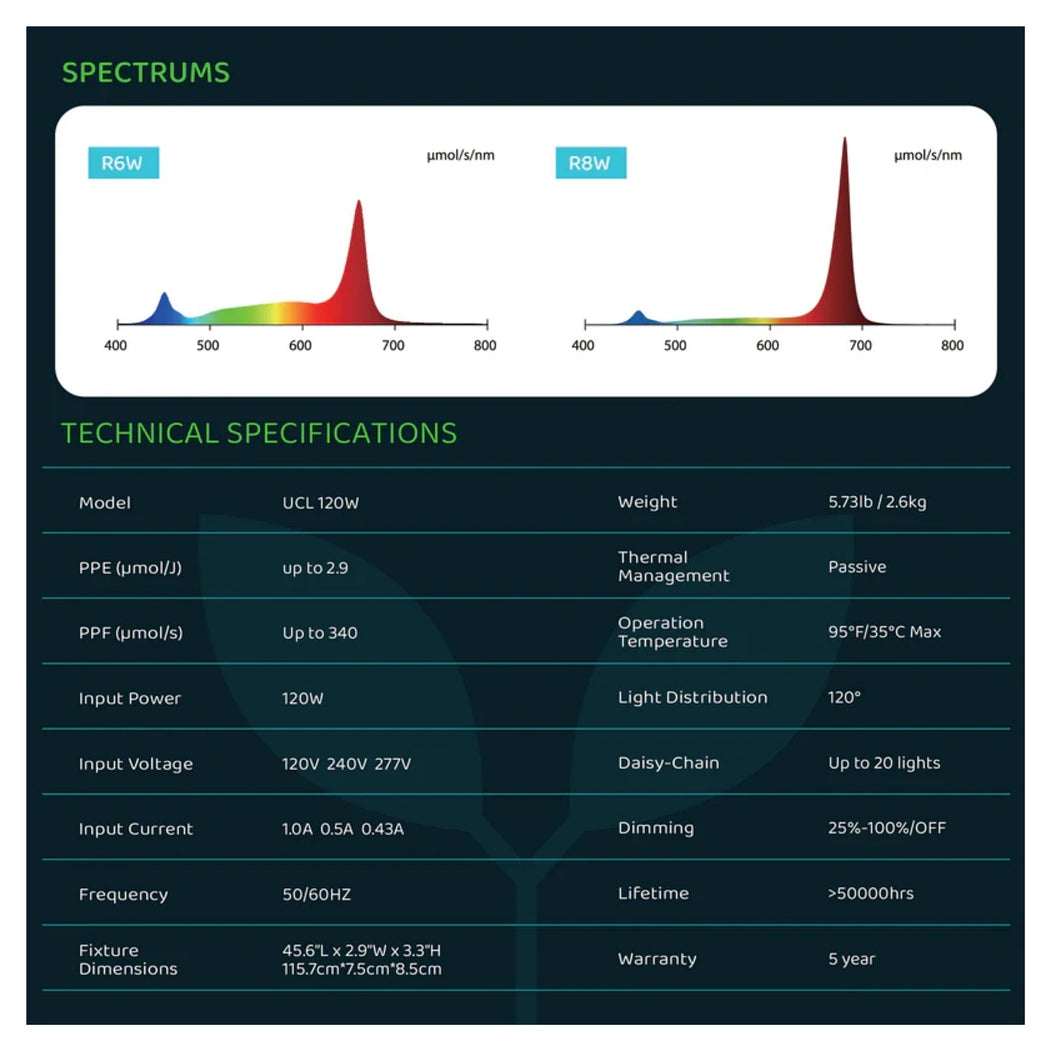

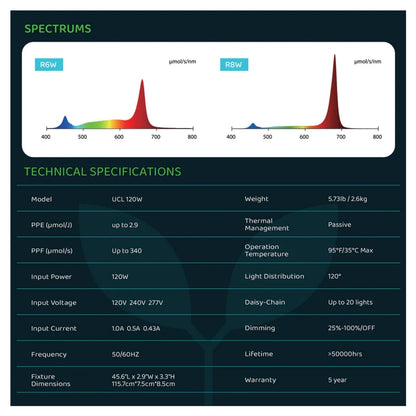

Technical Specifications
