FloraFlex 700W LED Power Cord 277V - 10 ft, 3-Prong Grounded

FloraFlex 700W LED Power Cord for 277V Circuits

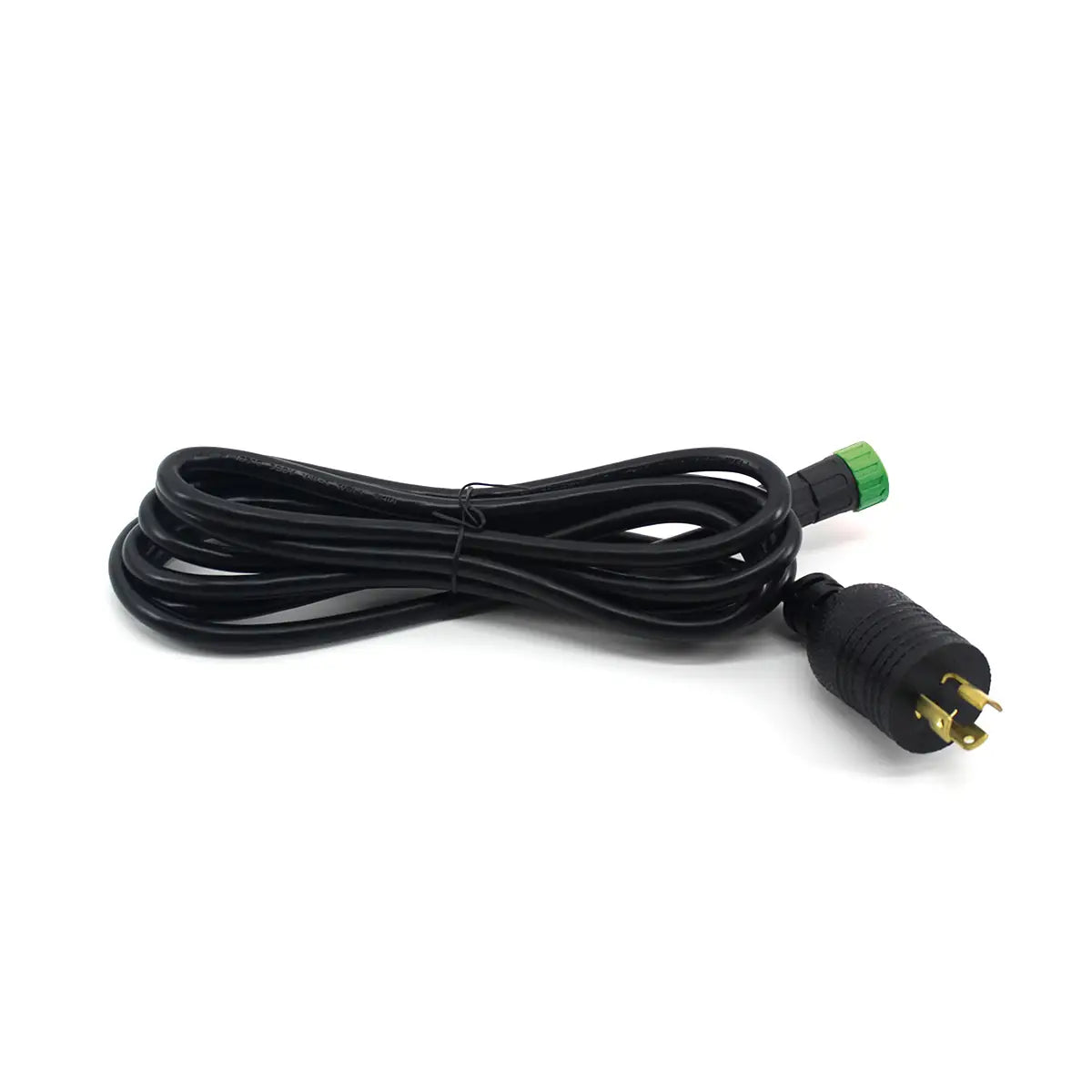

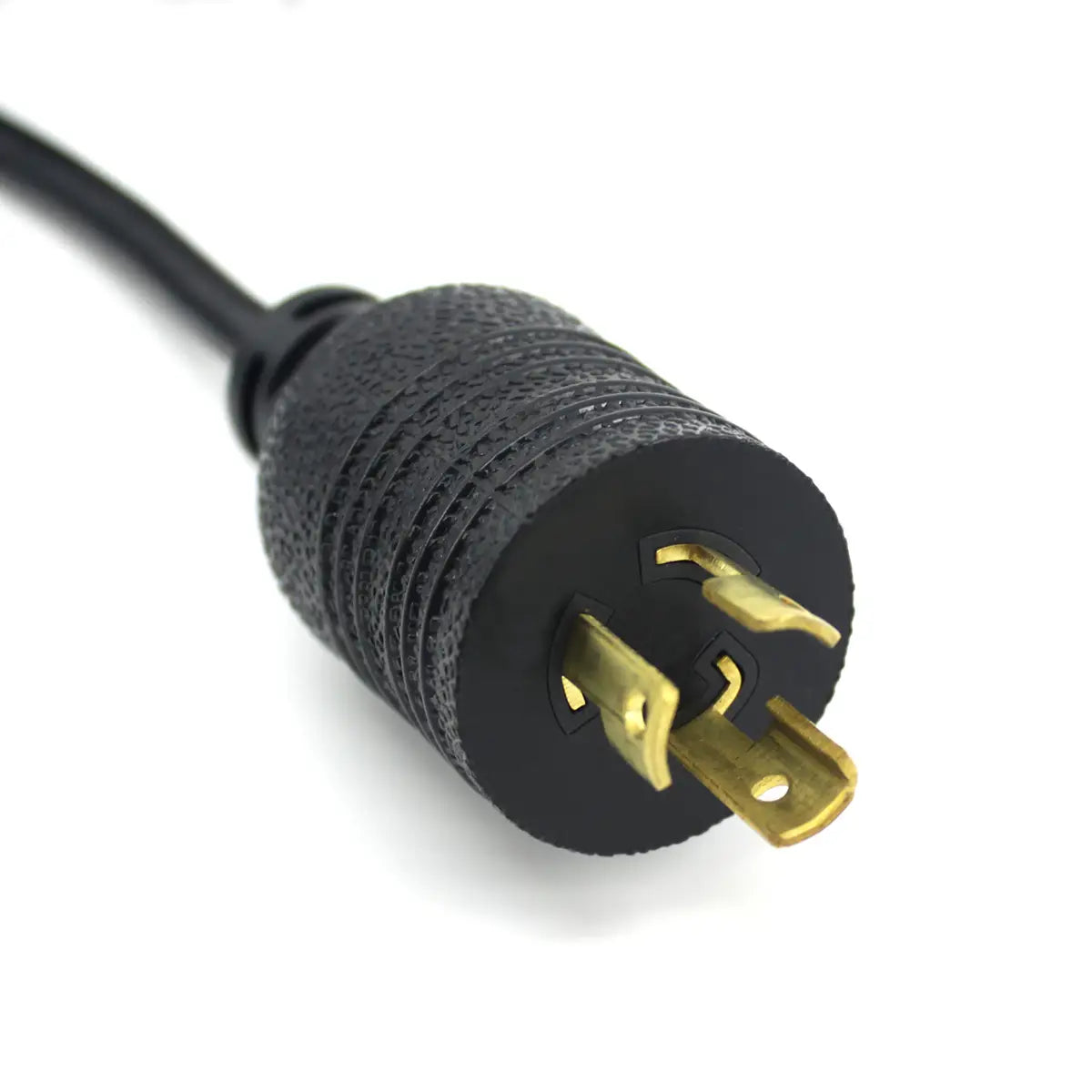

This is the 277V power lead for FloraFlex LED grow lights, including the 700W full-spectrum fixture. It runs 10 ft from the light to the receptacle. That is enough to drop from a hung fixture to an outlet on a wall or ceiling strut. The plug is a three-prong, grounded design, so the fixture housing stays bonded to building ground. FloraFlex lists the cord as part number FLLC-005. The 700W light accepts 120 to 277V AC at 50 or 60 Hz. The cord you pair with it decides which circuit the fixture runs on. At the higher voltage, each light pulls less current than it would on a 120V line. Less current per fixture means more lights fit on one breaker. That is the main reason commercial rooms with three-phase service light at 277V. Keep a spare cord on the shelf so one damaged lead never takes a fixture offline mid-cycle.

Running a 277V Power Cord on Three-Phase Service

This voltage comes from the phase-to-neutral leg of a 480Y three-phase service. That service is common in warehouses and purpose-built commercial grow facilities. Have a licensed commercial electrician install the receptacles and size the branch circuits. Before plugging in, confirm the fixture label lists this voltage in its rated input range. Never adapt the cord to fit a receptacle of a different voltage. At this voltage, the FloraFlex fixture draws about 2.6 A with a power factor of 0.97. Continuous loads such as lighting are held to 80 percent of the breaker rating. On a 20 A circuit, that works out to about six of these fixtures. Hang the light first, then run the cord down with a drip loop below the outlet. The loop lets condensation fall away before it reaches the plug. Secure the slack with hooks or ties so it never crosses a walkway or rests on a hot surface. Check the jacket for cuts or crush marks at each room changeover. Replace a damaged lead rather than taping it. Switch the circuit off before unplugging a fixture that is running.

Key Features

• 277V Rated: Matches FloraFlex 277V LED fixtures, including the 700W.
• 10 ft Length: Reaches from a hung fixture down to a wall or strut outlet.
• Three-Prong Ground: Keeps the fixture housing bonded to building ground.
• Commercial Circuits: Made for three-phase facilities wired with 277V receptacles.
• Part Number FLLC-005: The FloraFlex part number for the 277V lead.
