FloraFlex Under Canopy Kits: Bars, Output and Spectrum Options

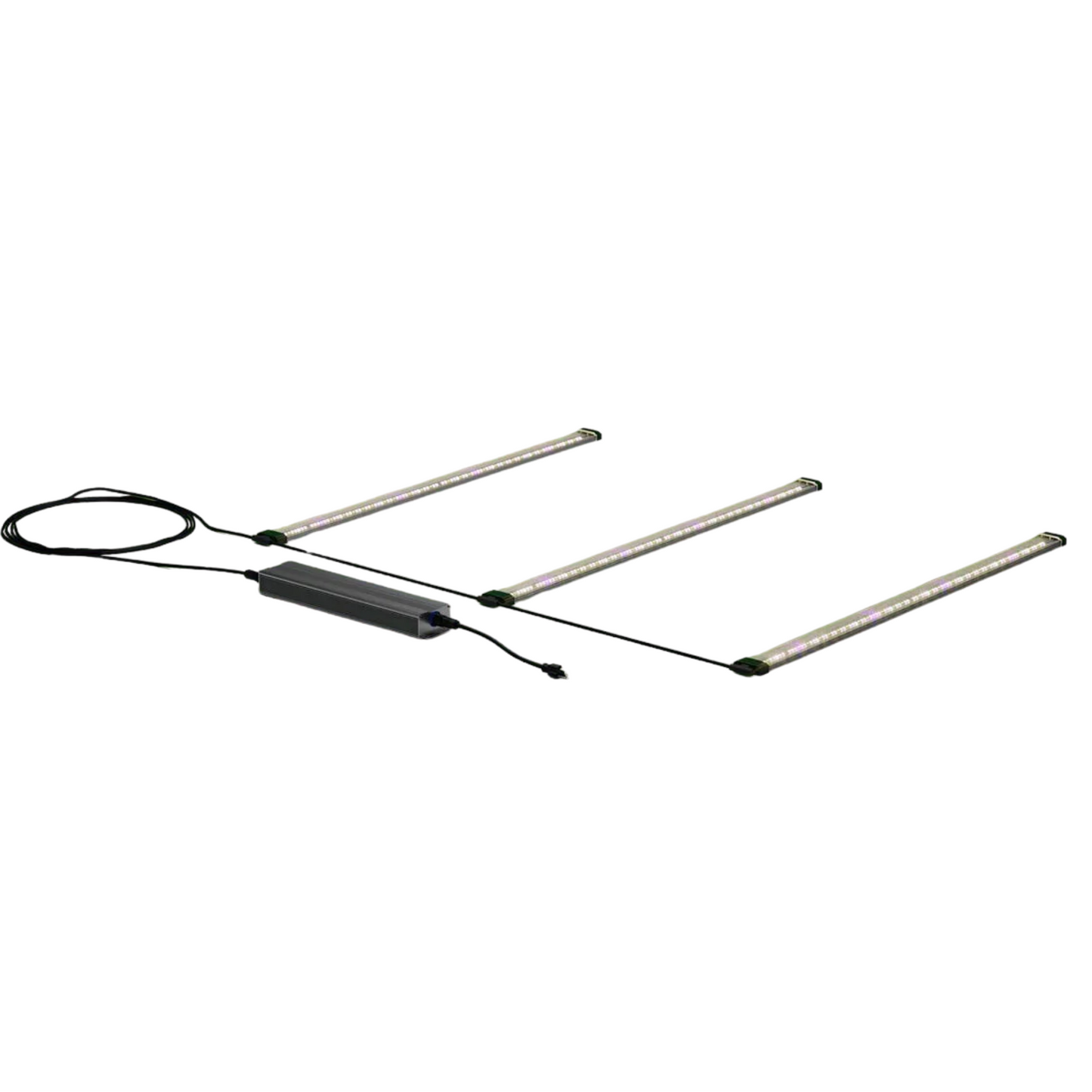

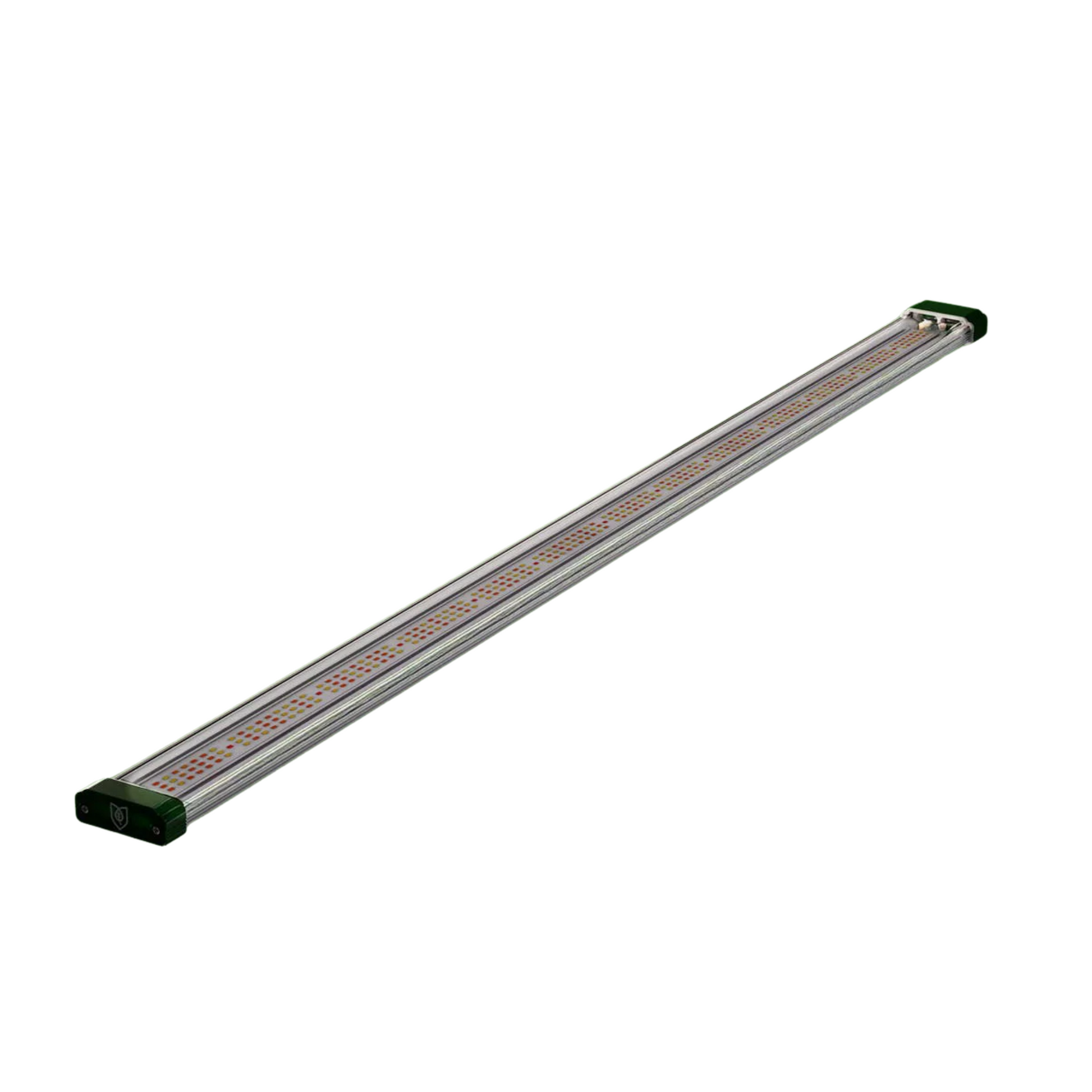

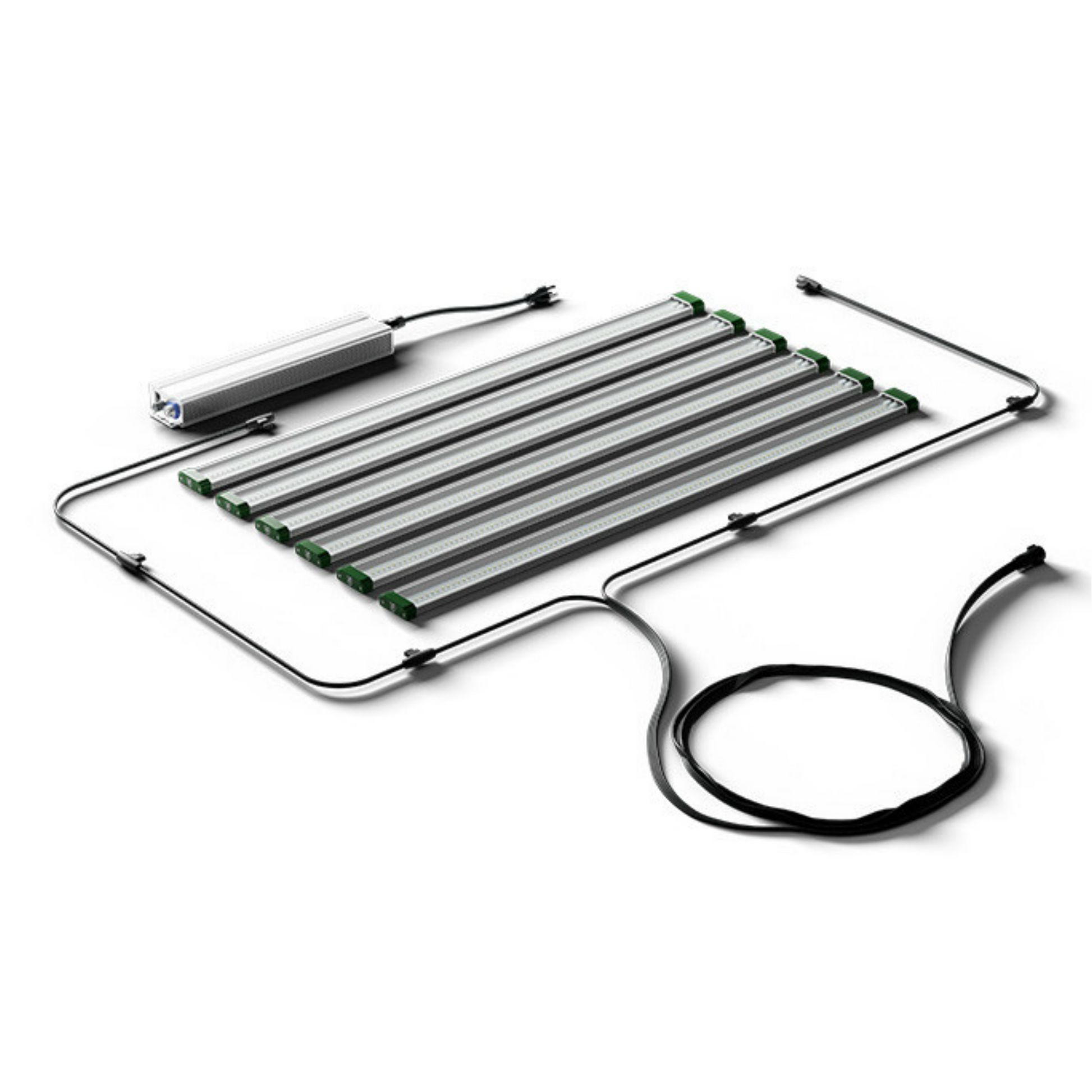

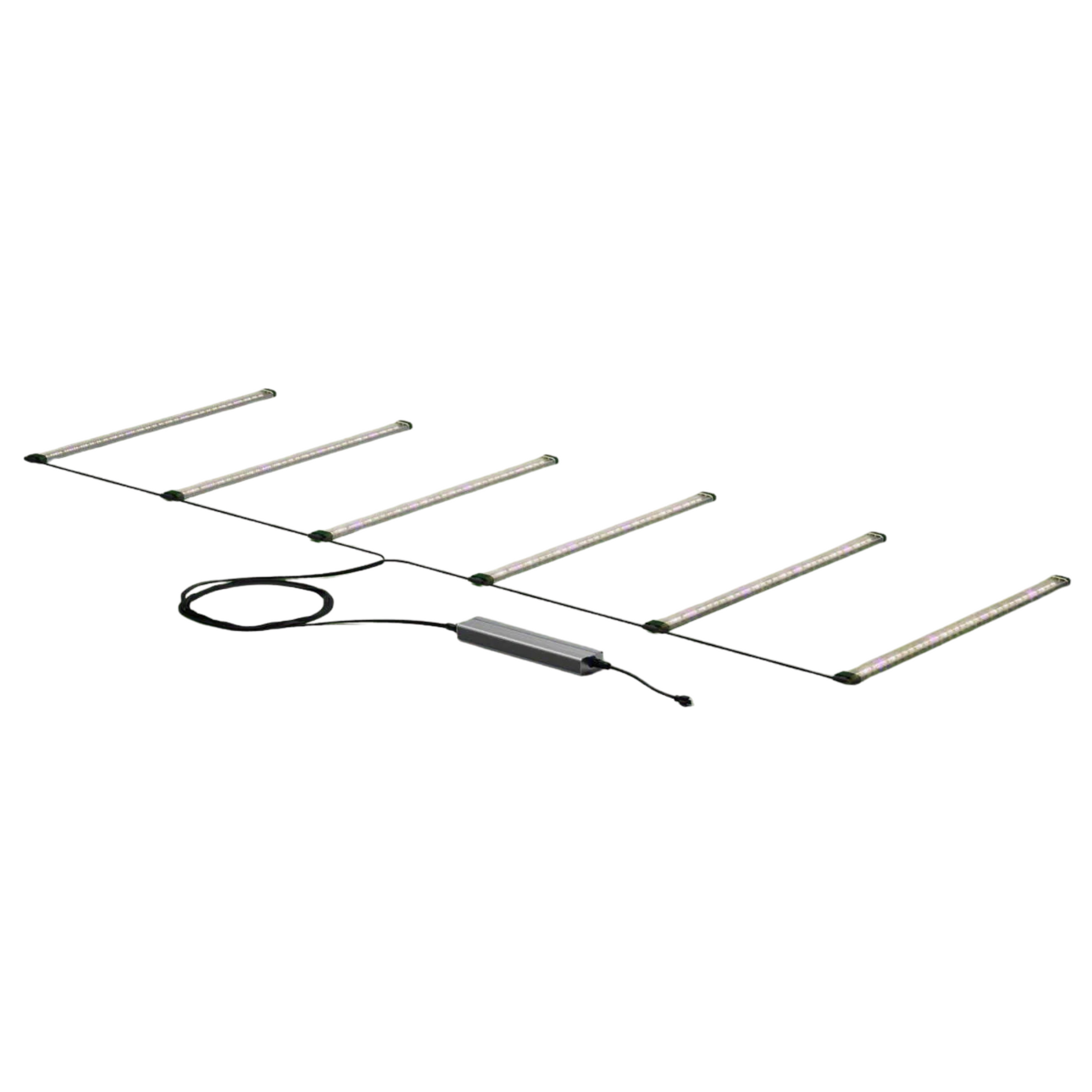

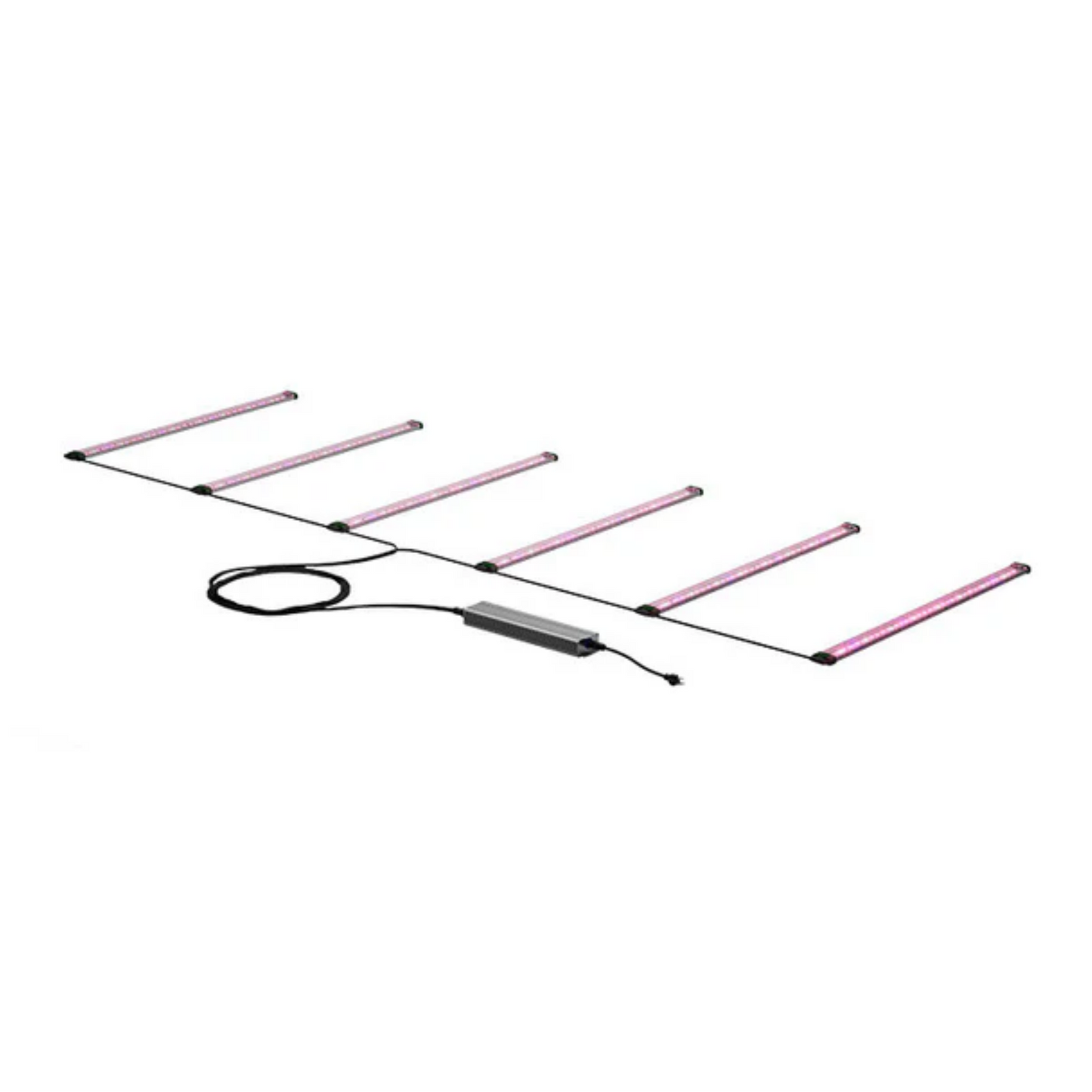

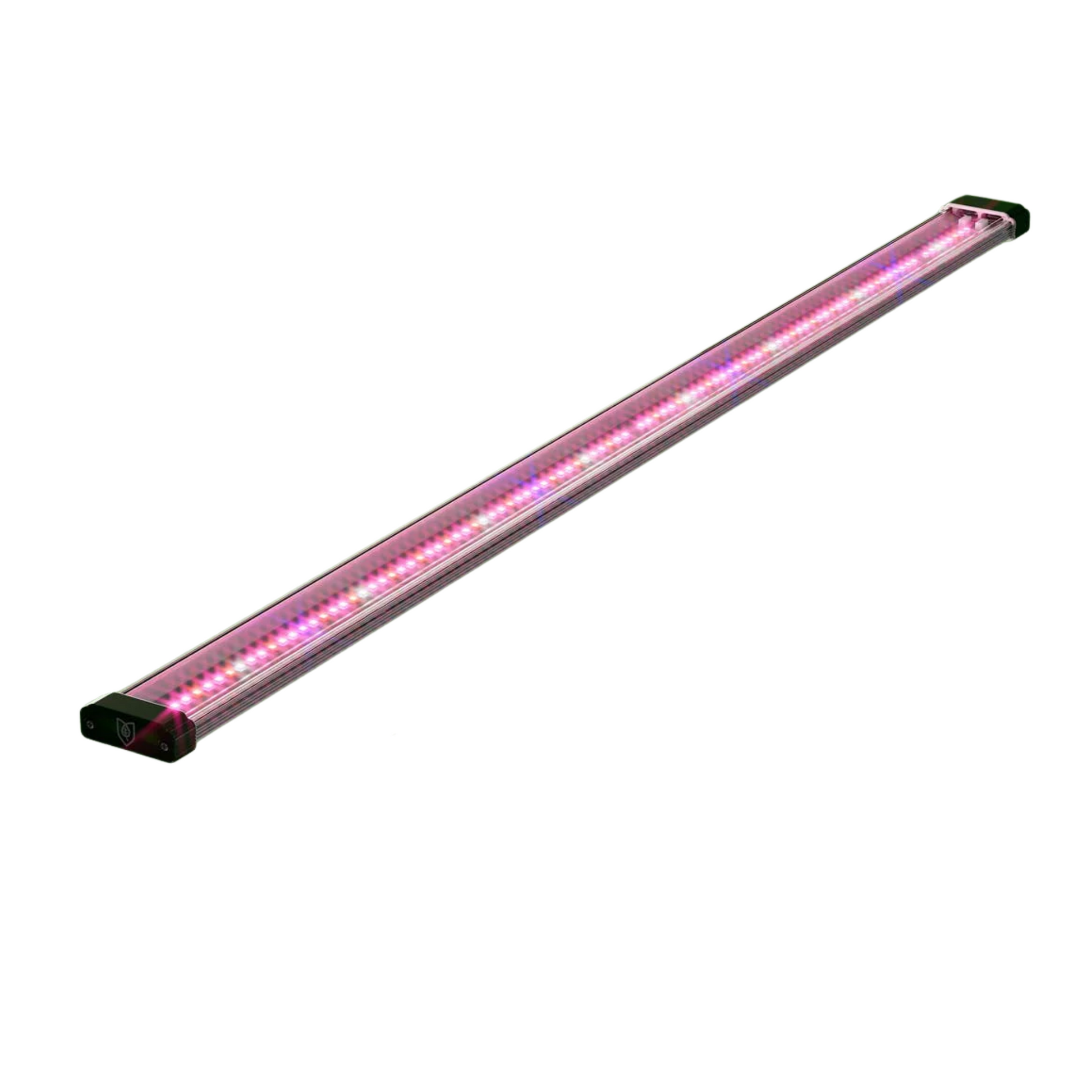

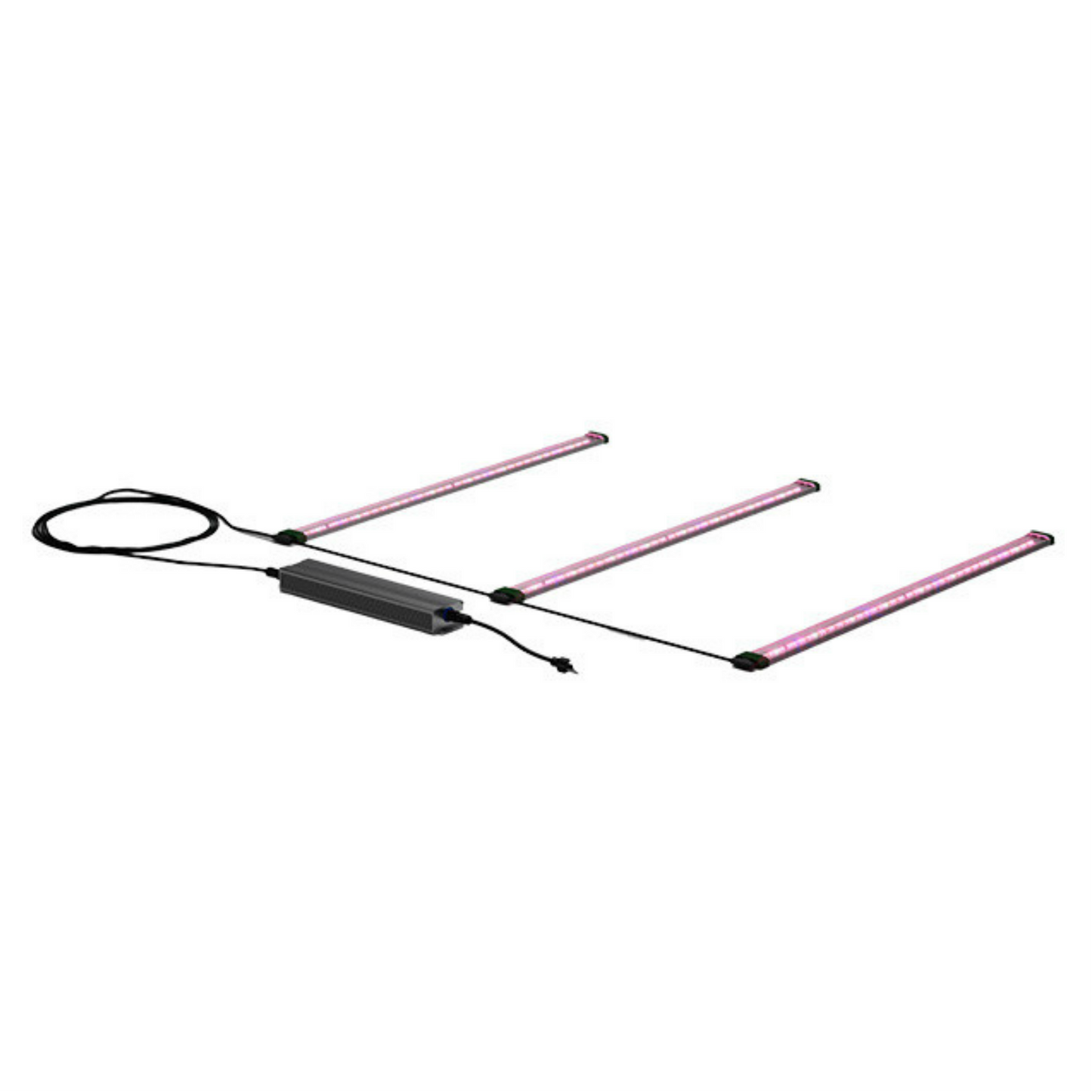

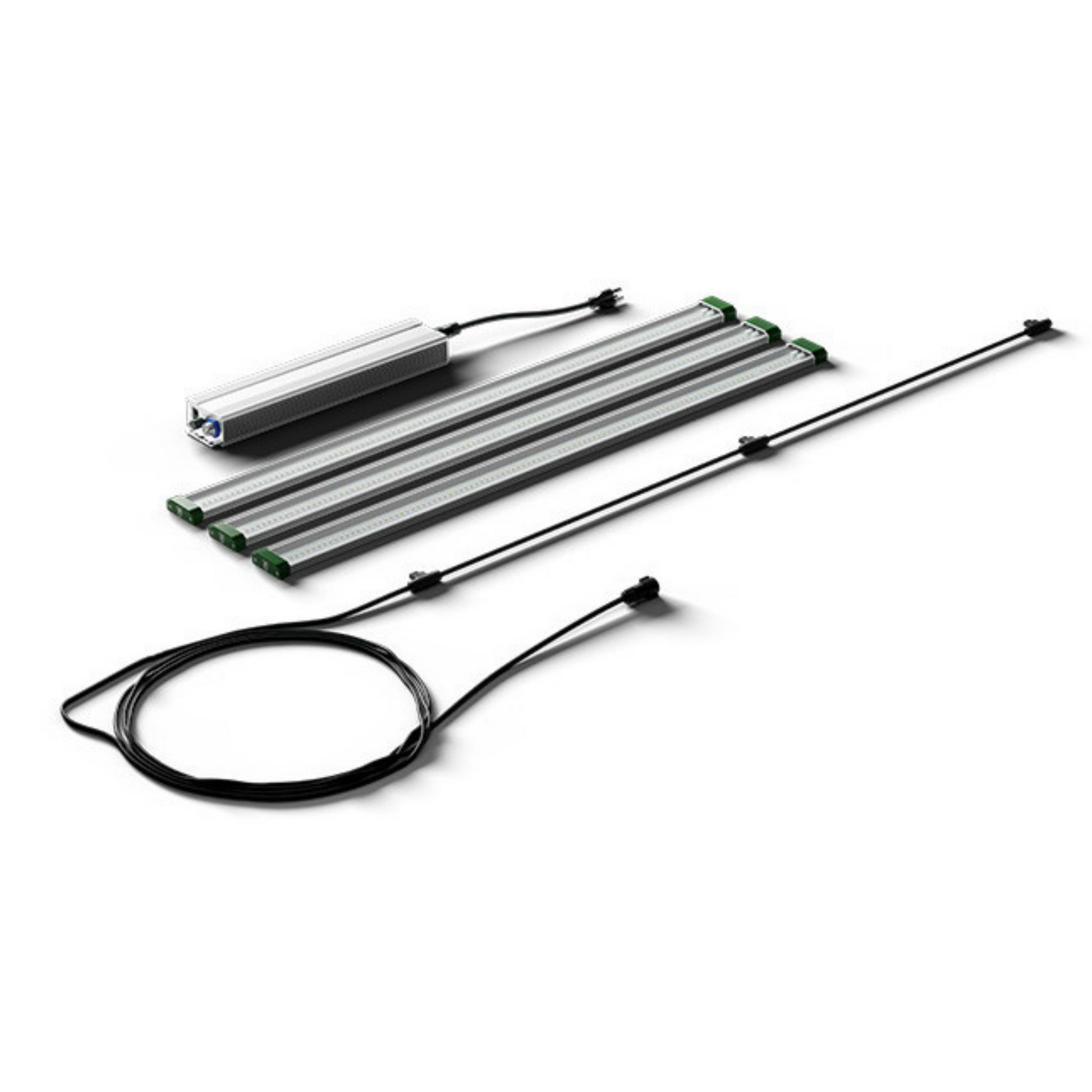

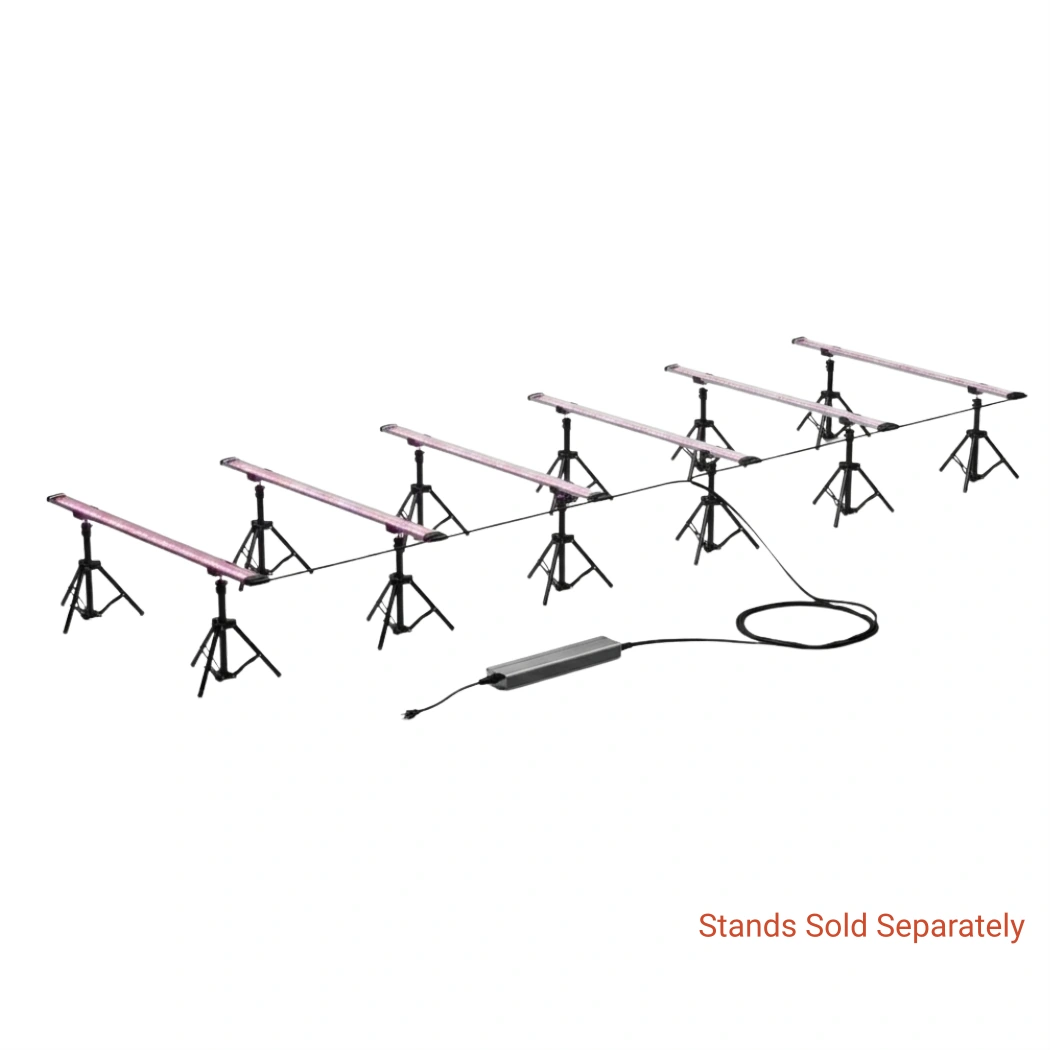

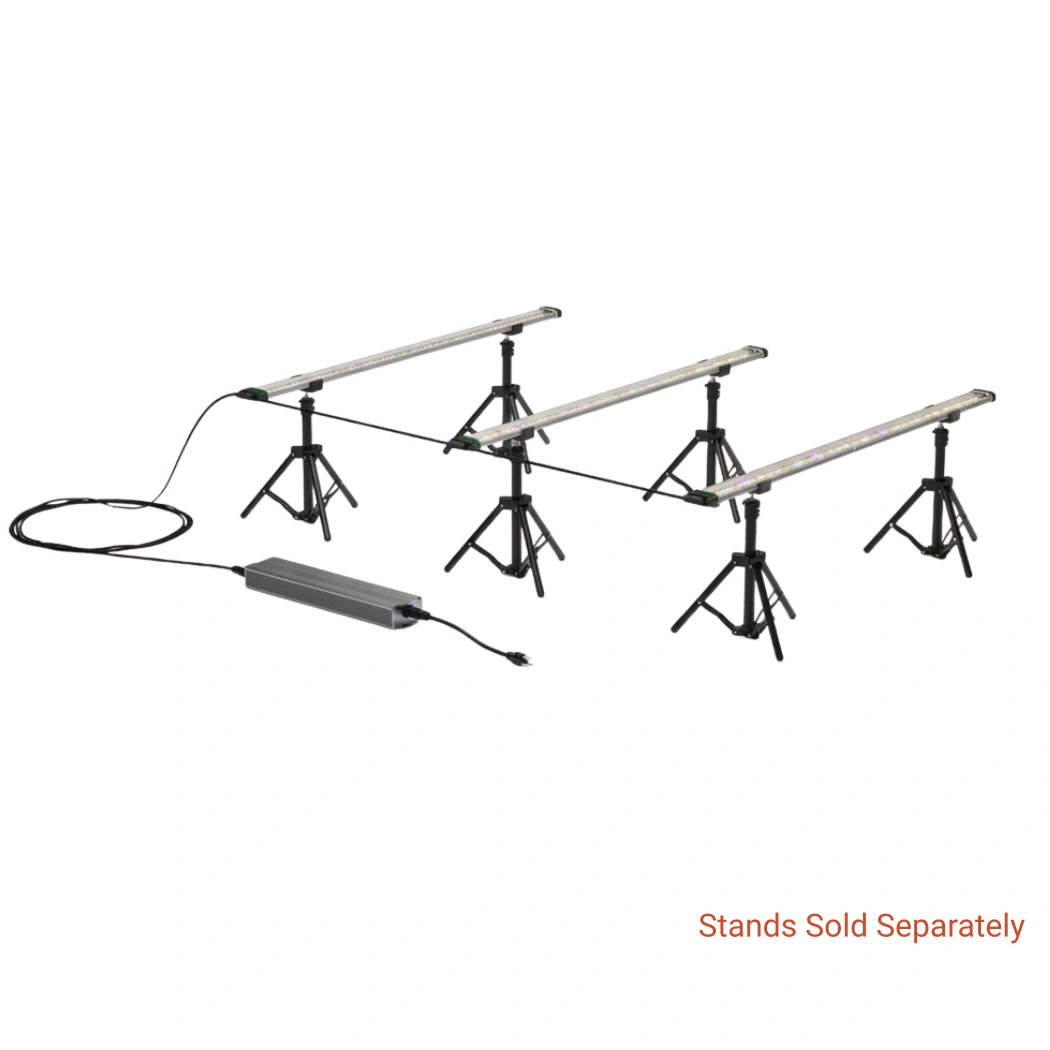

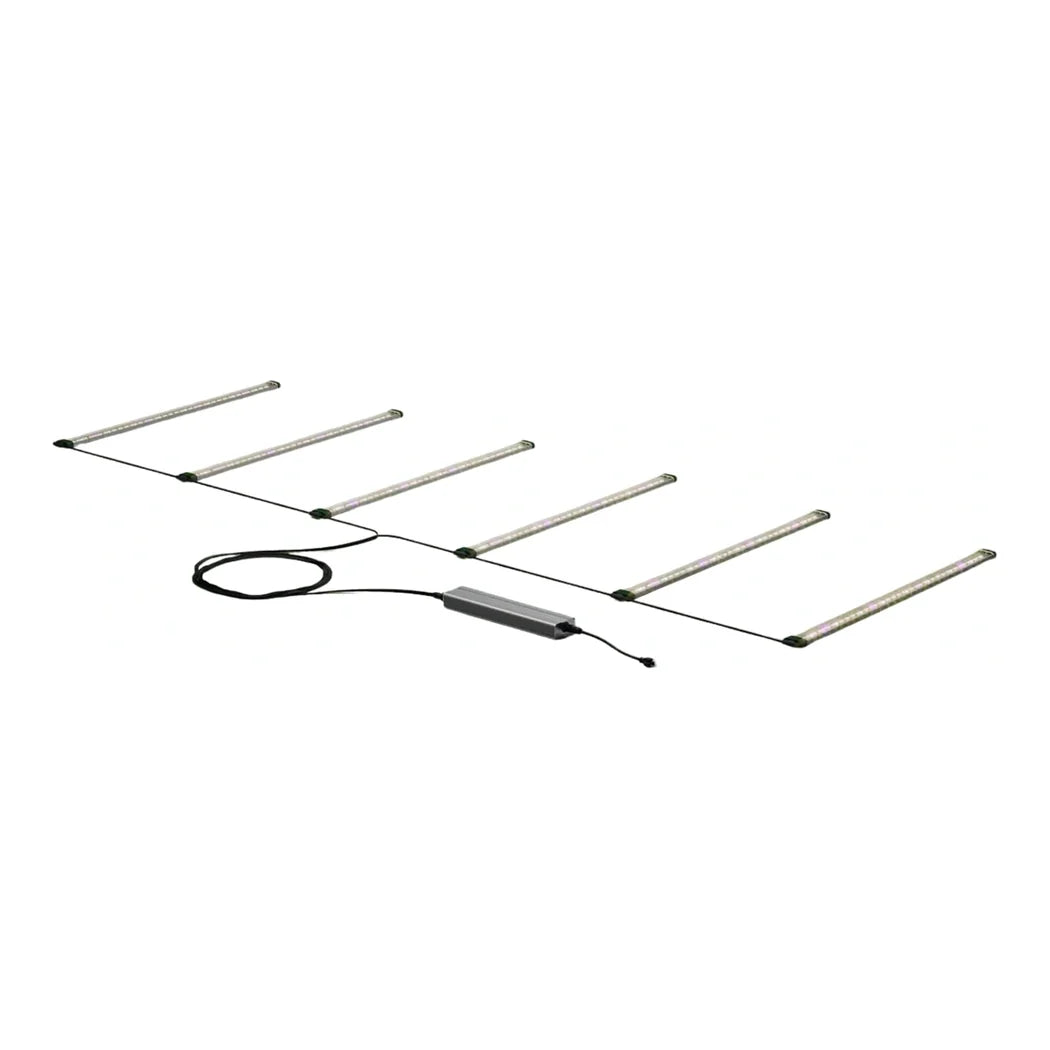

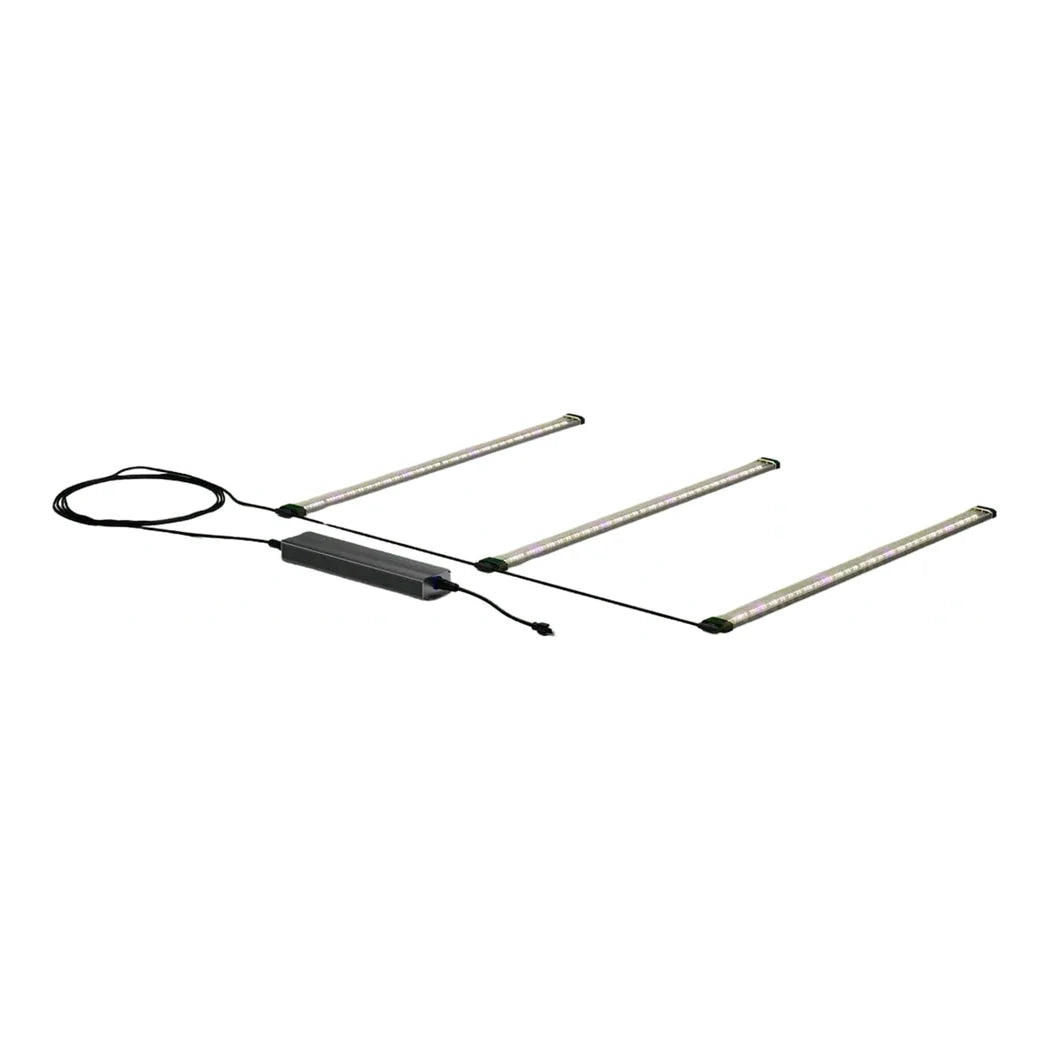

FloraFlex sells its under-canopy light as a kit of 120W bars linked by 24 in cords. The 3-bar kit draws 360W and covers 4 x 4 to 4 x 6 ft of bench. The 6-bar kit draws 720W and stretches to 4 x 8 to 4 x 12 ft. The full-spectrum version puts out 972 µmol/s or 1,944 µmol/s at 2.7 µmol/J. The far-red version runs 1,188 µmol/s or 2,376 µmol/s at 3.3 µmol/J, adding Osram far-red chips to the white diodes. On the 6-bar far-red kit, 612 µmol/s of that output sits in the 700–800 nm band. Every kit dims from 100W to full power on 0–10V and cools passively with no fans. Input runs 120–277V; the 6-bar kit draws 6.13A at 120V, and the 3-bar kit 3.19A. The bars are wet-location sealed, ETL and DLC listed, with a 120° beam and a 95°F ambient limit. FloraFlex backs the far-red kits for 10 years and the full-spectrum kits for 5 years.
Far Red Under Canopy Lights or Full Spectrum: Which Fits

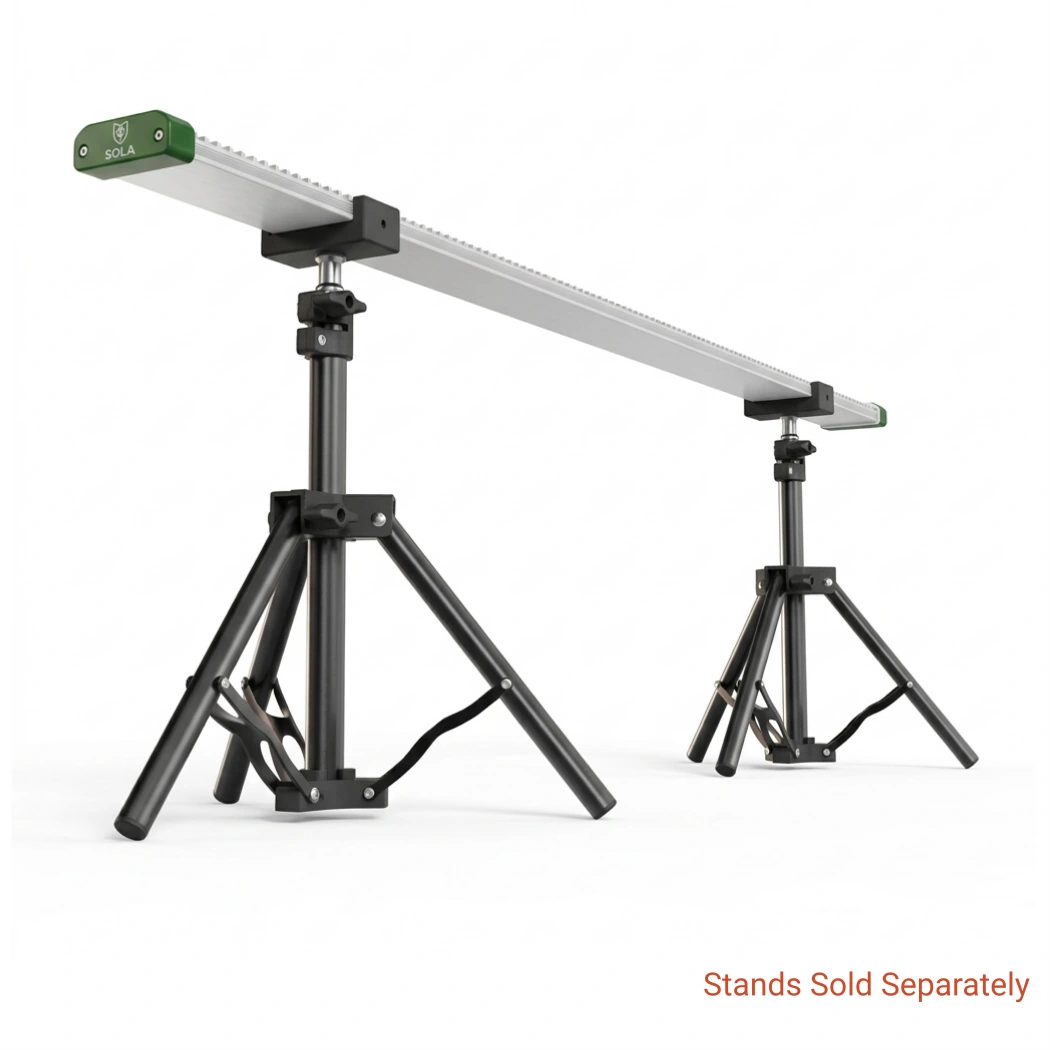

Far red under canopy lights and full-spectrum bars do different jobs, so choose by what the lower canopy lacks. Full-spectrum bars add more usable light where the top fixture fades. That firms up lower bud sites. Far red goes a step further, because far-red photons combined with red drive photosynthesis harder than either one alone. That makes the far-red kit the stronger pick in dense rooms already running efficient white top lights. Hang the bars below the canopy and aim them up into the lower branches after the stretch is done. Bring them in dimmed and raise output over several days so shaded leaves do not scorch. Strip the lowest growth first, since lighting leaves that come off at defoliation wastes power. In a small tent with short plants, there is little lower canopy to feed, and the payback is thin. The 3-bar kit fits a single 4x4 or 4x6 table, while the 6-bar kit runs the length of a 4x8 or longer bench. Match the voltage to the circuit under the benches, since that decides the cord set.
Key Features
- Two kit sizes: A 3-bar 360W kit for 4x4 to 4x6 tables or a 6-bar 720W kit for 4x8 to 4x12 benches.
- Far red or full spectrum: Far red at 3.3 µmol/J for photosynthesis boost, or full spectrum at 2.7 µmol/J for more usable light.
- 100W to full power on 0–10V: Ramp the bars in gently and tie them to the room controller.
- Passive, sealed bars: No fans, and housings built for drip lines and wash-downs.
- ETL and DLC listed: Supports inspections and utility rebate paperwork.
- 10-year far-red warranty: Far-red kits carry double the warranty of full-spectrum kits.
Technical Specifications
| Specification | Value |
|---|---|
| Kit Options | 3 x 120W bars (360W) or 6 x 120W bars (720W) |
| Dimming Range | 100W to full power, 0–10V |

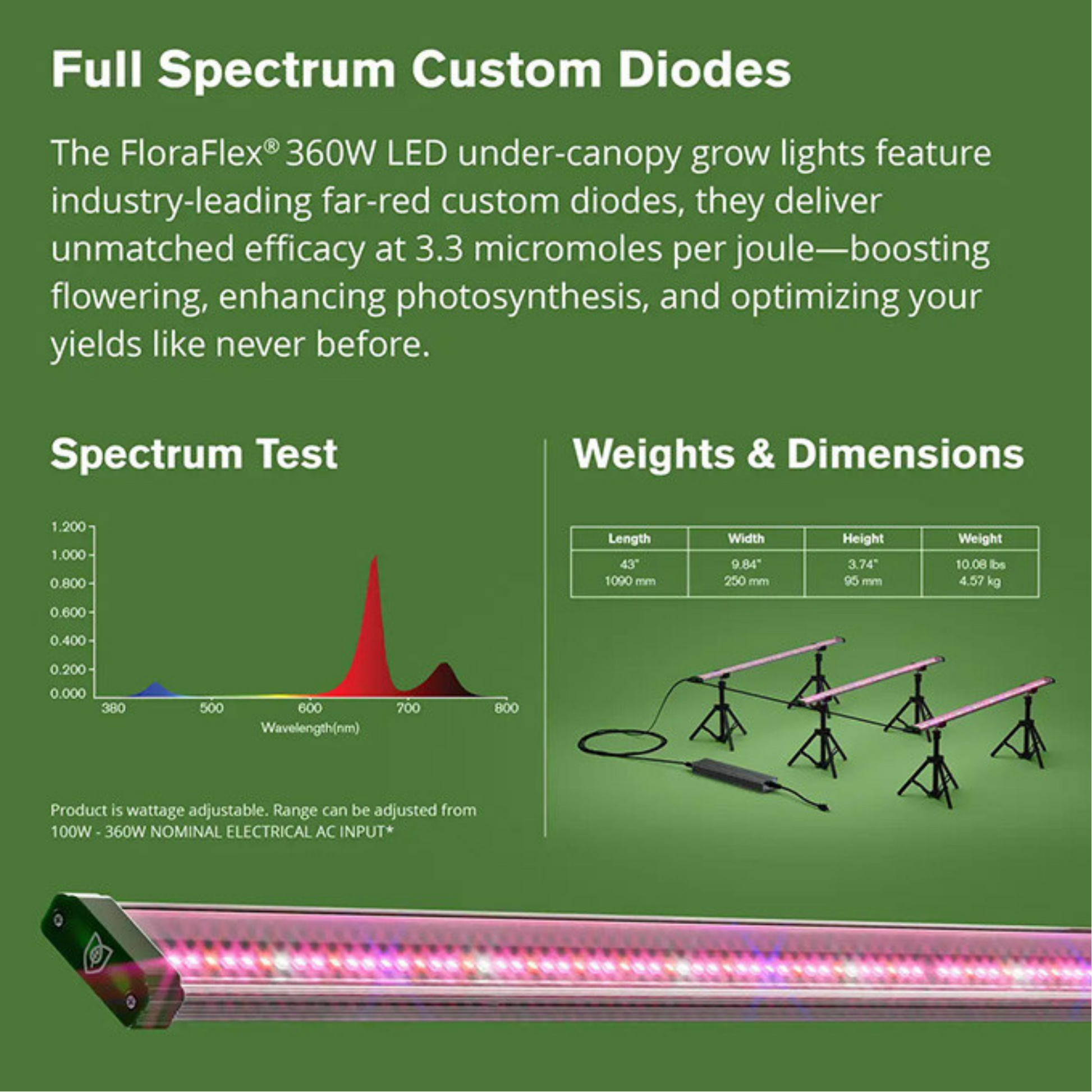

| Full Spectrum PPF | 972 µmol/s (3-bar) / 1,944 µmol/s (6-bar) at 2.7 µmol/J |

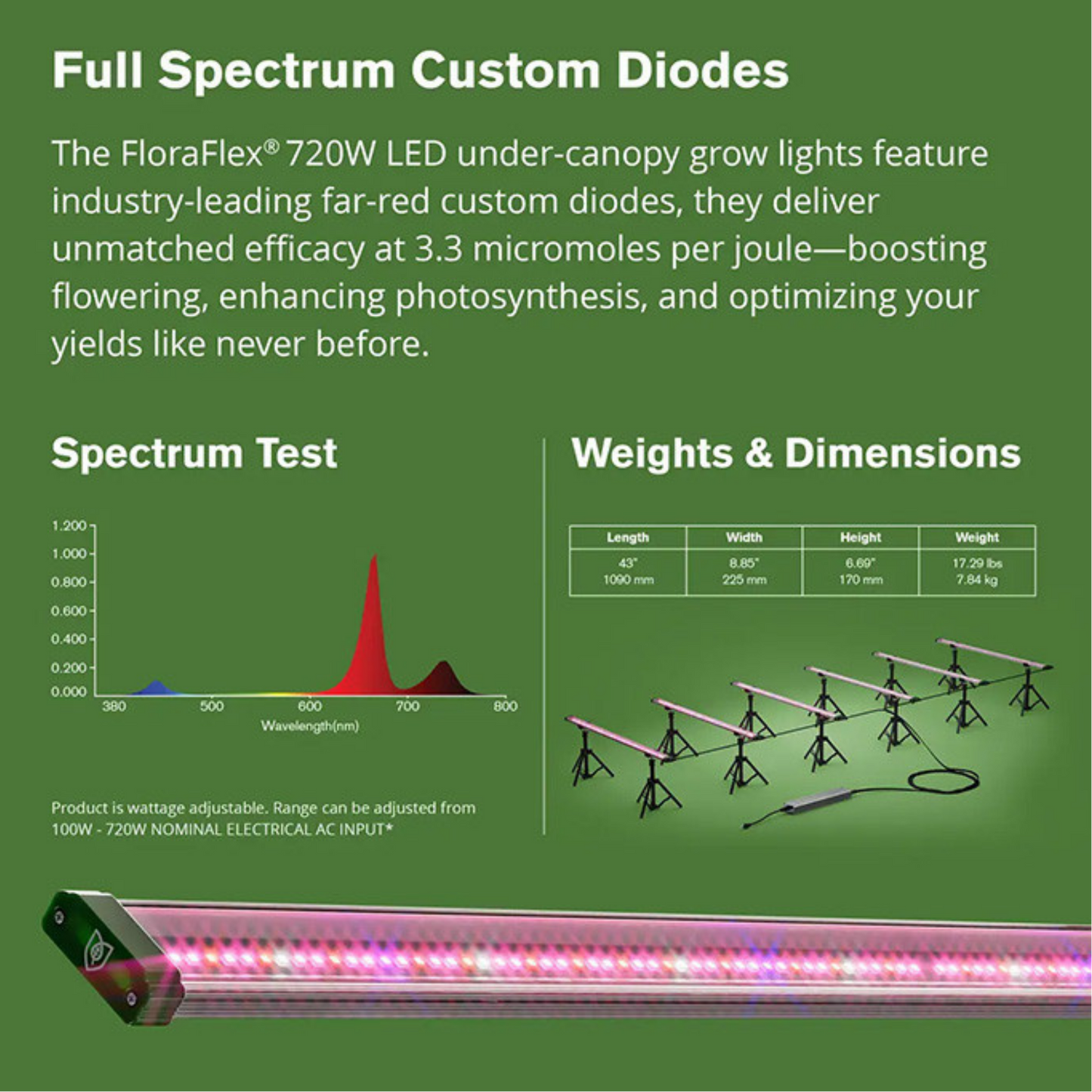

| Far Red PPF | 1,188 µmol/s (3-bar) / 2,376 µmol/s (6-bar) at 3.3 µmol/J |

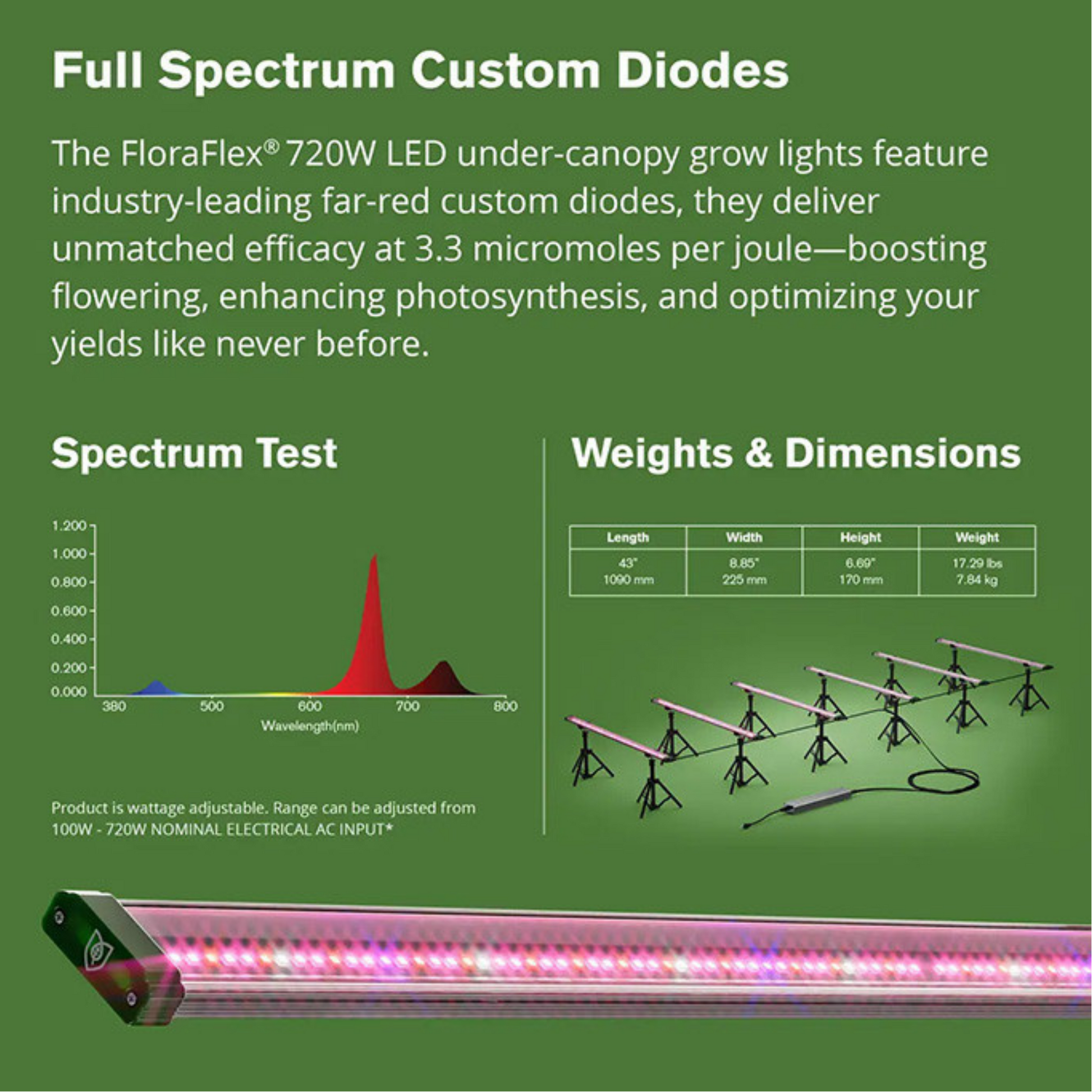

| Far-Red Band (6-bar far red) | 612.3 µmol/s at 700–800 nm |
| Growth Phase | Flower supplement, under canopy |
| Coverage | 4 x 4 to 4 x 6 ft (3-bar); 4 x 8 to 4 x 12 ft (6-bar) |
| Input Voltage | 120–277V, 50/60 Hz (120V, 240V, 277V versions) |
| Current, 3-bar | 3.19A @ 120V, 1.6A @ 240V, 1.35A @ 277V |
| Current, 6-bar | 6.13A @ 120V, 3.02A @ 240V, 2.60A @ 277V |
| Cord Between Bars | 24 in |
| Light Distribution | 120° |
| IP Rating | IP65 per product listing (720W full-spectrum spec sheet lists IP64) |
| Cooling | Passive |
| Max Ambient | 95°F / 35°C |
| Certifications | ETL, DLC |
| Warranty | 10 years far red; 5 years full spectrum |
