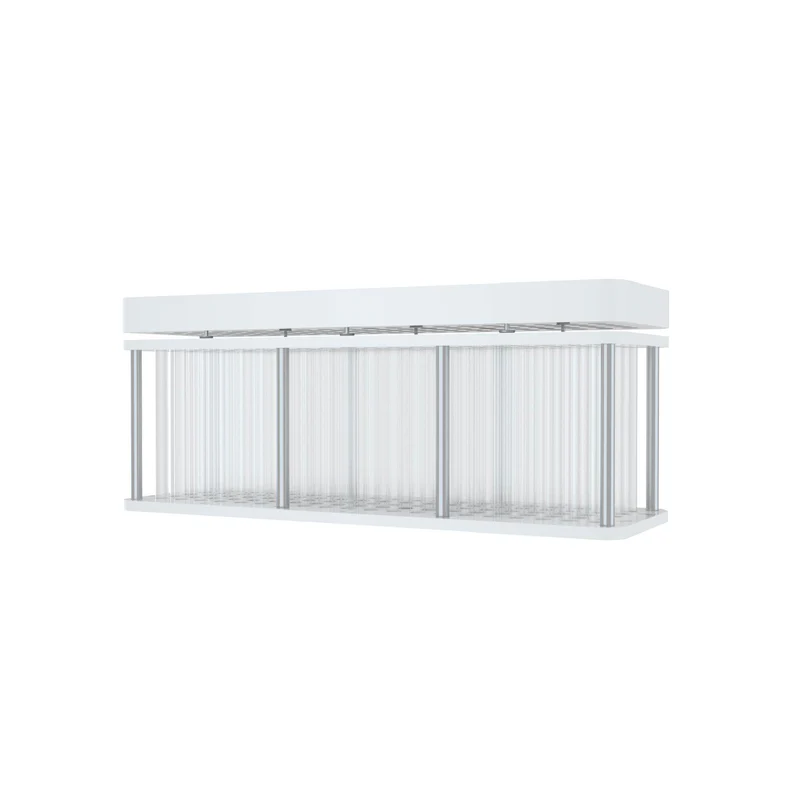

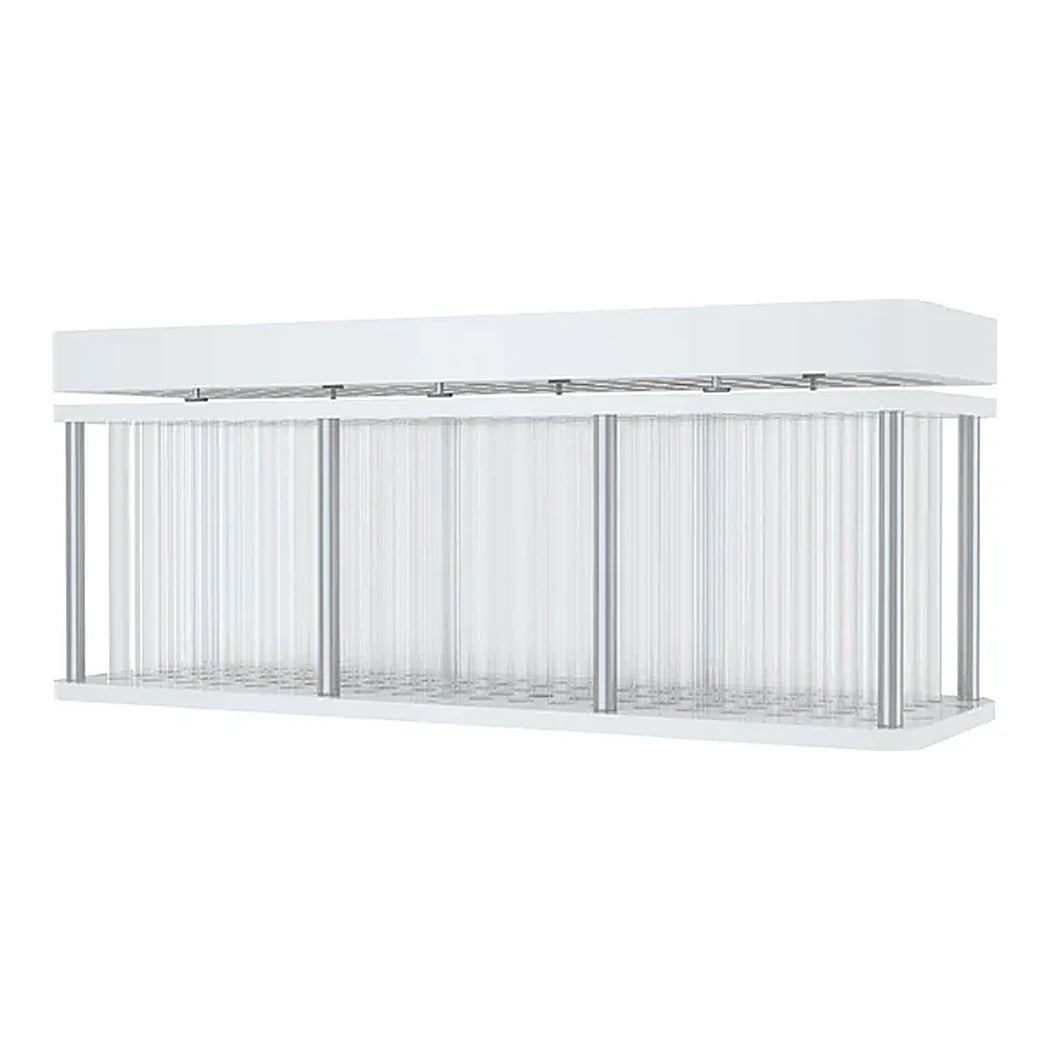

The Throughput Behind the Futurola KB300 Fatboy Filling Device
The Knockbox 300 fills 300 pre-rolls in 90 seconds, depending on which kit is fitted. Fatboy is the heaviest of those kits because each cone takes 3.0 grams. A full plate therefore carries nine hundred grams of material in one load. The cone is 120/30 with a 15 mm crown aperture. Those dimensions are what make the tooling specific; a narrower plate will not seat this cone. Material weight per cycle is the practical constraint rather than the clock. Loading, levelling and knocking nine hundred grams by hand takes longer than the rated 90 seconds suggests. Plan on the machine time being a fraction of the operator time. What ships is the plate on its own. Knockbox 3 base, controller and power cord, spill tray, mix tray and unload station are separate items. Complete KB300 kits weigh 8 to 12 pounds depending on the size.
Matching a 300 Cone Filling Plate to the Rest of the Line
A 300 cone filling plate only earns its rate if the stations either side of it keep up. The grinder has to deliver enough prepared material to fill a plate without a pause. The unload station has to clear a full plate before the next one is ready. This plate uses the Basic unload grade. Operators running mixed sizes usually batch by cone rather than switching plates mid-shift. A swap takes about a minute, but recalibrating the fill by weight afterwards takes longer. Keep the plate flat when it is off the machine. A warped plate shows up as one light row rather than as an obvious fault. Clean the funnels with isopropyl between runs, because resin narrows the taper and quietly reduces the fill. One limit to plan around if the room is scaling. The Knockbox 500 does not accept this plate, so this cone caps out at the 300. That is a constraint of the machine range rather than of the Fatboy format.
Key Features
- Cut for the 120/30 Fatboy: A 15 mm crown aperture, with bore spacing to match.
- 3.0 grams per cone: A full plate carries roughly nine hundred grams of material in one load.
- Fits the Knockbox 300: Rated at 300 pre-rolls in 90 seconds, qualified by the kit fitted.
- Basic unload grade: The grade for this cone size.
- A plate, not a machine: Knockbox 3 base, controller, spill tray, mix tray and unload station are separate.
- Caps out at the KB300: The Knockbox 500 does not accept this plate.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Futurola |
| Product | KB300 Fatboy filling device |
| SKU | P01-04-04-KB300 |
| Machine | Knockbox 300, also known as Knockbox 3 |
| Cone size | Fatboy 120/30 |
| Cone capacity | 3.0 grams |
| Crown diameter | 15 mm |
| Material per full plate | About 900 grams |
| Machine rate | 300 pre-rolls in 90 seconds, depending on the kit fitted |
| What is included | The filling device only |
| Sold separately | Knockbox 3 base, controller and power cord, spill tray, mix tray, unload station |
| Unload station grade | Basic |
| Plate interchangeability | Within a Knockbox 300; KB100 and KB300 plates are not interchangeable |
| Not compatible with | Knockbox 500 |
| Kit weights | 8 to 12 lb for complete KB300 kits, depending on the size |
