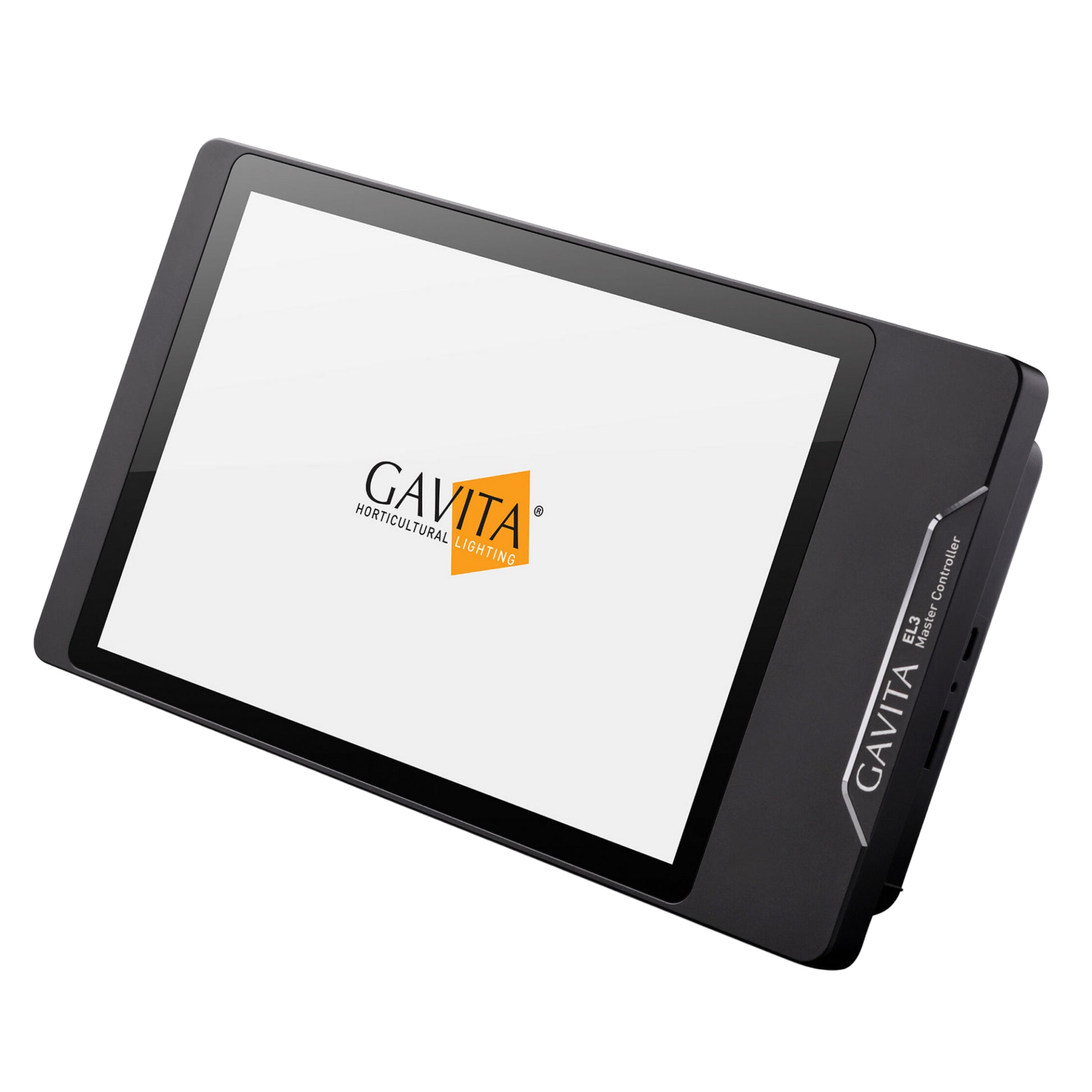

A grow light controller for up to 512 fixtures
The EL3 switches, dims, and boosts up to 512 fixtures across two zones, 256 per zone, from a single 8-inch color touchscreen. Whether the fixtures hang over greenhouse benches or an indoor grow room, you run schedules from one panel instead of walking the rows. It reads power draw and driver-enclosure temperature per fixture, so a hot or failing driver surfaces before it costs you a cycle. Sunrise and sunset dimming ease the room in and out of each photoperiod.
In a greenhouse, it manages supplemental lighting and day-length across zones as natural light shifts through the season. In a sealed indoor room, it holds a tight photoperiod so a full canopy of plants stays on the same clock. Growers wire it to compatible Gavita 1930e, 1700e, 900e, or Sun System 1850 fixtures and run whole grow cycles on one schedule. Managing the room from one screen cuts the walking, guesswork, and missed timers that cost yield.
Scheduling and safety on the Master Controller EL3
High-temperature dimming pulls output back as a room heats, and high-temperature shut-off cuts the lights if it crosses the line. That protects the canopy through a heat spike. A spray feature dims fixtures during applications to guard against crop burn during IPM. It connects up to 16 Titan Controls sensors for VWC, EC, and VPD data and logs setting and alarm history over USB. That log helps you dial in cycles and trace a fault later.
Key Features
- 512 Fixtures, Two Zones: Runs up to 256 fixtures per zone, 512 total, from one panel.

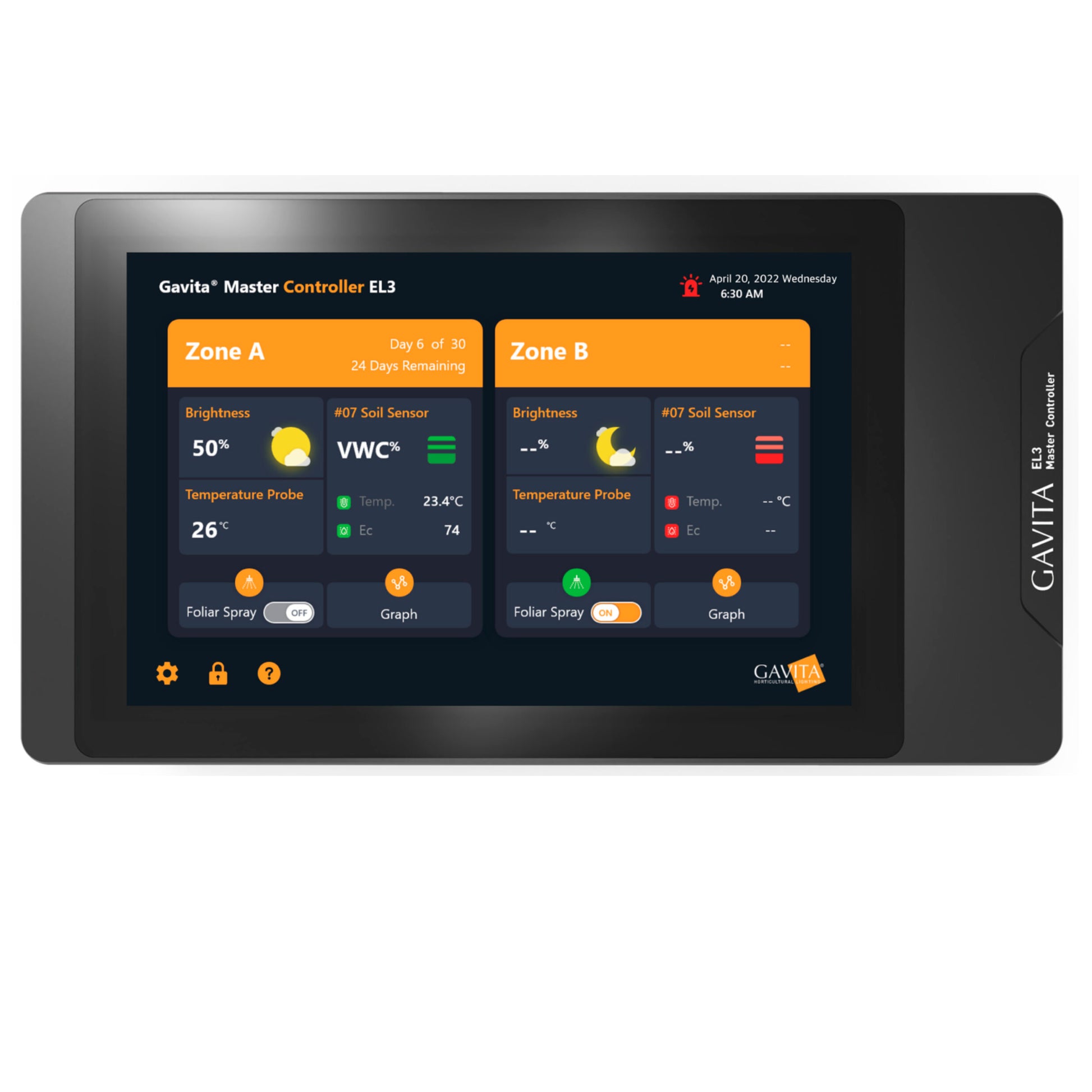

- 8-Inch Touchscreen: Color touchscreen sets schedules, dimming, and zones on the unit.
- Sunrise and Sunset Dimming: Ramps intensity up and down to ease each photoperiod.
- High-Temp Dimming and Shut-Off: Pulls output back or cuts power when a room overheats.
- Per-Fixture Power and Temp Reading: Shows power draw and driver temperature for each fixture.
- Spray Mode: Dims lights during spray applications to protect against crop burn.
- 16 Titan Sensors: Connects up to 16 Titan Controls sensors for VWC, EC, and VPD.

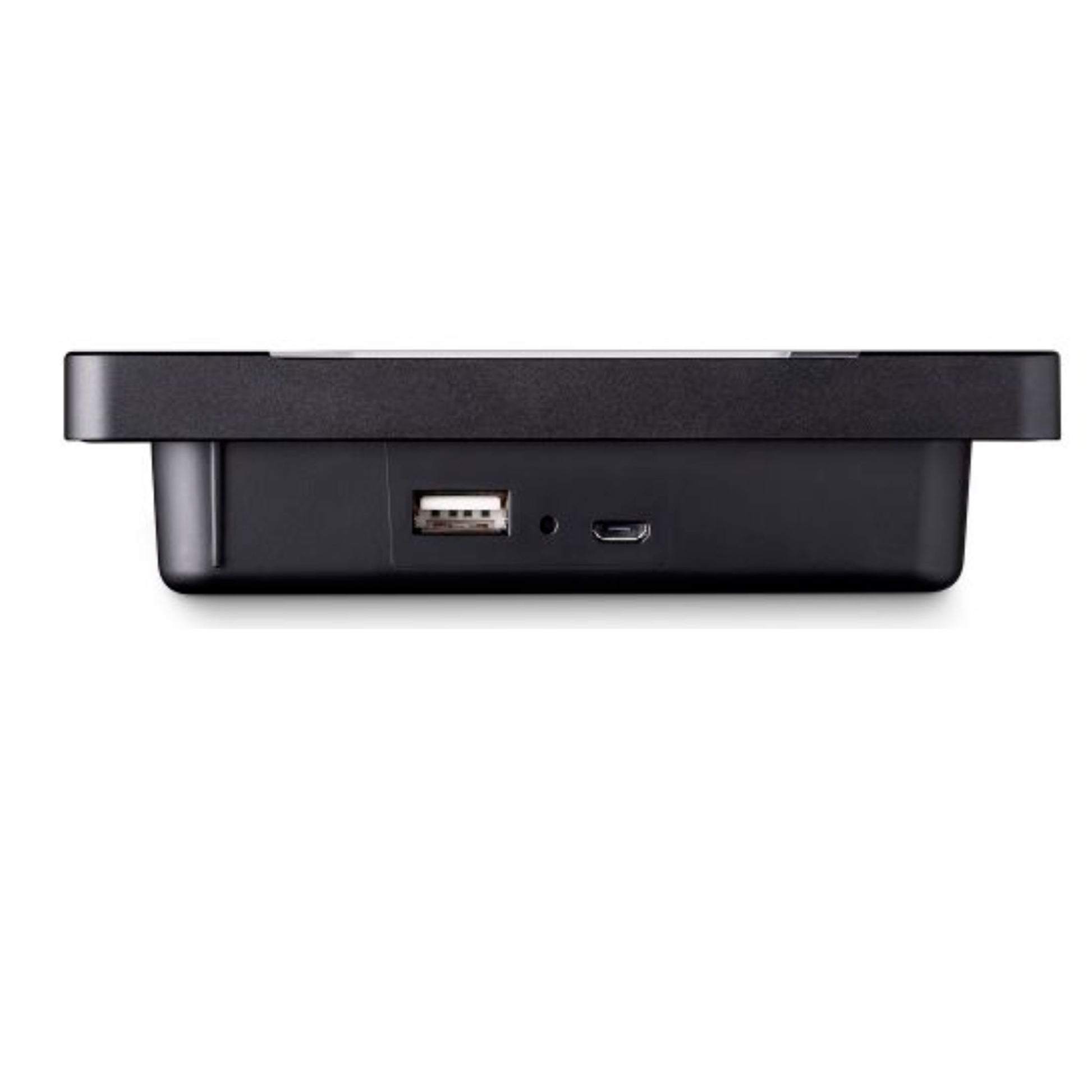

- Data Logging + USB Updates: Logs setting and alarm history and updates over USB.
Technical Specifications
| Specification | Value |
|---|---|
| Display | 8-inch color touchscreen |
| Fixture Capacity | 512 (256 per zone, 2 zones) |
| Dimming | Sunrise/sunset, high-temp dimming |
| Safety | High-temperature shut-off, spray mode |
| Fixture Readings | Power draw + driver temperature |
| Sensors | Up to 16 Titan Controls (VWC/EC/VPD) |
| Data | Logging + USB updates |
| Operating Range | Up to 90% humidity, >50°C |
| Compatible Fixtures | Gavita 1930e, 1700e, 900e; Sun System 1850 |
