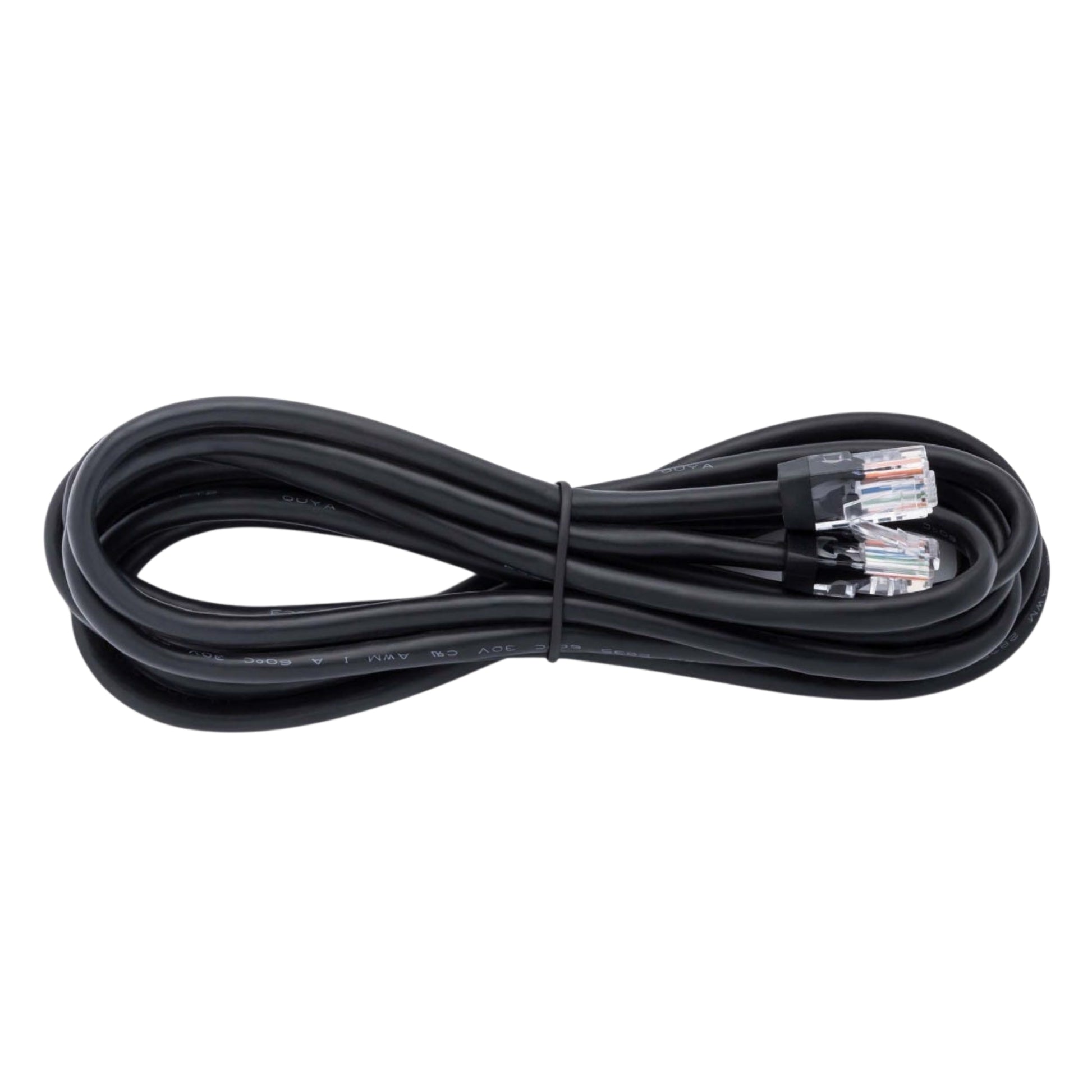

Gavita Pro Interconnect Cable 10 ft RJ45 for Master EL3 Daisy Chains
10 ft (3 m) RJ45 (8P8C) control-signal cable. Runs the Single Bus communication line between Gavita LED fixtures and a Master Controller EL3. Plug one end into the controller and daisy-chain fixture-to-fixture down the row. The EL3 handles synchronized dimming, schedule control, and over-temp shutdown across every fixture on the line.
Daily Use of the Gavita 10 ft Interconnect Cable
Signal cable, not power. Each segment links one fixture to the next or to the Master Controller. Cable length and chain sequence matter less than they would on a power chain. Growers typically place a 10 ft segment between every two fixtures. Leave an inch or two of slack at the RJ45 housing. Keep the run path away from high-current cords to dodge induced noise.
Key Features
- Cable length: 10 ft (3 m), enough to span two ceiling-mounted fixtures with slack at each connector
- Connector: RJ45 (8P8C) on both ends, matches the fixture and controller ports
- Function: Single Bus control signal — synchronizes dim level, schedule, and shutdown across the chain
- Compatible controllers: Gavita Master EL3 (EL1 / EL2 also supported on legacy installs)
- Compatible fixtures: Gavita LED line including CT 1930e, RS 1900e, Pro 1700e, and similar e-series
Technical Specifications
| Specification | Value |
|---|---|
| Length | 10 ft (3 m) |
| Connector | RJ45 (8P8C) on both ends |
| Function | Single Bus control signal — not a power cable |
| Compatibility | Gavita Master EL3 / EL1 / EL2 with CT 1930e, RS 1900e, Pro 1700e, similar e-series LEDs |
