Insertion Flow Meter for 1/2 to 4 Inch Pipes

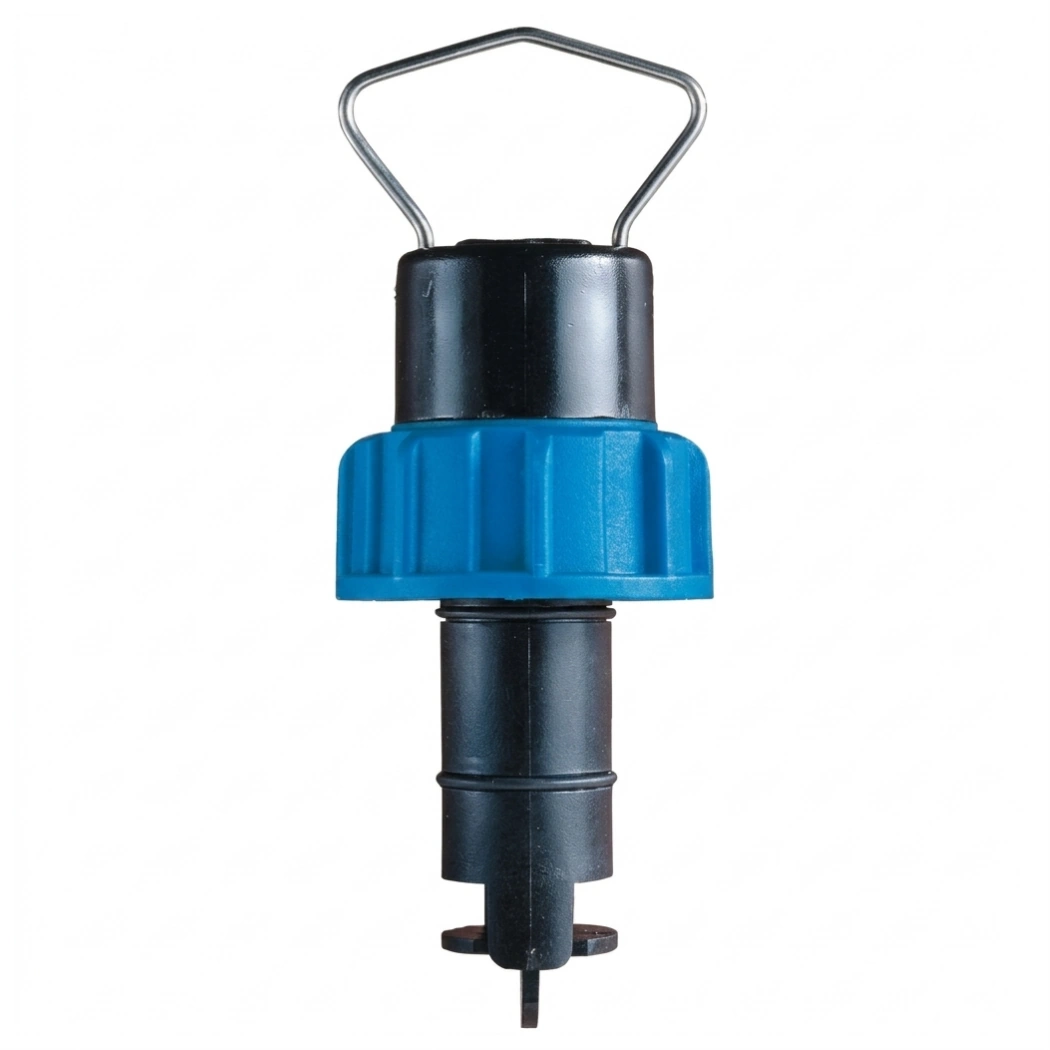

The 2536-P0 Rotor-X taps into pipes from DN15 to DN100 — that's 1/2 to 4 inch nominal in standard PVC, CPVC, or carbon-steel schedules. The polypropylene body, black PVDF rotor, titanium pin, and FPM O-ring shrug off water, mild acids, and standard fertigation chemistry. A wide 0.1 to 6 m/s (0.3 to 20 ft/s) range covers low-flow drip headers up to high-volume mains. The 66:1 turndown ratio means one sensor handles morning irrigation and night recirculation on the same line.
Paddlewheel Flow Sensor with Open-Collector Output for PLC and Growlink
The open-collector sinking output runs up to 10 mA. A Growlink Connect Controller, Precision Irrigation Controller, or any PLC reads the pulses without a signal conditioner. Linearity holds at ±1% of max range and repeatability at ±0.5%, both referenced to 25°C. Pressure rating sits at 180 psi at 68°F and derates to 25 psi at 185°F, with operating temperatures cleared from 0 to 185°F. The sensor lands in a standard 1.5 in NPT or compatible installation saddle. On most live lines, you can hot-tap with the right shutoff valve in place — no system drain.
Key Features
- 0.1 to 6 m/s flow range (0.3 to 20 ft/s): Single sensor covers drip headers, sub-mains, and high-volume distribution.
- 66:1 turndown ratio: Tracks morning recirculation and afternoon main flow without swapping hardware.
- ±1% linearity, ±0.5% repeatability: Lab-grade accuracy at 25°C, holding through normal greenhouse swings.
- Open-collector sinking output, 10 mA: Reads on any Growlink controller, PLC, or pulse counter without a conditioner.
- PP body, PVDF rotor, titanium pin, FPM O-ring: Chemistry compatible with water, mild acids, and standard fertigation feeds.
- 180 psi at 68°F (12 bar) pressure rating: Holds steady in pressurized distribution lines from drip to overhead spray.
- Hot-tap install on live lines: Insertion saddle + isolation valve lets you mount without draining the system.
Technical Specifications
| Specification | Value |
|---|---|
| Sensor type | Insertion paddlewheel (GF Signet Rotor-X) |
| Pipe size range | DN15 to DN100 (1/2 in to 4 in) |
| Flow range | 0.1 to 6 m/s (0.3 to 20 ft/s) |
| Turndown ratio | 66:1 |
| Linearity | ±1% of max range @ 25°C |
| Repeatability | ±0.5% of max range @ 25°C |
| Output | Open-collector sinking, 10 mA max |
| Sensor body | Polypropylene |
| Rotor | Black PVDF |
| Pin | Titanium |
| O-ring | FPM (Viton) |
| Max pressure | 180 psi @ 68°F (12.4 bar) |
| Pressure derating | 25 psi @ 185°F |
| Operating temperature | 0 to 185°F |
| Installation | Insertion through standard 1.5 in NPT or compatible saddle |
