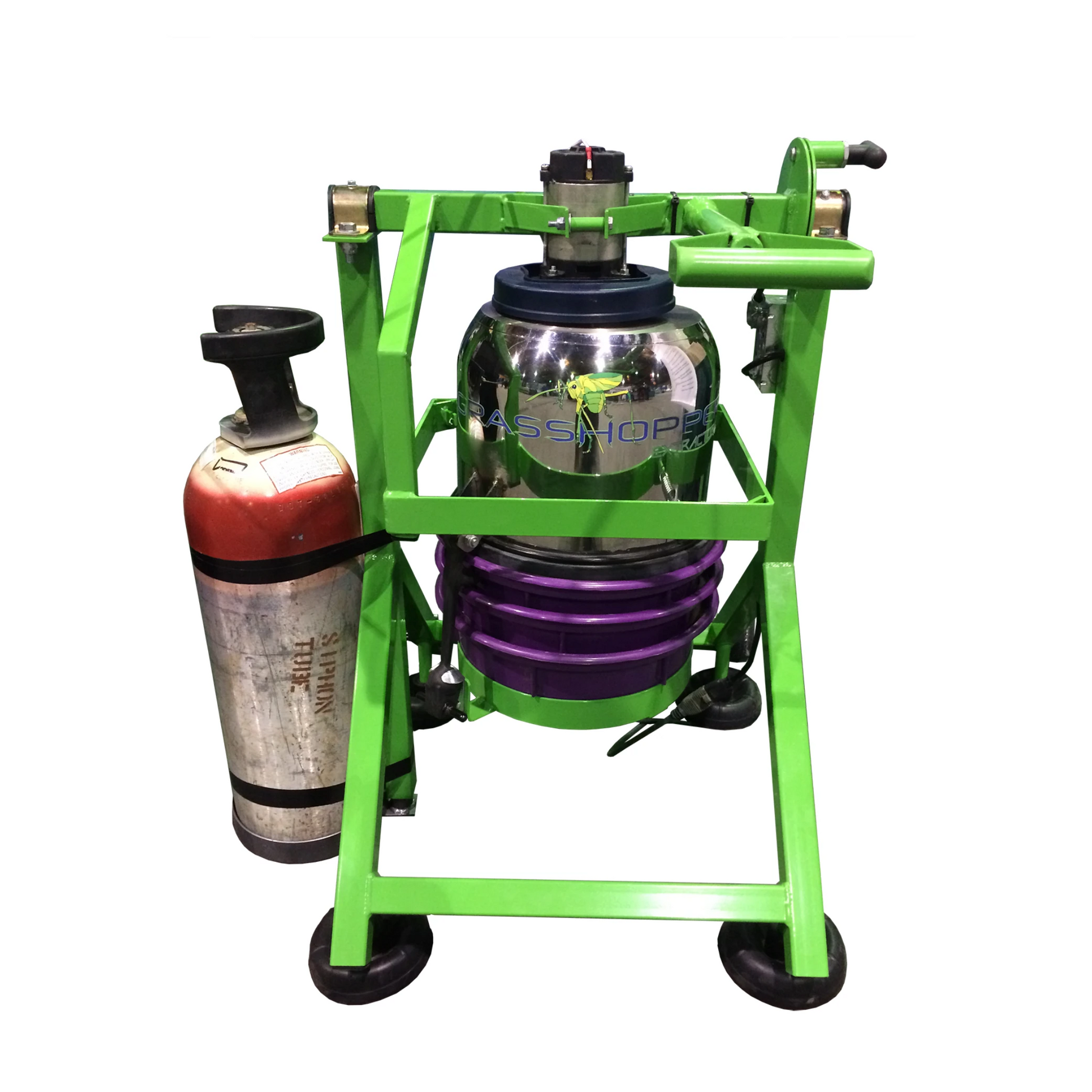

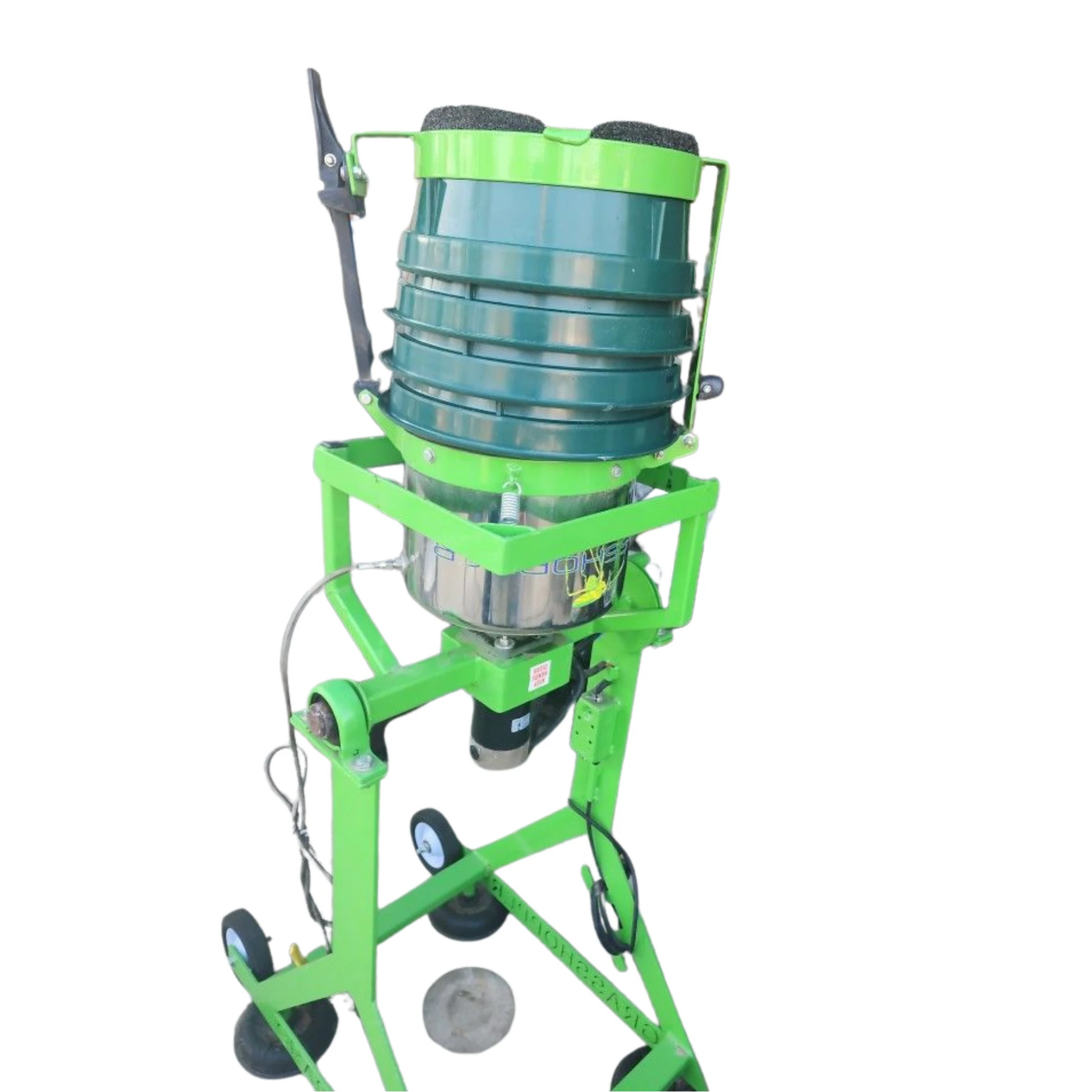

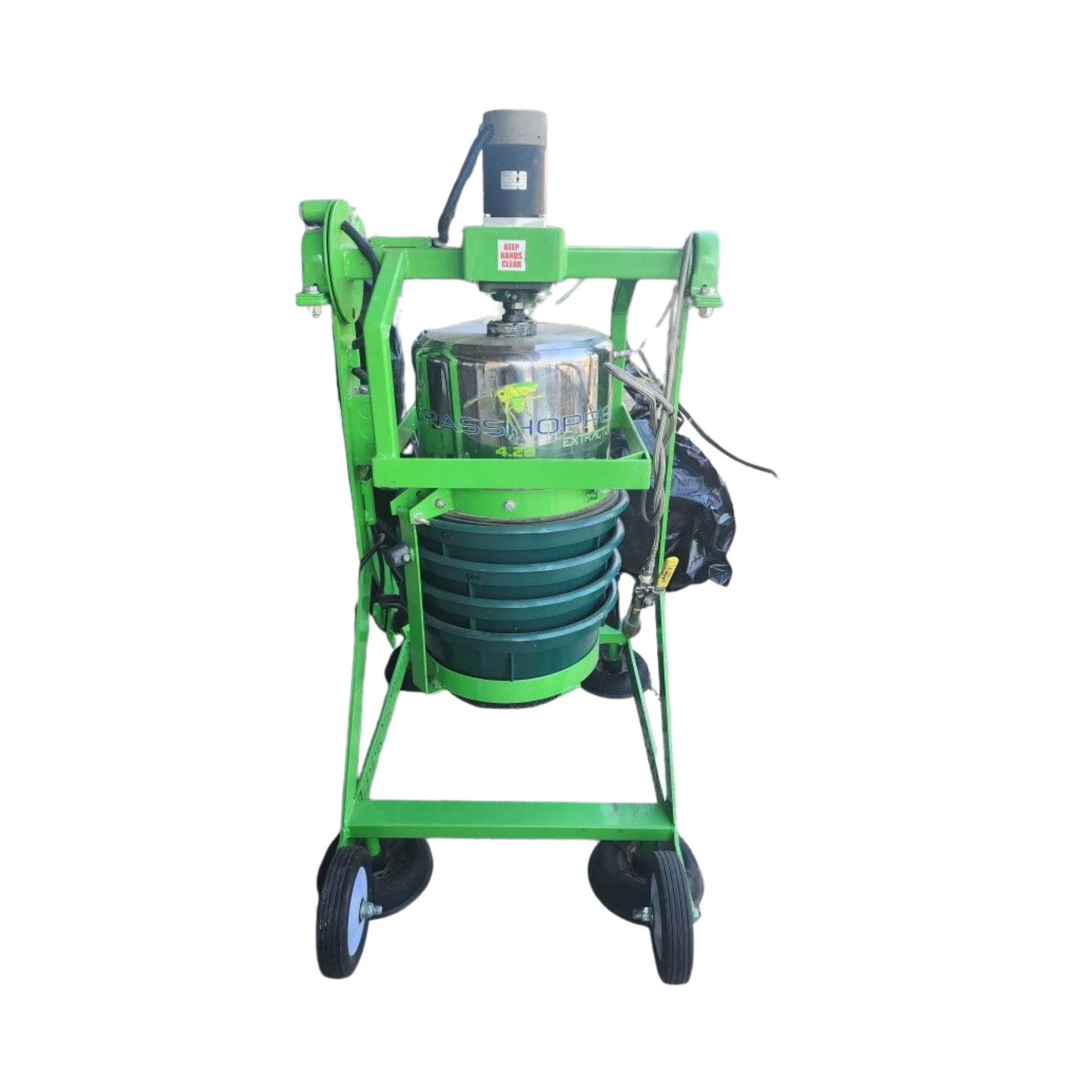

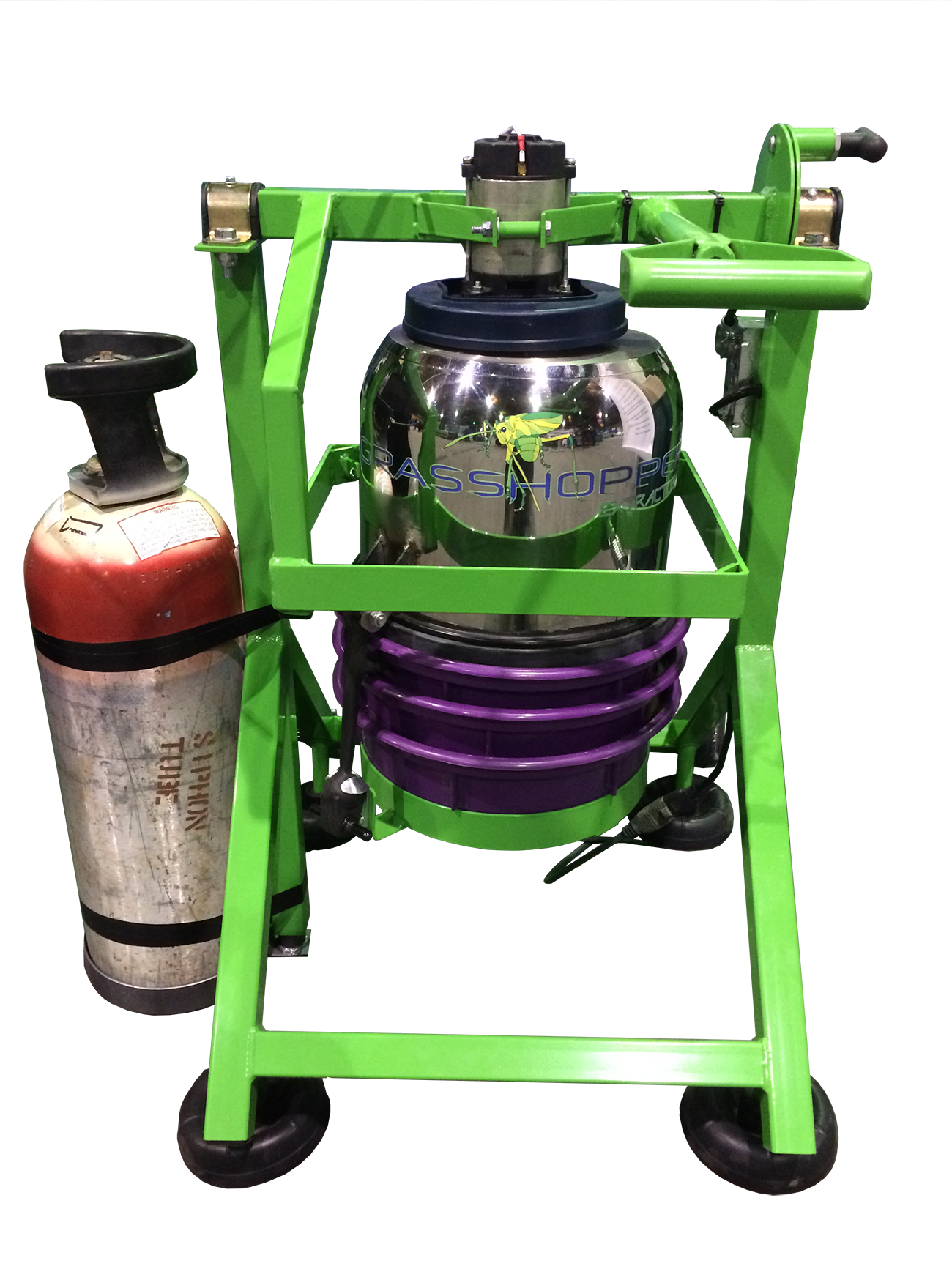

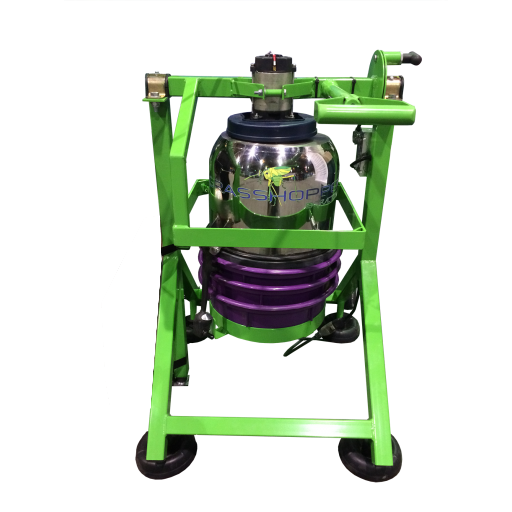

Grasshopper Extractor 4.20: Liquid CO2 Freeze and Sift
The 4.20 is the liquid CO2 model of the Grasshopper Extractor, built in Southern Oregon. Instead of crushed dry ice, it uses liquid CO2 to freeze the plant material in about 30 seconds. At that temperature the trichome heads turn brittle and snap cleanly from the leaf. A 400 W, 1/3 hp motor then shakes the chamber so the frozen resin falls through the screens. Three screens come with the machine, at 149, 100 and 74 microns. The 149 screen passes the broadest grade, while the finer screens hold back more plant matter for a cleaner product. Rubber straps hold each screen in place, so swapping them takes seconds. The machine fully processes up to one pound of dried material in as little as five minutes. Because freezing is so quick, throughput reaches about six pounds an hour. Grasshopper reports yields of up to 25 percent after two runs. No solvents touch the material at any point, so the result is a pure dry sift. Cleanup needs no cleaners or lubricants either, only compressed air through the screens. The CO2 tank is sold separately.
Running a Dry Sift Extractor on Liquid CO2
Work in a well-ventilated room, because the CO2 released from each run displaces air. Wear insulated gloves and eye protection whenever you handle the CO2 line or frozen material. Start with fully dried trim or small buds, broken up so the CO2 can reach every surface. Load no more than a pound at a time and close the chamber before opening the CO2 flow. Let the charge freeze for the full thirty seconds before starting the shaker. Collect the first pass on the coarse screen for the bulk of the yield. Run the same material again for the second pass that brings yields toward the 25 percent mark. Switch to the finer screens when you want a cleaner, more refined grade. Scrape and bag the collected kief right away, while it is still cold and loose. Between strains, blow out each screen with compressed air so nothing carries over. Store the screens flat and dry so the mesh does not stretch or crease.
Key Features
- Liquid CO2 freeze: Plant material frozen in about 30 seconds.
- 400 W motor: 1/3 hp shaker drives the resin through the screens.
- Three screens included: 149, 100 and 74 micron, held with rubber straps.
- Up to 6 lb per hour: One pound processed in as little as five minutes.
- Solvent-free: Pure dry sift, cleaned with compressed air.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Grasshopper Extractor |
| Model | 4.20 |
| Freezing method | Liquid CO2, about 30 seconds per charge |
| Batch size | Up to 1 lb dried material |
| Batch time | As little as 5 minutes |
| Throughput | Up to 6 lb per hour |
| Motor | 400 W, 1/3 hp |
| Screens included | 149, 100 and 74 micron |
| Screen mounting | Rubber straps |
| Cleaning | Compressed air, no solvents or lubricants |
| CO2 tank | Not included |
| Made in | Southern Oregon, USA |
