Green Air CO2 Generator Heat Sink Tube

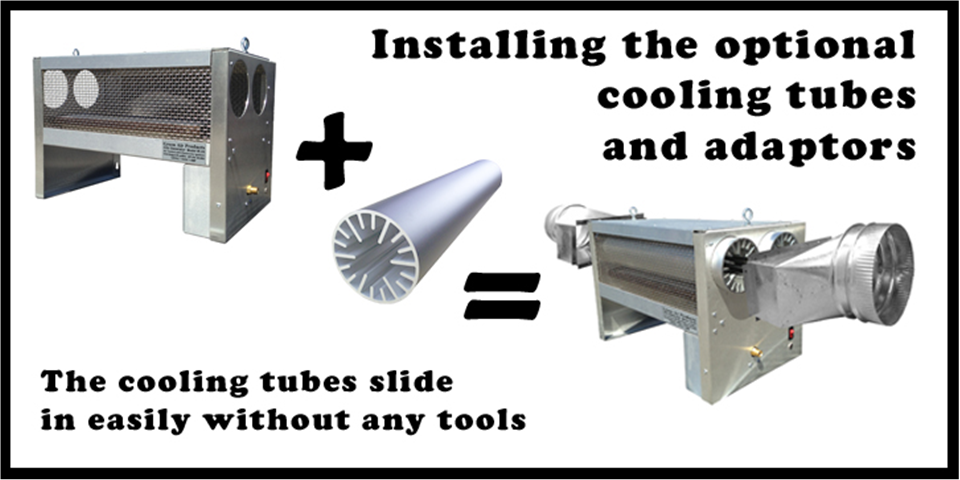

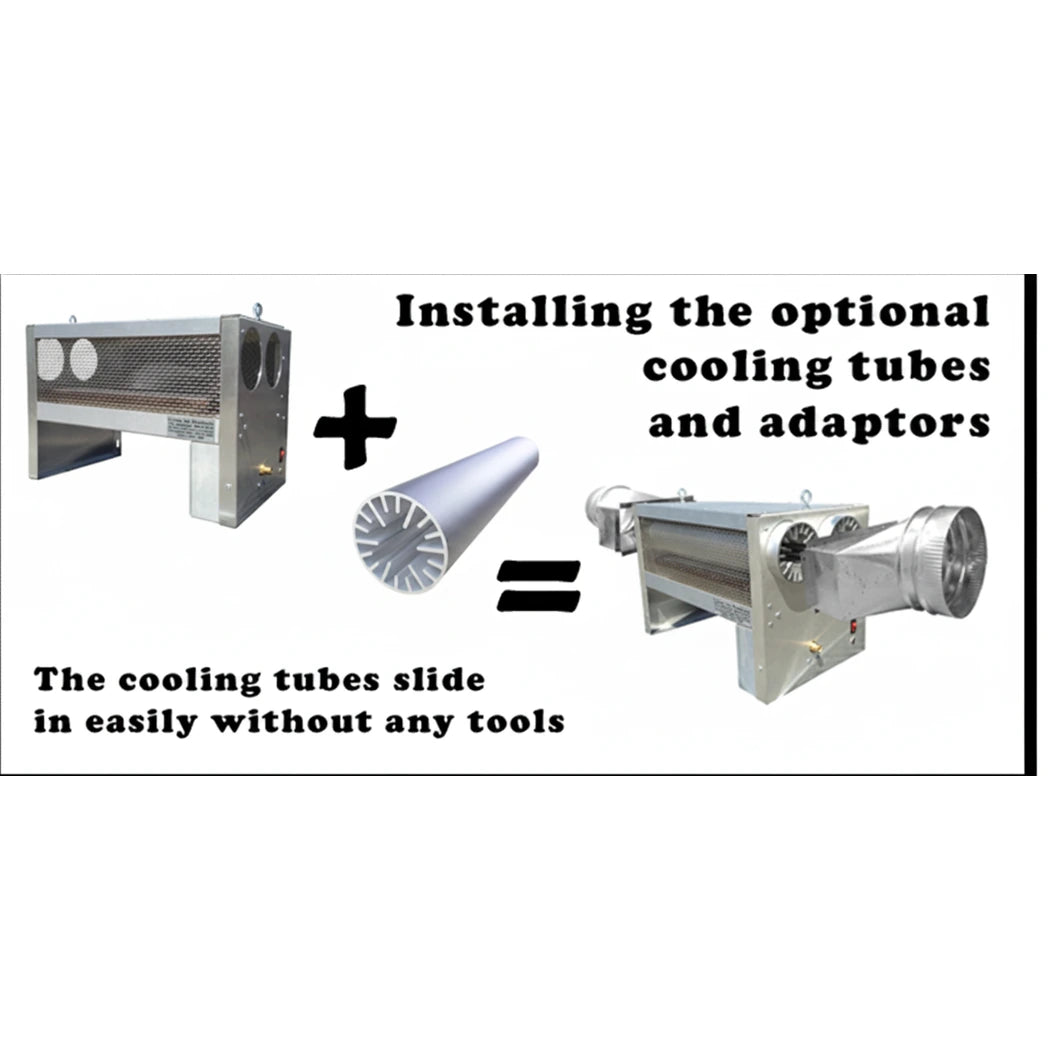

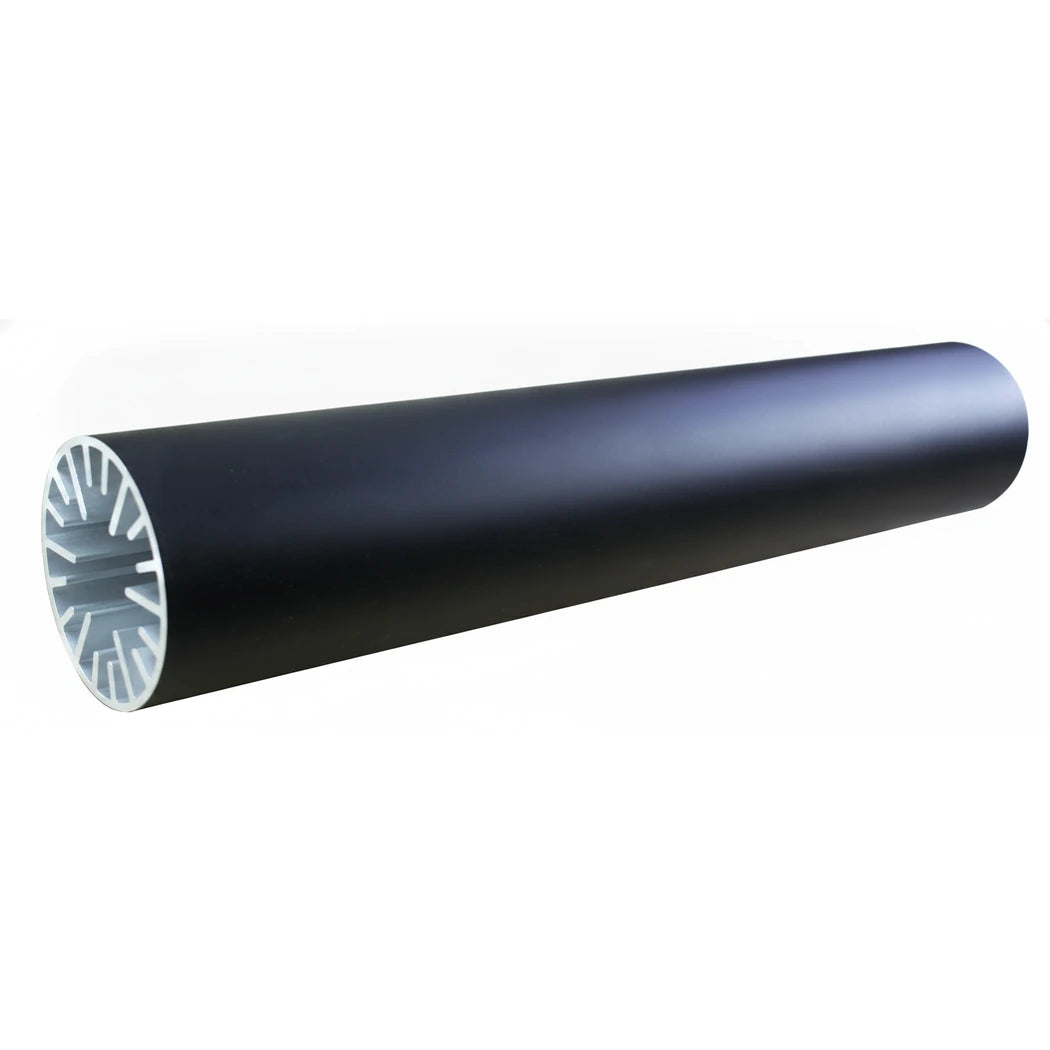

This 22 in heat tube is an extruded, anodized aluminum heat sink that air-cools a Green Air CO2 generator. It slides into the unit and connects to 4 in ducting to carry burner heat out of the grow space. The anodized surface sheds heat and resists corrosion in humid rooms. It is an optional accessory, not included with the generator.
Matching Heat Tubes to Your CO2 Generator
Tube count depends on the model: the CD-24 takes one, the CD-48 takes two, the IR-28 takes two, and the IR-42 takes three. It fits ELECTRA-AIR and Infrared Multi-Fuel CO2 generators. Run 4 in duct off each tube to an exhaust point. Keeping burner heat out of the canopy protects room temperature in a sealed space.
Key Features
- 22 in heat sink: Extruded aluminum tube pulls burner heat off the generator.
- Anodized finish: Sheds heat and resists corrosion in humid grow rooms.
- 4 in duct fit: Connects to standard 4 in flex ducting for exhaust.
- Slide-in install: Drops into the generator body with no tools.
- Wide compatibility: Fits ELECTRA-AIR and Infrared Multi-Fuel CO2 generators.
Technical Specifications
| Specification | Value |
|---|---|
| Material | Extruded anodized aluminum |
| Tube Length | 22 in |
| Duct Fit | 4 in |
| Compatibility | ELECTRA-AIR and Infrared Multi-Fuel CO2 generators |
| Tubes Needed | CD-24: 1, CD-48: 2, IR-28: 2, IR-42: 3 |
