Brand: J&D Manufacturing

Green Breeze HAF FAN, White, 1PH, 115V, 1/Var, w/Bracket & 10' Cord

Green Breeze HAF FAN, White, 1PH, 115V, 1/Var, w/Bracket & 10' Cord

SKU: SKU:VBG12

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $183.31 USD
Regular price Sale price $183.31 USD
Sale Sold out
Shipping calculated at checkout.

Availability: Online | Will Call Locations Stock May Vary

Size

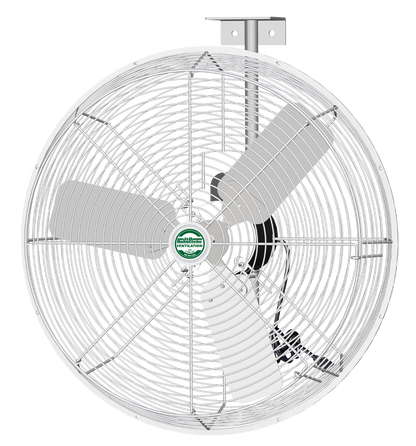

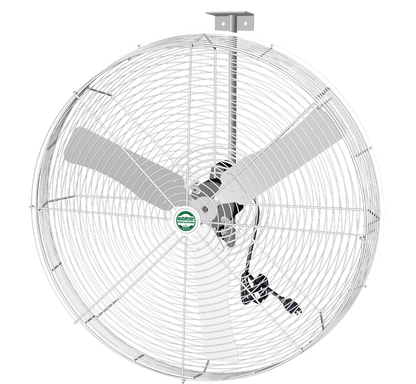

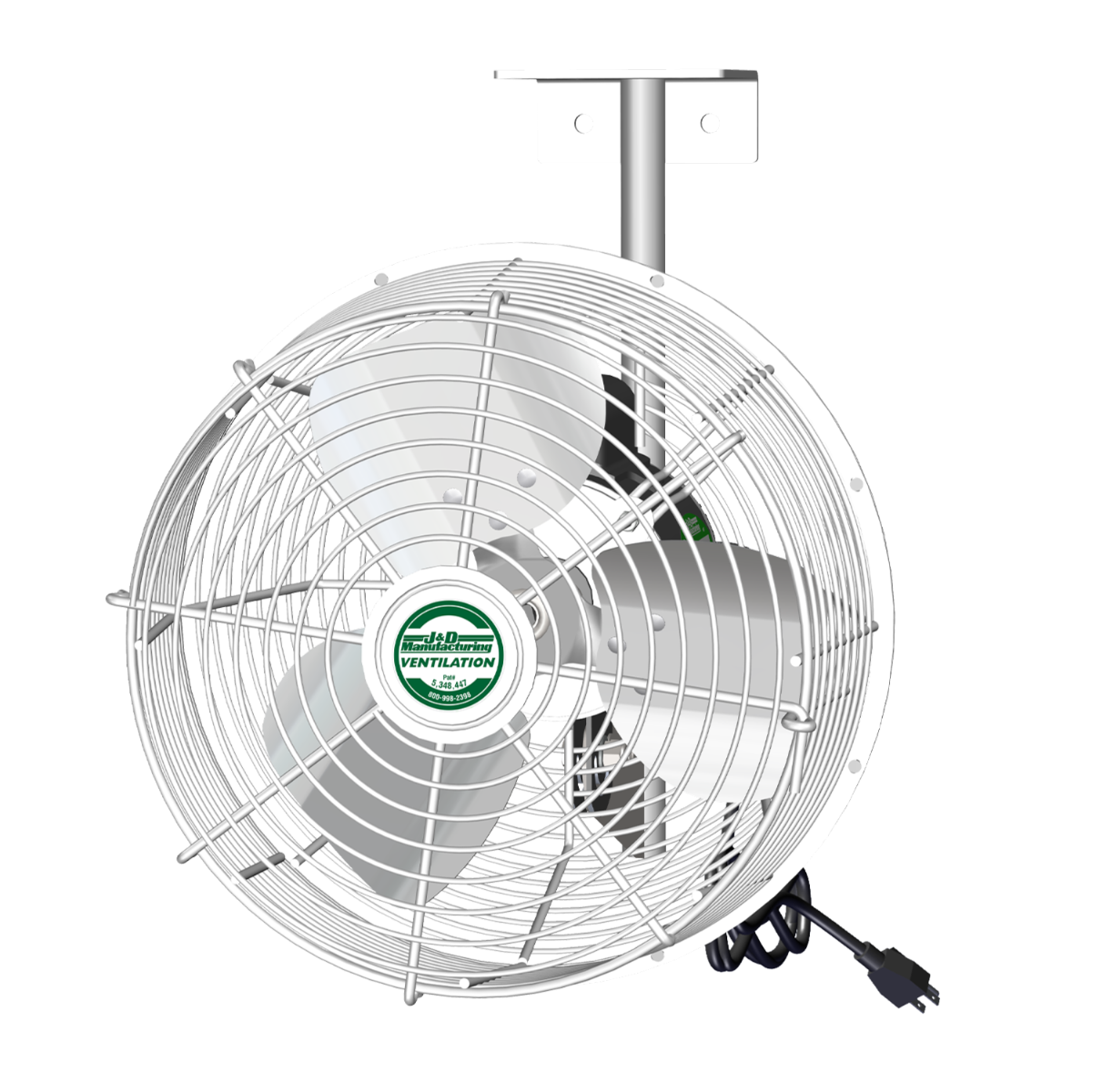

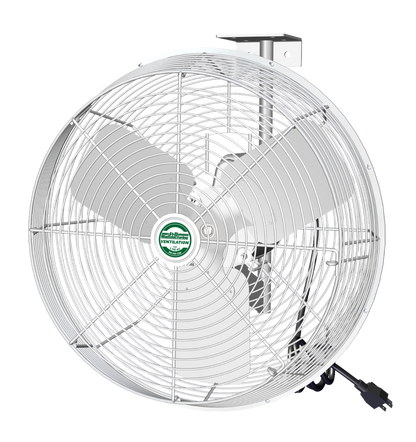

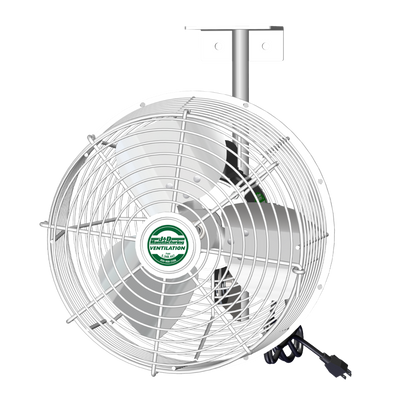

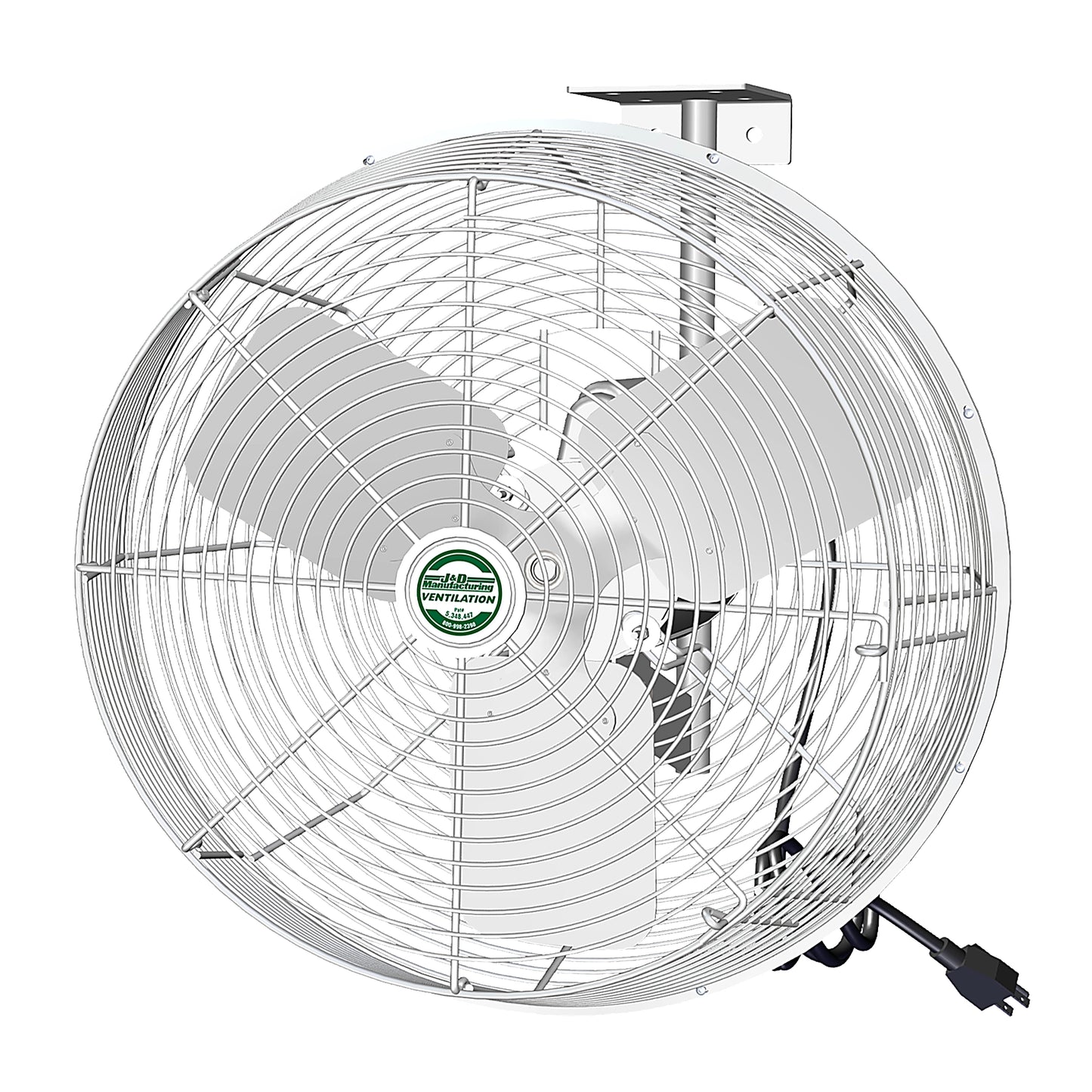

The J&D Green Breeze greenhouse HAF fan moves 1,060 to 9,810 thrust CFM across 12, 20, 24, and 36 inch sizes, with sealed motors and corrosion-resistant guards.

View full details

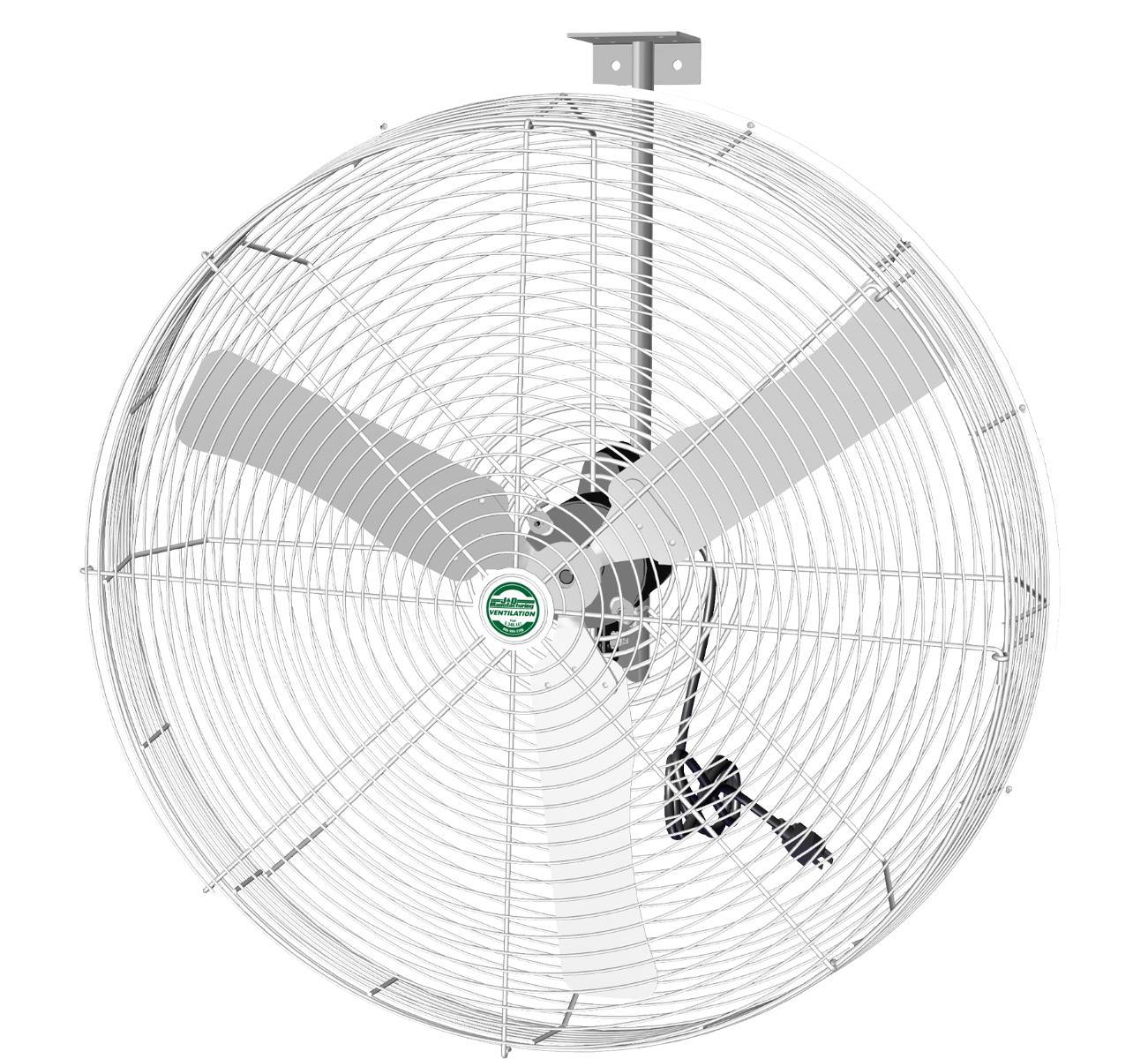

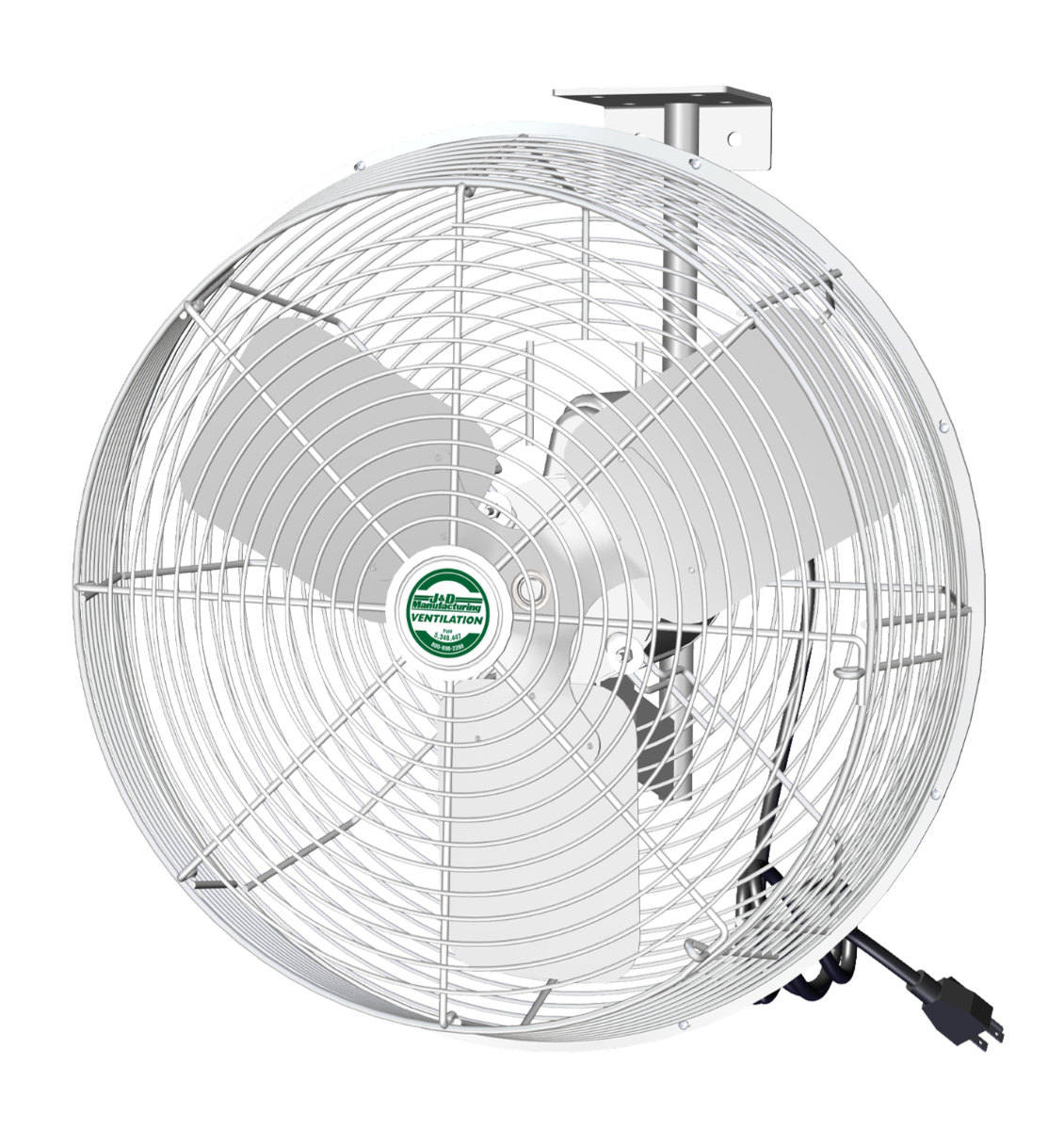

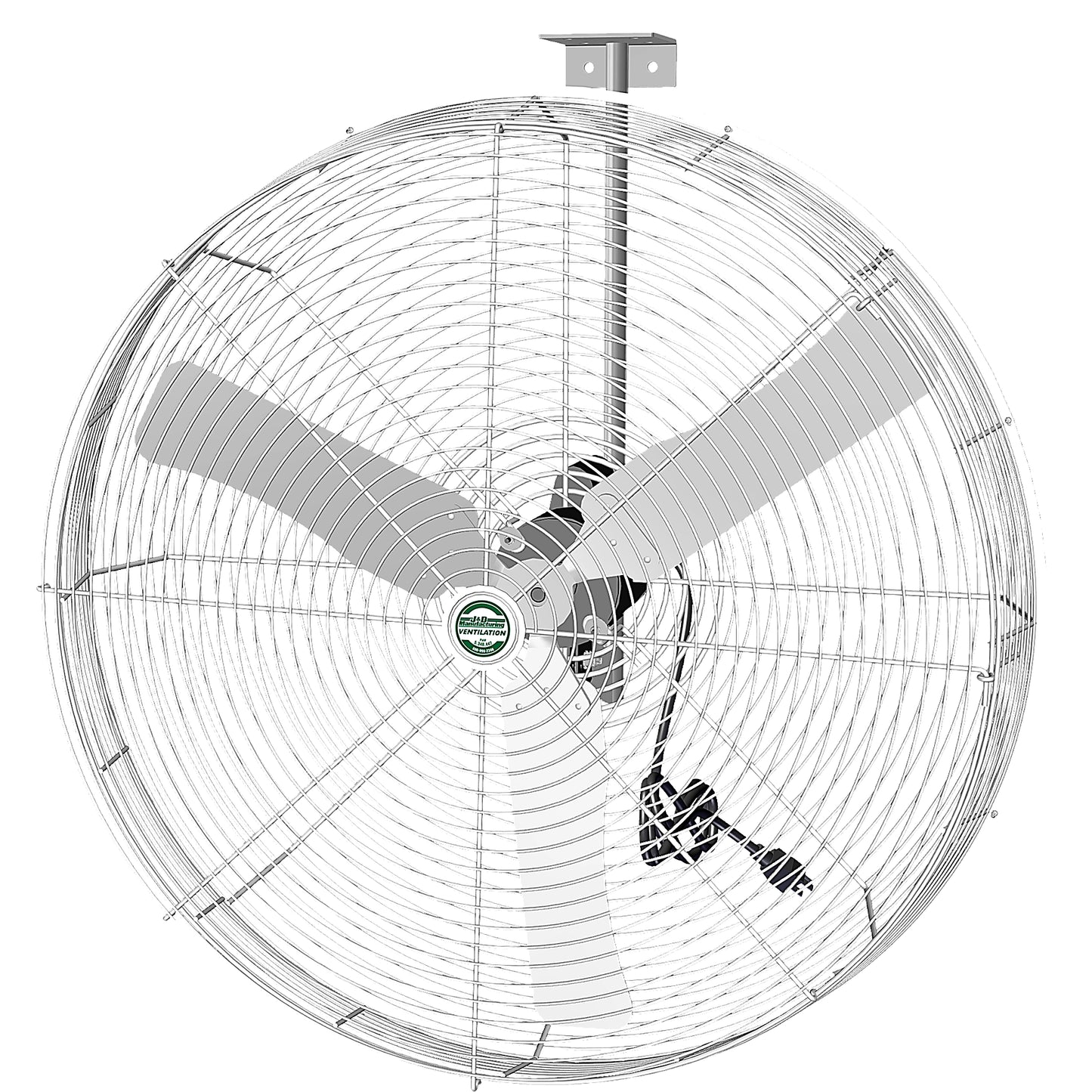

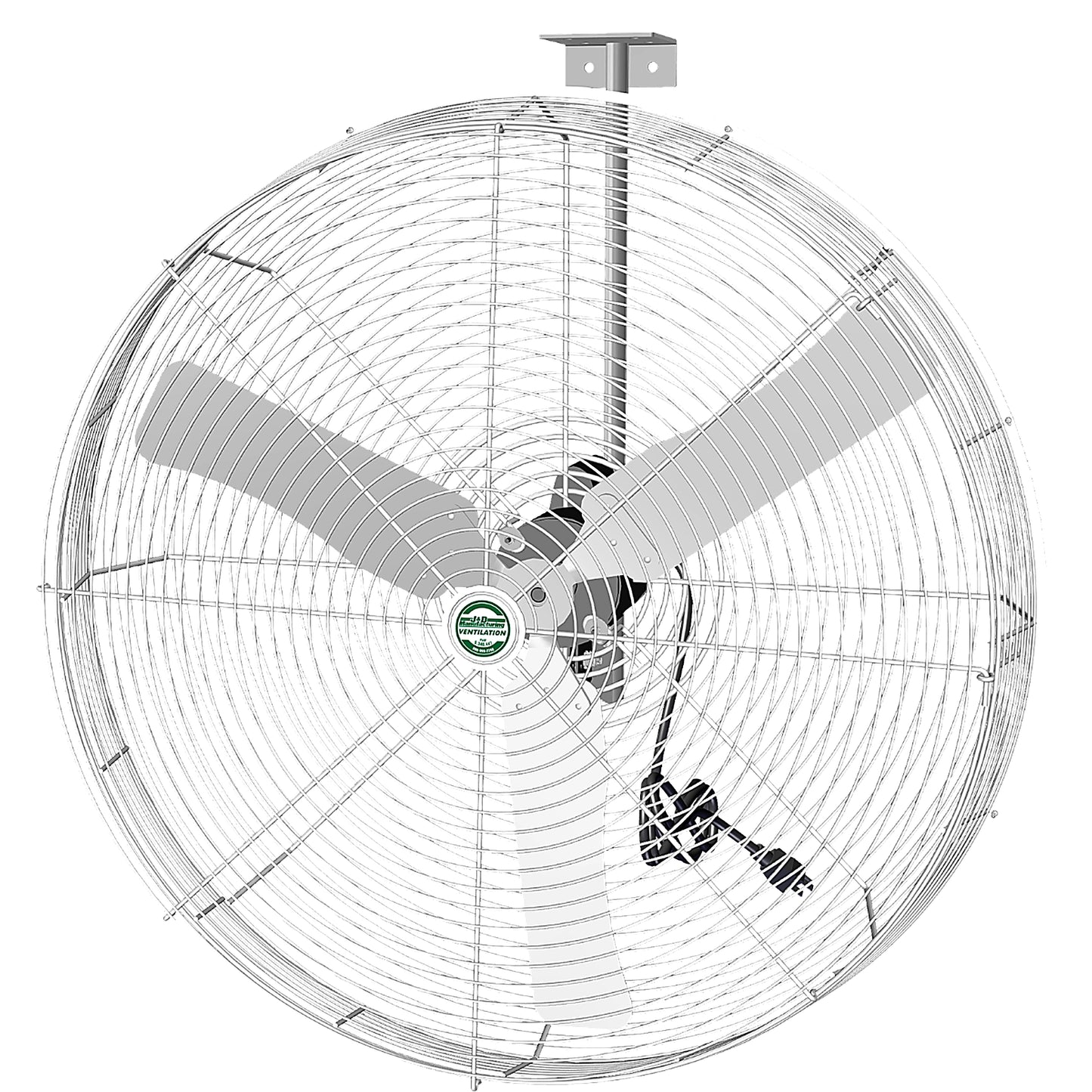

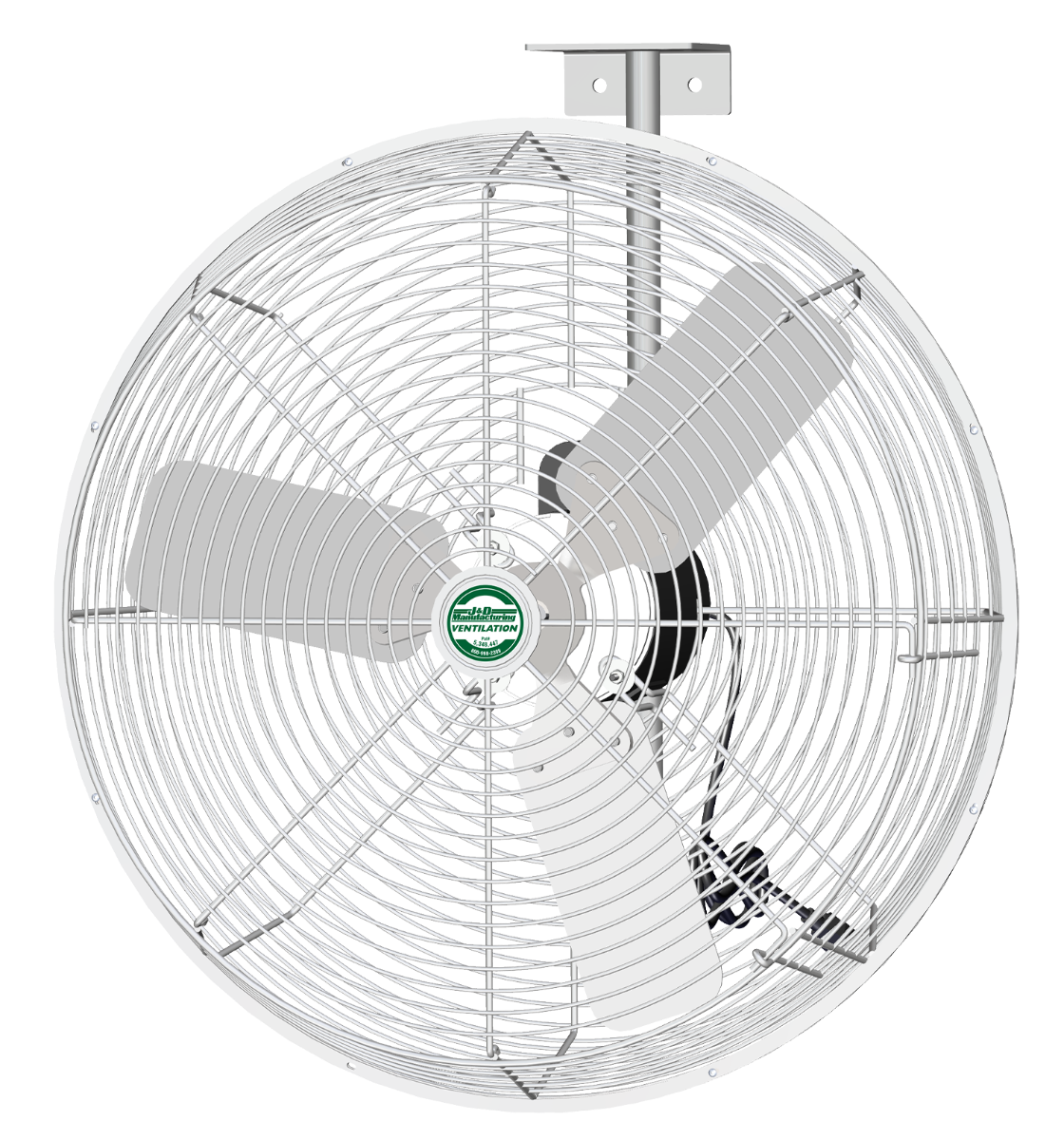

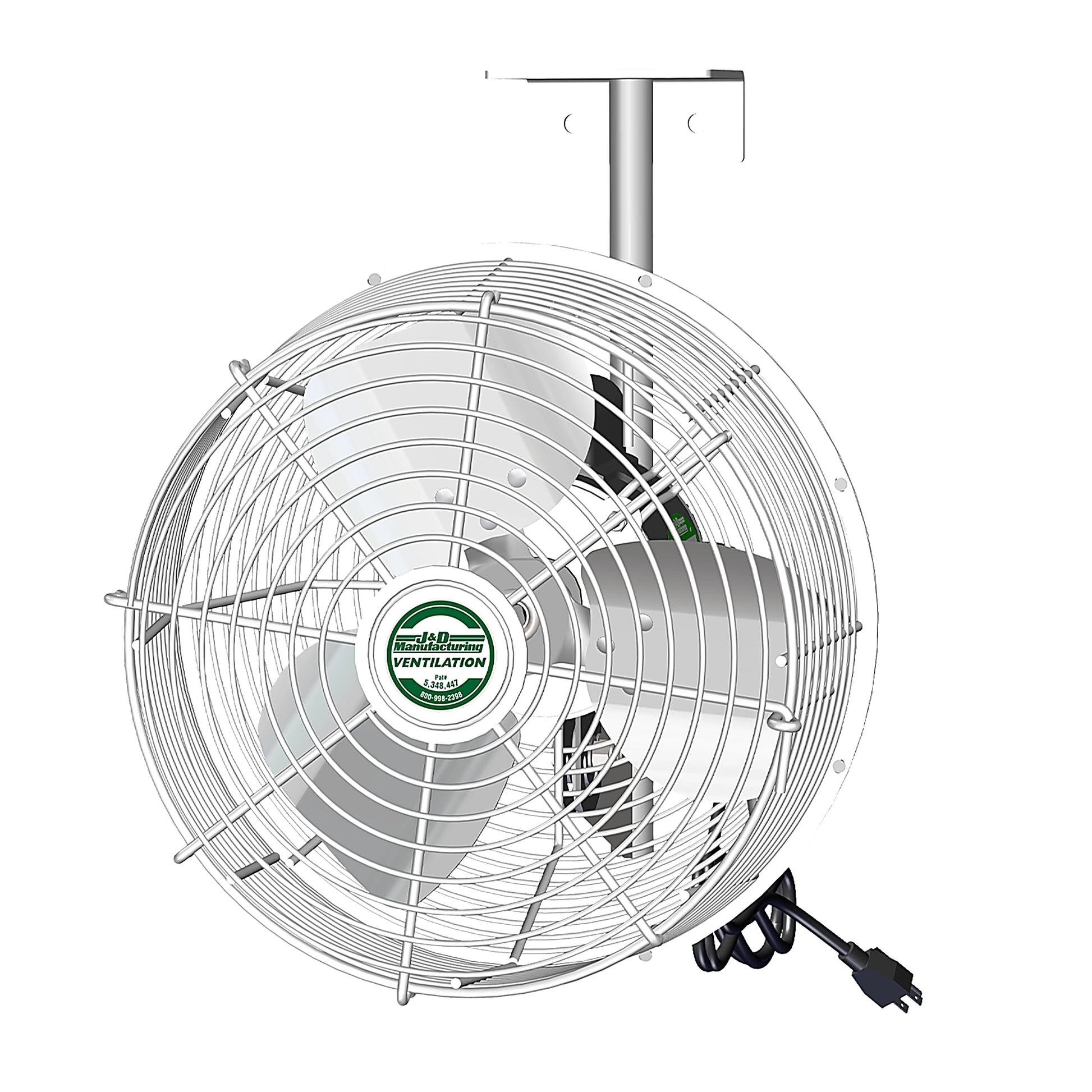

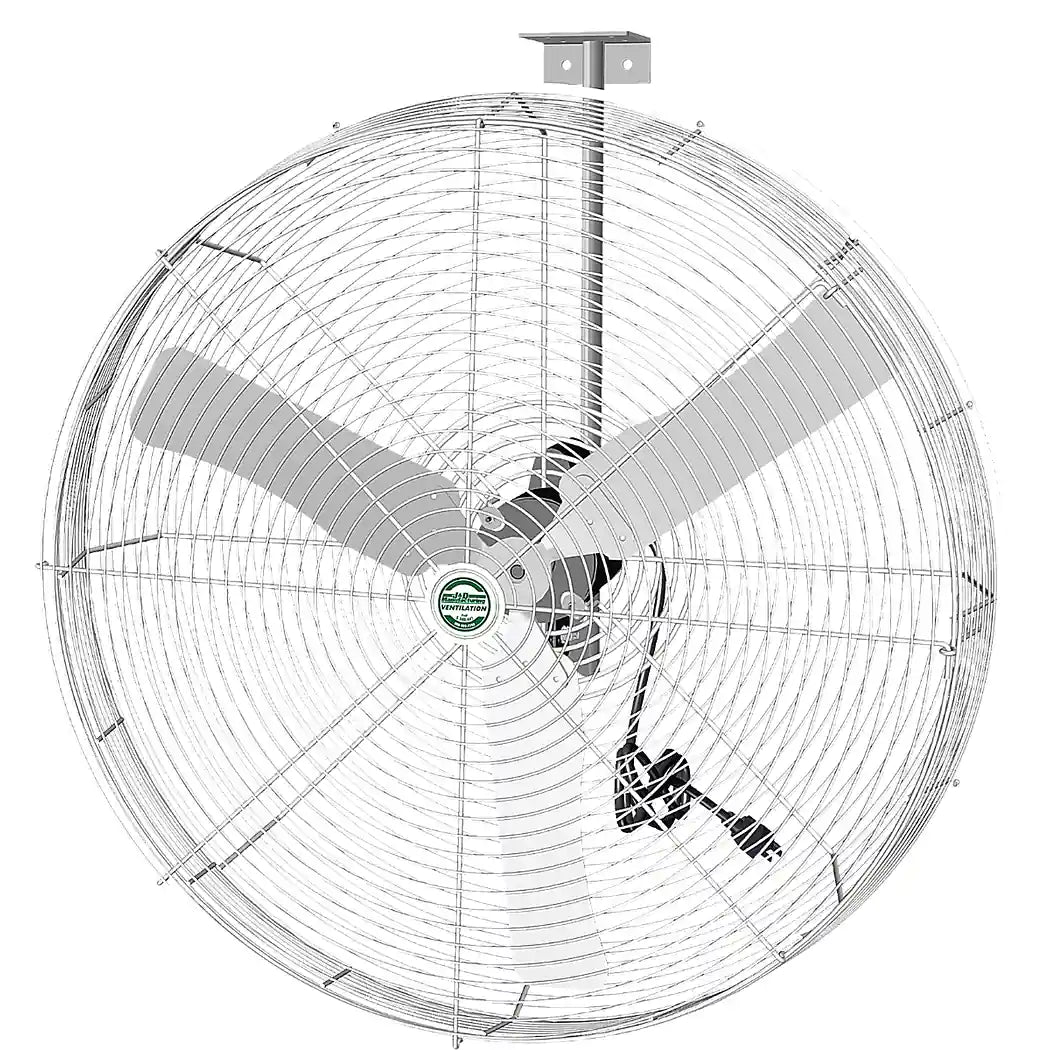

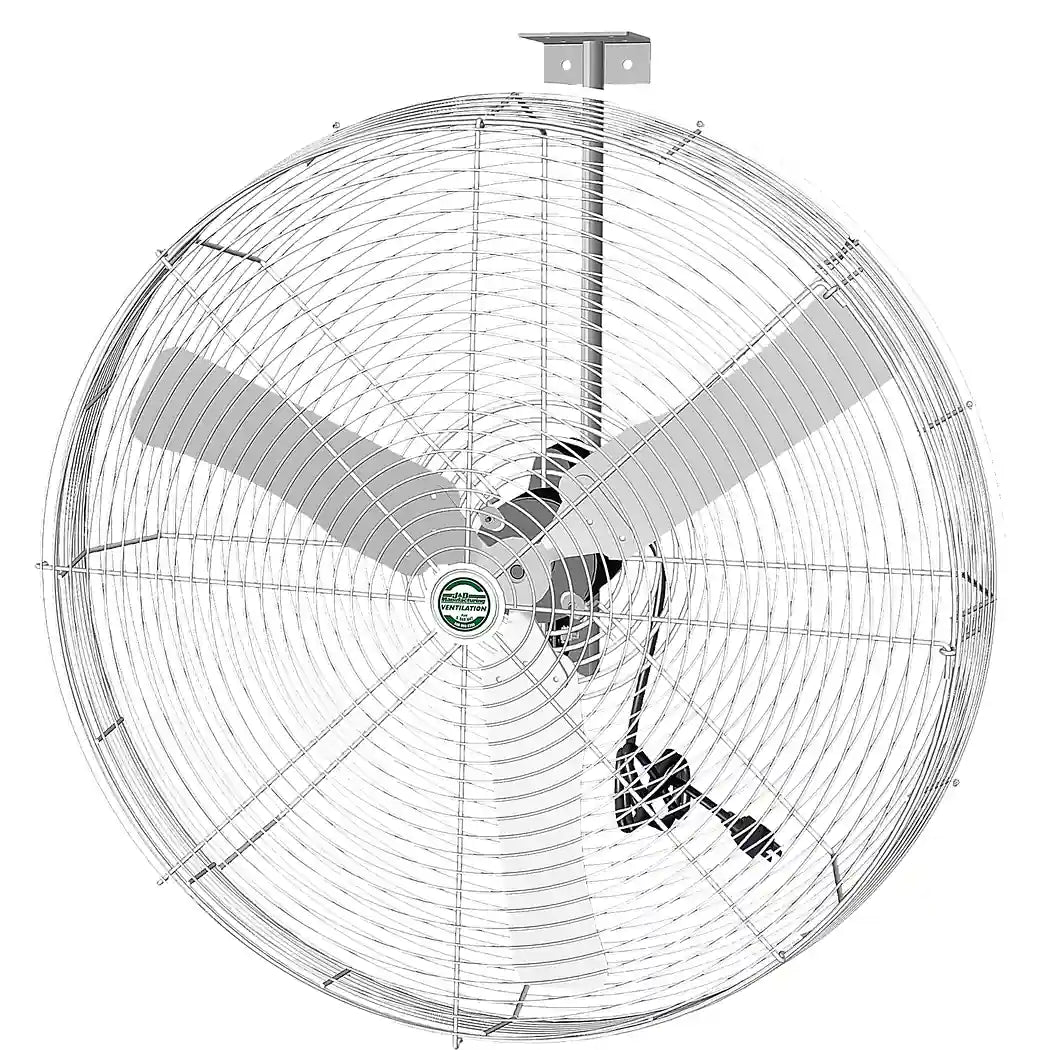

Green Breeze greenhouse HAF fan

The J&D Green Breeze HAF fan keeps temperature and humidity even from floor to ceiling. Its horizontal airflow pattern clears hot and cold spots to support healthier plants and higher yield. It comes in 12, 20, 24, and 36 inch sizes moving 1,060 to 9,810 thrust CFM. An enclosed, sealed motor is maintenance-free in humid rooms.

Even airflow for hydroponic and greenhouse growers

Growers mount it over benches or aisles to hold steady VPD and support strong nutrient uptake. A patented open-front guard cuts dirt buildup and airflow restriction while a tapered side guard boosts air throw. Even circulation distributes heat in winter to lower greenhouse heating costs. White powder-coated guards and a galvanized bracket resist rust in wet, nutrient-rich rooms. It ships fully assembled with a bracket and a 10 ft 115V cord. Variable speed control is available on the 12-inch model. Growers pair sizes to cover both small tents and large bays.

Key Features

  • 1,060-9,810 Thrust CFM: Sizes from 12 to 36 in for tents up to large bays.
  • Uniform HAF Climate: Horizontal airflow evens temperature and humidity floor to ceiling.
  • Sealed, Maintenance-Free Motor: Enclosed and moisture-ready for humid rooms.

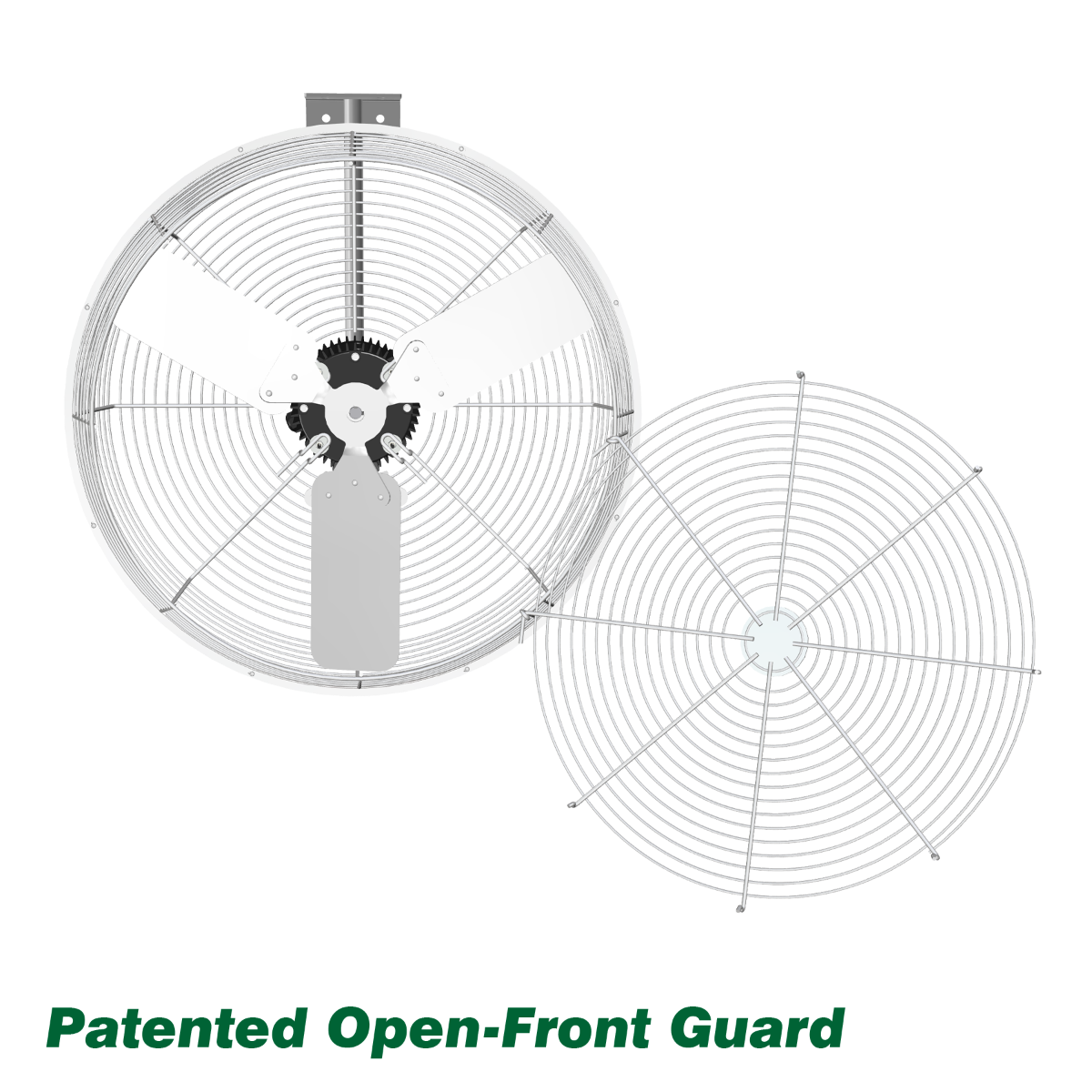

  • Patented Open-Front Guard: Cuts dirt buildup and airflow restriction; tapered guard boosts throw.
  • Corrosion-Resistant: White powder-coated guards and hot-dip galvanized bracket.
  • Fully Assembled: Ships with bracket and 10 ft 115V cord; 2-year warranty.

Technical Specifications

Specification VBG12 VBG20 VBG24 VBG36
Size 12 in 20 in 24 in 36 in
Thrust CFM 1,060 3,650 5,250 9,810
Air Velocity (FPM) 550 1,090 1,230 980
Motor 1/10 HP 1/3 HP 1/2 HP 1/2 HP
Voltage 115/230V 115/230V 115/230V 115/230V
Nameplate Amps 1.42/0.77 3.8/1.9 4.8/2.4 6.1/3.09
Phase 1 1 1 1
Speed 1 / Variable 1 1 1
Speed Control Compatible Yes No No No
Blade Material Aluminum Aluminum Aluminum Galvanized
Guard White powder-coated White powder-coated White powder-coated White powder-coated
Cord 10 ft, 115V 10 ft, 115V 10 ft, 115V 10 ft, 115V
