What an Automated Trimming System Takes Off the Crew

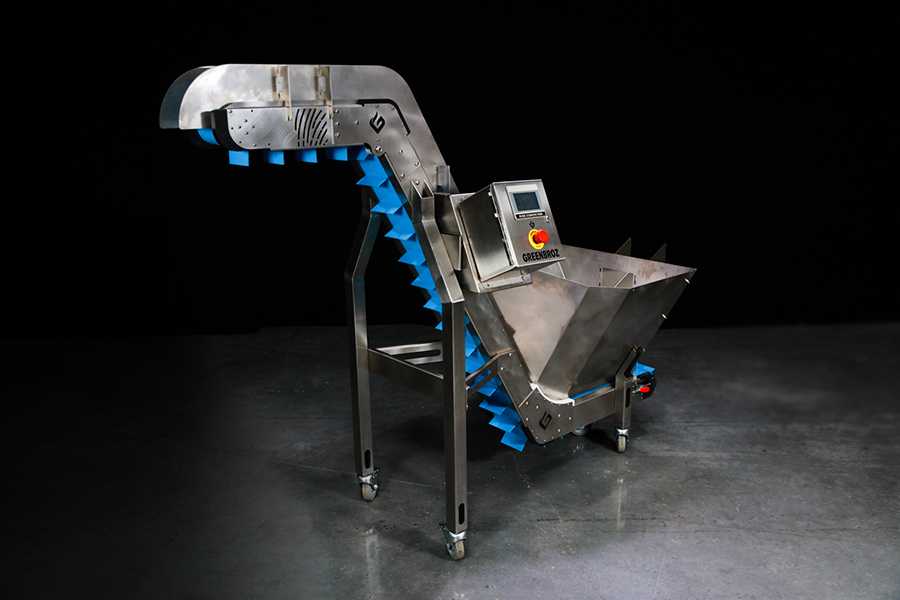

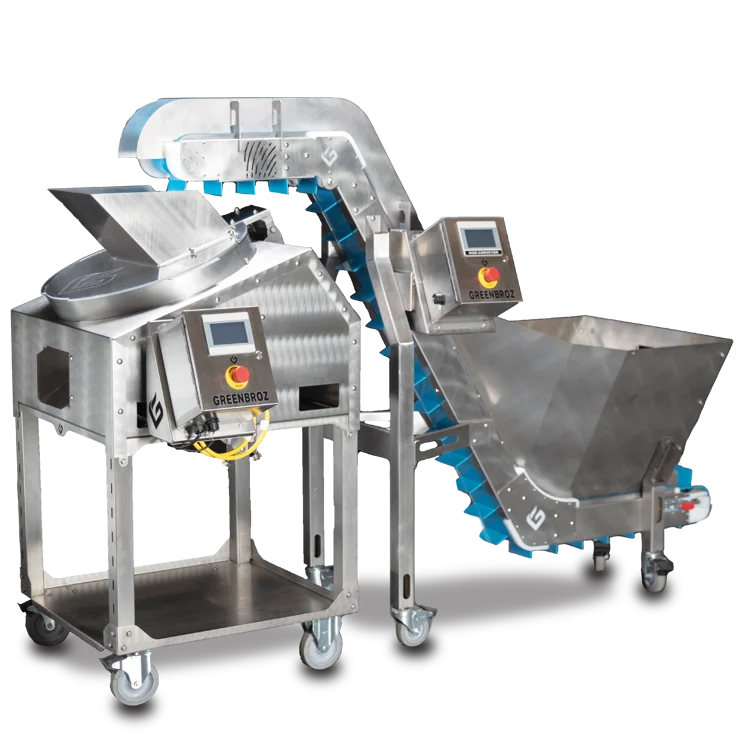

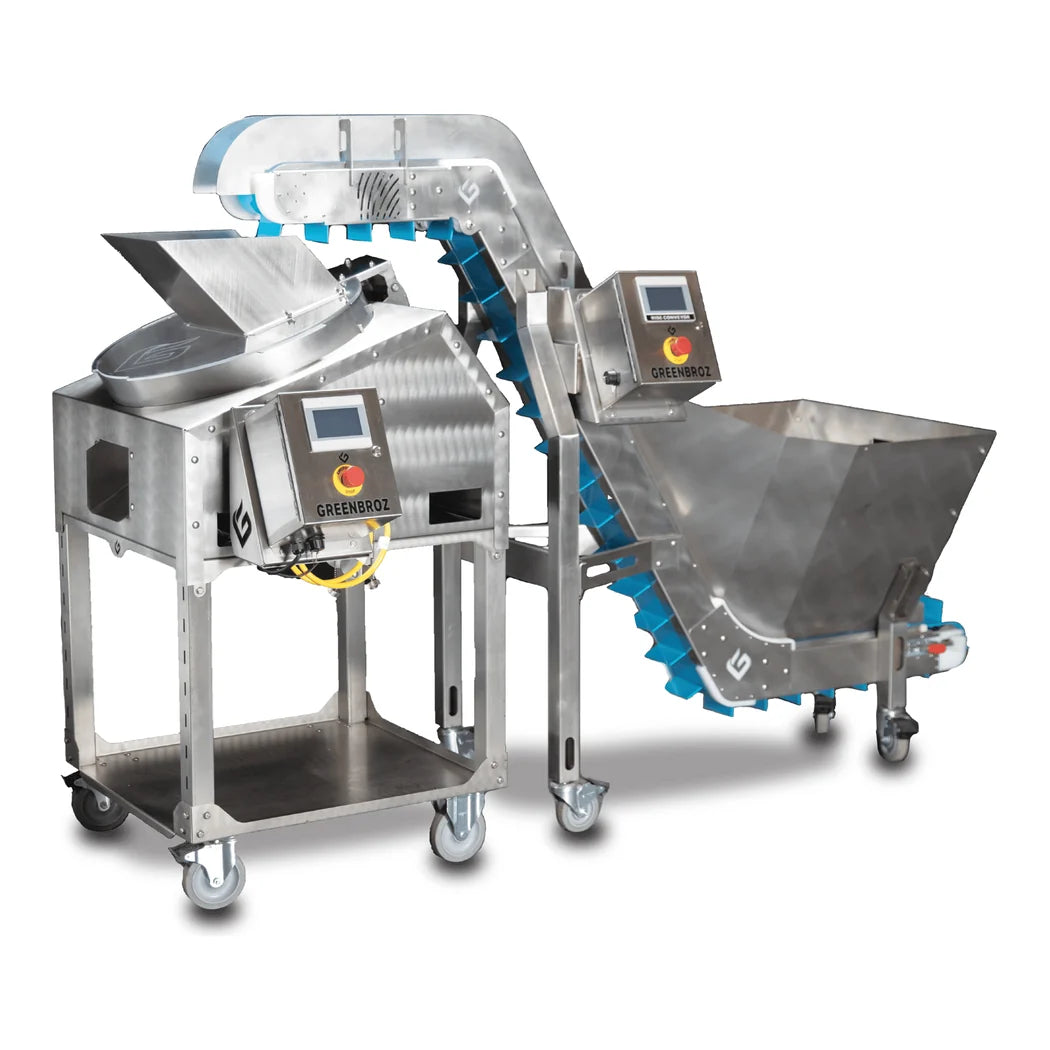

The M+ is two machines working as one. The Model M dry trimmer handles the cutting. The Rise Conveyor meters flower into it at a steady rate, instead of a crew tipping totes. Automatic doors unload the drum at the end of a cycle. The trimmer alone runs up to 15 lbs per hour. Fed properly it averages 30.
Power, Footprint and Blades on the GreenBroz M+ Trimming System
Start with the electrical, because it is the number nobody expects. Each machine draws 110VAC at 60Hz, 3 amps, 330 watts. Two machines on two standard circuits, and no three phase service anywhere in the specification. For a room-scale machine at this price that is unusual, and it decides whether an install needs an electrician. Footprint is 90 x 41 x 82 in without the tray and 101 in long with it, at 415 lbs. The cutting is done by patented rolling blades rather than a fixed shear. They take sugar leaf without stripping trichomes off the flower or chewing into the bud when a cycle runs long. Cycle length is set on the HMI, and recipes save per cultivar so the same batch trims the same way twice. Frame is stainless and food grade steel with HDPE, stripping down for cleaning. It is UL508 compliant, works between 32 and 104 F, and carries a three year warranty.
Key Features
- Two machines, one workflow: The Model M dry trimmer and the Rise Conveyor, with metered feeding and auto unload.
- 30 lbs per hour fed, 15 alone: The conveyor is what doubles it. The trimmer on its own tops out near 15.
- 110VAC, 3 amps, 330 watts each: Two standard circuits. No three phase service called for anywhere in the spec.
- Patented rolling blades: They take sugar leaf without stripping trichomes or chewing into the flower.
- HMI recipes per cultivar: Set the cycle length once and the same batch trims the same way every time.
- 101 x 41 x 82 in, 415 lbs: UL508 compliant, rated 32 to 104 F, stainless and HDPE, three year warranty.
Technical Specifications
| Specification | Value |
|---|---|
| System | Model M dry trimmer plus Rise Conveyor |
| Throughput | Approx 30 lbs per hour |
| Trimmer Alone | Up to 15 lbs per hour |
| Dimensions Without Tray | 90 in L x 41 in W x 82 in H |
| Dimensions With Tray | 101 in L x 41 in W x 82 in H |
| Weight | 415 lbs |
| Electrical | 110VAC, 60Hz, 3 amps, 330 W per machine |
| Cutting | Patented rolling blades |
| Control | HMI, programmable cycle recipes |
| Materials | Stainless and food grade steel, HDPE |
| Compliance | UL508 |
| Operating Temperature | 32 to 104 F |
| Warranty | 3 years |
