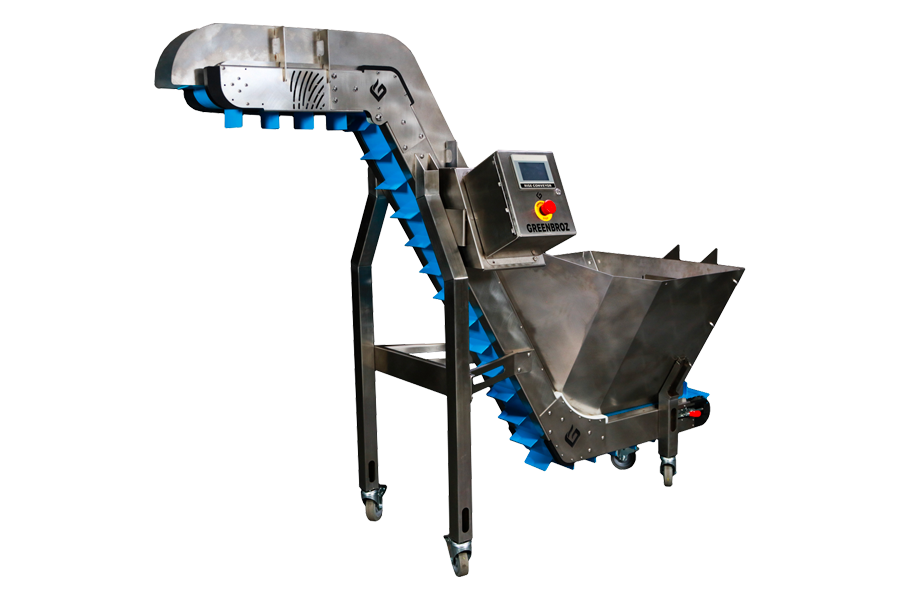

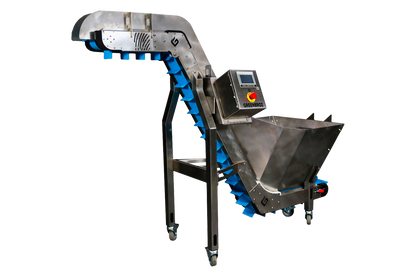

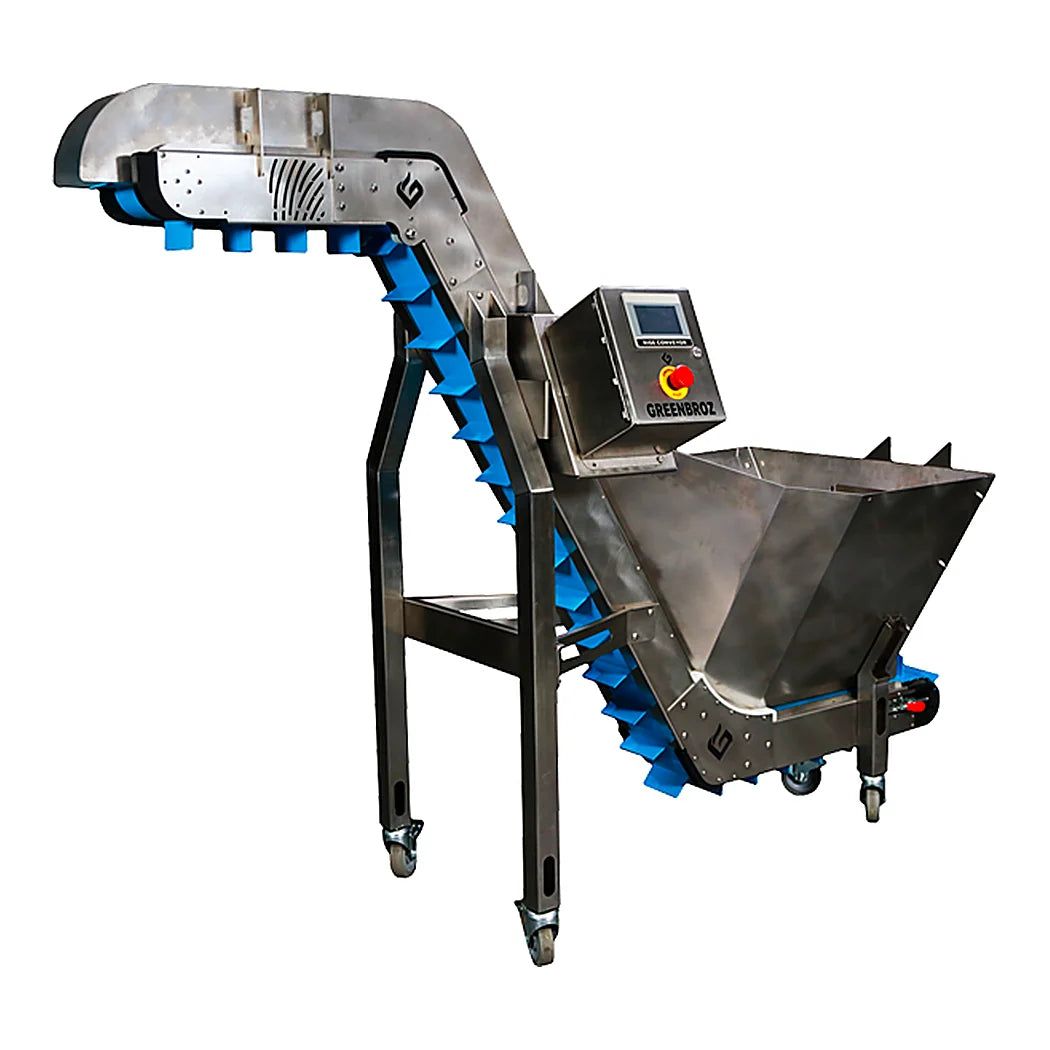

The GreenBroz Rise Conveyor as a Feed Stage

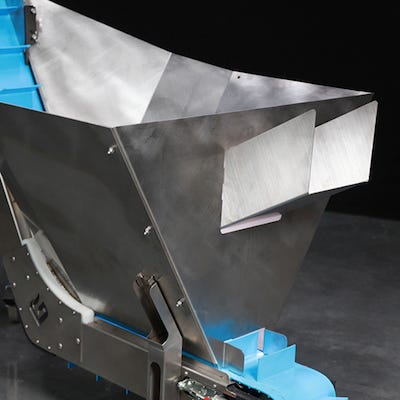

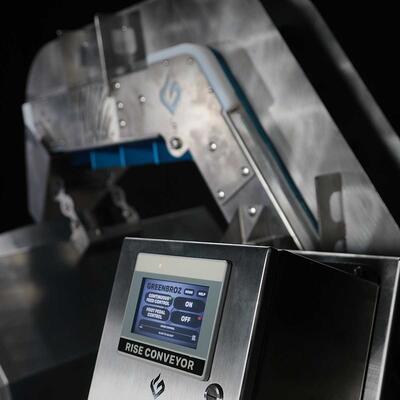

This machine does nothing to the flower. It moves it, evenly, into whatever comes next. The hopper holds around 15 lb and the belt carries over five pounds a minute when it is opened up. Speed is variable and set from an HMI touch screen, so a rate can be saved rather than rediscovered each shift. A foot pedal is available for hands-free starting and stopping. An emergency stop sits on the frame. Materials are the part worth reading twice: 316 surgical stainless, 304 food grade stainless, 6061-T6 aluminium, HDPE and polyurethane. The motor is quiet and rated for washdown, which matters because resin gets everywhere. The stand supports itself and needs no frame built around it. Supply is 110VAC at 60 Hz, drawing 3 amps and 330 watts.
Where a Hopper Conveyor Earns Its Place

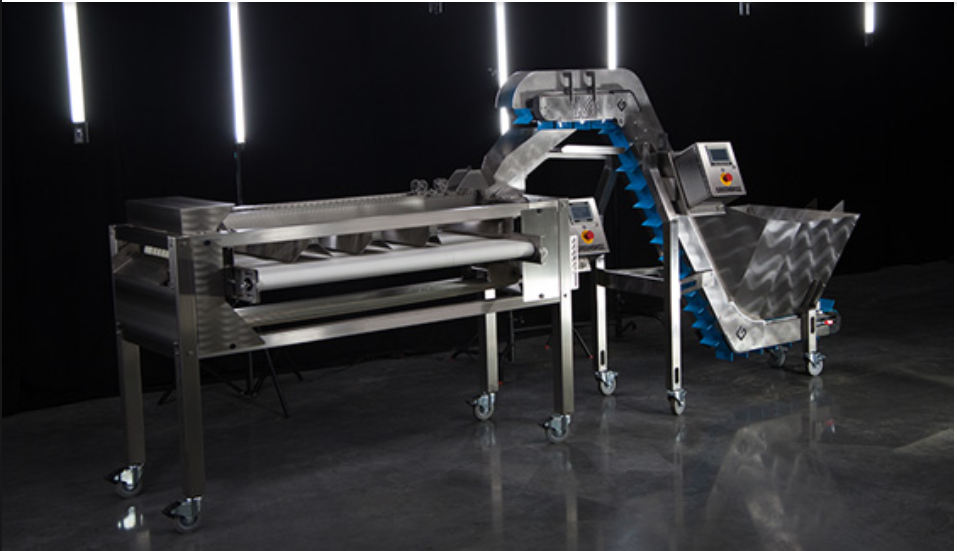

Hand-feeding is the hidden bottleneck in most post-harvest lines. A trimmer will take what you give it, and what a person gives it varies from minute to minute across a shift. Metered feed means the machine downstream sees a steady load instead of a surge and a gap. That evens out the work the trimmer is doing and, with it, the result. Fewer hands on the material is the other argument. Every transfer costs trichomes, and a belt transfers once where a person transfers twice. GreenBroz build it to pair with their Precision Sorter and their trimmers. A belt is a belt, though, and it will feed whatever sits under the drop. The honest limit is the footprint and the money. At roughly 36 in wide, 63 in high and 82 in long, weighing 200 lb, this needs floor space planned in advance. Warranty runs three years and it is built in the USA.
Key Features
- Hopper: Holds around 15 lb of dried flower
- Feed rate: Over five pounds a minute at full speed
- Control: HMI touch screen with variable speed settings
- Foot pedal: Optional, for hands-free starting and stopping
- Materials: 316 and 304 stainless, 6061-T6 aluminium, HDPE, polyurethane
- Motor: Quiet running and rated for washdown
- Stand: Self supporting, no external frame needed
- Safety: Emergency stop on the frame
- Warranty: Three years from GreenBroz, built in the USA
Technical Specifications
| Specification | Value |
|---|---|
| Model | GBRC, Rise Conveyor |
| Hopper capacity | About 15 lb |
| Feed rate | 5+ lb per minute |
| Speed control | Variable, set from an HMI touch screen |
| Foot pedal | Optional |
| Construction | 316 stainless, 304 stainless, 6061-T6 aluminium, HDPE, polyurethane |
| Motor | Quiet, washdown ready |
| Electrical | 110VAC / 60 Hz / 3 A / 330 W |
| Dimensions | 36 in W x 63 in H x 82 in L |
| Weight | 200 lb |
| Stand | Self supporting |
| Safety | Emergency stop |
| Warranty | 3 years |
| Origin | Made in the USA |
