AC Infinity 2x4 Grow Tent Mounting Bars - 4 Steel Bars, 45.54 and 21.81 in, Clamps

AC Infinity 2x4 Mounting Bars for Rectangular Tents

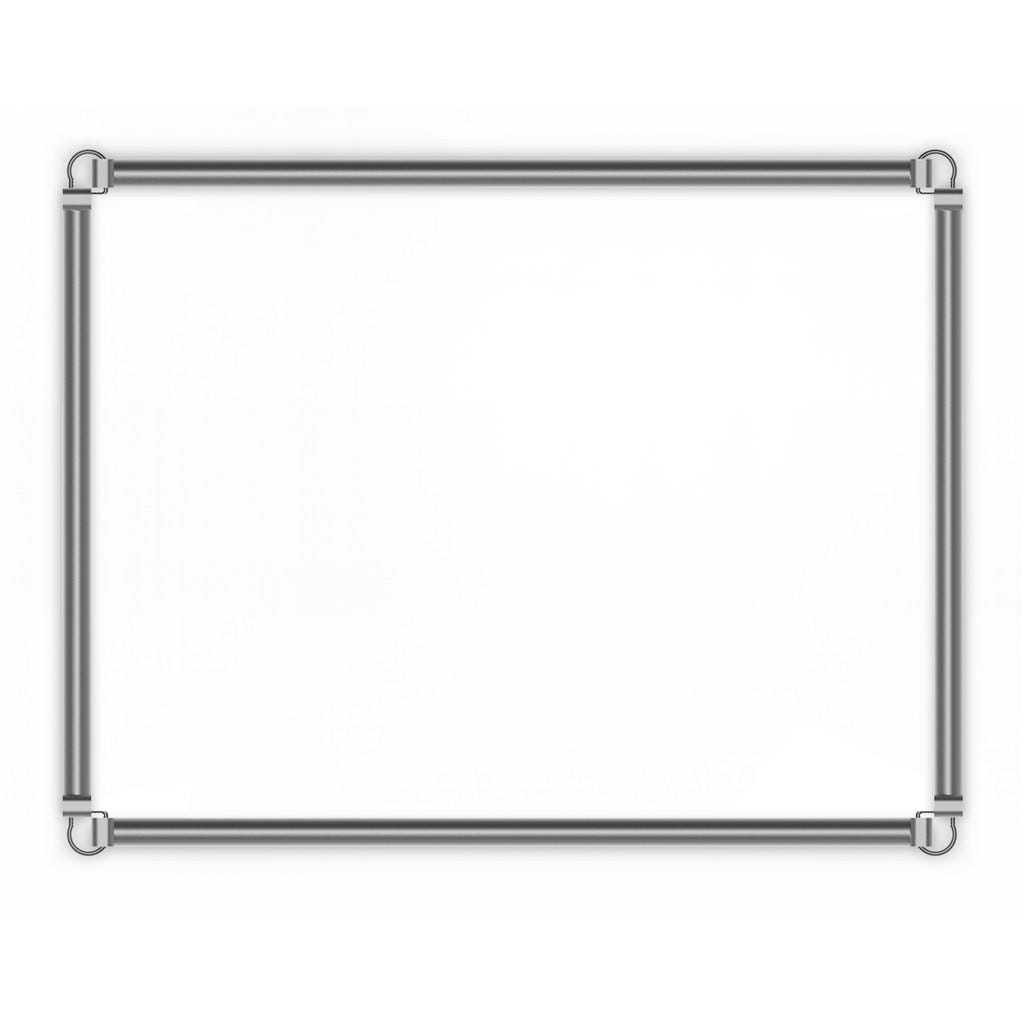

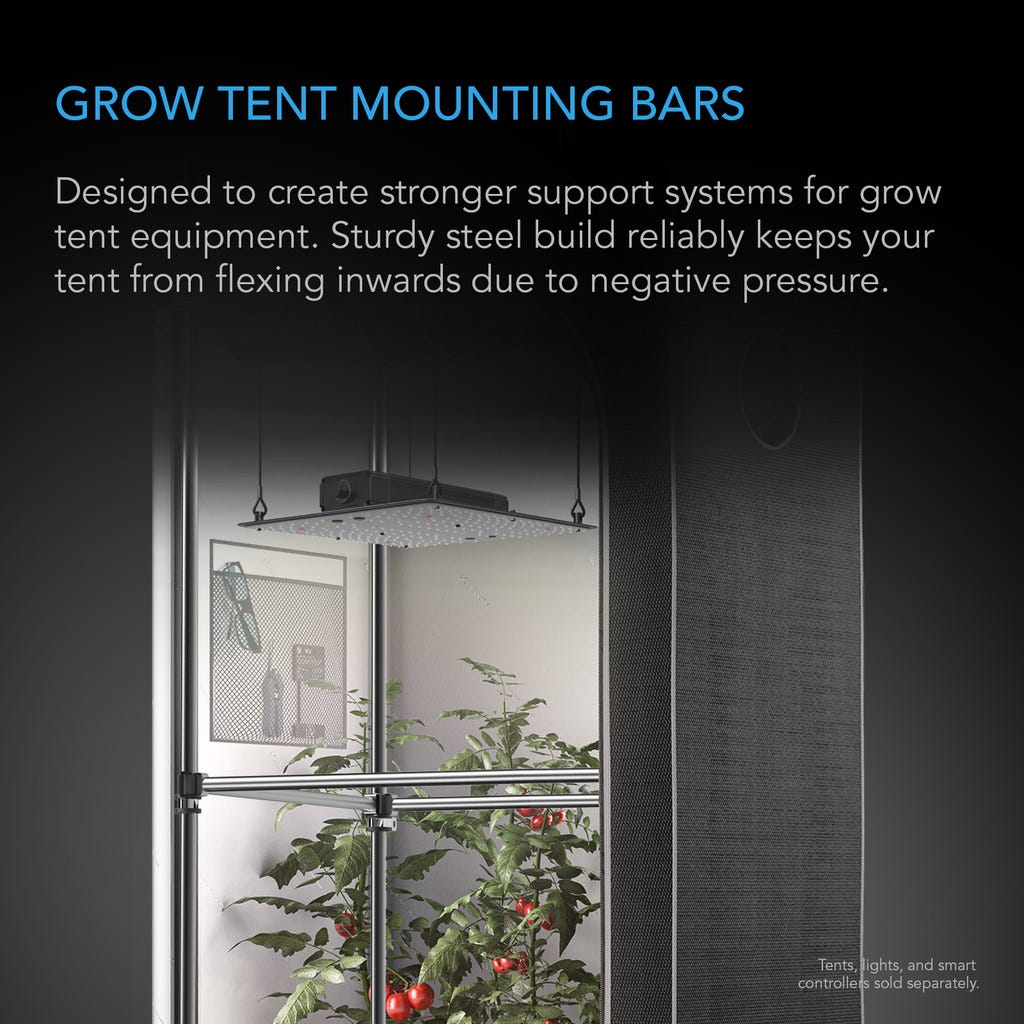

A 2 x 4 ft tent has two long sides and two short ones, and this kit matches both. It holds four gray steel bars, with lengths of 45.54 in and 21.81 in. The long bars span the 4 ft sides, while the short bars cross the 2 ft ends. Together they can frame a rectangle at any height inside the tent. That frame carries clip fans, trellis netting and drying racks above or within the canopy. Supplemental lights can attach magnetically to run as side lighting between plants. Each bar fastens to the poles with hook-and-loop straps and adhesive silicone grip pads. The straps loosen and retighten, so the frame rises as the plants get taller. On an AC Infinity CLOUDLAB tent, a single bar is rated for up to 2 lb. Adding a support clamp under it raises that to 4 lb. Clamps come in two sizes, four for poles of at least 16 mm and four for 22 mm and up. The box also holds eight straps, eight thin pads, eight thick pads and eight screws with nuts. The steel is thick and resilient, and AC Infinity covers the kit for two years.

Building a Trellis Frame with Tent Accessory Bars

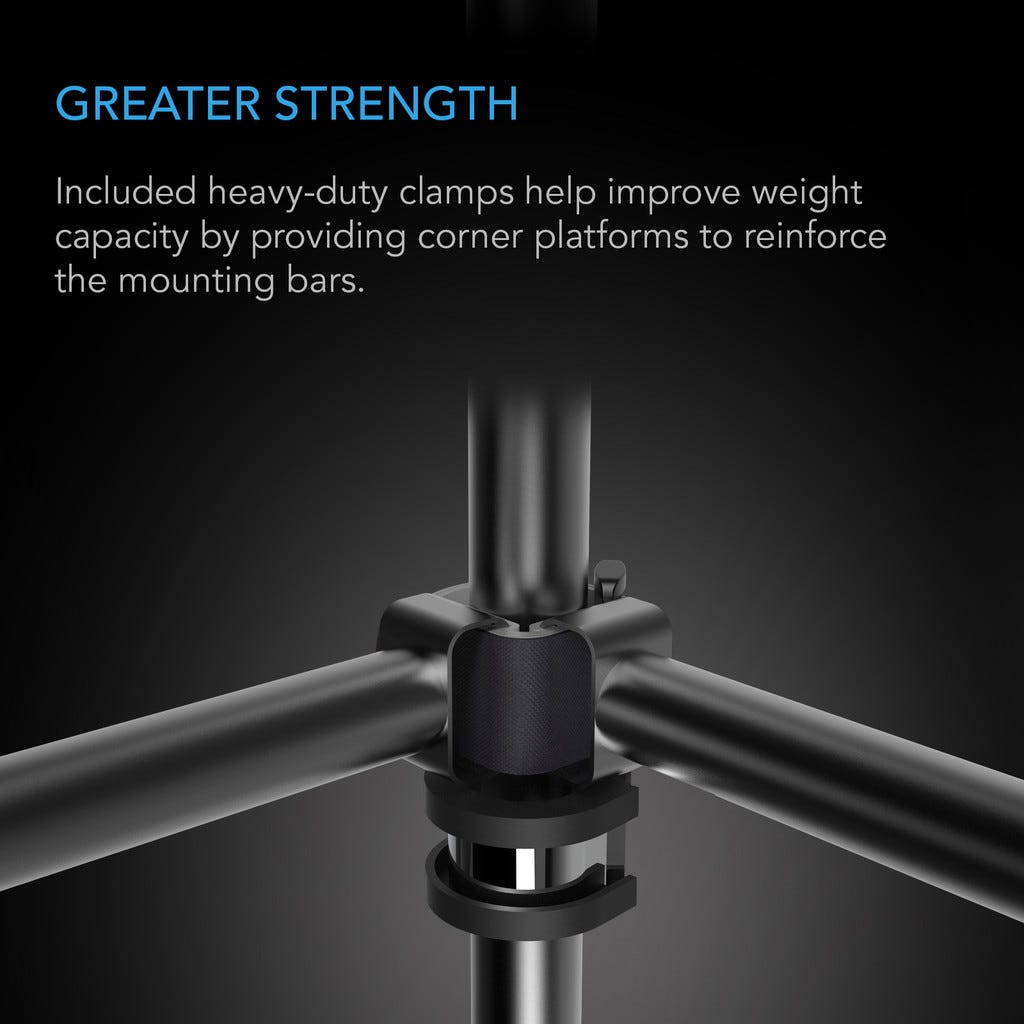

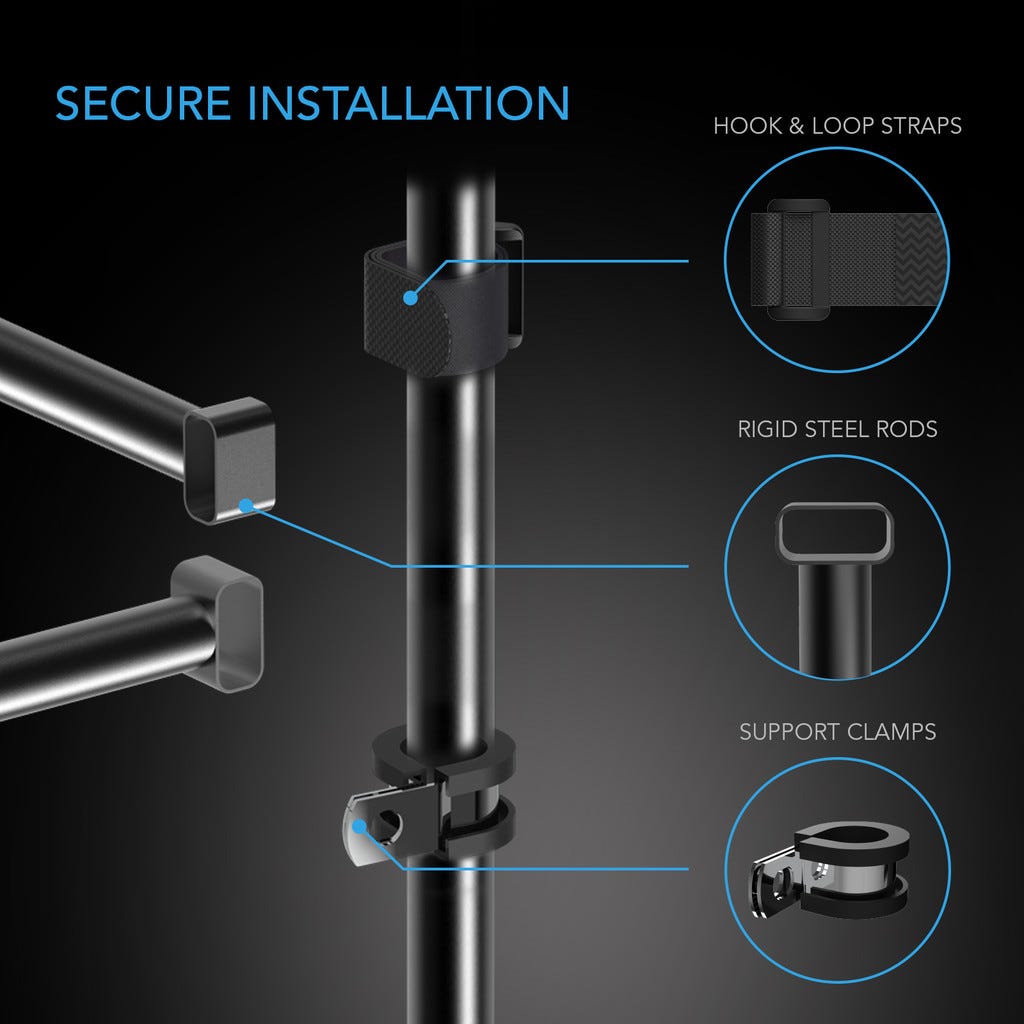

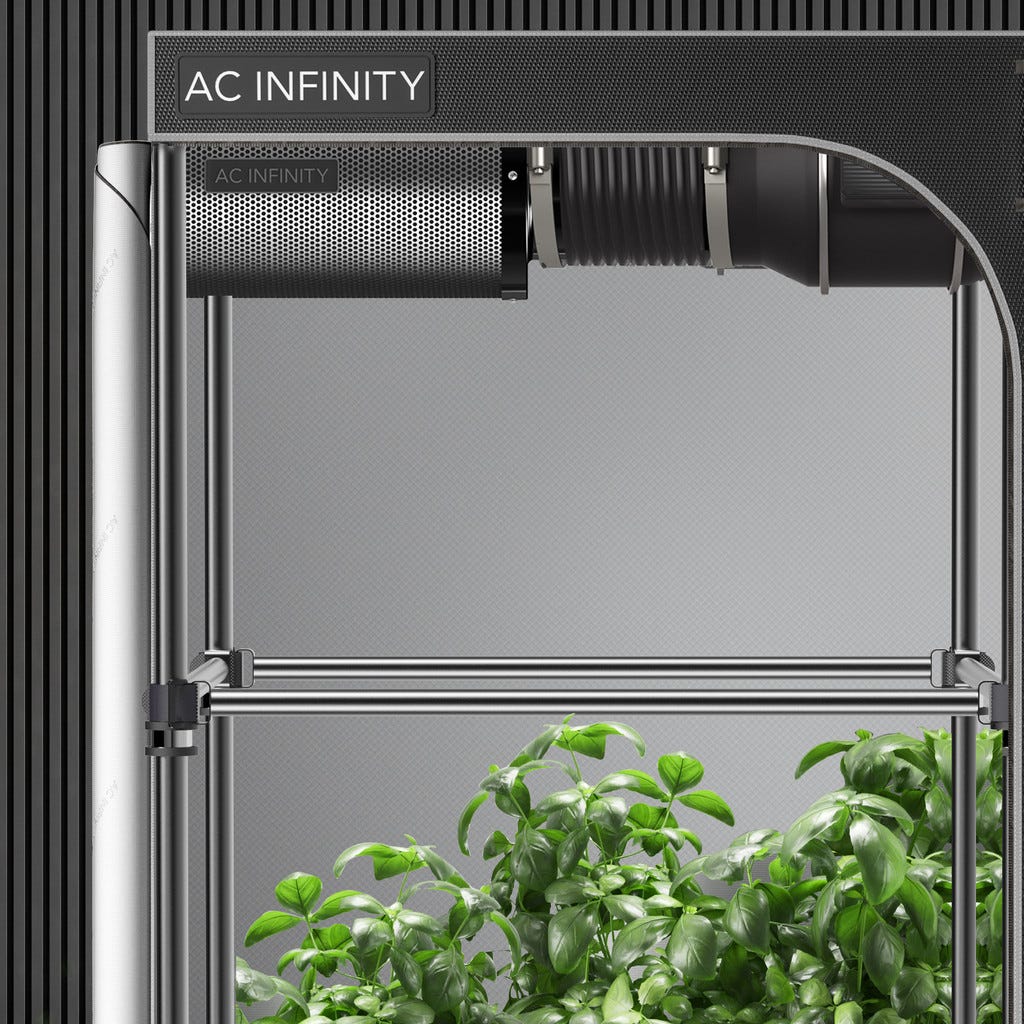

Pull the tent walls off before starting, so each pole is easy to reach. Fix matching silicone pads to both ends of every bar for a snug fit. Run a strap through the bar end slot with the buckle facing out and the pad facing in. Loop it around the pole, back through the buckle, and cinch it down. Where two bars share a pole, one strap can pass through both openings. Choose the clamp that fits the pole, close it around the bar and tighten the screw. Set each clamp with its flat side parallel to the wall. Two long bars at canopy height make the rails for a full-length trellis net. Add the short bars across the ends to keep the net square. Stack a second frame higher up to support a second net in flower. A long bar near the top makes a solid rail for a pair of clip fans. These bars are not a substitute for the roof bars that carry the main light. Keep LED grow lights and heavy ventilation on the tent's own roof frame. Follow the attached manual for the full step-by-step install.

Key Features

• Two Lengths: 45.54 in and 21.81 in bars match the long and short sides.
• Up to 4 lb per Bar: 2 lb alone, 4 lb with a clamp, on a CLOUDLAB tent.
• Eight Clamps: Two sizes, for poles of 16 mm or more and 22 mm or more.
• Height Adjustable: Hook-and-loop straps move the frame up as plants grow.

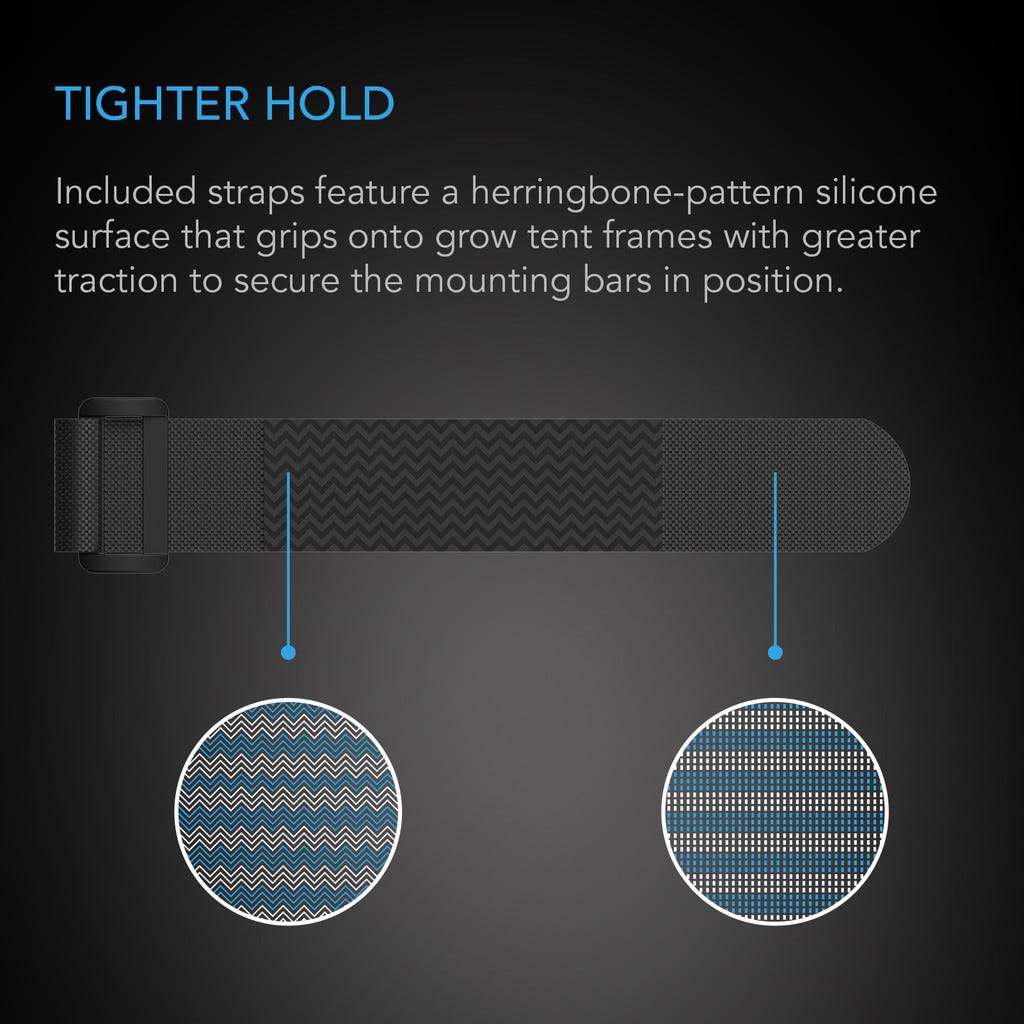

• Silicone Grip Pads: Thin and thick pads keep each bar from sliding.
• Trellis Ready: Frames a full-length net across the tent.

Technical Specifications
