AC Infinity 5x5 Grow Tent Mounting Bars - 4 Steel Bars, 57.24 in, with Support Clamps

AC Infinity 5x5 Mounting Bars for Large Tents

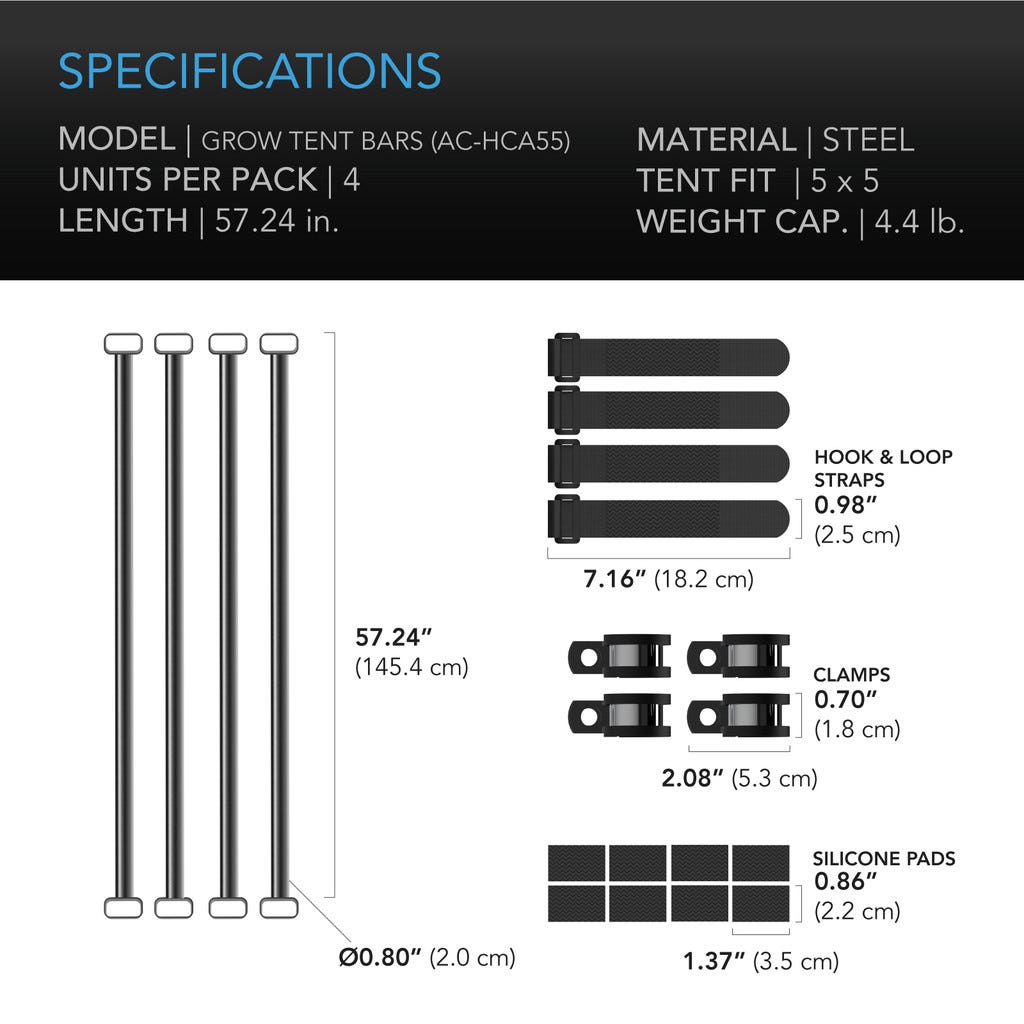

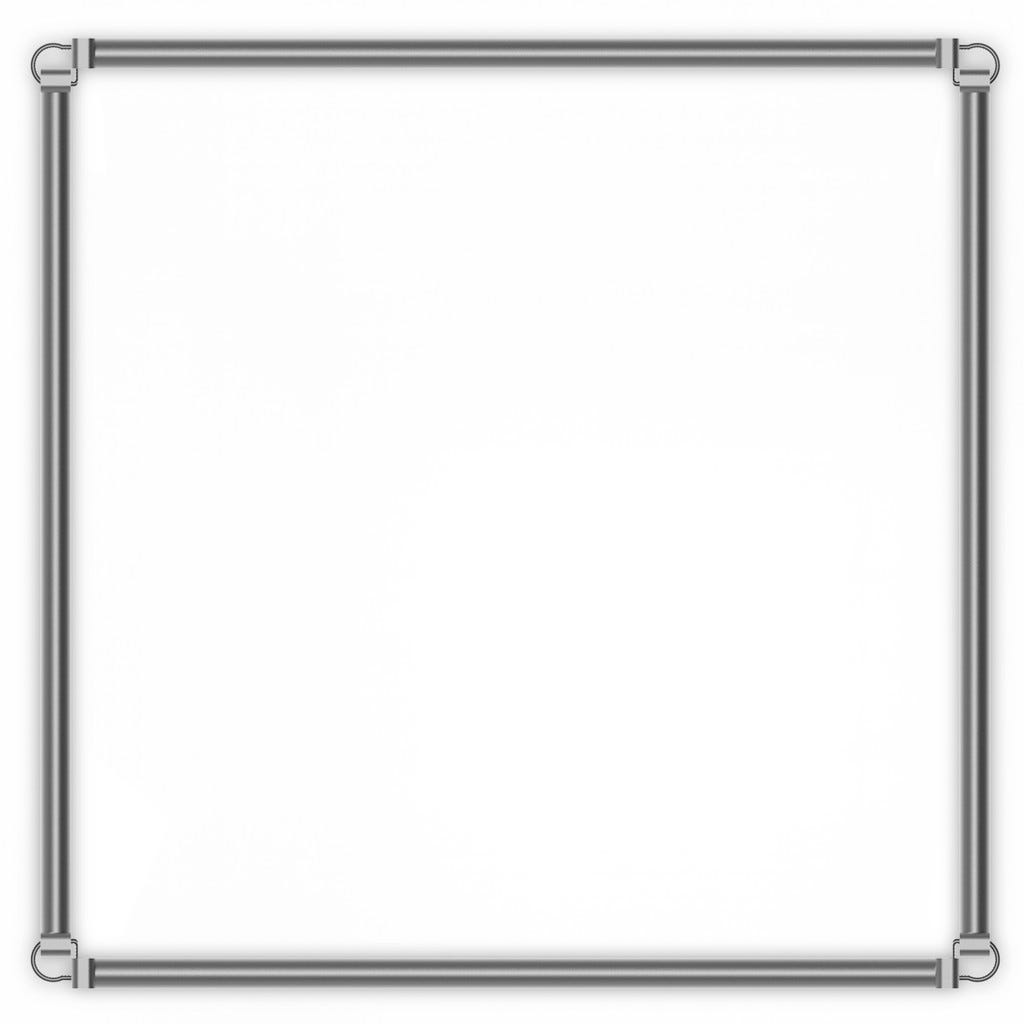

Each of the four steel bars in this kit is 57.24 in long, matched to the sides of a 5 x 5 ft grow tent. Mounted one per side, they form a frame around a canopy that can hold several large plants. That frame gives a wide trellis net a level edge to stretch from. Clip fans can sit on any wall, aimed into the middle of a big canopy where air tends to stall. After harvest, the same bars carry drying racks across the open tent. Supplemental lights mount to them magnetically for side lighting into the lower branches. Hook-and-loop straps and adhesive silicone grip pads hold each bar to the frame poles. Release the straps to move the whole frame as plants gain height. On an AC Infinity CLOUDLAB tent, each bar is rated for up to 2 lb by itself. Fit a support clamp beneath it and the rating doubles to 4 lb. The box holds eight clamps, four for poles of at least 16 mm and four for 22 mm and up. It also includes eight straps, eight thin pads, eight thick pads and eight screws with nuts. The bars are thick, resilient gray steel, covered by a two-year AC Infinity warranty.

Rigging Tent Hanging Bars Across a Large Canopy

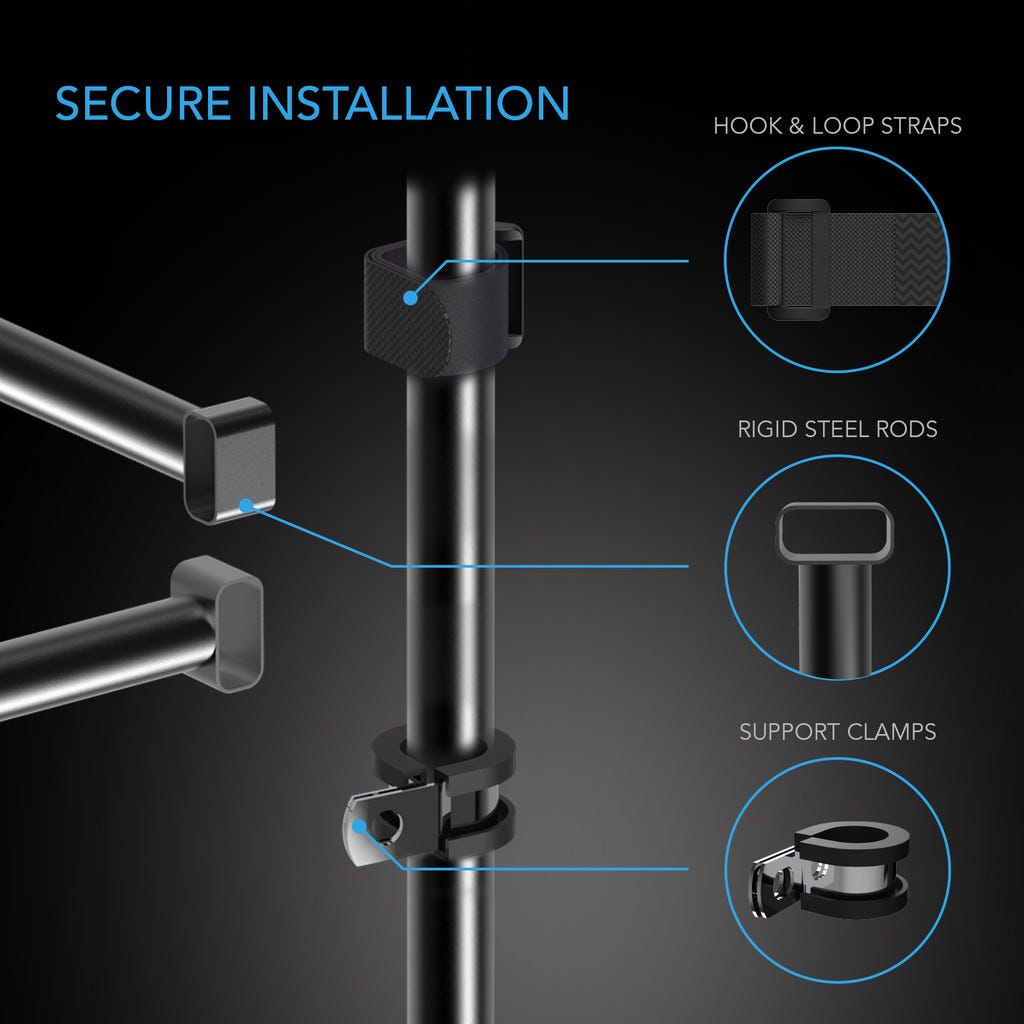

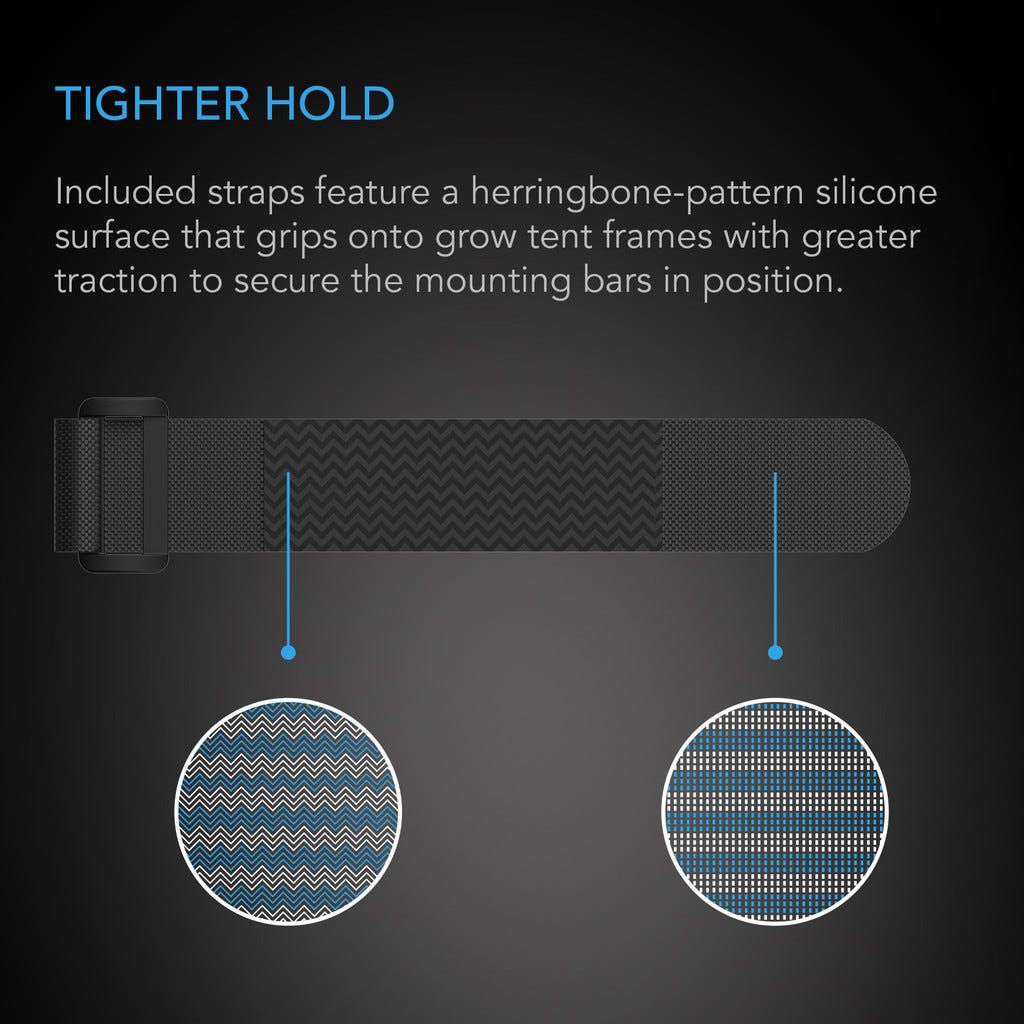

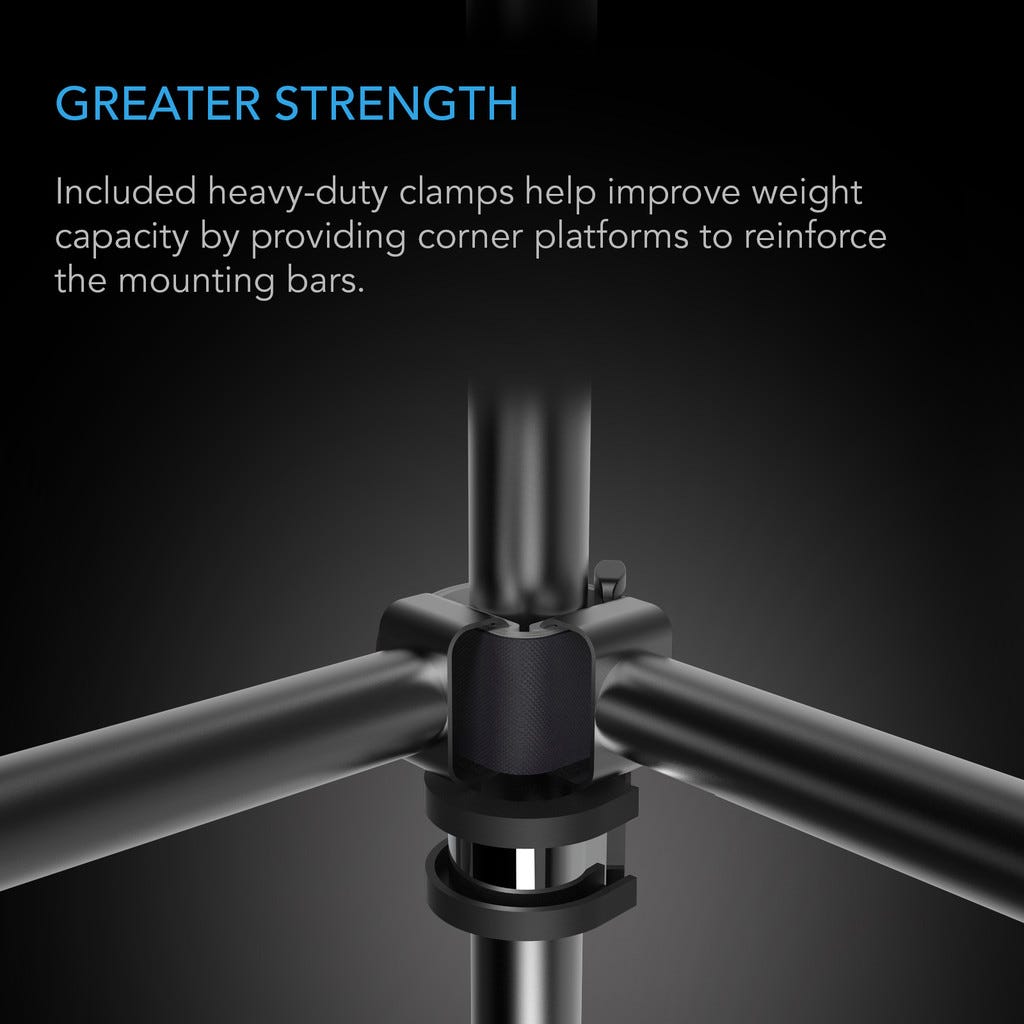

Take down the tent walls so all four corner poles are open to work on. Apply the same pad thickness to both ends of each bar for an even, snug fit. Thread each strap through the end slot with the buckle out and the padding against the bar. Loop the pole, run the strap back through the buckle and pull it tight. Two bars that meet at a corner can share one strap through both openings. Clamp each bar with the clamp size that fits the pole, then tighten the screw. Keep the flat side of every clamp parallel to the wall. A span this wide carries a lot of netting, so use clamps on every bar that holds a net. Set a lower net early in veg and add a second frame higher before flower. Hang one clip fan per wall at canopy height to keep air moving through the center. When the crop is cut, raise the frame and use it as the base for drying racks. Never let these bars stand in for the roof bars that carry the main light. LED grow lights, inline fans and carbon filters stay on the tent's roof frame. See the attached manual for each step of the installation.

Key Features

• Four 57.24 in Bars: One per side to frame a 5 x 5 ft tent.
• Up to 4 lb per Bar: 2 lb alone, 4 lb with a clamp, on a CLOUDLAB tent.
• Eight Support Clamps: Two sizes for 16 mm and 22 mm poles and up.
• Adjustable Frame: Hook-and-loop straps move the bars up as plants grow.
• Silicone Grip Pads: Thin and thick pads hold each bar in place.
• Wide Trellis Frame: Gives a large net a level edge on all four sides.
