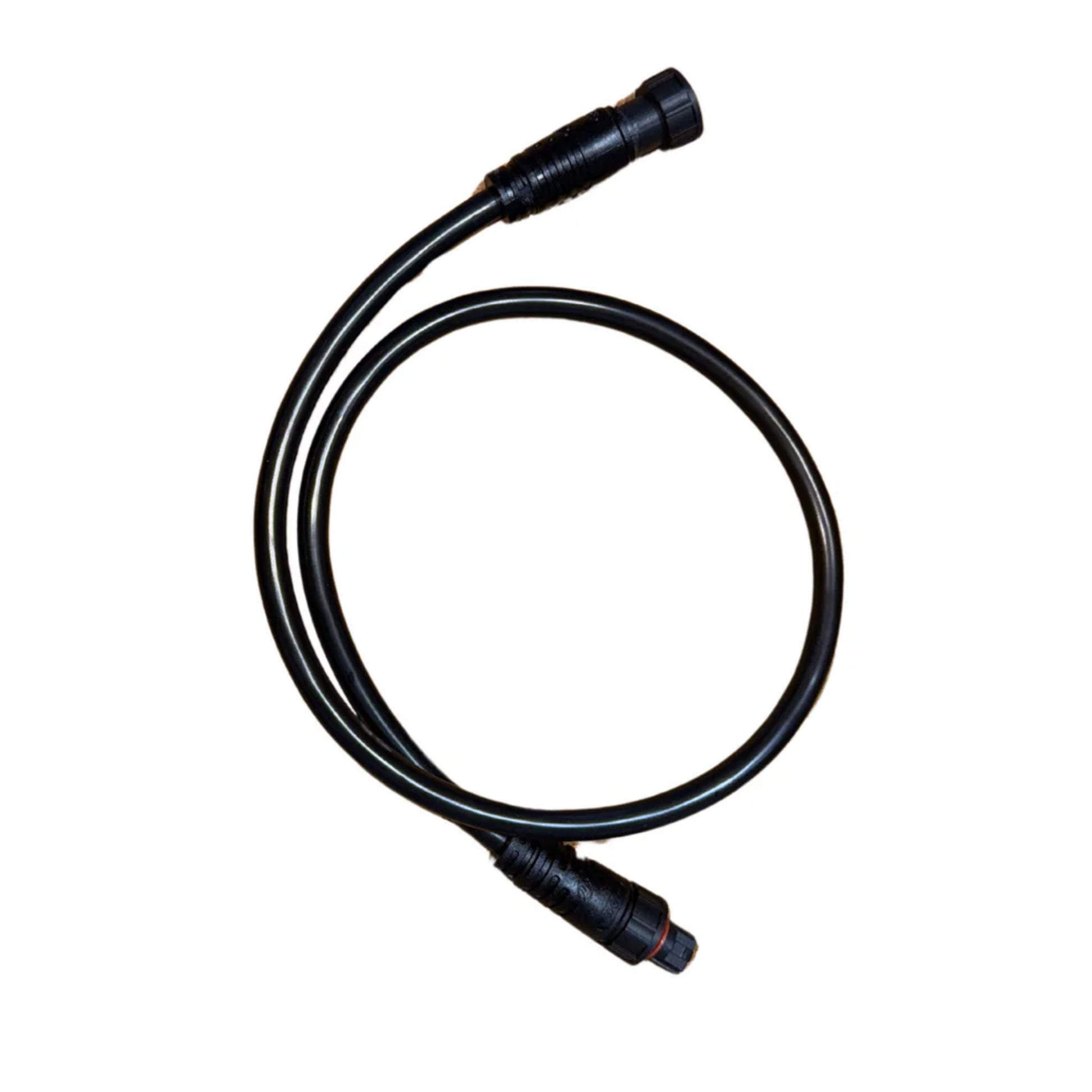

Under canopy daisy chain cable for gaps and U-turns
The interconnecting cords plug into Growers Choice Under Canopy bars to bridge a gap of up to 4 ft. They also fold a run back on itself as a U across a two-row bench. Power and data travel through the same connection, so no separate signal wire is needed. Growers use them where fixtures do not sit end to end, keeping one continuous daisy chain instead of separate circuits.
How the interconnecting cords wire a full run
Because the Under Canopy bars already link end to end, these cords are only needed for spacing or U-turns. These bars run wide-voltage from 120-277V up to 277-480V, and the cords pass that power straight through. One thing to plan: the bridge tops out around 4 ft, so fixtures spaced wider than that need a different layout. IP65 connectors shrug off overspray.
Key Features
- Bridges Up to 4 ft: Spans a gap of up to 4 ft between Under Canopy bars in a run.
- U-Turn Wiring: Folds a row back on itself for two-row layouts on one bench.
- Power and Data in One: Carries both power and the daisy-chain signal through a single connection.
- IP65 Connectors: Waterproof connections resist overspray and floor-level humidity.
- Growers Choice Fit: Plugs directly into Growers Choice Under Canopy LED bars.
Technical Specifications
| Specification | Value |
|---|---|
| Type | Under-canopy interconnecting cord |
| Function | Bridge gaps or create U-turns in a run |
| Max Bridge Length | Up to 4 ft |
| Carries | Power + data (single connection) |
| Connector | IP65 waterproof |
| Voltage Pass-Through | 120-277V / 277-480V |
| Compatibility | Growers Choice Under Canopy LED bars |
| Sold | Separately |
