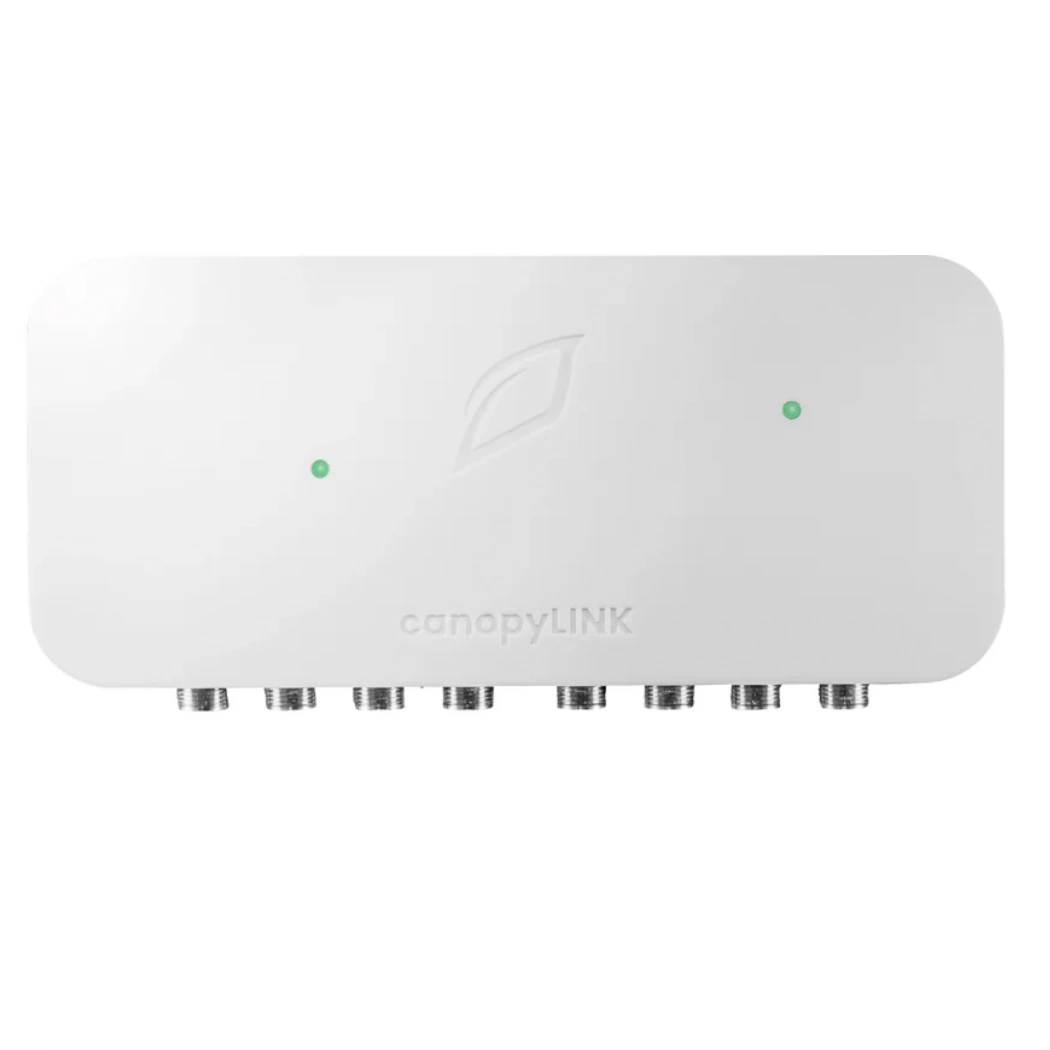

Growlink canopyLINK Sensor HUB for Eight-Channel Canopy Data Collection
The Growlink canopyLINK Sensor HUB consolidates up to eight substrate, climate, or light sensors into one node on the Growlink platform. Each sensor lands on its own M8 port with automatic addressing, so swapping or expanding sensors doesn't require manual channel configuration. Input runs 24VDC at 5W from the included AC/DC supply, with operating range covering 50–122°F (10–50°C) and 0–75% RH non-condensing. The unit ties to a Growlink HUB through the included 10-foot RJ-45 cable or transmits over Wi-Fi for hub-free installs. The water-resistant housing handles greenhouse and indoor agricultural environments without enclosure-grade protection added separately.
Substrate, Climate, and Light Inputs Into One Multi-Sensor Monitoring Hub
Mix sensor types per project as needed. TerraLINK substrate probes on M8 ports 1–3 read root-zone VWC, EC, and temperature. ClimaLINK climate sensors on 4–5 cover temp, RH, and VPD. A PAR sensor on 6 captures canopy light intensity. Place the hub close enough to the canopy that sensor cables aren't strained — auto-addressing handles port assignment regardless of plug position. SDI-12-compatible third-party sensors land on the same M8 ports, which keeps existing greenhouse instrumentation usable instead of forcing a full sensor swap. Registering as a single device in Growlink OS, the multi-sensor monitoring hub frees up regular HUB ports for actuators like valveLINK and quadLINK. The trade-off is that the hub doesn't switch loads itself. Every output decision still routes through Growlink OS or Copilot rules on the broader platform.
Key Features

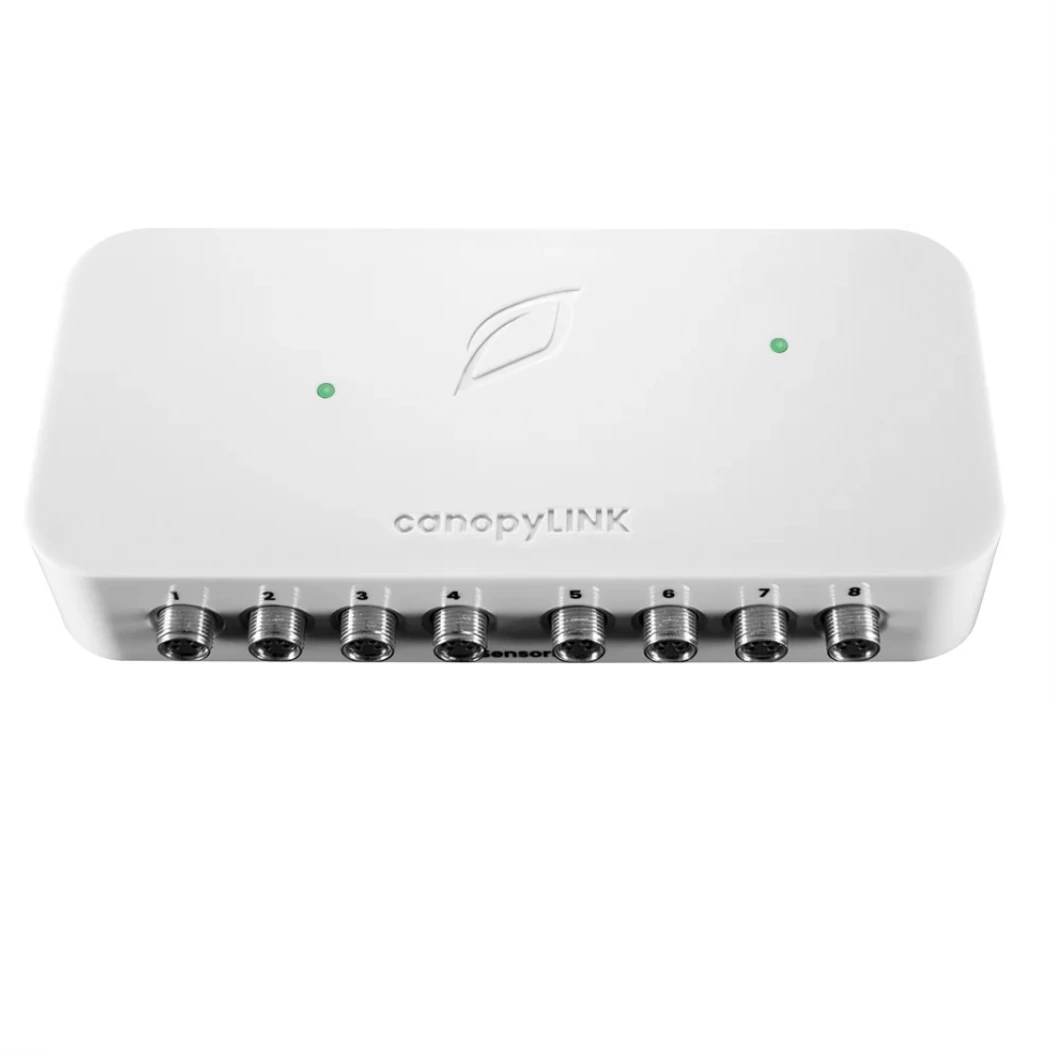

- 8 M8 Sensor Ports with Auto-Addressing: Mix substrate, climate, and light sensors on any port — the hub handles channel assignment automatically.
- Growlink + SDI-12 Sensor Compatibility: Run TerraLINK and ClimaLINK natively, or wire in compatible third-party SDI-12 instruments without firmware changes.
- Wi-Fi or Wired HUB Connection: Pair over Wi-Fi for hub-free installs or plug into a Growlink HUB via the included 10-foot RJ-45 cable.
- Single-Device Registration in Growlink OS: The hub appears as one device, freeing regular HUB ports for actuators like valveLINK and quadLINK.
- Water-Resistant Housing: Built for greenhouse and indoor cultivation with serviceable construction and standard mounting hardware.
Technical Specifications
| Specification | Value |
|---|---|
| Input Power | 24VDC, 5W |
| Sensor Inputs | 8× M8 ports (auto-addressing) |
| Sensor Compatibility | Growlink TerraLINK / ClimaLINK + SDI-12 |
| Connectivity | Wi-Fi (standalone) or RJ-45 to Growlink HUB |
| Operating Temperature | 50–122°F (10–50°C) |
| Operating Humidity | 0–75% RH (non-condensing) |
| Enclosure | Water-resistant housing |
| Dimensions | 7.75" × 7.75" × 3.75" |
| OS Footprint | Registers as a single device in Growlink OS |
| Included Hardware | AC/DC power supply, mounting kit, 10-foot RJ-45 cable |
| Country of Origin | Made in USA |
