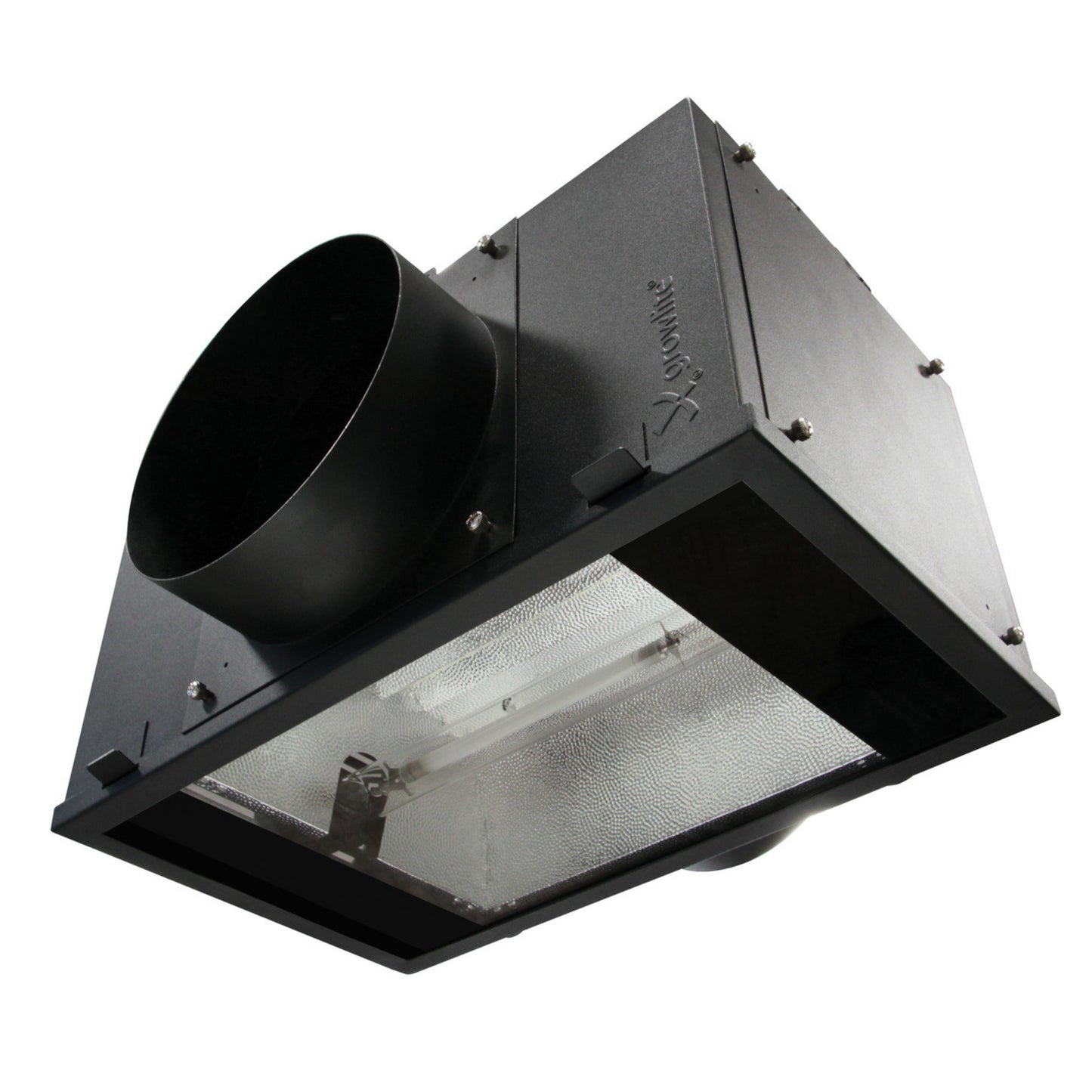

An 8-inch double-ended reflector with selectable cooling
The HDE runs a double-ended HPS lamp from 400 to 1000W. At the 8-inch flanges you get four field-selectable options: sealed, air-cooled with a lens, or open without one. Concealed Vacuum Airflow Technology hides the ducts so the parabolic hood uses 100% of its surface, adding about 30% more reflective area than open-duct designs. That translates to more uniform light over the canopy for indoor or greenhouse rooms. Growers running the 1000W lamp air-cool it with a 650 to 875 CFM fan to clear the roughly 3700 BTU it throws off.
Cooling and build on the HDE reflector
The hood is heavy-duty 22-gauge steel, powder-coated inside and out, with a 1/8-inch tempered glass lens behind a removable door for quick re-lamping and cleaning. Redesigned K12x30S sockets make swapping DE lamps easy. It ships with a 15 ft cord and ballast plug plus a pair of mounting V-hooks, and it is UL listed for damp locations. One note: the body is 17.5 x 10.5 x 9.75 inches, so add about 5 inches when the 8-inch ducts are fitted.
Key Features
- Selectable Cooling: 4-way 8-inch flanges for sealed, air-cooled, or open operation.
- 400-1000W DE HPS: Runs double-ended HPS lamps from 400 to 1000W.
- Concealed Vacuum Airflow: Hidden ducts use 100% of the hood for even light.
- +30% Reflective Area: No open ducts adds about 30% more reflective surface.
- 22-Gauge Steel: Heavy-duty hood, powder-coated inside and out.
- Tempered Glass Lens: 1/8-inch glass behind a removable door for easy access.
- K12x30S Sockets: Redesigned DE sockets make re-lamping quick.
- Air-Cooling Guidance: 650-875 CFM fan clears 3700 BTU at 1000W.
- UL Damp-Rated: Listed for damp locations; ships with cord and V-hooks.
Technical Specifications
| Specification | Value |
|---|---|
| Type | Double-ended air-cooled reflector |
| Model | GLH-HDE-8 |
| Duct Size | 8 in (4-way field-selectable) |
| Cooling Modes | Sealed, air-cooled, non-air-cooled |
| Lamp Type | DE HPS (standard or high-frequency) |
| Wattage | 400-1000W |
| Socket | K12x30S (double-ended) |
| Reflector Tech | Concealed Vacuum Airflow (parabolic) |
| Reflective Surface | Fine hammertone, +30% area (no open ducts) |
| Construction | 22-gauge steel, powder-coated in/out |
| Lens | 1/8 in tempered glass (removable door) |
| Heat Output | 3700 BTU (1000W) / 2200 BTU (600W) |
| Recommended Fan | 650-875 CFM |
| Cord | 15 ft with ballast plug |
| Mounting | 1 pair V-hooks |
| Certification | UL listed (damp locations) |
| Dimensions | 17.5 x 10.5 x 9.75 in (+5 in with ducts) |
| Weight | 15 lb (6.8 kg) |
